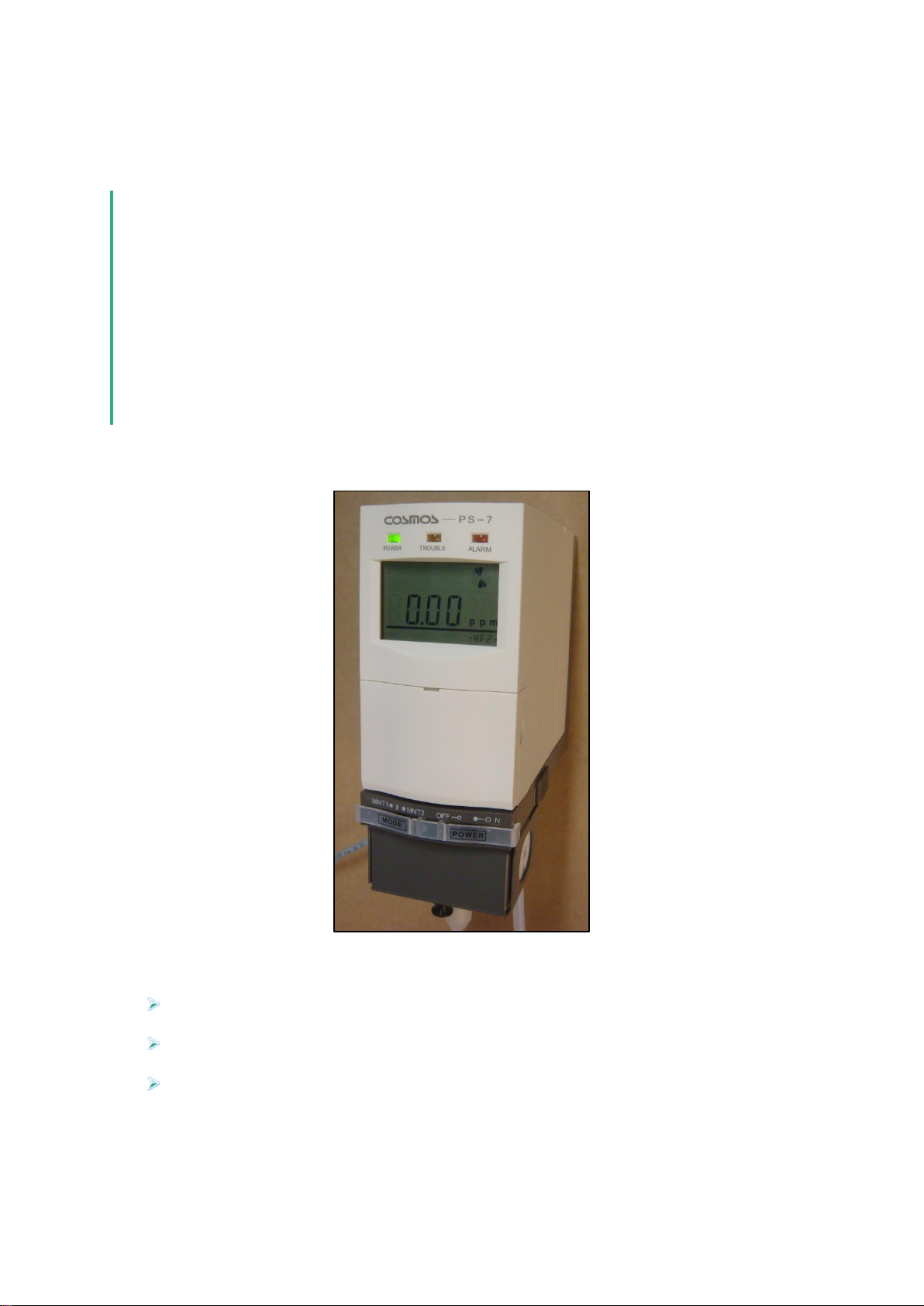

Cosmos PS-7 Manuel utilisateur
New Cosmos - BIE
Instruction Manual
Gas detector PS-7 with pyrolyzer unit (PS-7-030-PU)
Be sure to store this instruction manual in a convenient location, and consult it
whenever necessary.
Operate this unit only after reading and fully understanding the content of this
manual.
This instruction manual was written for the pyrolyzer unit (option). Instructions
for the basic operations of the gas detector are provided separately in the
standard operation manual. Refer to the operation manual when necessary.
© New Cosmos - BIE
Rev. 1.0.0
PS-7-030-PU pyrolyzer instruction manual
Page 2 of 7
IDENTIFICATION
This document
Title
PS-7-030-PU pyrolyzer instruction manual.
File name:
PS-7-030-PU pyrolyzer unit instruction manual ENG
rev.1.0.0.docx
Document history
Revision
Date
Revision description
Originator
1.0.0
12-06-2015
Original release
NC-BIE, FH
Copyright: New Cosmos - BIE, Heerhugowaard, 2015.
No part of this document may be reproduced in any form whatsoever without the
prior consent of the manufacturer. The contents of this document may be subject to
change without prior notice.
Equipment
This document applies to:
Name of equipment
:
Gas detector PS-7-030-PU
Pyrolyzer unit
:
PU-7
Pyrolyzer element
:
PE-7
The manufacturer
The equipment is produced by:
New Cosmos - BIE
Maxwellstraat 7
NL-1704 SG Heerhugowaard
The Netherlands
Tel: +31 (0)72 576 5630
Fax: +31 (0)72 572 1818
© New Cosmos - BIE
Rev. 1.0.0
PS-7-030-PU pyrolyzer instruction manual
Page 3 of 7
Caution
We recommend to replace the sensor unit and pyrolyzer element every
six months.
Always replace sensor unit and pyrolyzer elements that have reached
their service life.
The replacement sensor unit and pyrolyzer elements must be installed
before the shelf life has expired.
Turn off the power source before carrying out any replacements.
However, when the power switch to the main unit is turned off to replace
the sensor unit, the trouble alarm output (open collector) is also turned
off. If alarm contacts are used for interlocking with external devices, verify
that the interlock be released prior to conducting the alarm test.
© New Cosmos - BIE
Rev. 1.0.0
PS-7-030-PU pyrolyzer instruction manual
Page 4 of 7
1 PYROLYZER CHECKS
1. Pull the cover lock knob down and release the lock. And after pulling it down
further below, pull back the pyrolyzer case cover and remove it.
2. Status LED’s.
Status LED’s are mounted on the pyrolyzer driver PCB. The pyrolyzer PCB is
an integrated part of the pyrolyzer element. The pyrolyzer element contains
two pyrolyzers, its function is indicated by two LED’s. During normal operation
the status LED’s D1 & D2 must be OFF.
During a pyrolyzer failure the according LED will be ON. In case of a pyrolyzer
failure the pyrolyzer element (including driver PCB) must be exchanged.
3. Pyrolyzer voltage.
Apply a voltmeter between the two contacts marked “+”and “-”and set the
voltage to 1.5 V (+/- 0.05) by adjusting the potentiometer P1.
Note: the voltage increases by turning clockwise.
P1
LED’s
© New Cosmos - BIE
Rev. 1.0.0
PS-7-030-PU pyrolyzer instruction manual
Page 5 of 7

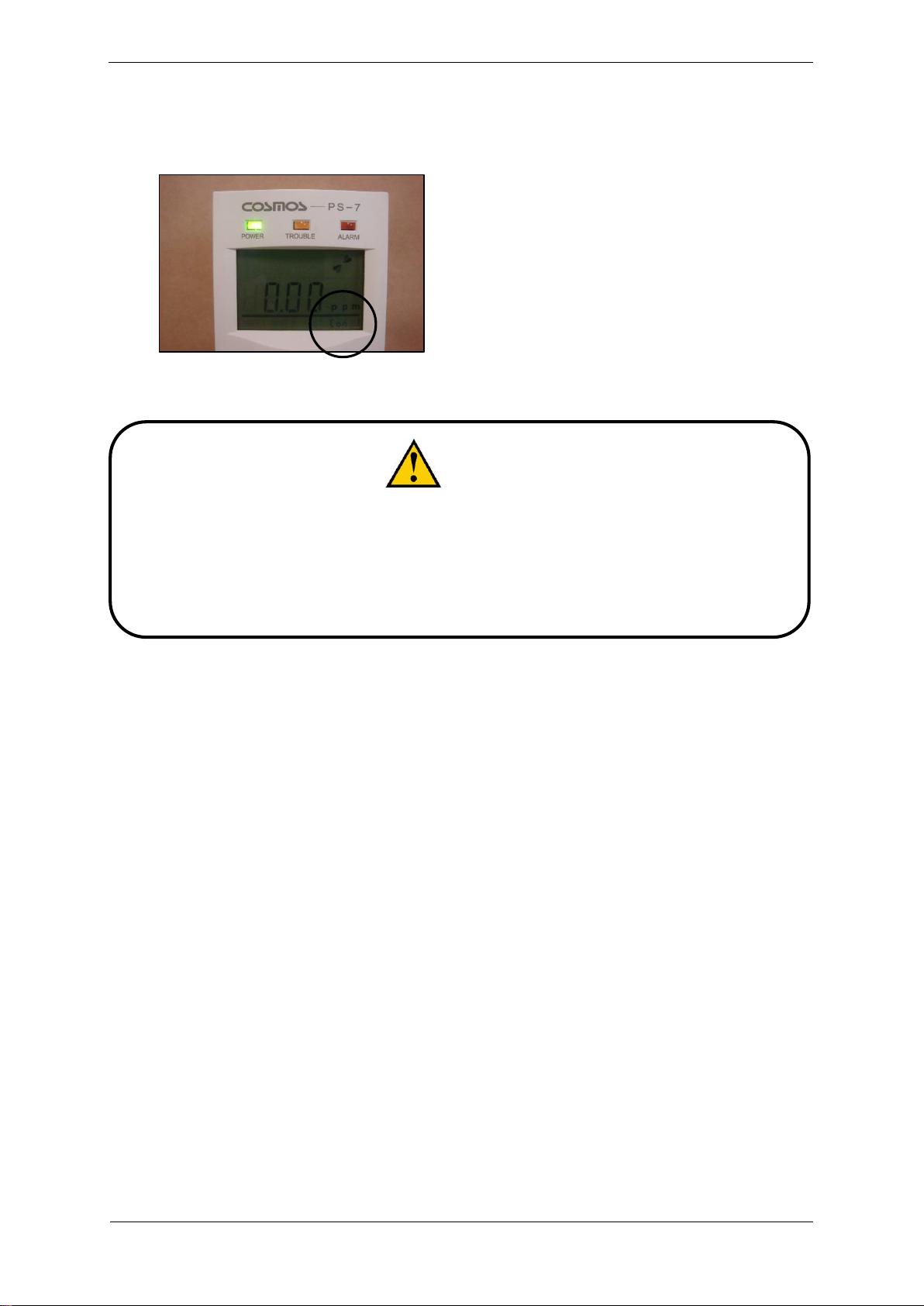

4. Pyrolyzer configuration
Press the up/ down switch on the main unit, and verify that the pyrolyzer
failure alarm is enabled (CON = 1).
Warning
Be sure to check that the pyrolyzer failure alarm is set to ON. When
regulator operations are carried out with the failure alarm OFF, the failure
alarm will not work.
© New Cosmos - BIE
Rev. 1.0.0
PS-7-030-PU pyrolyzer instruction manual
Page 6 of 7

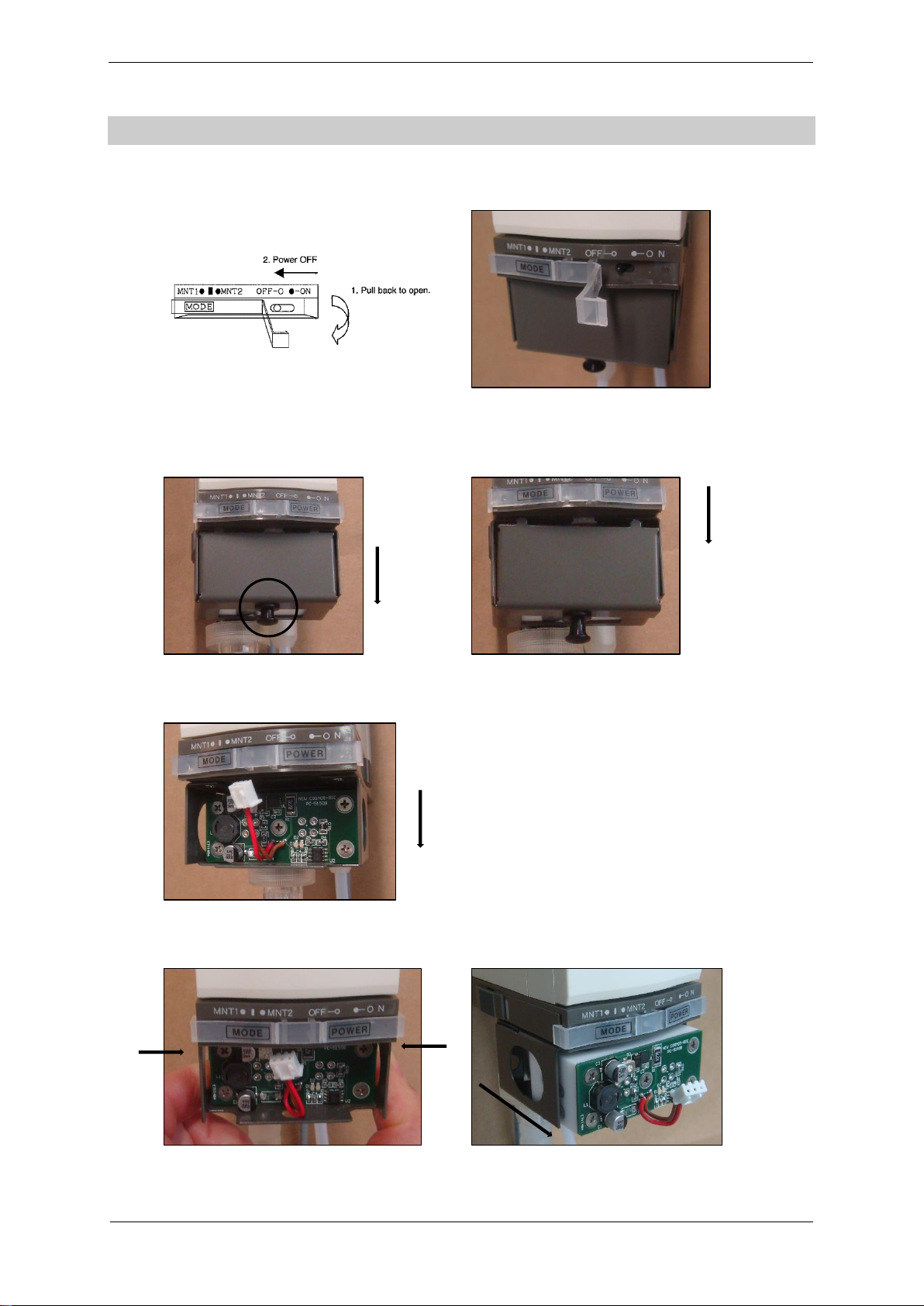

2 PYROLYZER EXCHANGE
1. Turn off the power source to the main unit
2. Pull the cover lock knob down and release the lock. And after pulling it down
further below, pull back the pyrolyzer case cover and remove it.
3. Pull out the connector.
4. Hold the both sides of the pyrolyzer assembly, and remove it from the case.
© New Cosmos - BIE
Rev. 1.0.0
PS-7-030-PU pyrolyzer instruction manual
Page 7 of 7

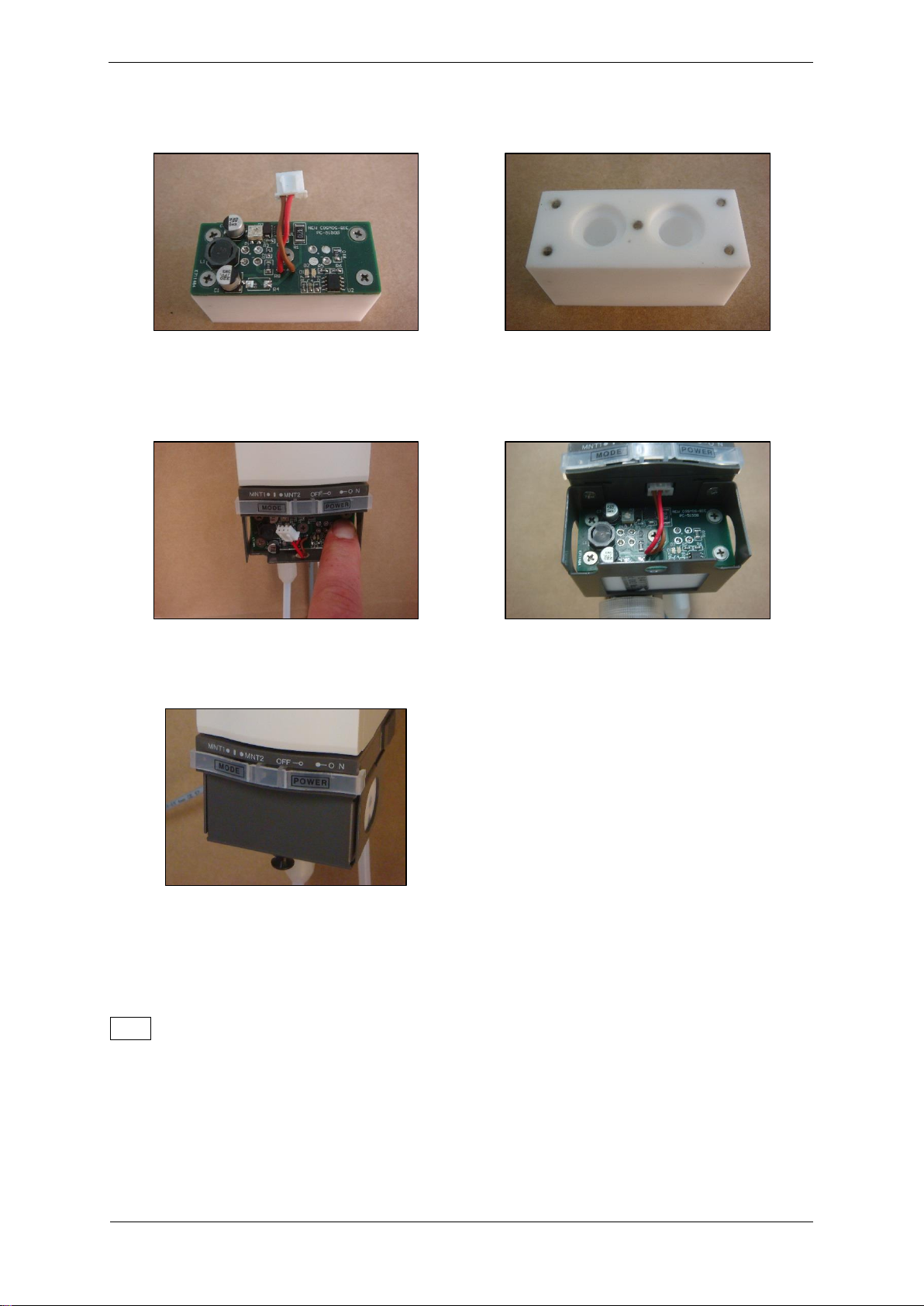

5. Exchange the pyrolyzer with a new one. The driver PCB is mounted with five
screws.
6. Insert the pyrolyzer assembly in the case. Push the green part with your finger
as shown below, and insert it completely (push it in as far as it will go).
Push the connector back into its position.
7. Re-fit the pyrolyzer case cover and push the cover lock knob upward.
Switch the main unit power ON.
Note
Please return the used pyrolyzer to your authorized dealer.
