COS-SBSR263RHSS

26.3 cu. ft. Side-by-Side Refrigerator

with Ice Maker & Water Dispenser

Refrigerator

Rev. 22.08

SAFETY&WARNINGS

WARNING: Risk of fire / flammable materials

This appliance is intended to be used in household and similar applications such as staff kitchen areas

in shops, offices and other working environments; farm houses and by clients in hotels, motels and other

residential type environments; bed and breakfast type environments; catering and similar non-retail

applications.

For EN standard: This appliance can be used by children aged from 8 years and above, special needs

persons or persons lacking experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children shall not

play with the appliance. Cleaning and user maintenance shall not be made by children without

supervision. (Europe directive optional)

For IEC standard: This appliance is not intended for use by persons (including children) with special

needs, or lack of experience and knowledge, unless they have been given supervision instruction

concerning use of the appliance by a person responsible for their safety. (Europe directive optional)

Children should be supervised so that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar

qualified persons in order to avoid hazards.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

The appliance must be be unplugged after use and before carrying out user maintenance on the

appliance.

WARNING: Risk of fire / flammable materials.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of

obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other

than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance,

unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according ID local regulation for its use flammable blowing

gas and refrigerant.

WARNING: Connect ID potable water supply only.

DO NOT use extension cords or ungrounded (two prong) adapters.

DANGER: To avoid the risk of child entrapment, before you throw away your old refrigerator or freezer,

please ensure the following steps are taken:

∙Remove all refrigerator doors.

∙Leave the shelves in place so that children may not easily climb or fit inside.

The refrigerator must be disconnected from the source of electrical supply before attempting the

installation of an accessory.

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when

the refrigerator is scraped, it shall be kept away from any fire source and be recovered by a special

recovering company with corresponding qualification other than be disposed by combustion, so as to

prevent damage to the environment or any other harm.

SAFETY&WARNINGS

This is a prohibition symbol.

Any incompliance with instructions marked with this symbol

may result in damage to the product or endanger the personal

safety of the user.

This is a warning symbol.

It is required to operate in strict observance of instructions

marked with this symbol, otherwise damage to the product or

personal injury may be caused.

This is a caution symbol.

Instructions marked with this symbol require special caution.

Insufficient caution may result in slight or moderate injury, or

damage to the product.

PROHIBITION

WARNING

CAUTION

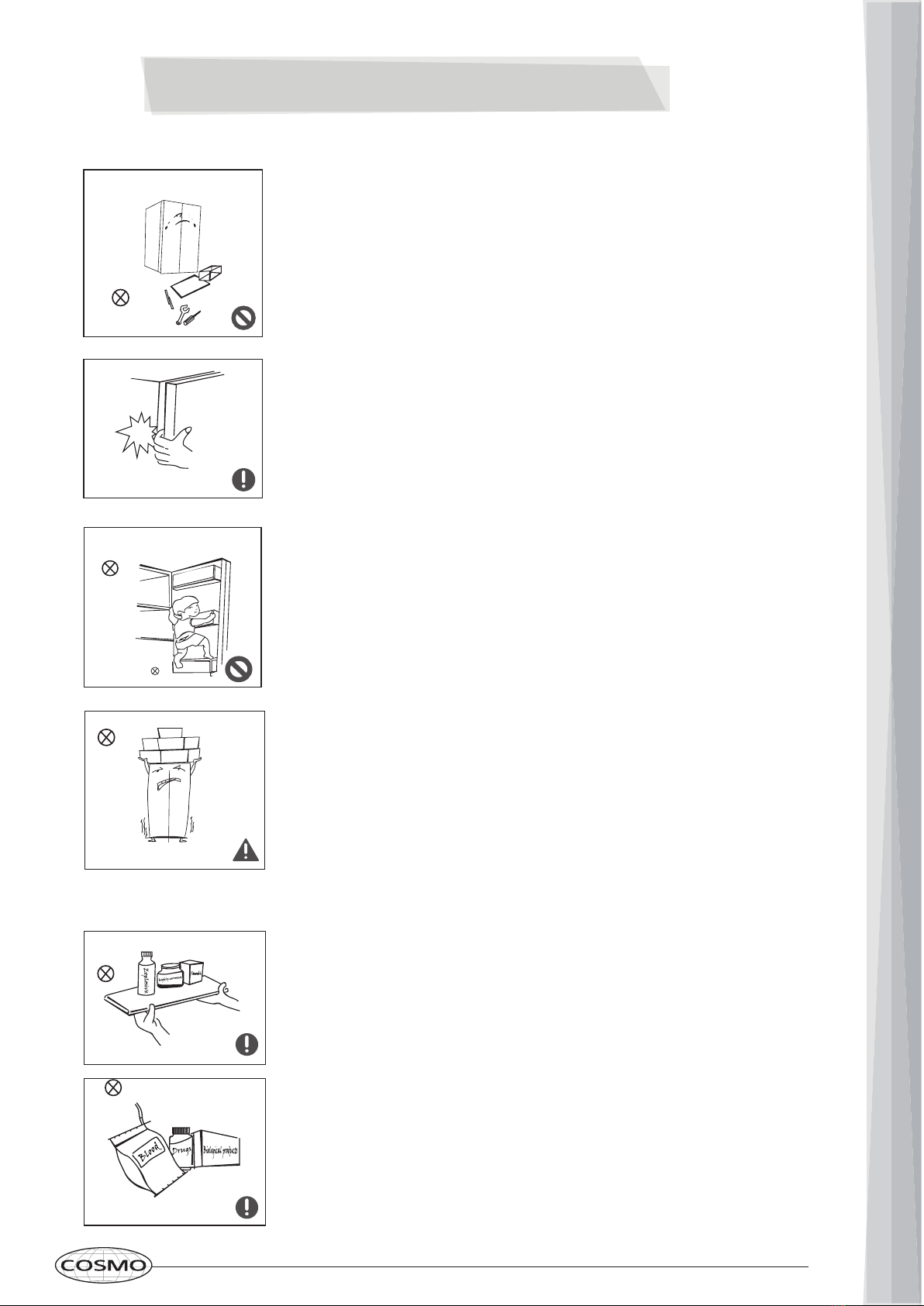

∙Do not pull the power cord when pulling the power plug from the

refrigerator. Please firmly grasp the plus and pull it out from the socket

directly.

∙To ensure safe use, do not damage the power cord or use the power

cord when it is damaged or worn.

∙Please use a dedicated power socket and the power socket shall not

be shared with other electrical appliances. The power cord should be

firmly contacted with the socket or a fire hazard may result.

∙Please ensure that the grounding electrode of the power socket is

equipped with a reliable grounding line.

∙Please turn off the valve of the leaking gas and then open the doors

and windows in case of leakage of gas and other flammable gases. Do

not unplug the refrigerator and other electrical appliances during a

gas leak, as a spark may cause a fire hazard.

∙Do not use electrical appliances inside the food storage compartments

of the refrigerator, unless they are a type of an appliance as

recommended by the manufacturer.

ELECTRICAL WARNINGS

SAFETY&WARNINGS

∙Do not arbitrarily disassemble or reconstruct the refrigerator, nor

damage the refrigerant circuit; maintenance of the appliance must be

conducted by a specialist.

∙Damaged power cord must be replaced by the manufacturer, its

maintenance department or related professionals in order to avoid

danger.

∙The gaps between refrigerator doors and between doors and

refrigerator body are small, be noted not to put your hand in these areas

to prevent from squeezing the finger. Please be gentle when close the

refrigerator door to avoid falling articles.

∙Do not pick foods or containers with wet hands in the freezing chamber

when the refrigerator is running, especially metal containers in order to

avoid frostbite.

∙Do not allow any child to get into or climb the refrigerator, to avoid risk

of suffocation and injury.

∙Do not place heavy objects on the top of the refrigerator considering

that objectives may fall when close or open the door,and accidental

injuries might be caused.

∙Please pull out the plug in case of power failure or cleaning. Do not

connect the freezer to power supply within five minutes to prevent

damages to the compressor due to successive starts.

∙Do not put flammable, explosive, volatile and highly corrosive items in

the refrigerator to prevent damage to the appliance or fire hazards.

∙Do not place flammable items near the refrigerator to avoid fire

hazards.

∙The refrigerator is intended for household use, primarily for the storage

of foods. The refrigerator shall not be used for other purposes, such as

storage of blood, drugs, biological products, etc.

OPERATION WARNINGS

PLACEMENT WARNINGS

SAFETY&WARNINGS

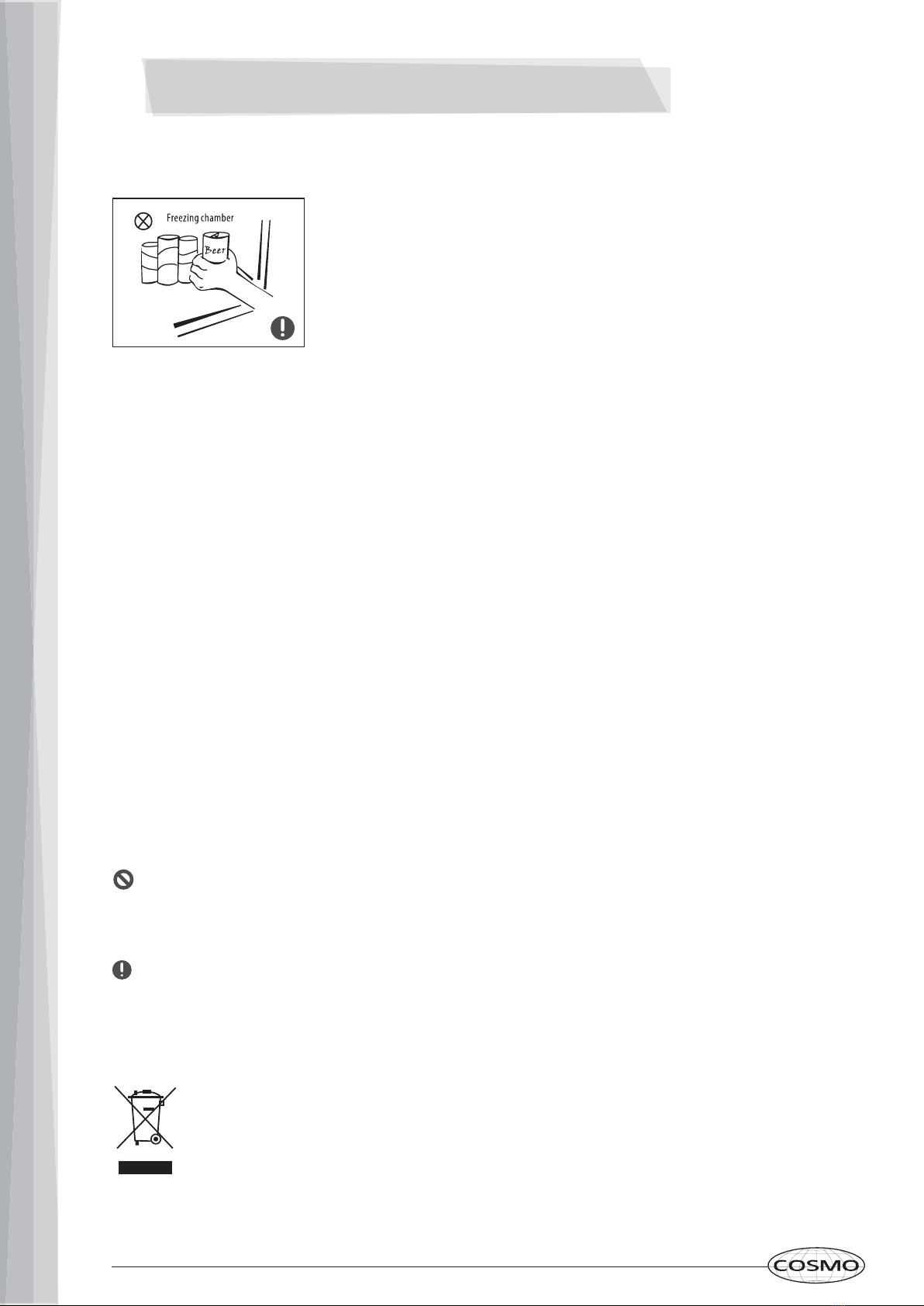

∙Do not store beer, beverage or other fluid contained in bottles or

enclosed containers in the freezing chamber of the refrigerator; the

bottles or enclosed containers may crack due to freezing and cause

damage to the appliance and/or a safety hazard.

PLACEMENT WARNINGS (CONTINUED)

ENERGY WARNINGS

1.) Refrigerating appliances might not operate consistently (possibility of defrosting of contents, or

temperature becoming too warm in the frozen food compartment) when sited for an extended period of

time below the cold end of the range of temperatures for which the refrigerating appliance is designed.

2.) Effervescent / carbonated drinks should not be stored in food freezer compartments and cabinets or in

freezer-temperature compartments and cabinets. Beverages such as ice water should not be consumed

too cold.

3.) Do not exceed the storage time(s) as recommended by the food manufacturers for any foods,

particularly for commercially quick-frozen foods in the freezer and frozen-food storage compartments /

cabinets.

4.) Take precautions to prevent an undue rise in the temperature of frozen food when defrosting in the

refrigerator, such as wrapping the frozen food in several layers of newspaper.

5.) Rise in temperature of frozen food during manual defrosting, refrigerator maintenance or refrigerator

cleaning could shorten the food's storage life.

6.) For refrigerator doors or lids fitted with locks and keys, keep the keys out of the reach of children and

out of the vicinity of the refrigerating appliance, in order to prevent children from being locked inside the

refrigerator.

DISPOSAL WARNINGS

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. When the

refrigerator is scraped, it must be kept away from any fire source and be recovered by a special

recovering company with corresponding qualification other than be disposed by combustion, so as to

prevent damage to the environment or any other harm or hazard.

When the refrigerator is scraped, disassemble the doors and remove of door and shelves. Put the

doors and shelves in a proper place, to prevent children from getting trapped inside the appliance.

This marking indicates that this product should not be disposed with other household waste.

To prevent possible harm to the environment or human health from uncontrolled waste

disposal, please recycle this appliance responsibly to promote the sustainable reuse of

material resources. For more information on how to properly recycle your used appliance,

please contact your local electronic waste / appliance recycling collection service.

CORRECT DISPOSAL OF THIS APPLIANCE

INSTALLATION

REFRIGERATOR PLACEMENT

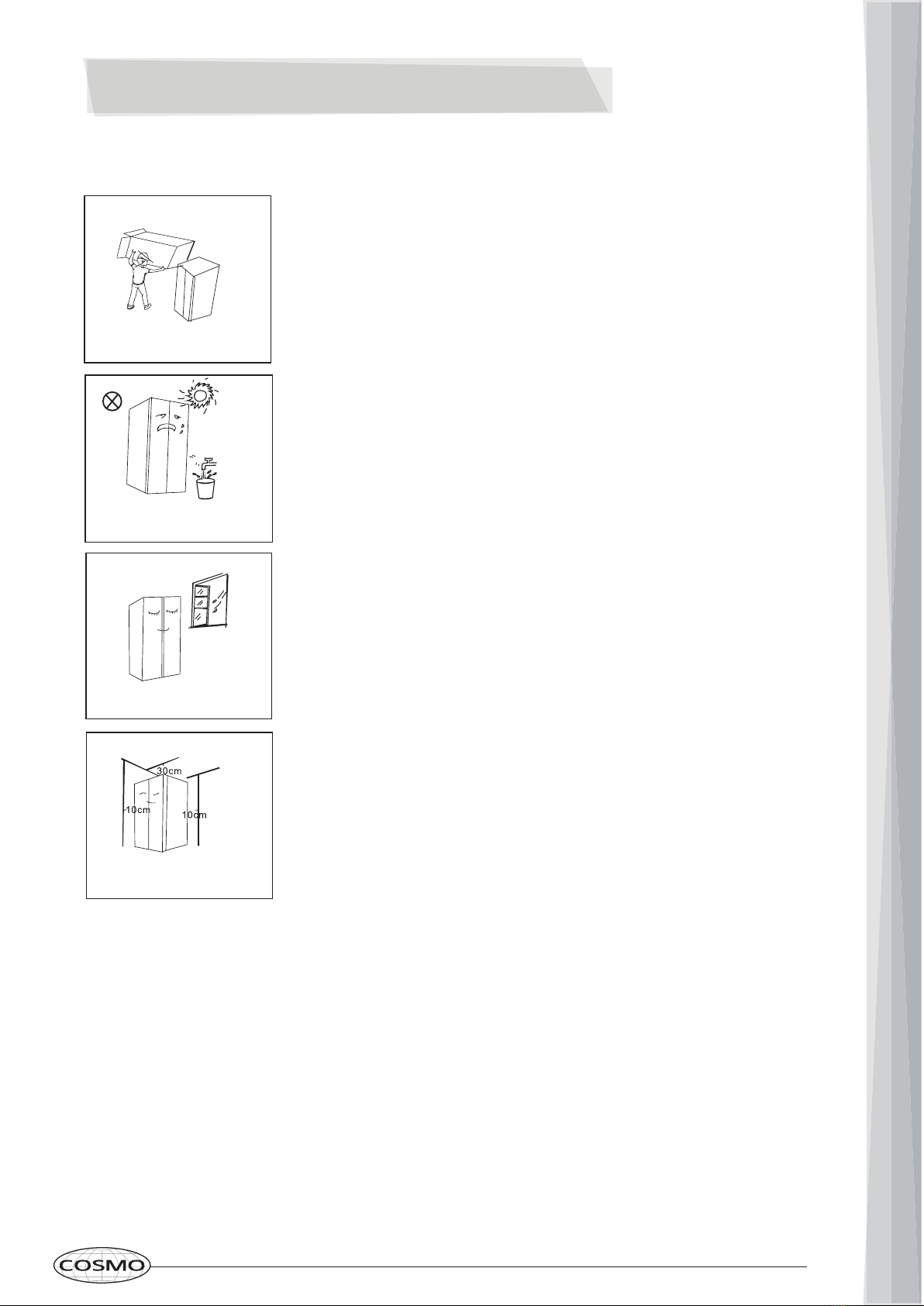

∙Before use, remove all packing materials, including bottom cushions,

foam pads and tape inside of the refrigerator; remove the protective film

on the doors and the refrigerator body.

∙Keep away from heat and avoid direct sunlight. Do not place the

freezer in moist or damp areas, to prevent rust and reduced insulation.

∙Do not spray or wash the refrigerator. Do not put the refrigerator in

moist or damp areas where it can be easily splashed with water, to

avoid affecting the electrical insulation properties of the refrigerator.

∙The refrigerator must be placed in a well-ventilated indoor area/room;

the ground must be flat and sturdy; if the appliance is not level/stable on

the floor, adjust the bottom feet of the appliance (See Page 9).

∙The top space of the refrigerator must be greater than 30 centimeters /

11.8 inches. Appliance should be placed against a wall with a space of

more than 10 centimeters / 3.9 inches from the wall, to facilitate heat

dissipation.

ADJUST LEVELING FEET

Before adjustment, ensure the refrigerator is disconnected from power. Use extreme

caution to prevent injury.

To adjust the leveling feet:

a. Turn the feet clockwise to raise the refrigerator

b. Turn the feet counter-clockwise to lower the refrigerator

c. Adjust the feet either right or left to allow the refrigerator to stand

level to the floor per instructions (See Page 8).

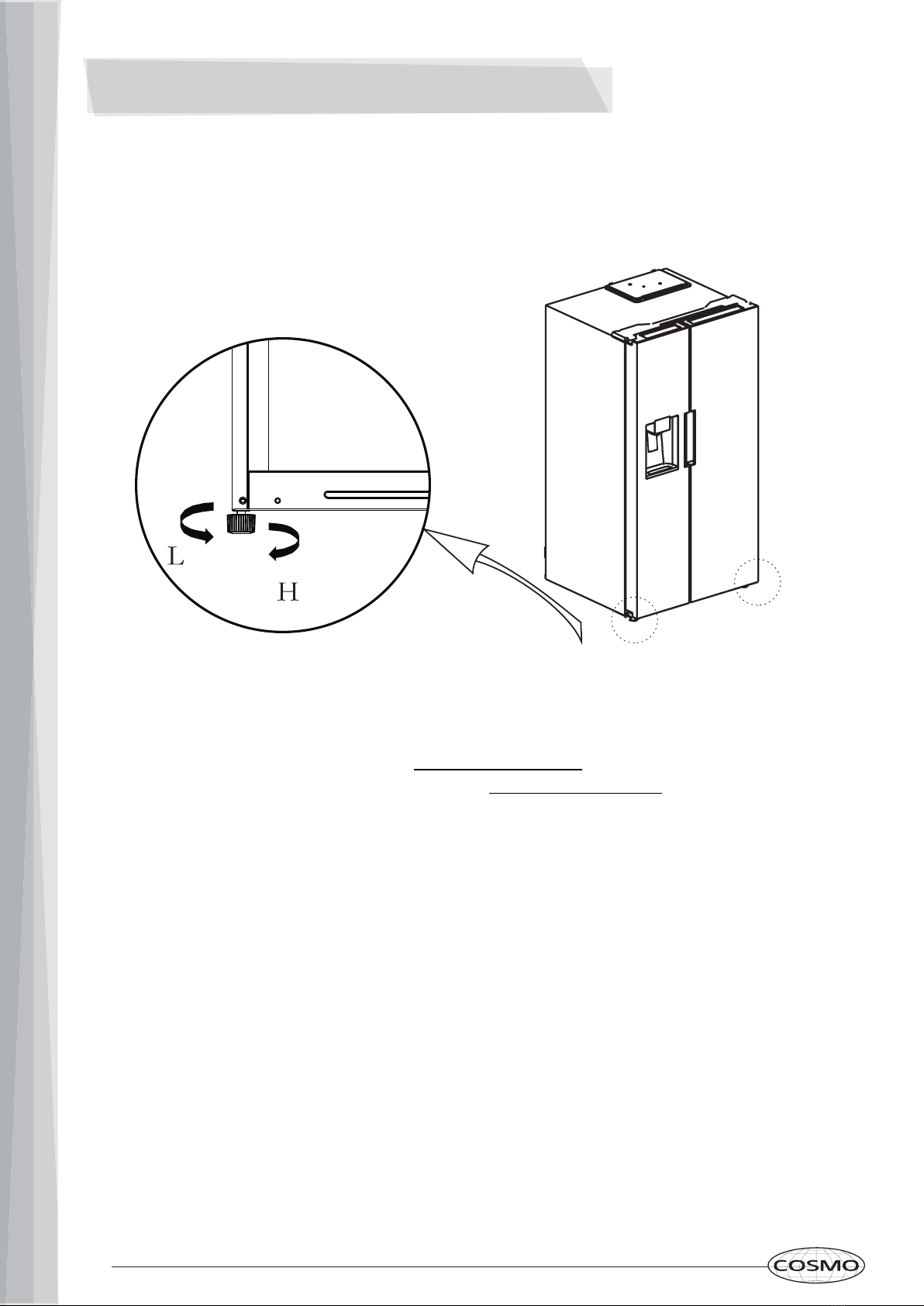

DIAGRAM:

LEVELING FEET

INSTALLATION

ADJUST LEVELING DOOR

Before adjustment, ensure the refrigerator is disconnected from power. Use extreme

caution to prevent injury.

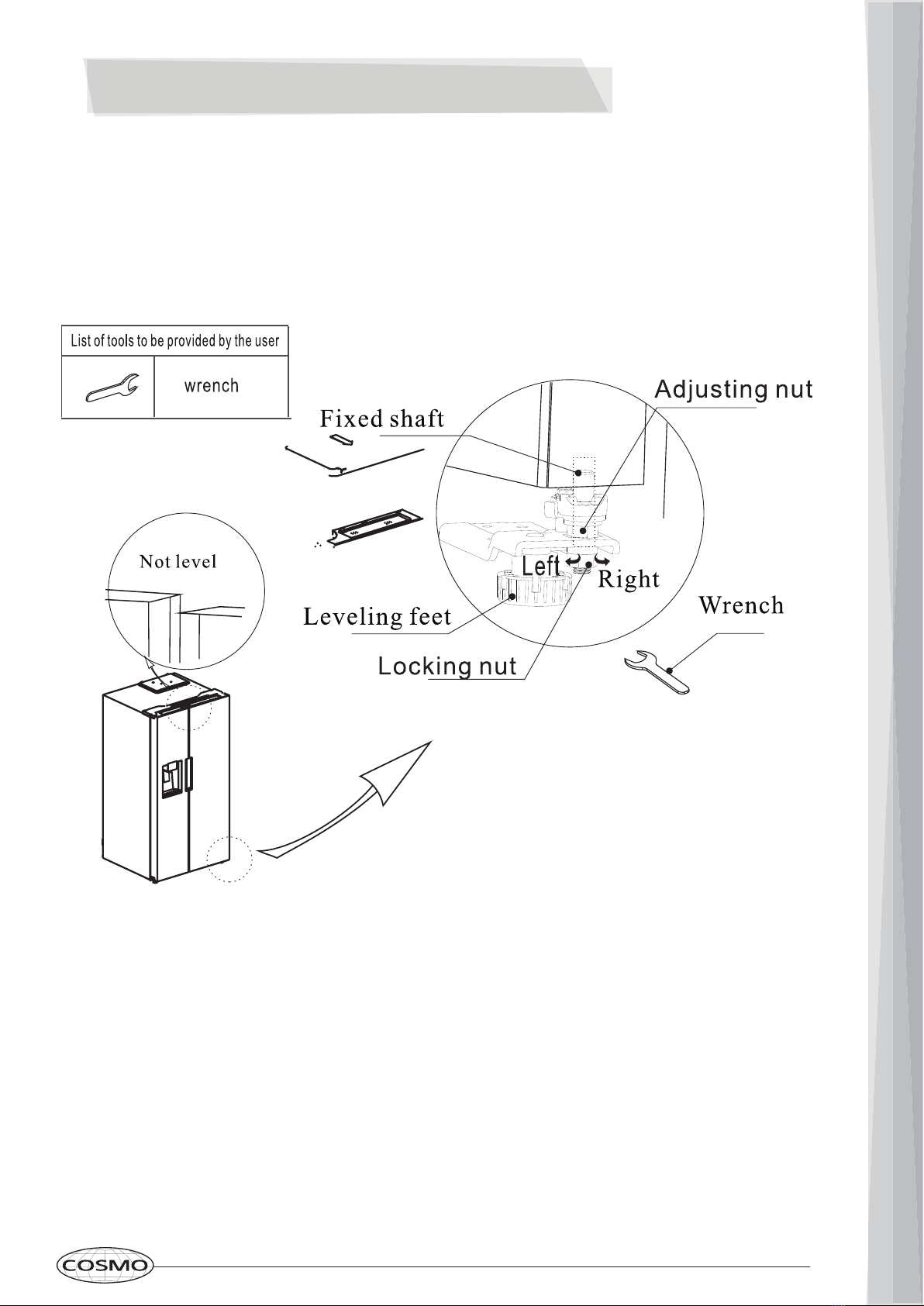

DIAGRAM:

LEVELING THE DOOR

To adjust the top refrigerator door:

1.)

Turn the locking nut clockwise and loose

2.)

Turn the adjusting nut counter-clockwise to adjust

3.)

Lock the locking nut after adjusting

To adjust the bottom refrigerator door:

1.)

Turn the adjusting nut clockwise to adjust

2.)

Adjust the locking nut counterclockwise, then lock

INSTALLATION

CHANGING THE LIGHT

Replacement or maintenance of the LED lamps is intended to be made by the

manufacturer, its service agent or similar qualified person.

INSTALLING THE WATER LINE

INSTALLATION

WARNING

Connect to potable water supply only.

A cold water supply is required for automatic

icemaker operation. The water pressure must be

between 40 and 120 psi (275-827 kilopascals)

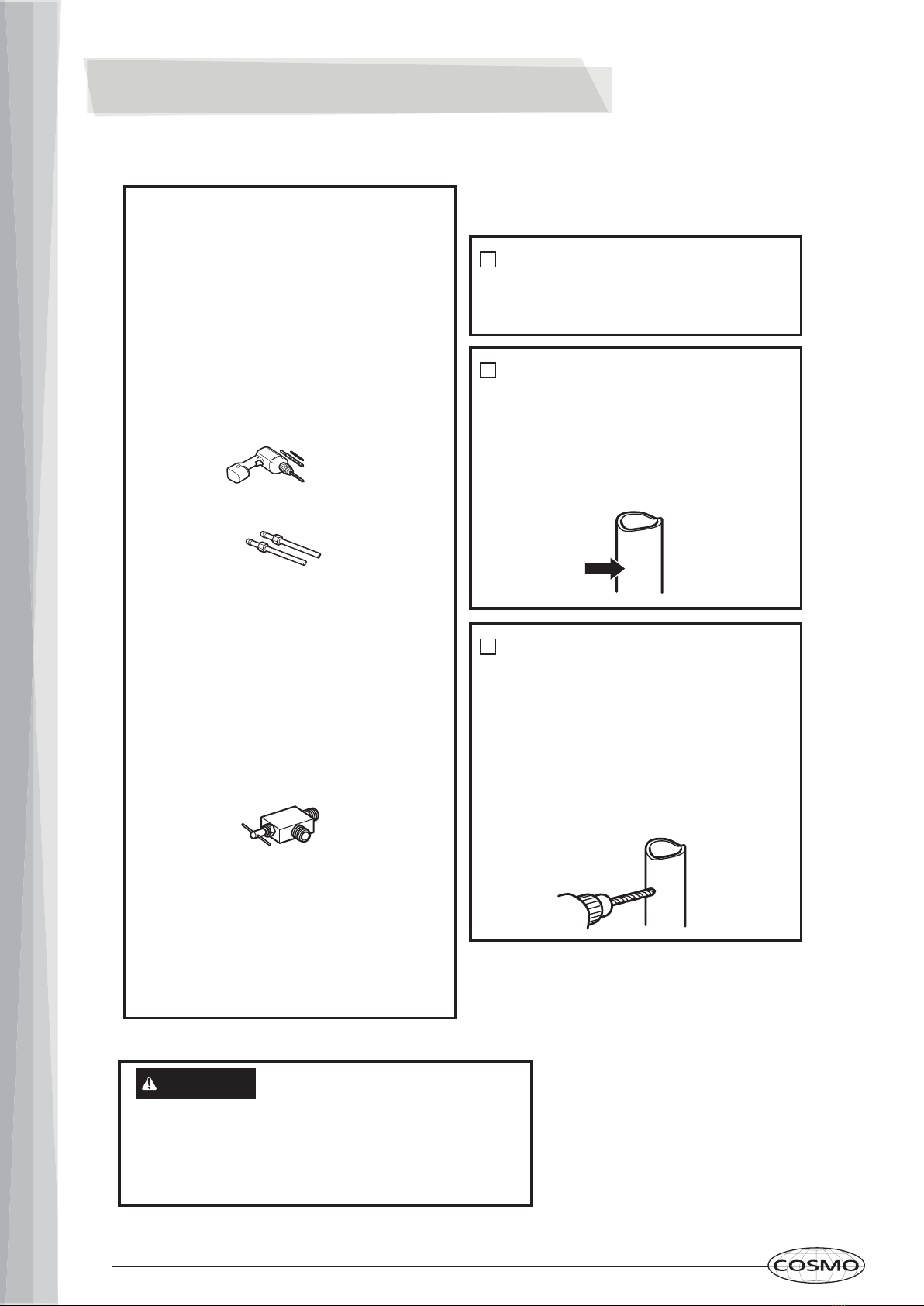

WHAT YOU WILL NEED

NOTE: Only use approved plastic tubing kits if not using

copper, certain types of plastic will crack or rupture with

age and cause water damage to your home.

Cross linked High Density Polyethylene, PEX, hose is extremely

durable and is becoming increasingly preferred.

• A Copper or approved flexible type, Universal

Refrigerator Tubing Kit or Ice-Maker install kit..

• 1/4" outer diameter to connect the refrigerator to the

water supply. If using copper, be sure both ends of

the tubing are cut square.

• A cold water supply. The water pressure must be

between 20 and 120 p.s.i. (138-827 kPa).

• Power drill.

´RUDGMXVWDEOHZUHQFK

• Straight and Phillips blade screwdriver.

7ZR´RXWHUdiameterFRPSUHVVLRQQXWVDQG

ferrules (sleeves)—to connect the copper tubing to

the shutoff valve and the refrigerator water valve.

You can find kits that come with all parts included

such as Stop Tee and compression fittings.

,I\RXUH[LVWLQJFRSSHUZDWHUOLQHKDVDIODUHGILWWLQJ

at the end, you will need an adapter (available at

plumbing supply stores) to connect the water line to

the refrigerator OR you can cut off the flared fitting

with a tube cutter and then use a compression

ILWWLQJ

• Shutoff valve to connect to the cold water line.

The shutoff valve should have a water inlet with a

PLQLPXPLQVLGHGLDPHWHURI´DWWKHSRLQWRI

FRQQHFWLRQWRWKH&2/':$7(5/,1(6DGGOHW\SH

shutoff valves are included in many water supply

kits. Before purchasing, make sure a saddle-type

valve complies with your local plumbing codes.

,QVWDOOWKHVKXWRIIYDOYHRQWKHQHDUHVWIUHTXHQWO\XVHG

drinking water line.

2 CHOOSE THE VALVE LOCATION

Choose a location for the valve that is easily

DFFHVVLEOH,WLVEHVWWRFRQQHFWLQWRWKHVLGHRI

a vertical water pipe. When it is necessary to

FRQQHFWLQWRDKRUL]RQWDOZDWHUSLSHPDNHWKH

connection to the top or side, rather than at the

bottom, to avoid drawing off any sediment from

the water pipe.

1 SHUT OFF THE MAIN WATER

SUPPLY

Turn on the nearest faucet long enough to clear

the line of water.

3 DRILL THE HOLE FOR THE

VALVE

'ULOOD´KROHLQWKHZDWHUSLSHHYHQLIXVLQJ

a self-piercing valve), using a sharp bit. Remove

any burrs resulting from drilling the hole in the

pipe.

Take care not to allow water to drain into

the drill.

)DLOXUHWRGULOOD´KROHPD\UHVXOWLQUHGXFHG

ice production or smaller cubes.

INSTALLATION

INSTALLING THE WATER LINE (cont.)

4 FASTEN THE SHUTOFF VALVE

)DVWHQWKHVKXWRIIYDOYHWRWKHFROGZDWHUSLSH

with the pipe clamp.

NOTE: Commonwealth of Massachusetts

Plumbing Codes 248CMR shall be adhered

to. Saddle valves are illegal and use is not

permitted in Massachusetts. Consult with your

licensed plumber.

CONNECT TO SHUTOFF VALVE

Place the compression nut and ferrule (sleeve) for cop-

per tubing onto the end of the tubing and connect it to

the shutoff valve. Make sure the tubing is fully inserted

into the valve. Tighten the compression nut securely.

For plastic tubing withQuick Connect (included)tubing

kit, insert the molded end of the tubing into the shutoff

valve and tighten compression nut until it is hand tight,

then tighten one additional turn with a wrench. Over

tightening may cause leaks.

NOTE: Commonwealth of Massachusetts

Plumbing Codes 248CMR shall be adhered

to. Saddle valves are illegal and use is not

permitted in Massachusetts. Consult with your

licensed plumber.

5 TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing

washer begins to swell.

NOTE: 'RQRWRYHUWLJKWHQRU\RXPD\FUXVK

the tubing.

8 FLUSH OUT THE TUBING

Turn the main water supply on and flush out

the tubing until the water is clear.

Shut the water off at the water valve after about

one quart (1 liter), or 2 minutes, of water has

been flushed through the tubing.

6 ROUTE THE TUBING

Route the tubing between the cold water line

and the refrigerator.

Route the tubing through a hole drilled in the

wall or floor (behind the refrigerator or adjacent

base cabinet) as close to the wall as possible.

Pipe Clamp

Vertical Cold

Water Pipe

Saddle-Type

Shutoff Valve

Washer

,QOHW(QG

Pipe Clamp

Clamp

Screw

Saddle-Type

Shutoff Valve Compression Nut

Packing Nut

Outlet Valve )HUUXOHVOHHYH

Quick Connect

Tubing

*QUICK CONNECT FITTING* (sold separately)

Fitting grips before it seals. Ensure

tube is pushed into the tube stop

Push the tube into the fitting all

the way up to the tube stop.

Pull on the tube to check it is secure. Turn on water

and check for leaks. (If you have leaks just cut a

small portion of hose further down to give a smooth

edge.)

To disconnect, ensure the system is depressurized

before removing the tube. Push in Quick Connect

end piece squarely against face of fitting. With it

held in this position, the tube can be removed.

5/16 in. x 1/4 in. union connector required

Autres manuels pour COS-SBSR263RHSS

Table des matières

Autres manuels Cosmo Réfrigérateur

Cosmo

Cosmo COS-FDR225RHSS Manuel utilisateur

Cosmo

Cosmo COS-FDR225GHSS Manuel utilisateur

Cosmo

Cosmo COS-FDR225 Series Manuel utilisateur

Cosmo

Cosmo COS-SBSR263RHSS Manuel utilisateur

Cosmo

Cosmo COS5PKG082 Manuel utilisateur

Cosmo

Cosmo COS-FDR225 Series Manuel utilisateur

Cosmo

Cosmo COS-FDR223GWSS Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
