WIRELESS CONTROLLER

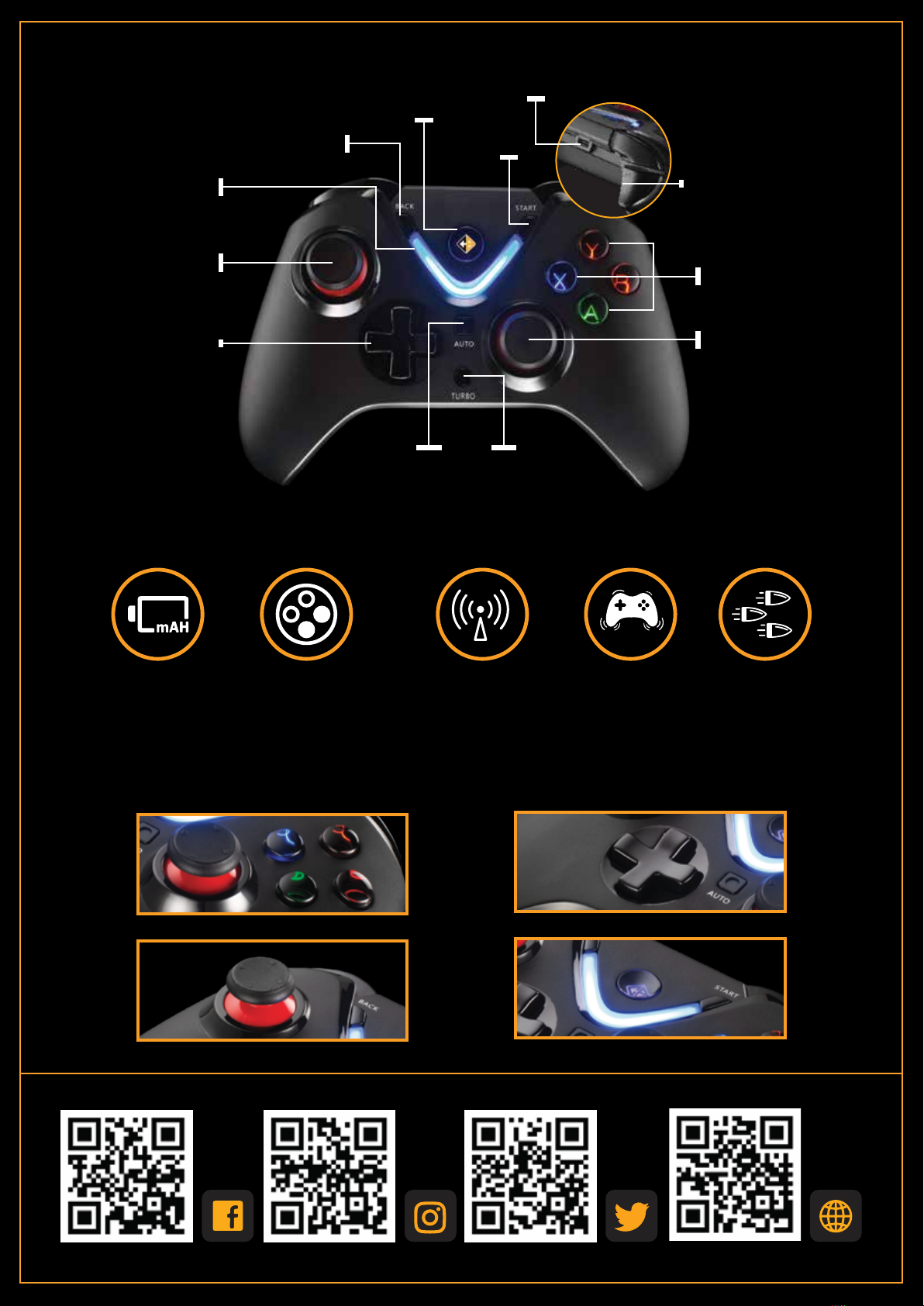

ARES
DIRECTION PAD
BACK
BUTTON
START
BUTTON
HOME
BUTTON
USB C PORT
LED LIGHT,
TOGGLE ON OFF
AUTO
FUNCTION
TURBO
FUNCTION
RUBBERISED
TEXTURED
LEFT STICK
RUBBERISED
TEXTURED
RIGHT STICK
PRESSURE SENSITIVE
LEFT & RIGHT TRIGGERS
LED A B X Y
BUTTONS WITH LED
VIBRATION
EFFECTS
700MAH
BATTERY
BACKLIT
ACTION BUTTONS
UPTO 8 METERS
WIRELESS RANGE
TURBO
FUNCTION
SPECIFICATIONS
ARES Wireless
20~80%
-10°C~+60°C
<150mA
156 X 105 X 55mm
USB
180 X 75 X 150mm
USB 2.0/3.0
3.7-4.2v
6-8 meter
ANDROID/Directlnput/Xinput/PS3
220g
Model:
Humidity:
Temperature:
Working current:
Product size :
Interface:
Packing size :
Agreement:
Work Voltage :
Work Distance:
Working Mode:
Product Weight:

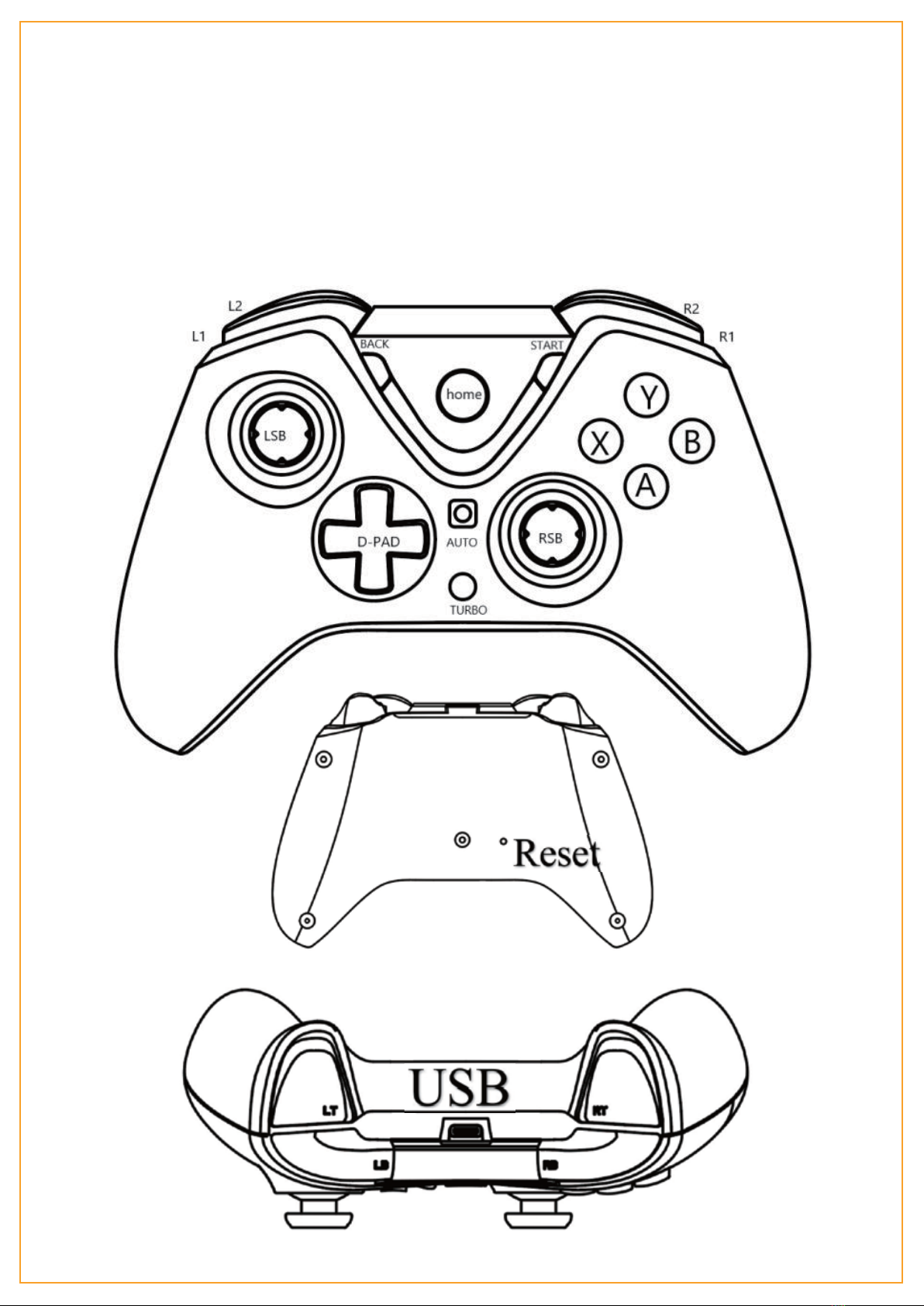

CONTROLLER
DESIGN
MODE AND INDICATOR STATUS
PLATFORM & CONNECTION:
1. X INPUT: BLUE
2. DIRECT INPUT : RED
3. PC ANALOG: YELLOW
4. ANDROID: GREEN
5. PS3: AUTOMATIC
PC: Windows
Plug and Play for Windows 8 and above
Android/PS3: No driver required
NOTE:
Android: Android 4.0 above, Requires OTG function. Connect the gamepad
to the phone using an OTG cable and wireless dongle.
Please contact android device manufacturer for android compatibility.
Android compatibility is not covered under warranty.
POWER OFF
Press B + Back Button for 5 seconds to turn o the controller
CHANGE MODE
ABXY LED AND V LED SWITCH
LEFT JOYSTICK AND D-PAD SWITCH
DEVICE CONNECTION
Press the HOME key for more than 5 seconds: X-input and Direct input.
Press L3 + back change joystick and D-pad
1. Press X + Back button to turn o the ABXY LED , and the press again
to turn on LED.
2. Press A + Back button to turn o the V LED , and the press again to
turn on LED.
Connect the gamepad with the PC using the wireless dongle. Make sure
there is no obstruction between the gamepad and the dongle for the
best connection. Use the USB Extension cable for best results.
NOTE:
1. You do not need to change the mode while connecting the gamepad
to android and PS3.
2. Gamepad will connect to Windows as X-input automatically.
3. If any diculty in connecting the gamepad to Windows, please recon-
nect the gamepad.
TURBO - A, B, X, Y, L1, L2, R1, R2
AUTO TURBO - A, B, X, Y, L 1, L2, R1, R2
BATTERY:
1. Set turbo: Press (A, B, X, Y, L1, L2, R1, R2) button where you want to set
Turbo and then press turbo button.
2. Cancel turbo: Press (A, B, X, Y, L1, L2, R1, R2) button where you want to
cancel Turbo and then press turbo button.
1. Set AUTO turbo: Press (A, B, X, Y, L1, L2, R1, R2)) button where you want
to set Turbo and then press AUTO button.
2. Cancel AUTO turbo: Press (A, B, X, Y, L1, L2, R1, R2) button where you
want to cancel Turbo and then press AUTO button.
1. When the battery is low, the LED will ash and gamepad will turn o
the vibration to save battery.
2. When gamepad is being charged the LED will ash slowly.
3. When the charging is complete, the LED will turn o.
Note: Use only 5A/1V chargers or plug it to a PC USB port to charge the
gamepad. Using Fast chargers can damged the battery and compo-
nents.
Warranty will be void with usage of fast charging.
TROUBLESHOOTING
If the dongle and Controller Home button led light is continuously blin-
king it indicates that both are not paired to each other
HOW TO PAIR ARES CONTROLLER
TO THE DONGLE
PAIRING STEPS
1. Plug in the receiver to your PC
2. Press the Home button on the Controller
3. Now press the Home button twice when the lights start blinking
4. Both the LED on dongle and controller will stop blinking
5. The controller is now ready for use
Phone: 1800 31300 7700 (Mon-Fri 10am to 5PM)
Email: [email protected]
FAQ: support.thecosmicbyte.com
SUPPORT DETAILS
Scan the QR code to know the Warranty Claim Procedure.
WARRANTY
support.thecosmicbyte.com
FAQ’S
The Controller carries 1 Year warranty against manufacturing defects only.
Physical, Water damage and Tampered products are not covered under warranty.
Regular wear and tear from battery usage is not covered under warranty.
