VOID Gaming Headsets

VOID Wireless Dolby 7.1 Gaming Headset

VOID USB Dolby 7.1 Gaming Headset

VOID USB Gaming Headset

Technical Guide

August 2015

Overview

The Corsair Gaming VOID gaming headsets, available in wireless, USB, and analog

stereo models, are designed for gamers with game-enhancing sound, a modern ultra-

comfortable design, and on-headset controls that provide instant one-hand adjustment

to key audio settings.

This guide focuses on the VOID Wireless and VOID USB models which include

advanced features including RGB lighting, an InfoMic status indicator, a CUE Control

dial, and CUE software support.

Before using, please ensure you download and install of CUE from our website:

http://www.corsair.com/downloads

The latest firmware for the headset will be updated through the software upon

start-up.

Specifications

Model

Void Wireless SE

Void Wireless

Void USB

Type

2.4 GHz Wireless

(USB 2.0 receiver)

2.4 GHz Wireless

(USB 2.0 receiver)

Wired USB 2.0

Available Colors

Yellow Jacket

Carbon

Backlight

Ear cups (RGB)

Audio

Dolby 7.1

Driver

50mm Neodymium

Frequency

Response

20Hz –20kHz

Impedance

32 Ohms @ 1kHz

Mic Type

Unidirectional noise

cancelling

Unidirectional noise

cancelling

Unidirectional noise

cancelling

Mic Impedance

2.2k Ohms

Mic Frequency

Response

100Hz –10kHz

Mic Sensitivity

-37 dB (± 3 dB)

Dimensions

228mm(L) x 242mm(W)

x 108mm(H)

228mm(L) x 242mm(W)

x 108mm(H)

228mm(L) x 242mm(W)

x 108mm(H)

Product Weight

388g / 0.85lb

Warranty

2 years

Features

●Dolby 7.1 multi-channel surround delivers lethally accurate positional audio

●RGB lighting for individual customization or synchronization with other Corsair

RGB devices

●CUE Control dial enables rapid on-the-fly audio adjustments

●InfoMic LEDs relay instant visual status of audio and mic settings

●Efficient 50mm neodymium drivers deliver staggering bass and scintillating

highs

●Microfiber-wrapped memory foam ear pads for extended play

●Unidirectional noise-cancelling microphone makes gamers’ voices loud and

clear

●2.4 GHz wireless and battery provides cordless freedom up to 40 feet and 16

hours of uninterrupted gaming (VOID Wireless)

●USB extension dock for wireless receiver (VOID Wireless SE)

InfoMic & CUE Control –Upgrading to Unfair

InfoMic and CUE control are VOID’s solution to creating a way to control virtually every

aspect of the audio from the headset itself, while offering a visual feedback system.

There was a conscious effort to bring controls up to the left side of the headset,

enabling quick changes without having to find a cord-based volume/mute control or

button, so players could keep their finger on the trigger –or their mouse in most cases.

CUE Control functions

Adjust Volume - Turn dial upwards to increase volume. Turn dial downward to

decrease volume.

Change EQ Profile - A quick press will cycle through 5 EQ profiles. EQ profiles

can be changed in the CUE software.

Toggle Dolby 7.1 - Pressing and holding the dial will toggle Dolby on and off.

Mute Button

Mute toggle - a short key press toggles the mic on and off.

Sidetone - If the mute button is press and held, users can enable or disable

sidetone. When sidetone is on, sound from the mic is sent to the ear cups, so

users can hear themselves.

Volume up

Volume down

Short Key Press: Change EQ profiles

Long Key Press: Enable/Disable Dolby

Power Button

On/off –a short key press of the power button to turn the headset on and off. As

VOID Wireless is powering off, the ear cup will pulse either green, amber, or red

depending on the battery level.

Pairing –pressing and holding the power button for 10 seconds will put Void

Wireless into Pairing mode.

InfoMic

InfoMic is a new feature for our headsets, it provides a

visual indicator providing mic status, Dolby status,

battery levels, and connectivity status.

LED behavior:

LED 1 –Mic Status

LED off: Mic unmuted

Red: Mic muted

LED 2 - Battery Level

Amber pulse: >20% battery

Red pulse: >10% battery

Intervals between each pulse and brightness intensity level can be adjusted using CUE.

EQ profiles and Dolby Status

While CUE is running, quickly pressing the dial on CUE Control will change profiles,

InfoMic LED 2 will indicate which profile is active with a series of blinking lights and

beep. The number of blinks and beeps and will equal the profile number.

Profile 1: 1 blink + 1 beep

Profile 2: 2 blinks + 2 beeps

Etc

The color of the blinks on LED 2 during switching of profiles will indicated Dolby status.

Green –Dolby enabled

Red –Dolby disabled

Wireless pairing indicators

LED 2 Red rapid blinking –Wireless headset not synced with dongle

LED 1 and LED 2 blinking red and green –pairing mode. LED 2 will display long

green pulse when pairing is successful.

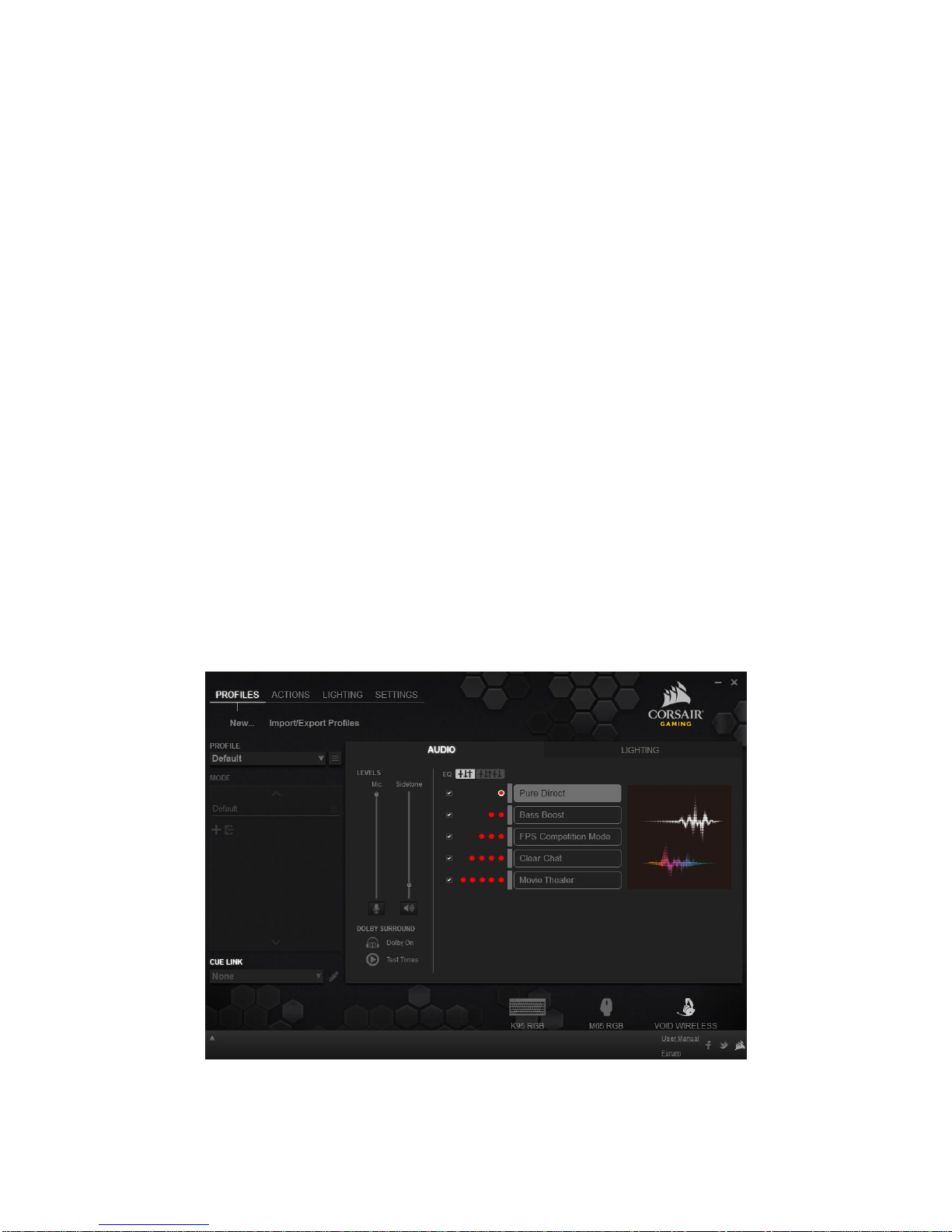

Corsair Utility Engine

Brief Overview

The VOID gaming headset can be programmed and controlled with CUE (Corsair Utility

Engine), the same software used for Corsair’s RGB keyboards and mice. CUE allows

users to configure the ear cup lighting, InfoMic LED notifications for mic status and

battery status, and create up to 5 different EQ profiles. Gamers can also use our newest

feature “CUE Link” which allows lighting effects to synchronize over all Corsair RGB

devices.

The software will also allow gamers to create multiple profiles of color and audio

settings for games and applications. These profiles can be automatically activated

when the game or loads. Users can export and import profiles/EQ settings/lighting to

share with one another on Corsair forums.

Configuring EQ Profiles

Void uses CUE or Corsair Utility Engine to adjust mic levels, Dolby on/off, sidetone

on/off, and EQ. CUE comes 5 EQ profiles (Pure Direct, Bass Boost, FPS Competition

Mode, Clear Chat, Movie Theater). Users can customize their own EQ profile and set up

to 5 on the fly profiles that can be controlled through CUE control.

To create and assign a new EQ profile:

1. Click the “Advanced Mode” button.

2. Click to the right and click on “new” to create a new profile

3. From here, users will be able to adjust the EQ to taste. Clicking on the slider

outside the circle will move that individual slider. Clicking on the circle inside the

slider will adjust that slider and adjacent sliders.

4. New EQ profile “custom”(can be renamed) will now be assigned to Profile #1

Users can move profiles by clicking on the vertical bar next to the profile name

dragging it to any of the 5 profiles or by using the drop down menu.

Users can also disable profiles by unselecting the profiles using the check box.

Configuring RGB Lighting

VOID and its RGB lighting is fully compatible with CUE and all other Corsair RGB

products. The headset, by default on startup, will use the “Rainbow” effect. We have

included other patterns selectable through the dropdown menu for users to select

immediately. Some patterns will have addition options to toggle the speed of the lights

and/or color of the pattern.

CUE LINK

CUE LINK is a feature available for those who have Corsair RGB keyboards and want

to synchronize RGB lighting across all Corsair RGB products.

How to set up CUE LINK:

1. Click the keyboard icon at the bottom

2. Select one of the 5 preset CUE LINK modes. Each mode can be customized by

clicking on the pencil icon.
