Corinex PoerNet Manuel utilisateur
Corinex PowerNet USB Adapter
Corinex PowerNet
m
s
t
‰
d
1
This Owner’s Manual, as well as the software described in it, is furnished under
license and may be used or copied only in accordance with the terms of the
license. The content of this manual is furnished for informational use only, it is
subject to change without notice, and it does not represent a commitment on
the part of Corinex Communications Corp.
Corinex Communications Corp. assumes no responsibility or liability for any
errors or inaccuracies that may appear in this book.
It is our policy to enhance our products as new technologies, hardware
components, software and firmware become available; therefore, the
information contained in this document is subject to change without notice.
Some features, functions, and operations described in this manual may not be
included and sold in certain countries due to government regulations or
marketing policies.
The use of the product or its features described in this document may be
restricted or regulated by law in some countries. If you are unsure which
restrictions or regulations apply, you should consult your regional Corinex office
or the authorized reseller.
Published by:
Corinex Communication Corp.
#308 1168 Hamilton Street
Vancouver, B.C., V6B 2S2
Canada
Tel: +1 (604) 692 0520
Fax: +1 (604) 692 0555
Corinex is a registered trademark of Corinex Communications Corp.
Microsoft, MS−DOS, MS, Windows, Windows NT are either registered trademarks
or trademarks of Microsoft Corporation in the U.S.A. and/or other countries.
All products or company names mentioned herein may be the trademarks of
their respective owners.
Copyright (c) 2001−2002 by Corinex Communications Corp.
2
Contents
1Introduction .............................................................................. 3
1.1 Overview................................................................................3
1.2 About this Manual .................................................................4
2Installation Guide...................................................................... 5
2.1 What this Package Contains...................................................5
2.2 System Requirements.............................................................5
2.3 Installing the USB Adapter software ......................................6
2.4 Testing the Setup.................................................................11
3User‘s Guide ............................................................................ 12
3.1 PowerNet Setup Tool User Guide .........................................12
3.2 Corinex PowerNet USB Adapter ...........................................15
3.3 FAQ .....................................................................................16
3.4 USB Adapter Specifications..................................................17
4Troubleshooting Guide............................................................ 19
3
1Introduction
1.1 Overview
The Corinex Powernet USB Adapter is a network interface
adapter, using the 110/120 or 220/240 V electrical wires in
premises as a medium for communications. After successful
installation, the indoor Powernet network behaves like a
traditional LAN for computers. The Corinex Powernet USB
Adapter supports up to 14 Mbps−network speed.
The product keeps network maintenance cost low and
eliminates usage barriers while there is no need for additional
wiring.
The Product is a higly integrated and requires no other external
electronic components.
1
4
1.2 About this Manual
This Owner‘s Manual is intended to provide sufficient
information to help you understand how to successfully install
Corinex Powernet USB Adapter to meet your networking needs.
With the information in this guide, you should be able to:
Analyze your network efficiency
Plan the configuration of Corinex Powernet USB Adapter
options
Install and configure your Corinex Powernet USB Adapter
according to your plan
Verify and optimize your Corinex Powernet USB Adapters’
performance
5
2Installation Guide
2.1 What this Package Contains
When you receive your Corinex PowerNet USB Adapter, check to
be sure that your package contains:
• Corinex PowerNet USB Adapter
• AC cord
• USB cable
• This manual
• Installation CD
2.2 System Requirements
• IBM compatible PC with one available USB port (Not
hub)
• CD−ROM drive
• Windows 98/ME/2000/XP operating system
2
6
2.3 Installing the USB Adapter software
1. Insert the installation CD, it should automatically start. Do
not connect USB Adapter to PC before step 8! If the
installation program does not start automatically, start the
application by selecting „My Computer“, usually found on
the desktop. Navigate to the CD drive, and double click on
the drive. The following screen should be displayed:
7

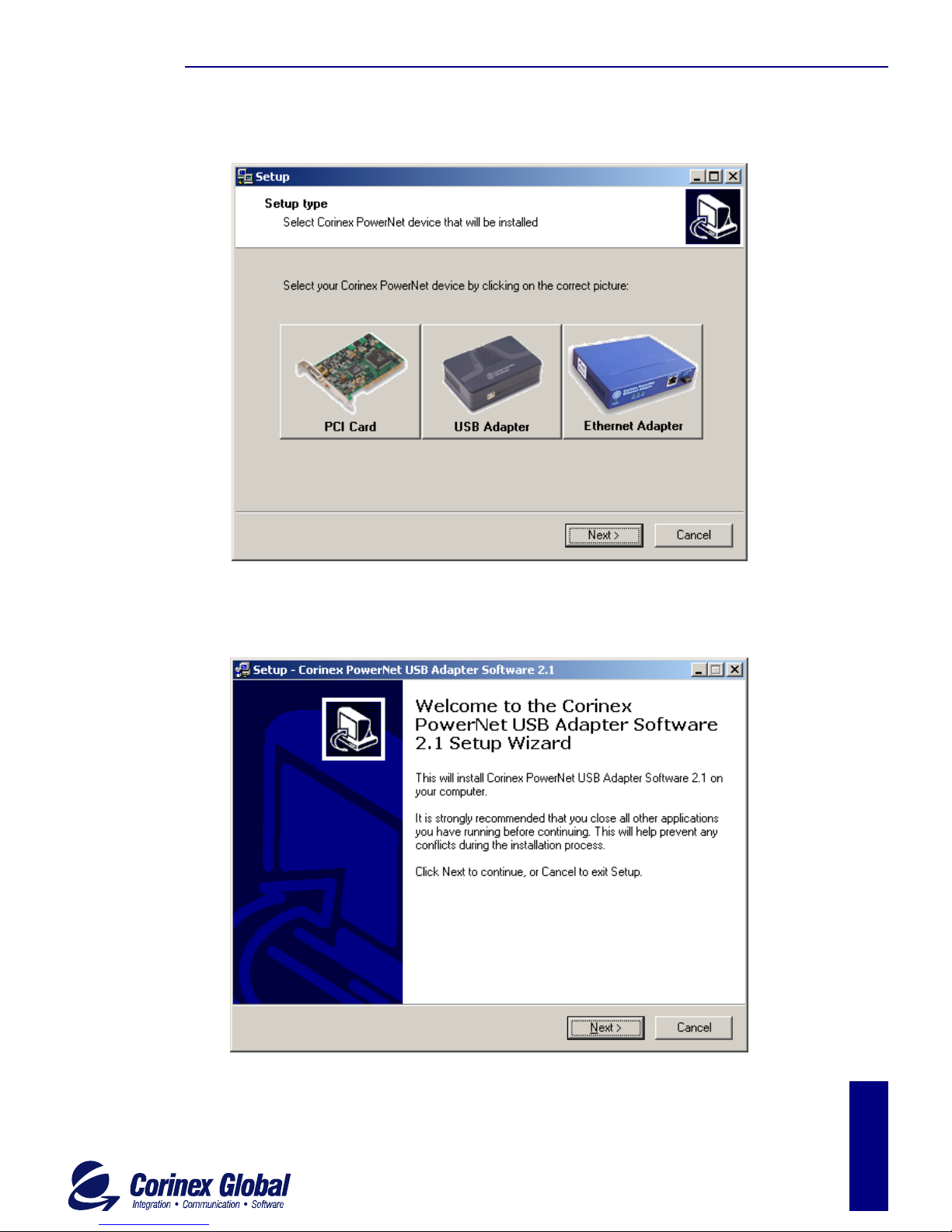

2. Click on the „Install driver and Setup utility“. The following
screen should be displayed:
3. Click on the picture with description “USB Adapter” and
then click „Next“ to start installation. The following screen is
the welcome screen. Click „Next“ to continue.
