REFRIGERATOR

INSTRUCTION MANUAL

MODEL: CCML1970NFX

INTRODUCTION

Before use

Please read these instructions and the Safety guidelines on page 1 carefully before using

your new Fridge/Freezer. The Fridge/Freezer is for indoor, domestic use only.

Description

Lighting switch

Cooling room shelves

Light

Vegetable and fruit crisper

Vegetable and fruit crisper cover

Freezing drawers

Door balcony

INSTALLATION

Location

When selecting a position for your Fridge/Freezer you should make sure the floor is flat

and firm, and the room is well ventilated with an average room temperature of between

16℃and 43℃. Avoid locating your Fridge/Freezer near a heat source, eg, cooker, boiler

or radiator. Also avoid direct sunlight in out-buildings or sun lounges. If you are placing

your Fridge/Freezer in an out-building such as a garage or annex ensure that the

Fridge/Freezer is placed above the damp course, otherwise condensation will occur on

the Fridge/Freezer cabinet. Never place the Fridge/Freezer in a wall recessed or into fitted

cabinets or fumiture when your Fridge/Freezer is working, the grille at the back may

become hot and the sides warm. It must therefore be installed so that the back of the

Fridge/Freezer has at least 9cm(31/2”) of free space and the sides have 2cm(3/4”). Do not

drape the Fridge/Freezer with any covering.

Leveling the Fridge/Freezer

If the Fridge/Freezer is not level, the door and magnetic seal alignment will be affected

and may cause you Fridge/Freezer to work incorrectly. Once the Fridge/Freezer is placed

in its final location, adjust the leveling feet at the front by turning them.

Cleaning before use

Wipe the inside of the Fridge/Freezer with a weak solution of bicarbonate of soda. Then

rinse with warm water using a damp sponge or cloth. Wash the baskets and shelves in

warm soapy water and dry completely before replacing in the Fridge/Freezer. The external

parts of the Fridge/Freezer can be cleaned with wax polish.

Before plugging in YOU MUST

Check that you have a socket which is compatible with the plug supplied with the

Fridge/Freezer. If not see the section called ELECTRICAL INFORMATION

Before switching on!

DO NOT SWITCH ON UNTIL FOUR HOURS AFTER MOVING THE FRIDGE/FREEZER.

The coolant fluid needs time to settle. If the appliance is switched off at any time, wait 30

minutes before switching back on to allow the coolant fluid to settle.

Before filling your Fridge/Freezer

Before storing foods in your Fridge/Freezer, turn the Fridge/Freezer on and wait for 24

hours, to make sure it is working properly and to allow the Fridge/Freezer to fail to the

correct temperature.

START Testing

1. Clean the parts of the refrigerator with lukewarm water containing a littleneutral

detergent and with clear water, and wipe them dry.

Notes: Electric parts of the refrigerator can only be wiped by dry cloth.

2.Turn on electricity. The compressor begins to work.

3.Open the door 30 minutes later, if the temperature in the refrigerator

decreased obviously, it shows that the refrigerator system works well.

When the refrigerator operates for a period of time, the temperature

controller will automatically set the temperature within limits it opens.

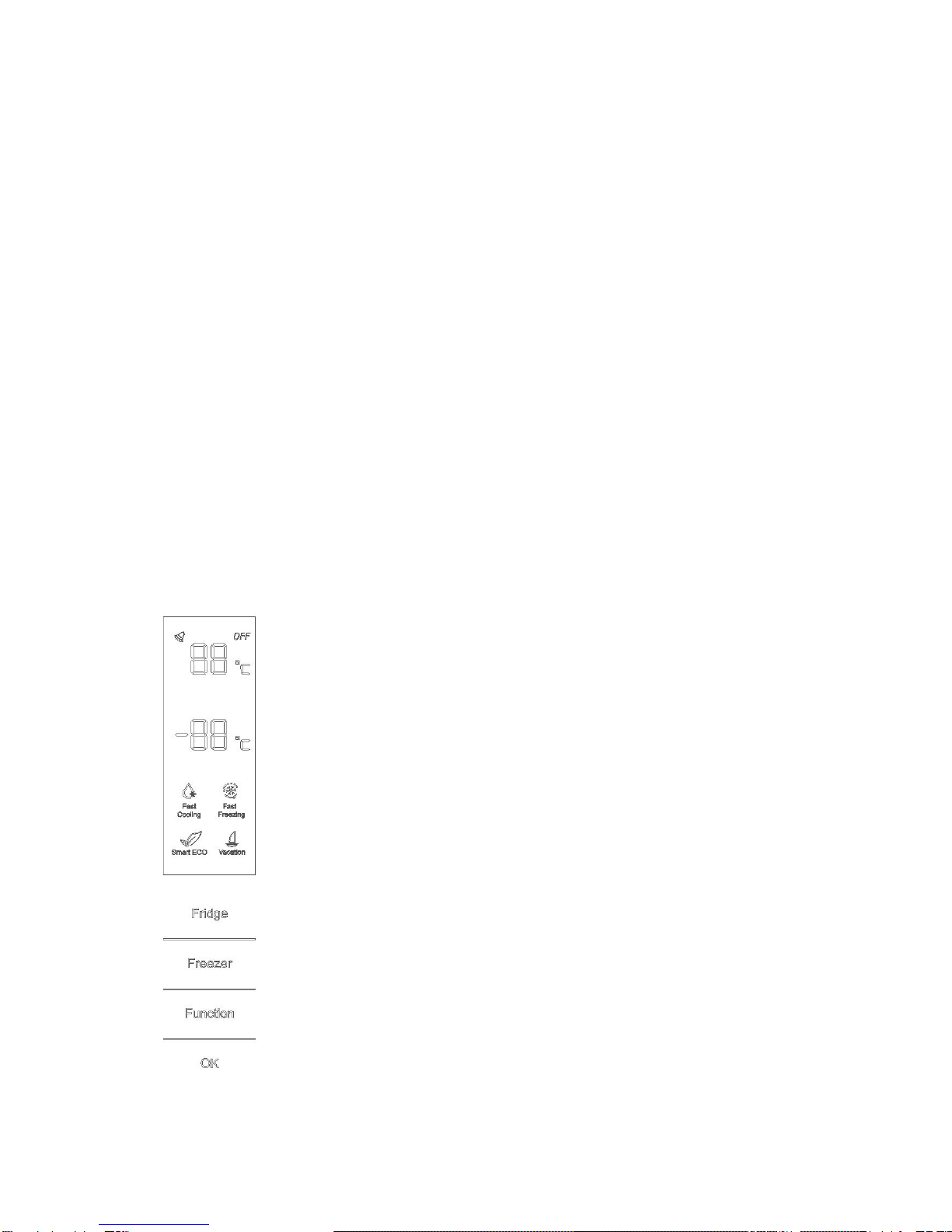

The display is located in the middle of the refrigerator door. Please refer to the

below figure for the layout.

Introduction of the buttons

（1）Fridge: to set the refrigerator temperature

（2）Freezer: to set the freezer temperature

（3）Function: to choose functions of fast cooling, fast freezing, intelligence

and vacation

（4）OK: to enter or to quit the existing function

Function setting

★appliance connected to power at the first time

When the appliance is connected to power at the first time, the display will be lit

for 2 seconds before going normal and the appliance runs with intelligence

function.

★display control

When the refrigerator door is closed and there is no button operation in 3 minutes, the display

light goes off.

When the display light is off, open the refrigerator door or click any button to light it up.

★temperature setting

1) Click the “refrigerator” or “freezer” button and when it flickers in the symbol, temperatures

can be set; each time when the button is clicked, the temperature changes accordingly

(the display shows the temperature accordingly).

(Temperatures cannot be set under functions of fast cooling, fast freezing, intelligence and

vacation,)

2) Under temperature setting, if there is no button operation in 5 seconds, the button stops

flickering and the set temperature comes into effect.

3) Temperature cycle

Refrigerator: 2℃→3℃→4℃→5℃→6℃→7℃→8℃→OFF→2℃；

Freezer: -24℃→-23℃→-22℃→-21℃→-20℃→-19℃→-18℃→-17℃→-16℃→-24℃；

★intelligence

Under intelligence, it is 4℃in the refrigerator and -18℃in the freezer.

Temperatures cannot be changed and you can click the temperature zone button to check the

temperature.

1) To enter intelligence

Click “option” until it flickers and then click “OK” to enter this function.

2) To quit intelligence

Under intelligence, click “option” until it goes to intelligence, click “OK” to quit this function and

the light goes off.

Temperatures of each chamber go back to the value beforeintelligence function.

★fast cooling

Under fast cooling, it is 2℃in the refrigerator and the refrigerator temperature cannot be

changed.

1)To enter fast cooling

Click “option” until it flickers in “fast cooling” and then click “OK” to enter this function.

2) To quit fast cooling

Under fast cooling, click “option” until it goes to “fast cooling” and then click “OK” to quit this

function.

The light in fast cooling goes off and the refrigerator temperature goes back to the value before

fast cooling.

★fast freezing

Under fast freezing, refrigerator temperature can be set but not for the freezer temperature.

1) To enter fast freezing

Click “option” until it flickers in “fast freezing” and then click “OK” to enter this function.

2) To quit fast cooling

Under fast freezing, click “option” until it goes to “fast freezing” and then click “OK” to quit this

function.

The light in fast freezing goes off and the freezer temperature goes back to the value before

fast freezing.

When fast freezing time is up (26 hours), it quits automatically.

When it goes to intelligence, fast freezing stops.

★vacation

Under vacation, it is 14℃in the refrigerator and the temperatures in this chamber cannot be

changed.

1) To enter vacation

Click “option” until it flickers in “fast freezing” and then click “OK” to enter this function.

2) To quite vacation

Under vacation, click “option” until it goes to “vacation” and then click “OK” to quit this function.

The light in vacation goes off and the refrigerator temperature goes back to the value before

vacation.

Vacation quits under functions of intelligence and fast cooling.

★power off memory

With this design, the refrigerator can automatically keep all the setting in case of power off.

When the unit is plugged in again, the refrigerator will run with the setting before power off.

★Power-On Delay

To prevent harm to the refrigerator in case of sudden power cut and power on, the unit does

not start immediately if the power off time is less than 5 minutes.

★Freezer over-temperature alarm (only in case of power on)

When the freezer temperature is higher than 10℃at the first time connected to power, the

symbol light of the freezer chamber goes on and the number representing temperature

flickers.

Press any button or wait for 5 seconds, flickering stops and it goes back to the temperature

that was set.

★Refrigerator door opening alarm

When the refrigerator is open over 3 minutes, the buzzer will buzz. Close the door or press any

button to stop the alarm, but for the latter, the alarm will go off again after 3 minutes.

★Sensor fault alarm

When it shows “E0”, “E1”, “E2” or other abnormal symbols, it means sensor faults and the

refrigerator needs repair.

IN USE

Tips for keeping food perfect in the Fridge

Take extra care with meat and fish

Cooked meats should always be stored on a shelf above raw meats to avoid bacterial

transfer. Keep raw meats on a plate which is large enough to collect juices and cover it

with cling film or foil.

Leave space around food

This allows cold air to circulate around the Fridge, ensuring all parts of the Fridge are kept

cool.

Wrap up food!

To prevent transfer of flavors and drying out, food should be separately packed or covered.

Fruit and vegetables need not be wrapped.

Pre-cooked food should be cooled properly

Allow pre-cooked food to cool down before placing in the Fridge. This will help to stop the

internal temperature of the Fridge from rising.

Shut the door!

To prevent cold air escaping, try to limit the number of times you open the door. When

retuning from shopping, sort foods to be kept in your Fridge before opening the door. Only

open the door to put food in or take it out.

Where to store your foods in the fridge

Cool area

This is where to store foods which will keep longer if they are kept cool. Milk, eggs, yogurt,

fruitjuices, hard cheeses eg. Cheddar. Opened jars and bottles of salad dressings, sauces

and jams. Fats, eg. Butter, margarine, low-fat speads, cooking fats and lard.

Coldest area: 2℃to 5℃

This is where foods which must be cold to keep them safe should be kept:

·Raw and uncooked foods should always be wrapped.

·Pre-cooked chilled foods, eg. Ready meals, meat pies, soft cheeses.

·Pre-cooked meats eg. Ham,

·Prepared salads(including pre-packed mixed green salads, rice, potato salad etc).

·Desserts, eg. Fromage frais, home-prepared food and leftovers or cream cakes.

Salad bin

This is the most humid part of the Fridge. Vegetables, fruit, fresh salad items eg.

Unwashed whole lettuce, whole tomatoes, radishes etc can be stored here.

WE RECOMMEND THATALL PRODUCE KEPT IN THE SALAD BIN IS WRAPPED.

NOTE：Always wrap and store raw meat, poultry and fish on the lowest shelf at the bottom

of the fridge. This will stop them dripping onto, or touching other foods. Do not store

inflammable gasses or liquids in the fridge.

Tips for shopping for frozen foods

Your Freezer is 4 star

When you are buying frozen food, look at the Storage Guidelines on the packaging. You

will be able to store each item of frozen food for the period shown against the 4 star rating.

This is usually the period stated as “Best, Before”, found on the front of the packaging.

Check the Fridge/Freezer temperature

Check the temperature of the frozen food cabinet in the shop where you buy your frozen

foods. It should show a temperature lower than -18℃.

Choose packs carefully

Make sure the frozen food package is in perfect condition.

Purchase frozen food last

Always buy frozen products last on your shopping trip or visit to the supermarket.

Keep frozen foods together

Try to keep frozen food together whilst shopping, and on the journey home as this will help

to keep the food cooler.

Store food straight away

Don’t buy frozen food unless you can freeze it straight away. Special insulated bags can

be bought from most supermarkets and hardware shops. These keep frozen food cold for

longer.

Thawing frozen food

For some foods, thawing before cooking is unnecessary. Vegetables and pasta can be

added directly to boiling water or steam cooked. Frozen sauces and soups can be put into

a saucepan and heated gently until thawed.

Freezing fresh foods, useful tips

Use quality food and handle it as little as possible. Freeze food in small quantities, it

freezes faster, takes less time to thaw and enables you to eat it in the quantity you need.

Freezing fresh foods

First, estimate the amount of food you will be freezing. If you are freezing large amounts of

fresh food, remember to turn the control dial to Max. This will lower the temperature in the

Freezer (approx -30℃), freezing your food quicker and helping to keep the goodness in.

However you should do this sparingly to conserve energy.

Preparations for freezing

Leave cooked food to cool completely.

Chill food in a Fridge before freezing if possible.

Consider how you want to cook the food before freezing it.

Don’t freeze food in metal containers as you may want to microwave it straight from the

Freezer.

Use special Freezer bags available from supermarkets, Freezer film, polythene bags,

plastic containers, aluminum foil for acidic foods(such as citrus fruits).

Do not use thin cling film or glass. Do not use used food containers (unless cleaned

thoroughly first).

Exclude as much air from the container as possible. You could buy a special vacuum

pump which sucks excessive air out of the packaging.

Leave a small amount of “air space” when freezing liquids, to allow for expansion.

You can use the space in the Freezer most efficiently if you freeze liquids(or solids with

liquids, such as stew) in square blocks.

This is known as “performing” Pour the liquid into a polythene bag which is inside a square

sided container. Freeze it like this, then remove it from the container and seal the bag.

Defrosting

This appliance is designed as automatic defrosting ,no need to defrost by hand.

Recommended storage periods

For recommended food storage time, refer to the information given on your food

packaging.

Cleaning inside the Fridge/Freezer

You should clean the Fridge/Freezer internally with a weak solution of bicarbonate of soda.

Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets

in warm soapy water and ensure they are completely dry before replacing in the

Fridge/Freezer.

Cleaning outside the Fridge/Freezer

Use standard non-abrasive detergent diluted in warm water to clean the Fridge/Freezer

exterior.

The grille of the condenser at the back of the Fridge/Freezer and the adjacent

components can be vacuumed using a soft brush attachment.

Do not use harsh cleaners, scouring pads or solvents to clean any part of the

Fridge/Freezer

TROUBLESHOOTING AND MAINTENANCE

Trouble Shooting

Power cut

If the internal temperature of the Fridge/Freezer compartment is -18℃or less when the

Table des matières

Langues :

Autres manuels CORBERO Réfrigérateur

CORBERO

CORBERO FE 850 S/9 (200 C) Manuel utilisateur

CORBERO

CORBERO FM820/2 Manuel utilisateur

CORBERO

CORBERO CC594V22NFW Manuel utilisateur

CORBERO

CORBERO CCGLH1850N Manuel utilisateur

CORBERO

CORBERO CV850S/2 (TT 120 F) Manuel utilisateur

CORBERO

CORBERO FE 1100 AC (200 C) Manuel utilisateur

CORBERO

CORBERO FC 1580 S/9 (ZLKF 261) Manuel utilisateur

CORBERO

CORBERO FE 850 S/2 Manuel utilisateur

CORBERO

CORBERO FD 4121 S/5 Manuel utilisateur

CORBERO

CORBERO FE 1240 C (250 C) Manuel utilisateur

CORBERO

CORBERO Fridge-Freezer Guide d'installation

CORBERO

CORBERO FM1240S/O Manuel utilisateur

CORBERO

CORBERO FD 5140 I Manuel utilisateur

CORBERO

CORBERO CF4PH5830NFXINV Manuel utilisateur

CORBERO

CORBERO FD 5140 I/1 Manuel utilisateur

CORBERO

CORBERO FE 850 S/2 (TT 160 C) Manuel utilisateur

CORBERO

CORBERO FC 1801 I Manuel utilisateur

CORBERO

CORBERO CFFDS43623NFXINV Manuel utilisateur

CORBERO

CORBERO CF1PH855X Manuel utilisateur

CORBERO

CORBERO CCGLM201723NFN Manuel utilisateur

CORBERO

CORBERO FGDD2001F Manuel utilisateur

CORBERO

CORBERO E-CCVG90RR Manuel utilisateur

CORBERO

CORBERO CCVG90RR Manuel utilisateur

CORBERO

CORBERO CC1950MCW Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur

Teledyne

Teledyne 6712FR and Mode d'emploi
