CopperOptics PairGain PG-Flex FRE-765 List 5 Manuel utilisateur
PG-FLEX REMOTE TERMINAL ENCLOSURE
Model List Number Part Number
FRE-765 5 150-1365-05
FRE-765 5A 150-1365-51
PAIRGAIN TECHNOLOGIES, INC.
ENGINEERING SERVICES TECHNICAL PRACTICE
SECTION 363-765-105-01
Revision History of this practice.
Revision 01—June 2, 1997
A) Identifies List 5
x
RT Enclosures
Section 363-765-105 June 2, 1997 Revision 01
Page ii PairGain Engineering - Plant Series PG-Flex FRE-765
TABLE OF CONTENTS
A. PRODUCT OVERVIEW................................................................................................................1
1. Description and Features....................................................................................................1
2. Specifications....................................................................................................................3
B. FUNCTIONAL DESCRIPTION.....................................................................................................3
3. Operational Capabilities .....................................................................................................3
4. Backplane Connections......................................................................................................5
C. INSTALLATION AND TEST........................................................................................................10
5. Unpacking........................................................................................................................10
6. Installation Requirements .................................................................................................10
7. Mounting..........................................................................................................................11
8. Wiring..............................................................................................................................12
9. Turn-Up and Testing.........................................................................................................15
10. Troubleshooting..............................................................................................................15
D. TECHNICAL SUPPORT................................................................................................................16
11. Technical Support...........................................................................................................16
E. WARRANTY AND CERTIFICATION..........................................................................................16
12. Warranty.........................................................................................................................16
13. Certification.....................................................................................................................17
F. ABBREVIATIONS AND GLOSSARY..........................................................................................17
14. Abbreviations and Glossary ............................................................................................17
USING THIS TECHNICAL PRACTICE
Three types of messages, identified by icons, appear in the text:
A note informs you of special circumstances.
A caution indicatess the possibility of equipment damage.
A warning indicates the possibility of personal injury.
Copyright 1997 PairGain Technologies, Inc.
PairGain is a registered trademark, and PG-Flex is a trademark of PairGain Technologies, Inc.
Revision 01 June 2, 1997 Section 363-765-105
PG-Flex FRE-765 PairGain Engineering - Plant Series Page 1
A. PRODUCT OVERVIEW
1. Description and Features
1.1 The PairGainPG-FlexFRE-765 List 5xRemoteTerminal (RT) Enclosures (Figures 1 and 2)
provide convenient mounting of one Line Unit and up to four Channel Units, supporting up to 32
channels. The enclosures also provide termination points for subscriber circuits, auxiliary power
pairs, and metallic bypass pair. AMP Quiet Front™ terminations, with internal gas tube protectors,
are provided on the backplane for HDSL and Bypass connections. Optionally, you can add AMP
Quiet Front terminations for auxiliary power pairs when PG-Flex is used with a PG-Flex doubler.
The enclosure can be pole or wall-mounted and is environmentally sealed for outside plant
installations.
Use the List 5
x
RT Enclosures only with the FCS-718 List 2 (or higher) or the
FCS-719 List 2 (or higher) COT Shelves.

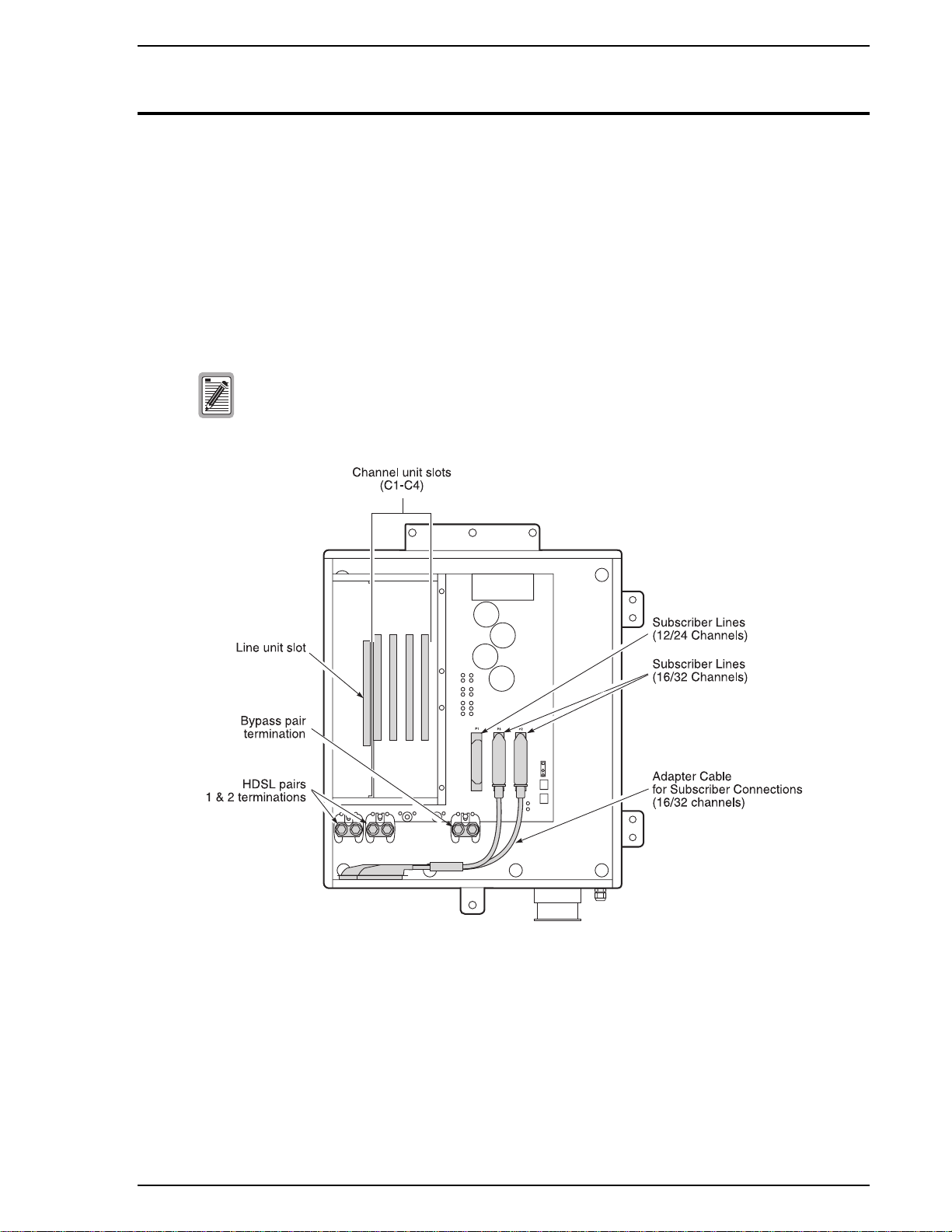

Figure 1. FRE-765 List 5 RT Enclosure (Inside View)
Section 363-765-105 June 2, 1997 Revision 01
Page 2 PairGain Engineering - Plant Series PG-Flex FRE-765
Figure 2. FRE-765 List 5A RT Enclosure (Inside View)
1.2 Features of the FRE-765 RT Enclosure List 5x include:
•pole or wall mounting
•line power from Central Office Terminal (COT)
•AMP Quiet Front terminations for HDSL inputs, metallic bypass pair, and subscriber
connections (List 5A only)
•AMP Quiet Front terminations can be added for auxiliary power pairs when PG-Flex is used
with a doubler
•5-pin protector strips and AMP Quiet Front terminations for subscriber connections
(List 5A only)
•¾-, 1-, 1½-, 2-inch cable entrance conduct knockouts with rubber grommet
•hinged cover over electronics inside the RT Enclosure
See Table 1 to identify which features are available with each RT Enclosure List 5xmodel.
Revision 01 June 2, 1997 Section 363-765-105
PG-Flex FRE-765 PairGain Engineering - Plant Series Page 3
Table 1. Features of FRE-765 5x RT Enclosures
List 5
(Figure 1) List 5A
(Figure 2)
System 16 Channel
ll
32 Channel
ll
Subscriber Terminations 25-pr Amphenol (male)
l
AMP Insulation Displacement
l
Subscriber Protection 5 pin sockets (short housing)
l
HDSL Terminations AMP Insulation Displacement
ll
2. Specifications
Environmental
Operating Temperature ...............................-40° F to +150° F (-40° C to +65° C)
Operating Humidity ....................................5% to 95% (non-condensing)
Operating Elevation ....................................-200 feet to 13,000 feet (-60 m to 4,000 m)
Physical
Dimensions
Height:.................................................19.25 in. (48.9 cm)
Width:..................................................16.50 in. (41.9 cm)
Depth:..................................................06.44 in. (16.4 cm)
Weight:
List 5:...............................................24.4 lb (11.1 kg)
List 5A: ............................................35.7 lb (16.2 kg)
B. FUNCTIONAL DESCRIPTION
3. Operational Capabilities
3.1 The FRE-765 List 5xRT Enclosure requires the following plug-in units:
•one RT Line Unit which is line powered via the HDSL pairs that connect the RT to the PG-Flex
COT installed in a COT Shelf.
•one Channel Unit, minimum, with a maximum installation of four Channel Units, supporting up
to 32 channels.
Section 363-765-105 June 2, 1997 Revision 01
Page 4 PairGain Engineering - Plant Series PG-Flex FRE-765
3.2 Table 2 shows how circuit assignments are configured in the FRE-765 with the following
deployment rules:
•For channel units providing four (4) circuits, Ckt 1 through Ckt 4 are used for Tip and Ring
terminations.
•For channel units providing eight (8) circuits, Ckt 1 through Ckt 8 are used for Tip and Ring
terminations.
•For a 32-channel system, you can provision a maximum of 32 circuits.
Each PG-Flex channel unit provides four (4) or eight (8) circuits. Table 3 shows how the channels
are assigned, dependent on the type of service provided, such as:
•Plain Old Telephone Service (POTS)
•Integrated Services Digital Network (ISDN)
•Digital Data System (DDS).
Table 2. FRE-765 Circuit Assignments
Line Unit Channel Unit 1 Channel Unit 2 Channel Unit 3 Channel Unit 4
Refer Ckt 1 Ckt 1 Ckt 1 Ckt 1
to Ckt 2 Ckt 2 Ckt 2 Ckt 2
Tables 8, 9, and 10 Ckt 3 Ckt 3 Ckt 3 Ckt 3
for Ckt 4 Ckt 4 Ckt 4 Ckt 4
Line Ckt 5 Ckt 5 Ckt 5 Ckt 5
Unit Ckt 6 Ckt 6 Ckt 6 Ckt 6
Terminations Ckt 7 Ckt 7 Ckt 7 Ckt 7
Ckt 8 Ckt 8 Ckt 8 Ckt 8
Table 3. Channel Unit Circuit Utilization
Channel Unit Service Configurations
Channel Unit 4-Channel POTS 8-Channel POTS 4-Channel ISDN 4-Channel DDS
T/R 1 Ckt 1 Ckt 1 Ckt 1 Ckt 1 Tx
T/R 2 Ckt 2 Ckt 2 Ckt 2 Ckt 1 Rcv
T/R 3 Ckt 3 Ckt 3 Ckt 3 Ckt 2 Tx
T/R 4 Ckt 4 Ckt 4 Ckt 4 Ckt 2 Rcv
T/R 5 — Ckt 5 — Ckt 3 Tx
T/R 6 — Ckt 6 — Ckt 3 Rcv
T/R 7 — Ckt 7 — Ckt 4 Tx
T/R 8 — Ckt 8 — Ckt 4 Rcv
Revision 01 June 2, 1997 Section 363-765-105
PG-Flex FRE-765 PairGain Engineering - Plant Series Page 5
4. Backplane Connections
4.1 Table 4 lists the FRE-765 List 5xbackplane connectors and where each connector is described in
this practice.
Table 4. FRE-765 List 5x Backplane Connectors
List Connector or Fuse Go to
Table(s) On
Page(s)
5 Subscriber Connectors (16/32) 5 and 6 5 and 6
5A Subscriber Connectors (16/32) 7 7 and 8
All Test and Configuration Line-Unit Terminations 8 8
All HDSL, Metallic Bypass, and Auxiliary Power Line-Unit Terminations 9 9
All Power and Ground Line Unit Terminations 10 9
All Fuse 11 9
Table 5. List 5 Subscriber Cable J3 on Connector P3 (16/32 channel)
Cable J3 Connector P3
Channel Unit Circuit Tip Ring Tip Ring
1 WH/BL BL/WH 26 1
2 WH/OR OR/WH 27 2
3 WH/GN GN/WH 28 3
1 4 WH/BN BN/WH 29 4
5WH/SL SL/WH 30 5
6RD/BL BL/RD 31 6
7RD/OR OR/RD 32 7
8RD/GN GN/RD 33 8
1 RD/BN BN/RD 34 9
2 RD/SL SL/RD 35 10
3 BK/BL BL/BK 36 11
2 4 BK/OR OR/BK 37 12
5 BK/GN GN/BK 38 13
6BK/BN BN/BK 39 14
7BK/SL SL/BK 40 15
8YL/BL BL/YL 41 16
Shaded terminations are only used with the 8 channel POTS or 4 channel DDS units.
Section 363-765-105 June 2, 1997 Revision 01
Page 6 PairGain Engineering - Plant Series PG-Flex FRE-765
Table 6. List 5 Subscriber Cable J2 on Connector P2 (16/32 channels)
Cable J2 Connector P2
Channel Unit Circuit Tip Ring Tip Ring
1 WH/BL BL/WH 26 1
2 WH/OR OR/WH 27 2
3 WH/GN GN/WH 28 3
3 4 WH/BN BN/WH 29 4
5WH/SL SL/WH 30 5
6RD/BL BL/RD 31 6
7RD/OR OR/RD 32 7
8RD/GN GN/RD 33 8
1 RD/BN BN/RD 34 9
2 RD/SL SL/RD 35 10
3 BK/BL BL/BK 36 11
4 4 BK/OR OR/BK 37 12
5 BK/GN GN/BK 38 13
6BK/BN BN/BK 39 14
7BK/SL SL/BK 40 15
8YL/BL BL/YL 41 16
Shaded terminations are only used with the 8 channel POTS or 4 channel DDS units.
Revision 01 June 2, 1997 Section 363-765-105
PG-Flex FRE-765 PairGain Engineering - Plant Series Page 7
Table 7. List 5A Subscriber Terminations
Channel Subscriber Protector
Unit Circuit Connector Pair Strip Socket
1 TB1 1 PB1 1
2 TB1 2 PB1 2
3 TB1 3 PB1 3
1 4 TB1 4 PB1 4
5 TB1 5 PB1 5
6TB1 6 PB1 6
7TB1 7 PB1 7
8TB1 8 PB1 8
1 TB1 9 PB1 9
2 TB1 10 PB1 10
3 TB1 11 PB2 1
4 TB1 12 PB2 2
2 5 TB2 1 PB2 3
6TB2 2 PB2 4
7TB2 3 PB2 5
8TB2 4 PB2 6
1 TB2 5 PB2 7
2 TB2 6 PB2 8
3 TB2 7 PB2 9
3 4 TB2 8 PB2 10
5TB2 9 PB3 1
6TB2 10 PB3 2
7TB2 11 PB3 3
8TB2 12 PB3 4
(continued on next page)
Section 363-765-105 June 2, 1997 Revision 01
Page 8 PairGain Engineering - Plant Series PG-Flex FRE-765
Table 7. List 5A Subscriber Terminations (continued)
Channel Subscriber Protector
Unit Circuit Connector Pair Strip Socket
1 TB3 1 PB3 5
2 TB3 2 PB3 6
3 TB3 3 PB3 7
4 4 TB3 4 PB3 8
5 TB3 5 PB3 9
6TB3 6 PB3 10
7TB3 7 PB4 1
8TB3 8 PB4 2
For the FRE-765, List 5A RT Enclosure the cables on the rear of the
p
rotector/termination
module are installed in connectors P3 and P2 on the FRE-765 backplane.
Shaded terminations only used with the 8 Channel POTS or 4 Channel DDS Units.
Table 8. Test and Configuration Line Unit Terminations
Connector Type Function
ID_0
GND .045 in. Wire-wrap (No Connection - Future)
ID_1
GND .045 in. Wire-wrap (No Connection - Future)
ID_2
GND .045 in. Wire-wrap (No Connection - Future)
TEST_IN_TIP
TEST_IN_RING .045 in. Wire-wrap (No Connection - Future)
TEST_OUT_TIP
TEST_OUT_RING .045 in. Wire-wrap (No Connection - Future)
SSC1_A
SSC1_B .045 in. Wire-wrap (No Connection - Future)
SSC2_A
SSC2_B .045 in. Wire-wrap (No Connection - Future)
