COP-USA CHLP120IR-SDI Manuel utilisateur
• 1/2.8” COLOR SDI High Definition
• 1080P Full HD, 0 Lux, ICR, IR cut Filter.
• Slow Shutter (Sense Speed 32X)
• 224 High Power Intensity LED, 300 Feet.
• 10-120mm Auto Iris 2.0 Megapixels IR Lens
• Dual CDS, front CDS is High Resolution camera,
back CDS is License Plate Camera
• 10 dipswitch control, Bracket included
• Dual Power DC12V 4A /AC24V 60VA
100Feet
Normal Camera
IR On
0Feet50Feet200Feet300Feet
100Feet300Feet
“IR On” Effective Distance“IR On” Effective Distance
CHLP120IR-SDI
* Specifications are subject to change without notice ** Designed in U.S.A.
SDI 1080P Shuttle & License Plate Camera
Serial Digital Interface
12345678910
ON
OFF
Warning
SDI High Definition Camera
ON
OFF
License Plate Camera
The DIP Switch
NO.10
MENU LENS AUTO
EXP AIS SHUTTER
Shu tt er speed se lec t
License Plate
0 OFF 20 M i l e s 30 KM
60 KM
1A.FLK 40 Miles
2 1/160sec. 50 M i l e s 80 K M
100 KM
31/250sec. 65 Miles
4 1/500sec. 80 M i l e s 130 KM
160 KM
5 1/700sec. 90 Miles
6 1/1000sec. 110 M i l e s 180 KM
200 KM
7 1/1600sec. 120 Miles
8 1/2500sec. 140 M i l e s 230 KM
RS485 Housing Control
(Box camera)
User's Manual
Notice
To reduce the risk of electric shock, please do not disassemble by yourself, it
should be repaired by a qualified technician.
The lightning arrow symbol reminds users that there is
dangerous voltage nearby, enough for a body to produce an
electric shock and cause bodily harm.
The caution symbol, reminds users to pay close attention to the
relevant instructions during the operation and maintenance of
the product.
Please fill in the product model and manufacturing number. This information will
assist you in the future should you need to refer to it for service or repair.
Model:
Number:
Important Safety Precautions
1、Before installation, please read the manual, and keep this
guide for future reference.
2、Please comply with all warnings on the device and follow the
instructions carefully.
3、 Please wipe or clean the device before connecting the device
to power, and please do not use liquid/spray cleaning agents.
4、Please used our recommended factory parts when in need of
repair, otherwise, failure may occur.
5、The device should use the recommended power and voltage from
the manual. If the power and voltage of the installation site
is unclear, please contact us for further assistance.
6、 Protect the power cord, especially along the plug and camera
data lines. Do not submerge in water or any liquids.
7、 To prevent lightning surge damage, please install surge
protectors.
8、 To prevent fire and electric shock, please do not over-extend
the data lines or allow foreign substances into
the machine which
may cause dangerous corrosion.
9、Do not install in areas that have unstable brackets, walls,
roofs, etc. Otherwise, it may result in bodily harm.
10、Please contact your dealer should you have the following
issues:
10.1 Wrong power supply or voltage.
10.2 Damaged housing unit.
10.3 Abnormal behavior with device performance.
10.4 After consulting the user manual and it still does not
operate.
11、When part replacement is needed, please contact your dealer
so we can provide approved parts to maintain the same
performance.
I Summary .............................................. 6
II Features ............................................ 6
III Product Size Chart ................................. 8
IV Socket Function .................................... 9
1.Camera control board layout ...................... 9
2.Power board socket diagram ....................... 10
V Connecting different camera models ................. 12
1、Color box camera with DC12V .................... 12
2、Color box camera with AC24V ..................... 12
VI Auxiliary Preset Function ......................... 13
I. Summary
The integrated shell uses an all-metal construction, the
compatible color camera is protected and is for outdoor and
indoor equipped with light compensation at night。The unit has
a waterproof grade of IP66, uses EIA/RS-485 connections for
remote control, has internal and external infrared compensation
light for both near and far distances. The unit also is set
automatically to have infrared light at night.
II. Features
1、AC24V or DC12V compatible
2. When using DC12V, use FPC flexible connect lines;
3、When connecting integrated devices, a wire control function
is available for convenience.
4、The unit is set at default with a range address of:0-255, baud
rate is 2400, Pelco-D protocol;
5、 Dual power supply input, input voltage DC12V±10%/AC24V±
10%;
6、Photo Sensor can be adjusted on four levels,
front or back settings may be chosen;
7、Double-sided infrared is 15°distance more than 120M/394ft, power
is 15W, internal infrared is 45 ° ,5W, both near and far
infrared radiation;
8、All-metal construction is strong and durable, with IP66
Grade.
9、Unit can use RS485 control, 120Ω Resistor;
10、IR Lights are optically triggered by camera
11、Preset positions up to 32;
12、Has automatic on/off Infrared Control;
13、Manual Settings to open or close;
III. Product Size Chart
IV. Socket Function
1、Camera control board layout

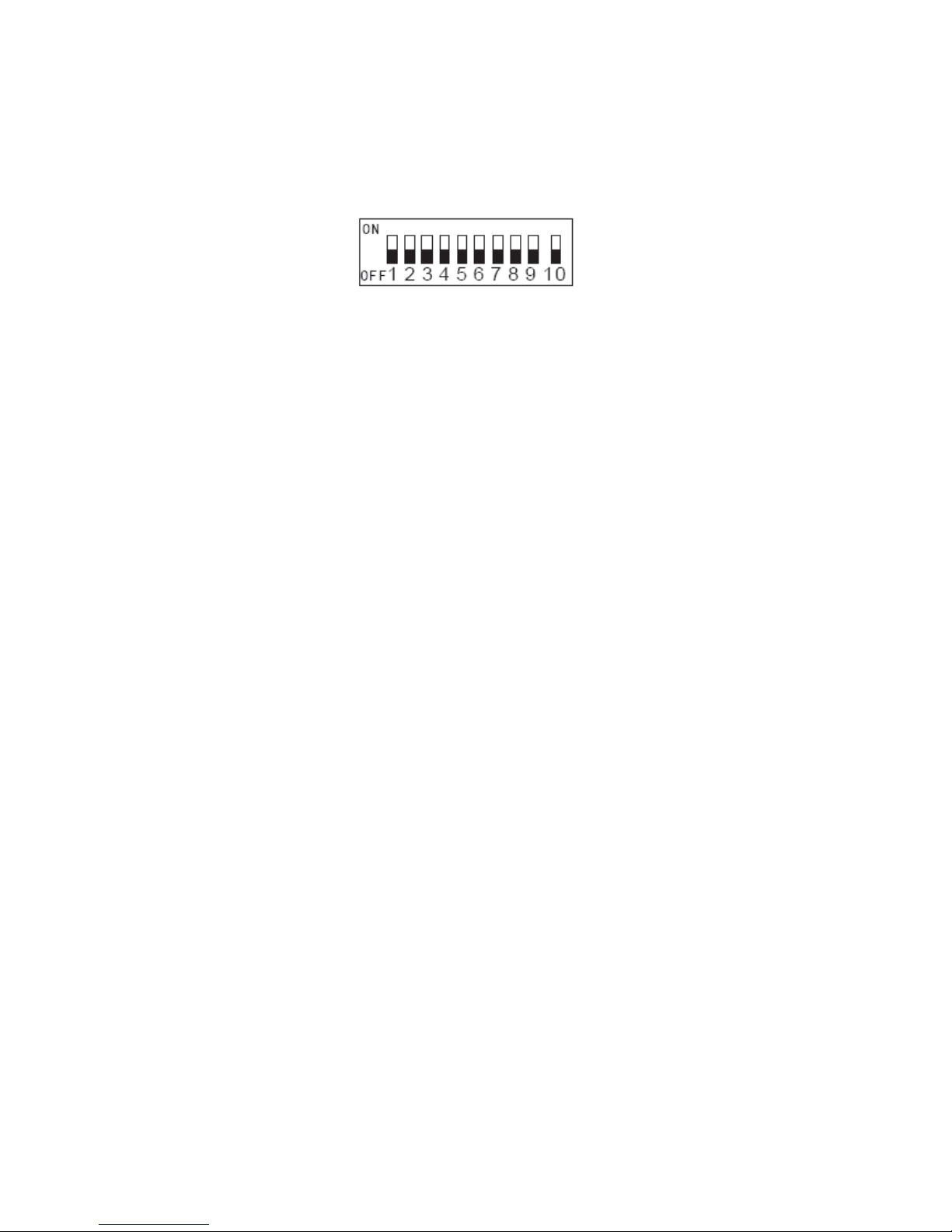

1.1 BK1：DIP switch
1.1.1 1—8 address code，binary representation，ON is 1，OFF
is 0, from 8 to 1 reading:
If 1 is set ON, all other set off, is 00000001,that is decimal 1.
f 2 is set ON, all other set off, is 00000010,that is decimal 2.
And so on, the largest that is decimal 11111111，that is decimal 255.
1.1.2 The 9th is RS485 120Ω resistance select
switch,
1.1.3 The 10th is Photo Sensor switch,
set ON for the Photo Sensor in the Front, set OFF for the Photo Sensor i
in the Back
1.1 S1:Photo Sensor sensitivity has four Settings:
(00):1lux,(01):2lux,(02):4lux,(03):10lux
1.2 S3：D/N signal voltage
output select, low level, 3.3V option
1.3 J1：DC12V output，suitable DV12V box camera power supply.
1.4 J2：System program interface
