Cooper safety CF30002GP Manuel utilisateur

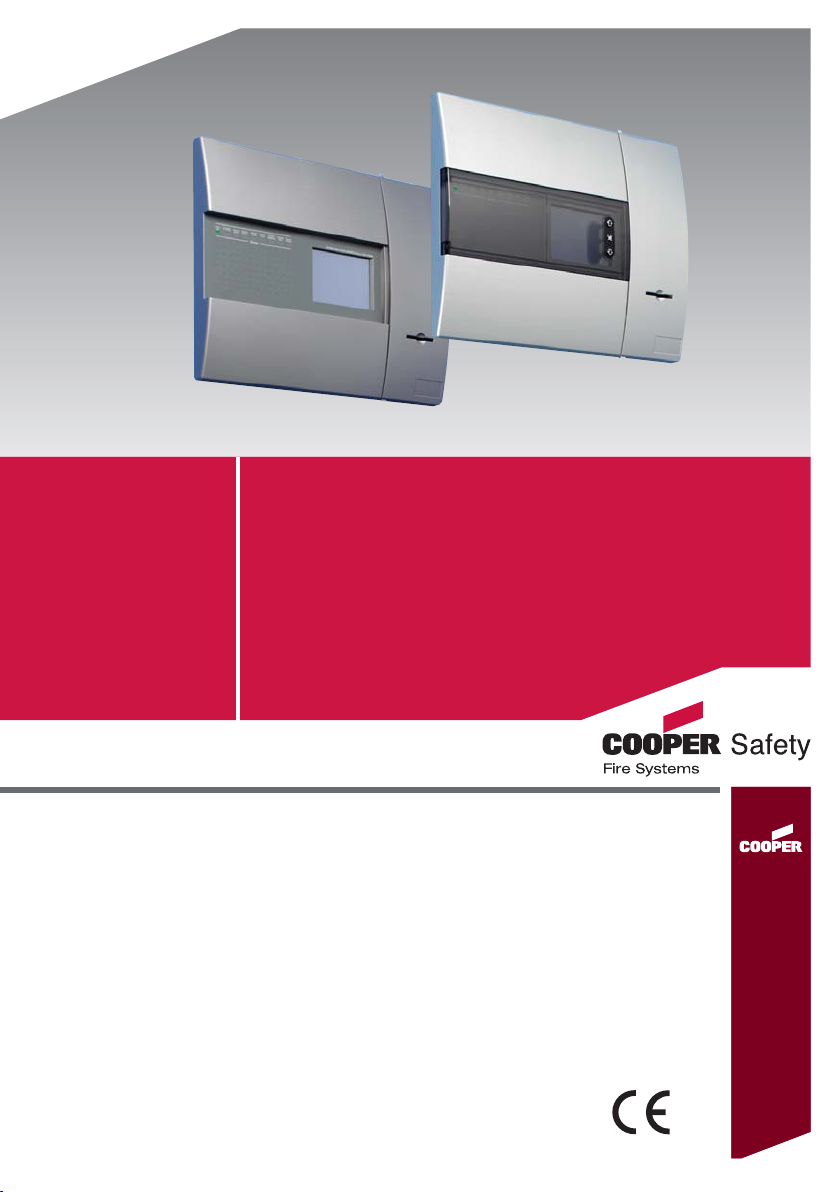

CF3000 Control Panel

User Manual

Fire

Assessed to: ISO 9001:2000

Certiﬁcation number: 714h/01

Approved to:

EN54-2 1997 & A1;2006

EN54-4:1997 & A1;2002 A2:2006

Document Drg Ref: PR200-04-514-11

Marketing Ref: CC1820a

0832 – CPD – 1060

www.acornfiresecurity.com

CF3000 - USER MANUAL

Introduction to the Manual

This manual provides information on the installation, operation and maintenance of the Cooper CF3000

System.

Notice

The operating system of the CF3000 may be revised as a result of enhancements to the system software

or hardware. Revisions to this manual will be issued and supplied on request and should be logged

in the table supplied on the contents page.

Caution

Risk of explosion if battery is replaced by an incorrect type dispose

of the used batteries according to the instructions

Contact

Technical: 01302 303350

Service: 01302 303352

Sales: 01302 303303

www.acornfiresecurity.com

CF3000 - USER MANUAL

Contents

Section 1 - System Installation and Design

Introduction 5

Project Planning 6

System Design Guidelines 7

Compatible Equipment 8

Detectors 9

Callpoints 10

Beacons and Sounders 11

Base Sounder 11

Stand Alone Sounders 12

Loop Powered Beacon 12

Compatible Interfaces 13

3 Channel I/O 13

1 Channel I/O 14

Zone Monitor Unit 14

Shop Monitor Unit 15

Spur Isolator 16

4 Way Sounder Circuit Controller 16

Micro Interfaces 17

Fan Controller Interfaces (FC18 / FC6) 18

Equipment Compatiblity 19

System Overview 20

Technical Speciﬁcation 22

Optional Functions as per EN54 Pt 2 & 4 24

Optional Functions Not Approved to EN54 Pt 2 & 4 28

Cable and Wiring 29

Installation 30

Fixing Details 31

External Connections 32

Networking 33

Inputs/Outputs 34

Maintainance 36

Section 2 - Panel Assembly Information

Attaching Panel Door 38

Installing Optional Screen Door 39

Replacing Printer Paper Roll 40

Section 3 - Commissioning

Commissioning Mode 42

Conﬁguration 43

Panel Fault Finding 44

Protocol 45

PC Comissioning Software 46

Section 4 - Panel Controls And Indicators

System Indicators 50

Panel Layout 51

Touch Screen Display 52

Panel Operation 53

Public (Access Level 1) 54

Evacuate (Access Level 2) 55

Silence Alarms 56

Mute Buzzer 57

Reset 57

Pre Alarms 58

Disabled Devices 58

View Faults 59

Enable / Disable (Others Menu) 59

Print 61

Lamp Test 62

Weekly Test 63

View Events 64

Check Auto Conﬁg 65

Replace Device 66

Test Device 67

Test Zone 68

Sounder Level Test Mode 69

Global LED Flashing On/Off 70

One Man Walk Test 71

Load CDR From Laptop 72

Download CDR To Laptop 73

Auto Learn 74

Erase Log 75

System Details 76

Analogue Levels 77

Printer Settings 78

Change Panel Number 79

Number of Panels In Network 80

Screen Cover 81

Programming I/O and Sounders 82

Sound Settings 83

Change Date/Time 84

Change Address Text 85

Change Zone Text 86

Change Panel Text 87

Conﬁgure Zones 88

Change User Code 89

Add Zone 90

Delete Zone 91

Add Device 92

Delete Device 93

Conﬁgure Heat Detectors 94

Network 95

Password Protection 96

Section 5 - Appendix

Spur Isolator 98

4 Way Sounder Controller 99

Zone Monitor Unit 100

Shop Monitor Unit 101

1 Way Input Output Unit 102

Detector Base Wiring 103

System Wiring 104

IP66 Wall Sounder 105

Internal Wall Sounder 106

Base Sounder 107

3 Way Input Output Unit 108

Loop Powered Beacon 109

Callpoint 110

EN54 Product Spec Label 111

Battery Disposal Instructions 112

CE Marking 113

www.acornfiresecurity.com

CF3000 - USER MANUAL

Section 1

System Installation and Design

Section 1 - System Installation and Design

www.acornfiresecurity.com

CF3000 - USER MANUAL

Introduction

CF3000 provides all of the sophisticated features required of a leading edge analogue addressable ﬁre

system along with the simple operation and neat installation demanded by installers and building users.

The panel can be ﬂush or surface mounted and the generously sized metal back box allows ample

facilities for rear or top cable entries. It is available in single two and four loop versions, with or without an

integral printer.

In addition both passive and fully functional repeater panels are available.

A comprehensive range of ancillary devices is available to operate with CF3000, including optical,

ionisation, photo-thermal and heat detectors, base mounted and stand alone sounders (including an IP67

version) a loop powered beacon and a wide range of input and output interfaces.

Each of the CF3000 system components has been speciﬁcally designed to operate as part of a CF3000

system, this provides an assurance that the panel, the detectors, the interfaces and the ancillaries are all

fully compatible with each other and that the full range of system functionality is supported by each

device.

Each loop of a CF3000 panel can accommodate up to 200 addresses. To comply with EN54

requirements no more than 512 addresses should be connected to a single panel. Each panel can

indicate upto 96 zones. Panels are available with upto 4 detection loops, up to 126 panels can be

networked together to form a single system capable of operating with over 32,000 devices.

Note:

Network systems fall outside the scope of EN54.

Section 1 - System Installation and Design

www.acornfiresecurity.com

CF3000 - USER MANUAL

Project Planning

The following is a typical program and timetable for a CF3000 installation project, once the initial order

has been received:

1. Project Meeting

Installer and user to be present; system speciﬁcations, schematic diagram and proposed circuit drawing

to be available. CF3000 Installation and Commissioning Guide to be provided.

2. Equipment Fix

Typically 2 week's notice is required for equipment to be delivered. Cable to be installed and bases/back

boxes to be ﬁtted. Then ﬁre detectors, callpoints, alarm sounders, isolator units and interface units to be

installed.

3. Address Schedule

Schedule of sensor locations to be completed by installer and returned to enable system programming.

4. Auto Learn

Fire panel/repeater panels to be installed and terminated. System to be powered up by installer and auto

learn mode activated (see Auto Learn section). System to be tested and veriﬁed by installer, prior to ﬁnal

commissioning.

5. Final Commissioning

Minimum 2 weeks notice is required from receipt of Address Schedule and Commission request form.

Cooper Fire Service Engineer to attend site implement/oversee the ﬁnal commissioning procedures (see

Commissioning section), in conjunction with the installer.

Section 1 - System Installation and Design

www.acornfiresecurity.com

CF3000 - USER MANUAL

System Design Guidelines

Guidelines

Systems should to the relevant local standards and codes of practice, for the UK this is BS5839 Pt 1.

CF3000 meets all the relevant requirements of BS5839 Pt 1: 2002. Installation planning is simpliﬁed by

the fact that every addressable CF3000 device contains an integral short circuit isolator. Care must be

taken to ensure that local standards requirements regarding aspects such as loop coverage, area

covered by a single spur and cable speciﬁcation are observed.

There may be certain applications in which deviations from the code may be necessary and these must

be listed on the commissioning certiﬁcate. (See commissioning section).

Loop Lengths

The maximum permitted loop length is 2 km measured from the near to the far terminals on the CF3000

motherboard PCB. There is no minimum limit to loop length. Any wiring spurs off the loop must be

included within the 2 km limit. On long loop runs, the lengths of wiring rises and falls (between ﬂoors,

down to manual callpoints) must be included. Remember to include these especially when taking loop

lengths from plan drawings.

Loop Loading - Total Number of Addresses

The total number of addresses per loop is 200. this includes detectors, callpoints and all other

addressable items (e.g. MPU, MIO, loop repeaters etc.) When designing systems its recommended that

allowances are made for future expansion, Short circuit isolators are incorporated into every CF3000 loop

device, including Smoke detectors, heat detectors, sounders, callpoints and interfaces. Therefore, no

further fault protection is required, in the event of a single fault, none of the devices connected to the loop

will fail to operate as the fault will be isolated by the two adjacent devices. Spur connected devices

downstream of a cable fault will cease to function.

CF3000/PR Repeater Panels

Each repeater unit requires one address and consumes no more current from the loop than a smoke

detector. The repeater also requires a local mains supply and incorporates battery backup.

Loop Loading System Veriﬁcation

Unless a loop loading calculation has already been carried out, please contact our technical support

department (01302 303350), before starting installation to verify that a proposed loop loading

arrangement is acceptable.

Section 1 - System Installation and Design

www.acornfiresecurity.com

CF3000 - USER MANUAL

Compatible Equipment

Section 1 - System Installation and Design

CF3000 system components

Order Code Description Dimensions (mm)

CF3000/1 1 Loop CF3000 Panel 495 W x 400 H x 180 D

CF3000/2 2 Loop CF3000 Panel 495 W x 400 H x 180 D

CF3000/4 4 Loop CF3000 Panel 495 W x 400 H x 180 D

CF3000/1/P 1 Loop CF3000 panel c/w integral printer 495 W x 400 H x 180 D

CF3000/2/P 2 Loop CF3000 panel c/w integral printer 495 W x 400 H x 180 D

CF3000/4/P 4 Loop CF3000 panel c/w integral printer 495 W x 400 H x 180 D

CF3000/1/G 1 Loop CF3000 Panel Graphite ﬁnish 495 W x 400 H x 180 D

CF3000/2/G 2 Loop CF3000 Panel Graphite ﬁnish 495 W x 400 H x 180 D

CF3000/4/G 4 Loop CF3000 Panel Graphite ﬁnish 495 W x 400 H x 180 D

CF3000/1/P/G 1 Loop CF3000 panel c/w integral printer Graphite ﬁnish 495 W x 400 H x 180 D

CF3000/2/P/G 2 Loop CF3000 panel c/w integral printer Graphite ﬁnish 495 W x 400 H x 180 D

CF3000/4/P/G 4 Loop CF3000 panel c/w integral printer Graphite ﬁnish 495 W x 400 H x 180 D

CF3000/COV Hinged protective cover kit

CF3000/PR Passive repeater for CF3000

CAS380 Sounder Base 102 Dia x 40 D

MASC Cover for CAS380 102 Dia x 13 D

CASBB384 Base Sounder Beacon 114 Dia x 36 D

MASB870-NT Base Beacon 114 Dia x 36 D

CAS381 Wall Sounder 105 L x 105 H x 95 D

CAS381WP IP66 Wall sounder 108 L x 108 H x 103 D

CAS382 Addressable Beacon 95 Dia x 50 D

CBG370S Surface / Flush Callpoint 85 L x 85 W x 53 D

CBG370WP Weatherproof Callpoint 108 L x 108 W x 65 D

CIO351 3 Channel I/O Device 147 L x 88 W x 57 D

CIO351T 3 Channel I/O Device 1 Address 147 L x 88 W x 57 D

CIO351S 3 Channel I/O Device reset on silence 147 L x 88 W x 57 D

CMIO353 1 Channel Output Unit (mains rated) 180 L x 130 H x 60 D

CZMU352 Zone Monitor Unit 150 L x 89 H x 58 D

MIU87-IS Zone Monitor Unit Intrinsically Safe 150 L x 89 H x 58 D

CSUM355 Shop Unit Interface 150 L x 89 H x 58 D

CSI350 Spur Isolator 112 L x 41 H x 33 D

CSC354 4 Way Sounder Circuit Controller. 300 L x 300 H x 74 D

CAB300 Common Mounting Base For Analogue Detectors 104 Dia x 22 D

CAP320 Optical Smoke Detector 101 Dia x 33 D

CAH330 Multi Mode Heat Detector 101 Dia x 43 D

CAPT340 Combined Photo Thermal Detector 101 Dia x 43 D

MIU872 Micro Zone Monitor Unit 63 L x 35 H x 18.5 D

MCIM-C Micro Callpoint Input Module 63 L x 35 H x 18.5 D

MCOM-S Micro Sounder Output Module 63 L x 35 H x 18.5 D

MCOM-R Micro Output Module Resetable 63 L x 35 H x 18.5 D

MICM-NF Micro Analogue Non Fire Input Module 63 L x 35 H x 18.5 D

www.acornfiresecurity.com

CF3000 - USER MANUAL

Detectors

Analogue Photoelectric Detector - CAP320

This is the most commonly used detector and is

most suitable for detecting slow burning ﬁres. The

status LED can be programmed to either be

permanently off under normal conditions or to

pulse in order to conﬁrm that it is in

communication with the CF3000 control panel.

Analogue Photo/thermal Detector - CAPT340

This is a new addition to the Cooper range of

detectors. It is the ideal detector for a multi-use

environment as it has an excellent response to

smouldering and fast burning ﬁres. Photo/thermal

detectors can be programmed for thermal only

operation at certain times of day. The status LED

can be programmed to either be permanently off

under normal conditions or to pulse in order to

conﬁrm that it is in communication with the

CF3000 control panel.

Analogue Heat Detector - CAH330

Heat detectors are suitable for dusty environments

or environments where smoke is likely to be

present under normal operating conditions. The

CAH330 can be programmed to operate in A1R,

BS or CS mode of operation depending on the

required application and sensitivity requirements.

The status LED can be programmed to either be

permanently off under normal conditions or to

pulse in order to conﬁrm that it is in

communication with the CF3000 control panel.

Section 1 - System Installation and Design

www.acornfiresecurity.com

CF3000 - USER MANUAL

Callpoints - CBG370S / CBG370WP

The range of purpose designed callpoints for CF3000 consists of a surface callpoint, a ﬂush callpoint and

a surface weatherproof callpoint. A range of accessories is available including a hinged protective cover,

resettable element kit and a ﬂush bezel. The status LED can be programmed to either be permanently off

under normal conditions or to pulse in order to conﬁrm that it is in communication with the CF3000

control panel.

Section 1 - System Installation and Design

Flush mounted callpoint

CBG370S

Weatherpoof callpoint

CBG370WP

Surface mounted callpoint

CBG370S

www.acornfiresecurity.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cooper safety Panneau de contrôle

Cooper safety

Cooper safety CF3000 Guide de l'utilisateur

Manuels Panneau de contrôle populaires d'autres marques

RDZ

RDZ PC-HRX Manuel utilisateur

STG-BEIKIRCH

STG-BEIKIRCH MZ3 Manuel technique

Efka

Efka Variocontrol V810 Manuel utilisateur

Cebora

Cebora 208-10 Manuel utilisateur

AMX

AMX AutoPatch CP-15 Manuel utilisateur

Satel

Satel CA-6 KLED-S Manuel utilisateur

Evolution

Evolution IQ plus 800 Manuel utilisateur

Fagor

Fagor 8040 TCO CNC Manuel utilisateur

Trane

Trane ComfortLink II XL950 Control Manuel utilisateur

AKO

AKO PROCool AKO-17635-2 Manuel utilisateur

ABB

ABB 6136/30M-101 Manuel utilisateur

Telikou

Telikou BK-603 Belt Pack Manuel utilisateur

Mapei

Mapei Mapeheat Thermo Touch Manuel utilisateur

Bosch

Bosch D9412GV4 Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries SC-SL4-AE2/1 Manuel utilisateur

Sminn

Sminn BOX L VF1L EI Manuel utilisateur

Balboa

Balboa TP600 Manuel utilisateur

Nice

Nice HSCU1 Caractéristiques techniques
