126 STREETWORKS Outdoor Lighting Solutions Cooper Lighting

ROADWAY

ACCESSORIES (order separately)

RA1013=Photocontrol Shorting Cap

RA1014=120V Photocontrol

RA1015=208V-277V Photocontrol

RA1016=105V-285V Photocontrol

OA1028=Field Installed PCR Kit

OVL ROADWAY LUMINAIRE 1000W

MH/HPS

HOUSING

Precision die cast aluminum

housing designed for optimum

rigidity and durability with minimum

weight and clean smooth unbroken

lines. Standard grey polyester

powder coat finish. Optional NEMA

twistlock photocontrol receptacle

available.

SOCKET

Adjustable mogul-base porcelain

socket.

DOOR

Die-cast aluminum door frame with

integral hinges for hands free

installation. ANSI wattage/source

label.

LENS

Prismatic refractor of heat-resistant

borosilicate glass is designed and

molded to provide precise control

and high system efficiency.

REFLECTOR

Reflector is precision hydroformed

aluminum highly polished by the

Alzak process and is designed for

optimum light control and

efficiency.

BALLAST ASSEMBLY

Hard mounted ballast with

encapsulated starter for protection

from environmental abuse.

Standard two position tunnel type

compression terminal block.

Optional ballast tray available.

MOUNTING

Integral slipfitter designed to

accommodate 2" mounting arm and

is adjustable for vertical leveling

within 5° from tenon, birdguard

seals around pipe opening.

NOTE: 1 Metal Halide ballast is designed to operate both Metal Halide and Mercury Vapor lamps.

ROADWAY LUMINAIRE

EPA:

Effective Projective Area: 2.65

SHIPPING DATA

Approximate Net Weight:

76 lbs. (34.47 kgs.)

OPTIONS (add as suffix)

1=Single Fuse, Internally Mounted (120 or 277V)

2=Double Fuse, Internally Mounted (208, 240, or 480V)

4=Photocontrol Receptacle

U=UL/CSA Listed

WH=White

BK=Black

BZ=Bronze

OPTIONS + ACCESSORIES [Must be listed in the order shown and separated by a dash]

STREETWORKS™

ORDERING INFORMATION

SAMPLE NUMBER: OVL91SWW4E

OPTIONS +

ACCESSORIES

(See Below)

PRODUCT

FAMILY

OVL

LAMP WATTAGE

91=1000W LAMP TYPE

S=High Pressure

Sodium

M=Metal Halide

V=Mercury

BALLAST TYPE 1

W=CWA VOLTAGE2

2=120V

0=208V

4=240V

7=277V

8=480V

F=120/240 wired 120V

P=240 w/PCR wired 120V

W=Multi-Tap wired 120V

N=Multi-Tap wired 277V

V=Multi-Tap wired 240V

DISTRIBUTION

3=Type III

4=Type IV

CUTOFF

E=MSCO

39" [991mm]

16 5/16"

[414mm]

17" [432mm]

OPTIONAL COLORS [Standard color is grey, other finish colors available. Consult your Cooper Lighting representative]

White BK

Black BZ

Bronze

STREETWORKS Outdoor Lighting Solutions 127Cooper Lighting

OVL ROADWAY LUMINAIRE ROADWAY

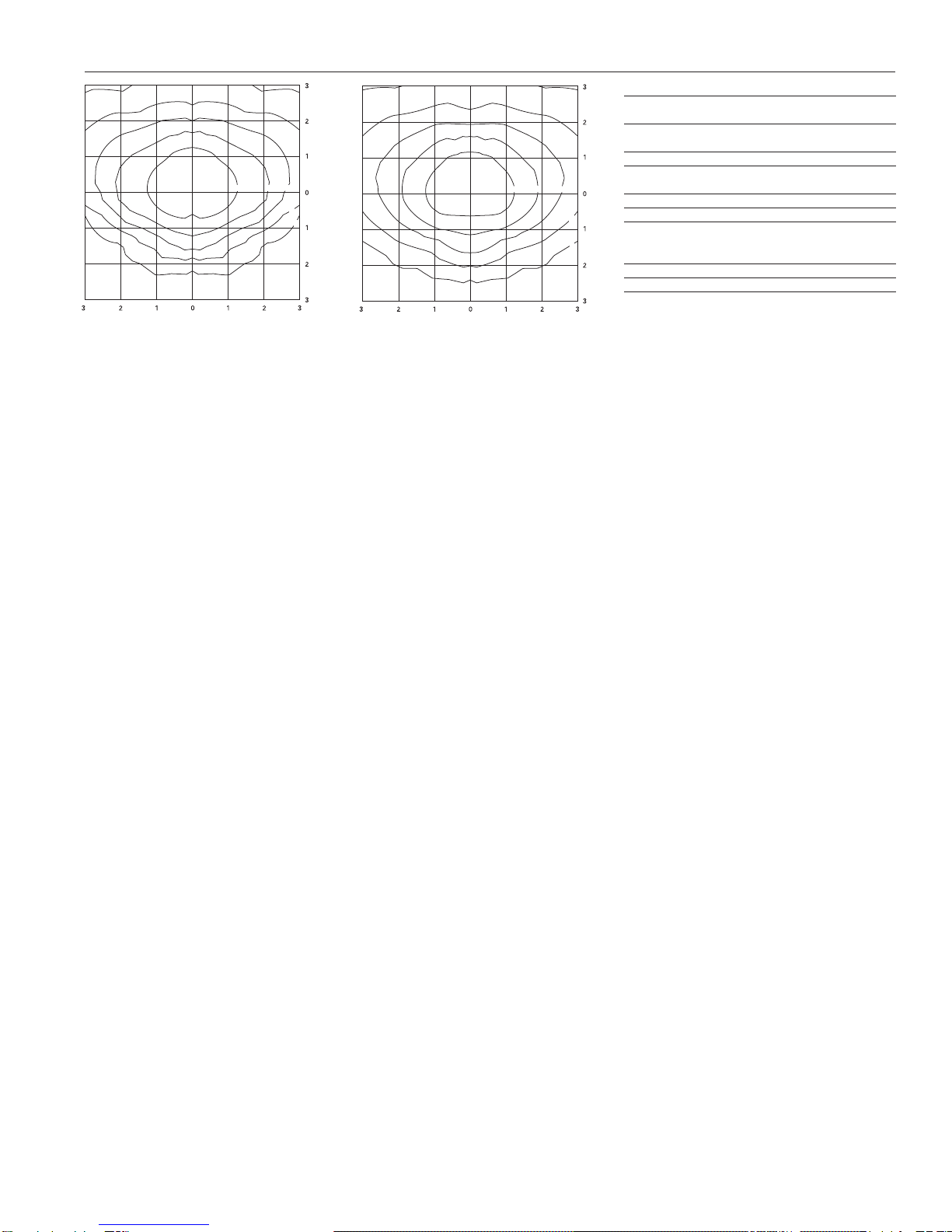

PHOTOMETRICS [Complete IES files available at www.cooperlighting.com]

OVL91S3B.IES

1000 Watt HPS

130,000 Lumen Clear Lamp

Type III-Short Semi-Cutoff

CA B

OVL91S4E.IES

1000 Watt HPS

130,000 Lumen Clear Lamp

Type IV-Medium Semi-Cutoff

FOOTCANDLE TABLE

Select mounting height and read across for footcandle values of

each isofootcandle line. Distance in units of mounting height.

Mounting Footcandle Values for

Height Isofootcandle Lines

ABCDE

OVL91S3B.IES

25' 9.80 3.92 1.96 0.98 0.39

30' 6.80 2.72 1.36 0.68 0.27

35' 5.00 2.00 1.00 0.50 0.20

OVL91S4E.IES

25' 9.80 3.92 1.96 0.98 0.39

30' 6.80 2.72 1.36 0.68 0.27

35' 5.00 2.00 1.00 0.50 0.20
