Congratulations. You have purchased a Regent motion activated floodlight. This

security lighting system will provide years of convenience and protection for your

home and family.

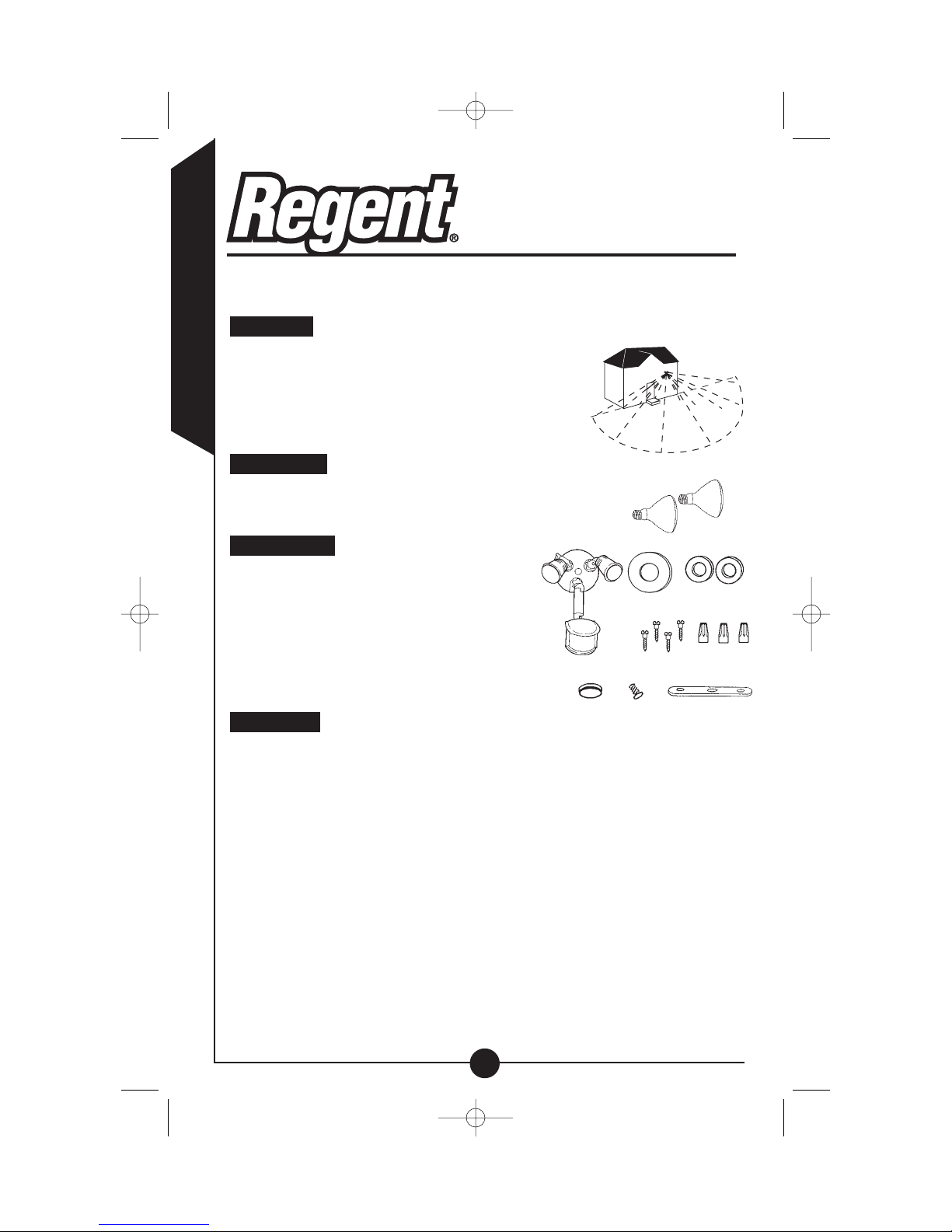

How it works

Your Regent motion activated floodlight senses heat

images from objects such as people, large animals and

automobile engines. When motion is detected, the lights

will automatically turn on. Once motion has stopped, the

lights will turn off after a preselected time delay. Your

motion activated floodlight may also be used as a stan-

dard floodlight.

What you need

Phillips screwdriver

Outdoor weatherproof silicone caulking

(2) 150 Watt (max) PAR 38 floodlight bulbs (A)

What’s included

Motion detector and light fixture (B)

Coverplate gasket (C)

(2) Lampholder gaskets (D)

(4) Mounting bracket screws (E)

(3) Wire nuts (F)

Color matched center hole plug (G)

Center bolt (H)

Mounting bracket (I)

What to know

For outdoor use only.

UL and cUL LISTED for wet locations.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation. Under Part 15 of the FCC Rules, any changes or

modifications to the motion detector described in this instruction sheet that are not

expressly approved by Cooper Lighting could void the user’s authority to operate

the equipment. NOTE: This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful inter-

ference in a residential installation. This equipment generates, uses and can radi-

ate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encour-

aged to try to correct the interference by one or more of the following measures:

ENGLISH

MS185, CMS185 (Bronze)

MS185W, CMS185W (White)

70 foot

180 degrees

BCD

GHI

MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 2

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Fixture must be connected to a 120 Volt, 60 Hz 2.5, 300 watt power source. Any

other connection voids warranty.

This motion activated twin floodlight should be installed by persons with experi-

ence in household wiring or by a qualified electrician. The electrical system, and

the method of electrically connecting the fixture to it, must be in accordance with

the National Electrical Code and local building codes.

For proper operation and protection against damage, the motion sensor head

adjustment knobs must be facing the ground.

Disassembly of your fixture will void the warranty.

For best results

Install your fixture 8-12 feet above ground (motion detector is

less sensitive above 12 feet).

Locate fixture so motion moves across detection zone (J).

Locate fixture away from heat producing sources to prevent

false triggering. Also be very careful not to include objects

such as windows, white walls and water in the detection zone whenever possible.

Locate fixture away from moving objects such as trees and street traffic.

Do not install more than one motion activated floodlight on one wall switch.

Mounting your fixture

Step 1: Turn off the power at the main

fuse/breaker box. Check to make

sure power has been disconnected

before continuing.

Step 2: Line up the holes on the mounting brack-

et with the holes on your junction box.

Using either (2) #6 screws or (2) #8

screws (depending on size of the holes in your

junction box), attach the mounting bracket to your

junction box (K).

Step 3: Thread fixture wires through coverplate gasket.

Step 4: Connect black wire to house black wire and con-

nect white wire to house white wire using wire

nuts provided.

Step 5: Attach fixture to the junction box with two screws

provided.

Step 6: Attach fixture to the mounting bracket using the center bolt provided.

Insert plastic color matched plug in center bolt hole for finished appear-

ance.

Step 7: Apply silicone caulking around edges of coverplate

and in any open holes to provide a watertight

seal from rain and moisture.

Step 8: Insert gaskets into lampholder assembly, tight-

ly against lampholder and screw bulbs into

each lampholder. (Do not overtighten bulbs).

Step 9: Turn power on at main fuse/breaker box.

ENGLISH

Round Rectangular (horizontal) Octagonal

Your fixture mounts

to the following standard

junction boxes:

(eave mount)

(wall mount)

MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 3

How to operate your fixture

Step 1: Move slide switch on bottom of the sen-

sor to “TEST”. Set sensitivity knob to

medium (halfway) (L).

Step 2: Turn on the power to fixture. Allow fix-

ture to warm up approximately 40 sec-

onds before testing. (Lights will come on

and stay on during warm-up

period.)

Step 3: Aim sensor head toward desired detection area, maintaining a 15° down

angle to allow moisture to drain. NOTE: Maintain air spacing between

lamps and sensor head, at least 1”. Make sure sensor head is positioned

with control switches facing towards the ground.

Step 4: Walk across the detection zone at the farthest distance you wish your

detector to detect motion.

Step 5: Adjust sensitivity until you get desired results. Lights will turn off 4 sec-

onds after all motion stops.

Step 6: Move slide switch to 4 MIN or 12 MIN (AUTO mode). At dusk, lights will

operate in the AUTO setting.

How to select your desired feature

ENGLISH

THIS IS THE

BOTTOM SIDE

OF THE MOTION

DETECTOR

TEST 4 MIN 12 MIN SENSITIVITY

Auto Setting

(motion activated)

Lights should turn on with

motion only at night and

should turn off after

4 or 12 minutes.

4 MIN

12 MIN Keep the power to

the fixture on.

Dusk to Dawn Setting

(activated only at night)

Lights should stay on from

dusk to dawn and then reset

to the auto setting next

dawn.

4 MIN

12 MIN Turn power on and off twice

within 3 seconds.

Standard Floodlight

Setting

Lights should stay on

continuously both day and

night (must be reset

manually).

TEST Turn power on and off twice

within 3 seconds.

Test Setting

Lights should turn on with

motion both day and night.

Lights should turn off after

4 seconds.

TEST Keep the power to the

fixture on.

Return to Auto Setting

(motion activated)

From any of the above

settings.

4 MIN

12 MIN

Turn the power “OFF” for at

least 40 seconds., then

back “ON”.

Mode of

operation: Set slide switch

on sensor to: How to set

power switch:

MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 4

What to do if . . .

ENGLISH

Is there power to the fixture?

Check to see that the circuit breaker has not

been tripped.

Be sure the wall switch is in the “ON” position.

Be sure that the bulbs are not burned out or

broken.

Is the surrounding external ambient light too bright?

(If so the unit may think it’s daytime.)

Re-aim the head.

Relocate or reposition the unit away from the

light.

TURN OFF POWER BEFORE CONTINUING.

Is the wiring to the fixture loose?

Check wiring, and reconnect if necessary using

wire nuts provided.

OUTDOOR LIGHTS DO

NOT COME ON WITH

MOTION AT NIGHT

OUTDOOR LIGHTS

COME ON FOR NO

APPARENT REASON

AT NIGHT

LIGHTS STAY ON AT

NIGHT AND DO NOT

TURN OFF

LIGHTS CONTINUOUSLY

BLINK ON AND OFF AT

NIGHT

LIGHTS ARE ON

DURING THE DAY

Is there motion in the detection zone?

Make sure the sensor is not picking up moving

objects such as trees, traffic, etc.

TEST FOR YOURSELF

Cover the sensor lens with cardboard to pre-

vent sensor from detecting motion. If the lights

stay off, something in the detection zone is

triggering the sensor.

If this is the case, reduce the sensitivity.

Reposition motion sensor.

*If the lights stay on with sensor lens covered,

contact customer service.

Is there motion in the detection zone?

Make sure the sensor is not picking up moving

objects such as trees, traffic, etc.

If this is the case, reduce the sensitivity.

Reposition motion sensor.

If there is no motion, then the unit may be in the

override mode.

Turn the light switch to the “OFF” position for

40 seconds, and then back to the “ON” posi-

tion. This will send the unit back into the

AUTO mode.

*If the lights continue to stay on, contact

customer service.

The light given off from the unit’s own lamps are

affecting the motion sensor.

Re-aim lamps.

Reposition motion sensor.

Is the switch on the bottom of the motion sensor in

the test mode?

Move the switch to the 4 MIN or 12 MIN

position.

Is the motion detector shadowed?

Reposition motion sensor.

MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 5

Two year limited warranty

Cooper Lighting (“the Company”) warrants this product (“the product”) against

defects in material or workmanship for a period of two years from date of origi-

nal purchase, and agrees to repair or, at the Company’s option, replace a

defective product without charge for either replacement parts or labor during

such time. This does not include labor to remove or install fixtures.

This warranty is extended only to the original purchaser of the product. A pur-

chasers receipt or other proof of date of original purchase acceptable to the

Company is required before warranty performance shall be rendered.

This warranty only covers product failure due to defects in materials or work-

manship which occurs in normal use. It does not cover the bulb or failure of

the product caused by accident, misuse, abuse, lack of reasonable care, alter-

ation, or faulty installation, subjecting the product to any but the specified elec-

trical service or any other failure not resulting from defects in materials or work-

manship. Damage to the product caused by separately purchased, non-

Company brand replacement bulbs and corrosion or discoloration of brass

components are not covered by this warranty.

There are no express warranties except as described above.

THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, SPECIAL OR

CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PROD-

UCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL

IMPLIED WARRANTIES, IF ANY, INCLUDING IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE

LIMITED IN DURATION TO THE DURATION OF THIS EXPRESS WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequen-

tial damages, or limitations on how long an implied warranty lasts, so the above

exclusions or limitations may not apply to you.

No other warranty, written or verbal, is authorized by the Company. This war-

ranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

To obtain warranty service, please write to Cooper Lighting, 1121 Highway 74

South, Peachtree City, GA 30269. Enclose product model number and prob-

lems you are experiencing, along with your address and telephone number.

You will then be contacted with a solution, or a Return Goods Authorization

number and full instructions for returning the product. All returned products

must be accompanied by a Return Goods Authorization Number issued by the

Company and must be returned freight prepaid. Any product received without

ENGLISH

Is the surrounding external ambient light too bright?

(If so the unit may think it’s daytime.)

Re-aim the head.

Relocate or reposition the unit away from the

light.

Are you allowing adequate time to enter the Dusk

to Dawn mode?

Turn power on and off twice within 3 seconds.

Is there more than one fixture on an indoor wall

switch?

If so, put them on separate switches.

CANNOT ACTIVATE

DUSK TO DAWN MODE

AT NIGHT (OVERRIDE)

MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 6

a Return Goods Authorization Number from the Company will be refused.

Cooper Lighting is not responsible for merchandise damaged in transit.

Repaired or replaced products shall be subject to the terms of this warranty

and are inspected when packed. Evident or concealed damage that is made in

transit should be reported at once to the carrier making the delivery and a

claim filed with them.

ENGLISH

Customer First Center 1121 Highway 74 South, Peachtree City, GA 30269 USA

www.cooperlighting.com

Patent 5,381,323

Reproductions of this document without prior written approval of Cooper Lighting are strictly prohibited.

MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 7

Felicitaciones. Usted ha adquirido una lámpara de alta intensidad activada por

movimiento Regent. Este sistema de iluminación de seguridad le proporcionará

años de conveniencia y protección para su familia y su hogar.

Cómo funciona

La lámpara de alta intensidad activada por movimiento

detecta imágenes térmicas de objetos tales como

personas, animales grandes y motores de automóviles.

Cuando se detecte movimiento, la luz se encenderá

automáticamente. Una vez que el movimiento haya

cesado, la luz se apagará después de un tiempo

de retardo preseleccionado. Esta lámpara de alta inten-

sidad activada por movimiento también puede

ser utilizada como una lámpara de alta intensidad están-

dar.

Qué se requiere

Destornillador phillips

Calafateo impermeable

(2) Focos para lámparas de alta intensidad

PAR 38 de 150 watts (MÁX) (A)

Qué se incluye

Detector de movimiento y portalámparas (B)

Junta obturadora de la placa de la cubierta (C)

(2) Junta obturadora del receptáculo (D)

(4)Tornillos de la escuadra de montaje (E)

(3)Tuercas de cable (F)

Tapón del agujero central del mismo color (G)

Perno central (H)

Escuadra de montaje (I)

Qué se necesita saber

Se debe utilizar en exteriores solamente.

Aprobado por UL y cUL para su utilización en áreas mojadas.

Este dispositivo cumple con la parte 15 de las reglas de la FCC. Su funcionamien-

to está sujeto a las dos condiciones siguientes: (1) Este dispositivo no debe causar

interferencia dañina, y (2) este dispositivo debe aceptar cualquier interferencia

recibida, incluida la que pueda causar funcionamiento indeseado. Según lo estipu-

lado en la Parte 15 de las reglas de FCC, cualquier cambio o modificación hecha

al detector de movimiento descrito en esta hoja de instrucciones que no esté

expresamente aprobado por Cooper Lighting podría anular la autorización otorga-

da al usuario para utilizar este equipo. NOTA: Este equipo fue probado en servicio

y encontrado de conformidad con los límites para un dispositivo digital Clase B, de

acuerdo a lo estipulado en la Parte 15 de las reglas de FCC. Estos límites tienen

como fin proporcionar protección razonable contra la interferencia perjudicial en

una instalación residencial. Este equipo genera, utiliza y puede irradiar energía de

radiofrecuencia, y si no se instala y usa de acuerdo con las instrucciones, puede

ESPAÑOL

MS185, CMS185 (Bronce)

MS185W, CMS185W (Blanco)

70 pies

21 m

180 grados

CD E

FGH

MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 8

causar interferencia perjudicial para las radiocomunicaciones. Sin embargo, no

existe ninguna garantía de que no ocurrirá interferencia en una instalación en par-

ticular. Si este equipo llegara a causar interferencia perjudicial para la recepción

de radio o de televisión, lo que puede determinarse encendiendo y apagando el

equipo, se recomienda al usuario tratar de corregir la interferencia tomando una o

más de las medidas siguientes:

Cambie la orientación o ubicación de la antena receptora.

Aumente la separación entre el equipo y el receptor.

Conecte el equipo a un tomacorriente en un circuito diferente de aquel al

cual está conectado el receptor.

Consulte con el concesionario o un técnico en radio/televisión competente.

El portalámparas se debe conectar a una fuente de energía de 60 Hz, 120 Voltios,

2.5A / 300 watt. Cualquier otro tipo de conexión anula la garantía.

La lámpara de alta intensidad dual activada por movimiento debe ser instalada

por personas con experiencia en conexiones eléctricas de hogares o por un elec-

tricista calificado. El sistema eléctrico y el método utilizado para la conexión eléc-

trica de este portalámparas al mismo debe regirse por el Código Eléctrico

Nacional y por los códigos locales de construcción.

Para un funcionamiento y protección adecuados contra posibles daños, los

botones de ajuste de la cabeza del sensor de movimiento se deben ajustar en

dirección al piso.

Si por alguna razón se desarma el portalámparas, la garantía quedará automátic-

mente eliminada.

Para obtener mejores resultados

Instale su portalámparas a 8-12 pies (2.4 – 3.7 m) del piso.

El detector de movimiento es menos sensible si se encuen-

tra a una altura superior a los 12 pies (3.7 m).

Coloque el portalámparas de manera que se mueva por

toda la zona de detección (J).

Coloque el portalámparas lejos de fuentes de calor para

prevenir una falsa activación. Siempre que sea posible trate de no introducir en el

área de detección objetos tales como calefactores, aparatos de aire acondiciona-

do, respiraderos de lavaderos y superficies reflectantes tales como ventanas,

paredes blancas y agua.

Coloque el portalámparas lejos de objetos en movimiento tales como árboles y

tráfico callejero.

No instale más de una lámpara de alta intensidad activada por movimiento en un

interruptor de pared.

Montaje del farol

Paso 1: Desactive la fuente de

alimentación en la caja de

fusibles/interruptor automático

principal. Revisar para asegurarse

que la corriente haya sido

desconectada antes de continuar.

Paso 2: Alinee los agujeros en la escuadra de montaje

con los agujeros en su caja de conexiones.

Usando ya sea (2) tornillos #6 ó (2) tornillos #8

(dependiendo del tamaño de los agujeros en

la caja de conexiones), fije la escuadra de

montaje a la caja de conexiones (K).

Paso 3: Haga pasar los cables del portalámparas a

ESPAÑOL

Su portalámparas se ajusta a

estas cajas de empalmes:

Redonda Rectangular (horizontal) Octagonal

(montaje de pared)

MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 9

través de la junta obturadora de la placa de la

cubierta.

Paso 4: Conecte los cables de conexión a tierra del

portalámparas al cable de conexión a tierra

de la casa. Si no hay ningún cable de

conexión a tierra, conecte el cable del por-

talámparas a la caja de conexiones.

Paso 5: Sujete el portalámparas a la caja de

empalmes con los dos tornillos adjuntos.

Paso 6: Fije el farol a la escuadra de montaje usando

el perno central suministrado. Inserte el tapón de plástico

del mismo color en el agujero del perno central para darle un buen acaba-

do.

Paso 7: Aplique sellador de silicona alrededor de los bordes de la placa de cierre y

en todos los agujeros, para formar un sello impermeable a la lluvia y

humedad.

Paso 8: Inserte juntas en el conjunto del portalámparas, firmemente contra el por-

talámparas, y enrosque las lámparas en cada portalámparas. No apriete

demasiado los focos.

Paso 9: Active la fuente de alimentación en la caja de

fusibles/interruptor automático.

Operación de su portalámparas

Paso 1: Mueva el interruptor corredizo que se

encuentra en la parte inferior del sensor

a “TEST”. Ajuste el botón de sensibili-

dad a la posición media (hasta la mitad)

(L).

Paso 2: Active la energía del portalámparas.

Deje que el portalámparas se caliente

aproximadamente 40 segundos antes de hacer las pruebas. (Las luces se

encenderán y permanecerán encendidas durante el período de calen-

tamiento.)

Paso 3: Dirija la cabeza del sensor hacia el área de detección deseada, mante-

niendo un ángulo de 15° hacia abajo, para permitir el drenaje de la

humedad. NOTA: Deje un espacio de aire de por lo menos 1” (25.4 mm)

entre las lámparas y el sensor. Asegúrese de que la cabeza del sensor

esté colocada con los interruptores de control en dirección al piso.

Paso 4: Camine a través de la zone de detección tan lejos como desee que su

detector registre movimiento.

Paso 5: Ajuste la sensibilidad hasta obtener los resultados deseados. Las luces

se apagarán 4 segundos después de que se detenga el movimiento.

Paso 6: Mueva el interruptor corredizo a 4 MIN o 12 MIN (AUTO modo). Al

anochecer, las luces funcionarán en el modo AUTOMATICO.

ESPAÑOL

(montaje de alero)

TEST 4 MIN 12 MIN SENSITIVITY

ESTA LA CARA

INFERIOR DEL

DETECTOR DE

MOVIMIENTO

MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 10

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Cooper Lighting Éclairage paysager

Cooper Lighting

Cooper Lighting Landau MFT91MWWFT4 Manuel utilisateur

Cooper Lighting

Cooper Lighting MCGRAW-EDISON 1192 Manuel utilisateur

Cooper Lighting

Cooper Lighting Westminster WST50SR2554 Manuel utilisateur

Cooper Lighting

Cooper Lighting OVH50SR22D4 Manuel utilisateur

Cooper Lighting

Cooper Lighting MEL25MWW2SXSWBK Manuel utilisateur

Cooper Lighting

Cooper Lighting Streetworks Classical CLB-1 Manuel utilisateur

Cooper Lighting

Cooper Lighting OVY15SWW2D4 Manuel utilisateur

Cooper Lighting

Cooper Lighting Pole Mount Icon Manuel utilisateur

Cooper Lighting

Cooper Lighting Talon Architectural Area Luminaire Manuel utilisateur

Cooper Lighting

Cooper Lighting Streetworks Generation Series Manuel utilisateur

Cooper Lighting

Cooper Lighting McGraw-Edison PFM Manuel utilisateur

Cooper Lighting

Cooper Lighting HALO H2522 Manuel utilisateur

Cooper Lighting

Cooper Lighting Westminster Post Top Luminaire Manuel utilisateur

Cooper Lighting

Cooper Lighting Area Luminaire RCL70SP23D4 Manuel utilisateur

Cooper Lighting

Cooper Lighting Landscape Lighting Manuel utilisateur

Cooper Lighting

Cooper Lighting Deep Prismatic Glass OVD15SWW2F4 Manuel utilisateur

Cooper Lighting

Cooper Lighting ADH080747 Mode d’emploi

$Cooper Lighting Drop Prismatic Refractor OVX40SWW3E4 Manuel utilisateur$

Cooper Lighting

Cooper Lighting Drop Prismatic Refractor OVX40SWW3E4 Manuel utilisateur

Cooper Lighting

Cooper Lighting OVZ50SR22E4 Manuel utilisateur

Cooper Lighting

Cooper Lighting High Mast HMC40SC23E Manuel utilisateur

Cooper Lighting

Cooper Lighting Nighthawk III Manuel utilisateur

Cooper Lighting

Cooper Lighting Street Works TMU40SWW3SF Manuel utilisateur

Cooper Lighting

Cooper Lighting Traditionaire UTR50SR2554 Manuel utilisateur

Cooper Lighting

Cooper Lighting VAN70SR255LV5A Manuel utilisateur

Manuels Éclairage paysager populaires d'autres marques

Intex

Intex SL1006 Manuel utilisateur

LED Group

LED Group ROBUS R2IN13W Manuel utilisateur

Patriot Lighting

Patriot Lighting 343-1484 Manuel utilisateur

Hess

Hess SERA G: SERA S Manuel utilisateur

LIGMAN

LIGMAN JET 44 Manuel utilisateur

LIGMAN

LIGMAN MALTA 1 Manuel utilisateur

Saxby Lighting

Saxby Lighting Islay 68784 Manuel

LIGMAN

LIGMAN EU-10016-3 Manuel utilisateur

LIGMAN

LIGMAN KI-60475 Manuel utilisateur

Malibu Boats

Malibu Boats CL905K Manuel utilisateur

LIGMAN

LIGMAN NYB-30161 Manuel utilisateur

LIGMAN

LIGMAN SI-80021 Manuel utilisateur

Volt

Volt 2-in-1 Tiki-Brass Torch Light Manuel utilisateur

Malibu Boats

Malibu Boats CM110P Manuel utilisateur

U.S.T.E.

U.S.T.E. VISTA 8202 Manuel utilisateur

LIGMAN

LIGMAN VIENNA 1 Manuel utilisateur

LIGMAN

LIGMAN LA-60022 Manuel utilisateur

LIGMAN

LIGMAN EU-10016-2 Manuel utilisateur
