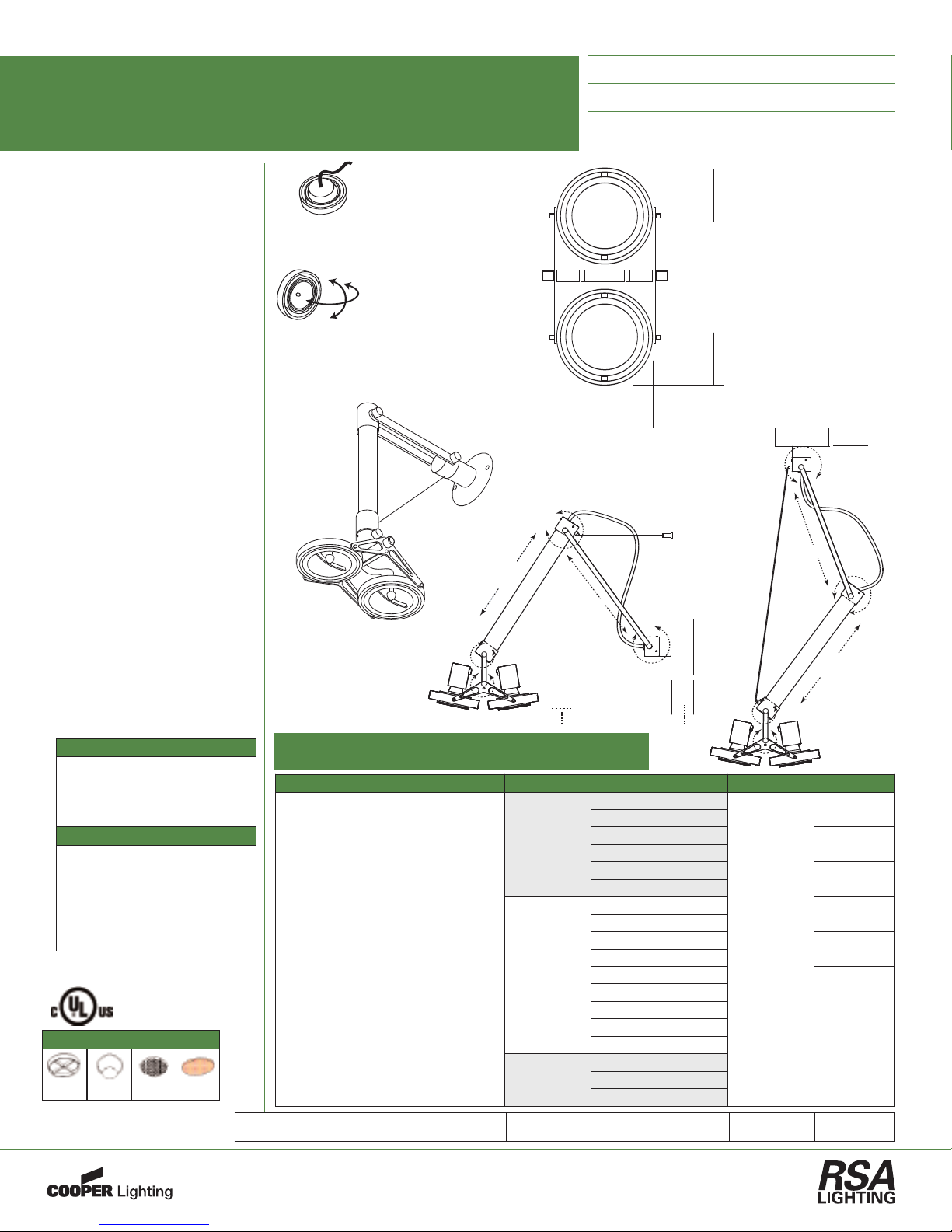

COMBOLIGHT®QUANTUM Series • CQA

TWO (2) Light Adjustable Wall or Ceiling Mounted Luminaire

Fixture Configuration “A” • Lamp Groups 1, 2 & 3

Low Voltage, Line Voltage or Metal Halide

DESCRIPTION:

Awall / ceiling mounted fixture

with adjustable arm construction

featuring four separate pivot points

for maximum flexibility in display

illumination.

CONSTRUCTION:

All aluminum construction with

durable powder coat finish.

LAMP ASSEMBLY:

Two lamps mounted in adjustable

double gimbal lamp holders. Dual

axis 90º x 90º locking adjustability.

Lamp column swivels 50º.

ELECTRICAL:

Low voltage and metal halide mod-

els are wired for use with remote

transformers or ballasts. Custom

configurations are available for

integral transformers or ballasts -

consult RSA factoryfor details.

Low voltage and Line Voltage mod-

els are dimmable.

ALL RSA COMBOLIGHT PRODUCTS

ARE MADE IN THE U.S.A.

Label: UL, CSA and New York

Calendar

Cat. # / Description Lamp Type Grid Configuration Finish

CQA - Adjustable Wall / Ceiling

Mounted Luminaire Lamp Group 1 11 - MR16 12V 50W A - Two Light BK - Black

12 - MR16 12V 75W

13 - AR70 12V 20W WH - White

14 - AR70 12V 50W

15 - PAR16 120V S - Silver

16 - PAR20 120V

Lamp Group 2 21 - PAR20MH 39W PC - Polished

Chrome

22 - PAR30 120V

23 - PAR30MH 39W PT - Custom

24 - PAR30MH 70W

25 - PAR36 12V 50W

26 - AR111 12V 35W

27 - AR111 12V 50W

28 - AR111 12V 75W

29 - AR111 12V 100W

Lamp Group 3 31 - PAR38 120V

32 - PAR38MH 70W

33 - PAR38MH 100W

GRID CONFIGURATION “A”

This sheet is for Grid Configuration

“A”. To see other grid configura-

tions, consult other ComboLight

Quantum Series spec sheets.

USING THIS SPEC SHEET

This fixture is dimensioned

according to lamp type. Please

select lamp from either Lamp

Group 1, 2 or 3 - and then refer to

the appropriate dimensions of fix-

ture as shown above.

Custom configurations areavailable for integral transformers or

metal halide ballasts - consult RSA factory for details.

13.50" 

Standard

(ustom lengths available)

4.63" 

15.00" 

Standard

(Custom lengths available)

Adjustable double gimbal 

lamp holder accepts up to 

two optical accessories

90º

Standard lamp back cover for

AR111 models hides lamp

terminals and connections.

Specifications and Dimensions subject to change without notice.
