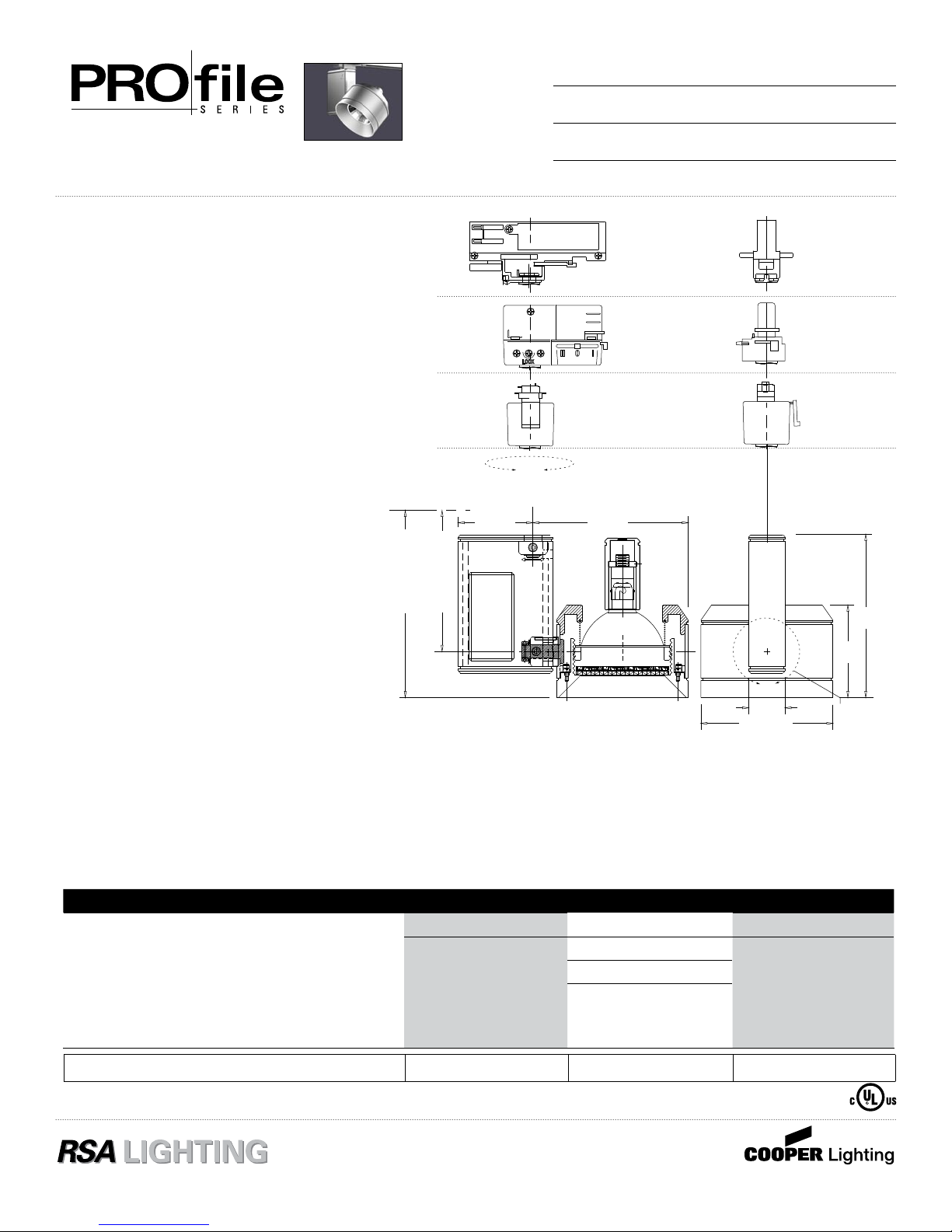

Cooper Lighting PM113obi Manuel utilisateur

RSA Lighting 9660-9700 Topanga Canyon Blvd. Chatsworth, CA 91311

Toll Free: 800-356-3030 • 818-349-3030 • Fax: 818-349-3031

PM46

"537!9/242!#+

352&!#%

,OCKING

!DJUSTABILITY

"USWAYONLY

,OCKING

!DJUSTABILITY

v

v

v

v

v

v

 v h

  "USWAY

 v v

 #CT.TL4RACK

 v v

OR#CT4RACK

PM613obi

60 Amp Busway

Catalog #

Type

Project

A machined aluminum track ﬁxture for low voltage

AR70 lamps for 20 or 50 watts. For use with RSA

Proﬁle Series 60 Amp Busway, 20 Amp 1 or 2 Circuit

Track or 20 Amp 2 Circuit / 2 Neutral Track.

Integral low voltage electronic transformer in alu-

minum housing.

Front loading lamp with bayonet action lens /

accessory bezel. Optical accessories are captured

in the bezel with a threaded retainer ring preventing

accessory spill-out during relamping. Can accom-

modate up to three optical accessories.

Auto extending / retracting lamp holder. Lamps

extend for easy access and automatically retract

to optimum position. This is extremely helpful when

dealing with varying accessory combinations or dif-

fering manufacturer lamp dimensions.

Optical accessories include color filters, UV ﬁl-

ters, screens, spread lenses, louvers, hex louvers,

snoots. Consult RSA for details.

Locking on both the horizontal and vertical

planes. 370º vertical rotation possible due to over-

center locking mechanism (60 amp busway only).

270º horizontal locking adjustment.

UL and CUL listed

Available in White, Black, Natural Aluminum or

custom ﬁnishes.

AR70 12V

Open Back Machined Fixture w/ Integral Transformer

PM613obi | PM413obi | PM213obi | PM113obi

Open Back Machined Fixture w/ Integral Transformer Lamp Wattage Finish Voltage

❑ PM613obi - AR70 for 60 Amp Busway

❑ PM113obi - AR70 for 20 Amp 1 Circuit Track

❑ PM213obi - AR70 for 20 Amp 2 Circuit Track

❑ PM413obi - AR70 for 20 Amp 2 Circuit / 2 Neutral Track

❑ 20 20 Watt 12V AR70 ❑ WH White ❑ 120 120 Volts primary

❑ 50 50 Watt 12V AR70 ❑ BK Black ❑ 277 277 Volts primary

❑ AL Natural Aluminum

❑ PT Custom Finish

Ordering Example: PM613obi-50-AL-120

PM413obi

20 Amp Track

2 Cct. 2 Ntl.

PM113obi

PM213obi

20 Amp Track

1 or 2 Cct.

PM47

0° Aiming Angle 30° Aiming Angle 30° Aiming Angle 45° Aiming Angle

Horizontal Footcandles Horizontal Footcandles Vertical Footcandles Vertical Footcandles

D FC L W D FC L W CB D FC L W CB D FC L W CB

FC FC

L L

30° 30°

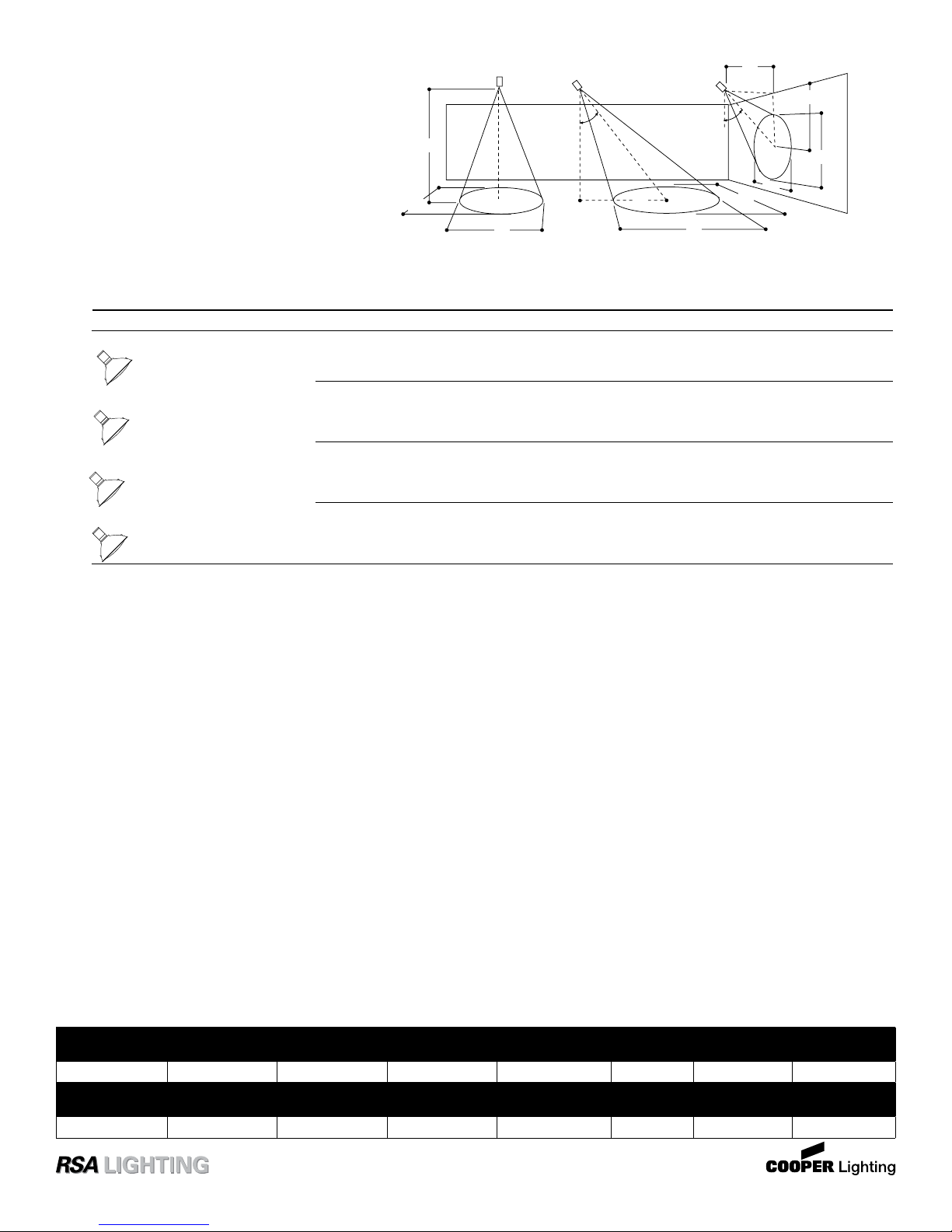

Lamp Performance Data

D = Distance to the horizontal or vertical surface.

FC = Initial footcandles at the center of the beam.

L = Length of the beam where candlepower is reduced to 50%

of center beam candlepower.

W = Width of the beam where candlepower is reduced to 50%

of center beam candlepower.

CB = Distance to the center of the beam.

Lamp data given is typical and is based on bare lamp performance.

Contact lamp manufacturers for availability and specific performance.

Distance, length and width given in decimal feet.

AR70 12V Halogen DC Bayonet

20 AR70 /SP8 OSI 6 214 1.1 1.1 5 231 1.0 1.0 2.9 3 214 2 1.1 5.2 4 241 1.0 1.0 4.0

Beam Spread = 8° x 8° 8 120 1.4 1.4 7 118 1.5 1.4 4.0 4 120 2.5 1.4 6.9 5 154 1.6 1.2 5.0

CBCP = 7,700 10 77 1.6 1.6 9 71 1.9 1.7 5.2 5 77 3.1 1.6 8.7 6 107 1.9 1.4 6.0

Rated Life = 3,000 Hrs. 12 53 1.9 1.9 11 48 2.3 2.0 6.4 6 53 3.6 1.9 10.4 7 79 2.2 1.6 7.0

20 AR70 /FL25 OSI 2 225 1.1 1.1 2 169 1.4 1.3 1.2 1 225 2.0 1.1 1.7 2 113 2.1 1.5 2.0

Beam Spread = 25° x 25° 3 100 1.6 1.6 3 75 2.0 1.8 1.7 2 56 4.4 2.0 3.5 3 50 3.0 2.1 3.0

CBCP = 900 4 56 2.0 2.0 4 42 2.6 2.3 2.3 3 25 6.5 2.9 5.2 4 28 4.0 2.7 4.0

Rated Life = 3,000 Hrs. 5 36 2.5 2.5 5 27 3.2 2.8 2.9 4 14 8.6 3.8 6.9 5 18 4.9 3.4 5.

50 AR70 /SP8 OSI 7 255 1.2 1.2 6 260 1.4 1.2 3.5 4 195 2.5 1.4 6.9 5 250 1.6 1.2 5.0

Beam Spread = 8° x 8° 9 154 1.5 1.5 8 146 1.7 1.5 4.6 5 125 3.1 1.6 8.7 7 128 2.2 1.6 7.0

CBCP = 12,500 11 103 1.8 1.8 10 94 2.1 1.9 5.8 6 87 3.6 1.9 10.4 9 77 2.8 2.0 9.0

Rated Life = 3,000 Hrs. 13 74 2.1 2.1 12 65 2.5 2.2 6.9 7 64 4.2 2.2 12.1 11 52 3.3 2.4 11.0

50 AR70 /FL25 OSI 3 289 1.6 1.6 3 217 2.0 1.8 1.7 2 163 4.4 2.0 3.5 3 144 3.0 2.1 3.0

Beam Spread = 25° x 25°4 1 63 2.0 2.0 4 122 2.6 2.3 2.3 3 72 6.5 2.9 5.2 4 81 4.0 2.7 4.0

CBCP = 2,600 5 104 2.5 2.5 5 78 3.2 2.8 2.9 4 41 8.6 3.8 6.9 5 52 4.9 3.4 5.0

Rated Life = 3,000 Hrs. 6 72 2.9 2.9 6 54 3.8 3.3 3.5 5 26 10.6 4.7 8.7 6 36 5.8 4.0 6.0

Optivex UV

Filter

Red Color

Filter

Blue Color

Filter

Amber Color

Filter

Cosmetic Peach

2800K Filter

Milk White

Lens

Diffusion Spread

Lens

Linear Spread

Lens

LN45 LN46 LN47 LN49 CP20 LN44 LN41 LN43

Prismatic Spread

Lens

20% Reduction

Screen

30% Reduction

Screen

40% Reduction

Screen

Hex Cell

Louver

Cross

Bafﬂe

Snoot

LN42 RS2020 RS3020 RS4020 LN40 CB20 SN20
