OWNER’S MANUAL

CPL Evaporative Cooler

ILL1456-A

1CPL Evaporative Cooler

Introduction

Wall Control Functions

Drain Valve & Bleed System

Maintenance

Troubleshooting

SEELEY INTERNATIONAL – OWNER’S MANUAL

INTRODUCTION

Congratulations on choosing a

new Coolair cooler for your

home.

Your cooler is built from the

highest quality materials and

engineered to provide many

years of economical, trouble free

cooling.

Please take a few minutes to

read these instructions so you

have a full understanding of how

to operate your cooler. Your

installer should demonstrate the

features and procedures set out

in these instructions. The

installer should also provide you

with a Model and Serial number,

which can be filled out on the

last page.

Keep these instructions in a

safe place for future reference.

This appliance is not intended for

use by persons (including

children) with reduced physical,

sensory or mental capabilities, or

lack of experience and

knowledge, unless they have

been given supervision or

instruction concerning use of the

appliance by a person

responsible for their safety.

Children should be supervised to

ensure that they do not play with

the appliance.

EFFECTIVE COOLING

To provide efficient cooling or

ventilation the building must have

sufficient exhaust openings to

outdoors in the form of doors,

windows or other vents. To assist air

circulation, open windows or doors

that are furthest from the outlet vent

in each room. In every room that has

an outlet vent, provide an exhaust

opening about 2 or 2.5 times the vent

size of the room. Where the design

of the building prevents adequate

exhaust, consideration should be

given to the provision of mechanical

extraction such as an exhaust fan.

Total minimum openings for the

whole building are demonstrated by

the following table:

Please note that an average size door is 1.5m2

Cooler Model Exhaust Opening

2.0m2

CPL450

CPL600

CPL700

CPL850

CPL1000

CPL1100

2.5m2

3.0m2

4.0m2

1CPL Evaporative Cooler

Introduction

Wall Control Functions

Drain Valve & Bleed System

Maintenance

Troubleshooting

SEELEY INTERNATIONAL – OWNER’S MANUAL

INTRODUCTION

Congratulations on choosing a

new Coolair cooler for your

home.

Your cooler is built from the

highest quality materials and

engineered to provide many

years of economical, trouble free

cooling.

Please take a few minutes to

read these instructions so you

have a full understanding of how

to operate your cooler. Your

installer should demonstrate the

features and procedures set out

in these instructions. The

installer should also provide you

with a Model and Serial number,

which can be filled out on the

last page.

Keep these instructions in a

safe place for future reference.

This appliance is not intended for

use by persons (including

children) with reduced physical,

sensory or mental capabilities, or

lack of experience and

knowledge, unless they have

been given supervision or

instruction concerning use of the

appliance by a person

responsible for their safety.

Children should be supervised to

ensure that they do not play with

the appliance.

EFFECTIVE COOLING

To provide efficient cooling or

ventilation the building must have

sufficient exhaust openings to

outdoors in the form of doors,

windows or other vents. To assist air

circulation, open windows or doors

that are furthest from the outlet vent

in each room. In every room that has

an outlet vent, provide an exhaust

opening about 2 or 2.5 times the vent

size of the room. Where the design

of the building prevents adequate

exhaust, consideration should be

given to the provision of mechanical

extraction such as an exhaust fan.

Total minimum openings for the

whole building are demonstrated by

the following table:

Please note that an average size door is 1.5m2

Cooler Model Exhaust Opening

2.0m2

CPL450

CPL600

CPL700

CPL850

CPL1000

CPL1100

2.5m2

3.0m2

4.0m2

3CPL Evaporative Cooler

STARTING YOUR COOLER

The ON/OFF button turns the air cooler

on and off.

There are two modes of operation to

choose from, Automatic mode or

Manual mode. When the air cooler is

turned on, it will start in the mode of

operation it was in when last turned off.

If your air cooler has not been operated

for a while, then when you start it, “Pre

Cool Cycle” may sometimes flash on

the display as shown. This indicates

that the water pump will operate to

saturate the cooling pads for a few

minutes before the fan is turned on.

This is to ensure that when the fan

starts, only cool air enters the building.

ILL1085-A

4SEELEY INTERNATIONAL – OWNER’S MANUAL

AUTOMATIC MODE

MANUAL MODE

The AUTO button is used to select

Automatic mode or Manual mode.

When “Auto” is displayed the cooler is

under Automatic control and will

operate according to the temperature

sensed at the wall control.

When the air cooler is turned on, it will

read the temperature and set the

cooler operation accordingly. If the

temperature increases at the wall

control, then the fan speed will

increase. As the temperature

decreases the fan speed will decrease

until the cooler turns off.

Press or to overide the

automatic cooling level setting and

adjust your room temperature.

To switch to Manual mode, press

AUTO until “Man” appears in the

display. In Manual mode the cooling

level can be manually adjusted.

In Manual mode, press to

choose between circulating cool air or

uncooled air. When “Cool” is

displayed, fresh cool air will circulate

into the building. When “Vent” is

displayed as shown, fresh uncooled

air will circulate through the building.

Press to increase the fan speed

and circulate more air. Press to

decrease the fan speed and circulate

less air. Press once to change the

speed by one increment. Hold the

button down to change the speed

more quickly.

COOL

AUTOMATIC MODE DISPLAY

MANUAL MODE DISPLAY

3CPL Evaporative Cooler

STARTING YOUR COOLER

The ON/OFF button turns the air cooler

on and off.

There are two modes of operation to

choose from, Automatic mode or

Manual mode. When the air cooler is

turned on, it will start in the mode of

operation it was in when last turned off.

If your air cooler has not been operated

for a while, then when you start it, “Pre

Cool Cycle” may sometimes flash on

the display as shown. This indicates

that the water pump will operate to

saturate the cooling pads for a few

minutes before the fan is turned on.

This is to ensure that when the fan

starts, only cool air enters the building.

ILL1085-A

4SEELEY INTERNATIONAL – OWNER’S MANUAL

AUTOMATIC MODE

MANUAL MODE

The AUTO button is used to select

Automatic mode or Manual mode.

When “Auto” is displayed the cooler is

under Automatic control and will

operate according to the temperature

sensed at the wall control.

When the air cooler is turned on, it will

read the temperature and set the

cooler operation accordingly. If the

temperature increases at the wall

control, then the fan speed will

increase. As the temperature

decreases the fan speed will decrease

until the cooler turns off.

Press or to overide the

automatic cooling level setting and

adjust your room temperature.

To switch to Manual mode, press

AUTO until “Man” appears in the

display. In Manual mode the cooling

level can be manually adjusted.

In Manual mode, press to

choose between circulating cool air or

uncooled air. When “Cool” is

displayed, fresh cool air will circulate

into the building. When “Vent” is

displayed as shown, fresh uncooled

air will circulate through the building.

Press to increase the fan speed

and circulate more air. Press to

decrease the fan speed and circulate

less air. Press once to change the

speed by one increment. Hold the

button down to change the speed

more quickly.

COOL

AUTOMATIC MODE DISPLAY

MANUAL MODE DISPLAY

5CPL Evaporative Cooler

TIMED AUTOMATIC START

TIMED AUTOMATIC STOP

You can set the air cooler so that it will

turn on after a set number of hours.

1.To set the delayed start time, press

with the cooler turned OFF.

“Starting in” will be displayed as shown

with the last mode of operation (Manual

or Automatic).

2.If you want the air cooler to turn on in

Automatic mode with the previous

settings, then press until “Auto”

is displayed. Alternatively, if you want

the air cooler to turn on in Manual

mode, press until “Man” is

displayed and then press and

then or to set the required fan

speed.

3.To set the time until the start, press

4.Then press or to adjust the

time. The cooler can start up to 24

hours in advance.

5.Press again to initiate the

timed automatic start. The timed start

will not repeat.

You can also set the air cooler so that it

will turn off after a set number of hours.

1.To set a delayed stop time, press

with the cooler running.

”Stopping in” will display.

TIMER

AUTO

COOL

TIMER

2.Press or to adjust the

number of hours before the air

cooler will stop. The maximum

delay setting is 24 hours.

3. Press again to begin

the timed stop.

TIMER

6SEELEY INTERNATIONAL – OWNER’S MANUAL

USING THE COOLER

Now that you have read these

instructions, press the

button to turn your air cooler on. If

the air cooler has not operated for

a while , “Pre Cool Cycle” will flash

on the display. The “Pre Cool Cycle

will begin and will take only a few

minutes to complete. After this

time, the fan will come on

automatically, and you can enjoy

the comfort of cool fresh air!

POWER AIR TOO COLD

With the cooler running in Automatic

mode, you may find that you are too

cold or that the air cooler is blowing

too much air. Press to lower the

automatic temperature setting and

reduce the amount of cooling.

If you are too cold with the cooler

running in Manual mode, then press

to reduce the fan speed. You can

also circulate fresh uncooled air by

pressing until “Vent”displays.COOL

AIR NOT COLD ENOUGH

You may find that with the air cooler

running in Automatic mode, you are

not cool enough. Simply press to

increase the cooling rate.

If you are not cool enough with the

air cooler running in Manual mode,

then press to increase the fan

speed. Ensure that cooled air is

circulating by pressing until

“Cool”displays.

COOL

You can experiment with the

settings on your wall control.

This is the best way to get the

most from your air cooler.

5CPL Evaporative Cooler

TIMED AUTOMATIC START

TIMED AUTOMATIC STOP

You can set the air cooler so that it will

turn on after a set number of hours.

1.To set the delayed start time, press

with the cooler turned OFF.

“Starting in”will be displayed as shown

with the last mode of operation (Manual

or Automatic).

2.If you want the air cooler to turn on in

Automatic mode with the previous

settings, then press until “Auto”

is displayed. Alternatively, if you want

the air cooler to turn on in Manual

mode, press until “Man”is

displayed and then press and

then or to set the required fan

speed.

3.To set the time until the start, press

4.Then press or to adjust the

time. The cooler can start up to 24

hours in advance.

5.Press again to initiate the

timed automatic start. The timed start

will not repeat.

You can also set the air cooler so that it

will turn off after a set number of hours.

1.To set a delayed stop time, press

with the cooler running.

”Stopping in”will display.

TIMER

AUTO

COOL

TIMER

2.Press or to adjust the

number of hours before the air

cooler will stop. The maximum

delay setting is 24 hours.

3. Press again to begin

the timed stop.

TIMER

6SEELEY INTERNATIONAL – OWNER’S MANUAL

USING THE COOLER

Now that you have read these

instructions, press the

button to turn your air cooler on. If

the air cooler has not operated for

a while , “Pre Cool Cycle”will flash

on the display. The “Pre Cool Cycle

will begin and will take only a few

minutes to complete. After this

time, the fan will come on

automatically, and you can enjoy

the comfort of cool fresh air!

POWER AIR TOO COLD

With the cooler running in Automatic

mode, you may find that you are too

cold or that the air cooler is blowing

too much air. Press to lower the

automatic temperature setting and

reduce the amount of cooling.

If you are too cold with the cooler

running in Manual mode, then press

to reduce the fan speed. You can

also circulate fresh uncooled air by

pressing until “Vent”displays.COOL

AIR NOT COLD ENOUGH

You may find that with the air cooler

running in Automatic mode, you are

not cool enough. Simply press to

increase the cooling rate.

If you are not cool enough with the

air cooler running in Manual mode,

then press to increase the fan

speed. Ensure that cooled air is

circulating by pressing until

“Cool”displays.

COOL

You can experiment with the

settings on your wall control.

This is the best way to get the

most from your air cooler.

7CPL Evaporative Cooler

This cooler comes with a standard

bleed system or the optional automatic

Drain Valve.

STANDARD BLEED SYSTEM

During operation, the bleed system will

drain small amounts of water. This

ensures fresh water is continually

added to dilute salt accumulation in the

water caused through evaporation. This

helps keep the air cooler in good

condition and ensure optimum

performance. The bleed rate will

depend on local operating conditions

and will be set by the installer.

AUTOMATIC DRAIN

VALVE

If the drain valve was installed

instead of the standard bleed

system then your cooler will

automatically drain after a set

time of continuous operation.

This ensures the water is

always fresh and helps

maintain your cooler in good

condition to ensure optimum

cooling performance. The

frequency of the automatic

drain may have been adjusted

by your installer according to

the general water quality in your

area.

When the cooler is turned off for

72 hours, the drain valve will

open automatically and empty

water from the cooler. When the

cooler is turned on again, fan

operation will delay for a few

minutes while the tank refills

and the cooling pads are

saturated again.

At any time when the

thermostat is OFF, you can

drain the cooler by pressing

and holding s and t for 1

second. The display will show

“dr”to confirm the operation has

activated.

8SEELEY INTERNATIONAL – OWNER’S MANUAL

MAINTENANCE

HEALTH REGULATIONS

END OF SEASON SERVICE

Regular maintenance is essential to

ensure the cooler operates efficiently

for many years. Services must be

performed before and after the

summer season. More frequent

servicing may be required in dusty

conditions or in areas with poor water

quality.

Note that some regulating authorities

require services to be conducted at

specific intervals.

•Turn off the power supply to the

cooler.

•Turn off the water supply to the

cooler.

•Remove the pad frames as shown.

•A. Turn off the power switch inside

the cooler.

•B. Check and clean the lid water

channels .

•C. If fitted, first unclip and then

remove the bleed system as shown.

Allow the tank water to drain. Do not

lose the o-ring.

•Thoroughly clean the tank and pump

filter.

WARNING: We recommend

maintenance is carried out by an

authorised service agent. Climbing

onto the roof is hazardous and can

result in personal injury or property

damage. Failure to carry out

maintenance will affect your

warranty coverage.

•Do not replace the bleed system.

(If a Drain Valve is fitted it will

automatically drain.)

•Re-fit the pad frames.

7CPL Evaporative Cooler

This cooler comes with a standard

bleed system or the optional automatic

Drain Valve.

STANDARD BLEED SYSTEM

During operation, the bleed system will

drain small amounts of water. This

ensures fresh water is continually

added to dilute salt accumulation in the

water caused through evaporation. This

helps keep the air cooler in good

condition and ensure optimum

performance. The bleed rate will

depend on local operating conditions

and will be set by the installer.

AUTOMATIC DRAIN

VALVE

If the drain valve was installed

instead of the standard bleed

system then your cooler will

automatically drain after a set

time of continuous operation.

This ensures the water is

always fresh and helps

maintain your cooler in good

condition to ensure optimum

cooling performance. The

frequency of the automatic

drain may have been adjusted

by your installer according to

the general water quality in your

area.

When the cooler is turned off for

72 hours, the drain valve will

open automatically and empty

water from the cooler. When the

cooler is turned on again, fan

operation will delay for a few

minutes while the tank refills

and the cooling pads are

saturated again.

At any time when the

thermostat is OFF, you can

drain the cooler by pressing

and holding s and t for 1

second. The display will show

“dr”to confirm the operation has

activated.

8SEELEY INTERNATIONAL – OWNER’S MANUAL

MAINTENANCE

HEALTH REGULATIONS

END OF SEASON SERVICE

Regular maintenance is essential to

ensure the cooler operates efficiently

for many years. Services must be

performed before and after the

summer season. More frequent

servicing may be required in dusty

conditions or in areas with poor water

quality.

Note that some regulating authorities

require services to be conducted at

specific intervals.

•Turn off the power supply to the

cooler.

•Turn off the water supply to the

cooler.

•Remove the pad frames as shown.

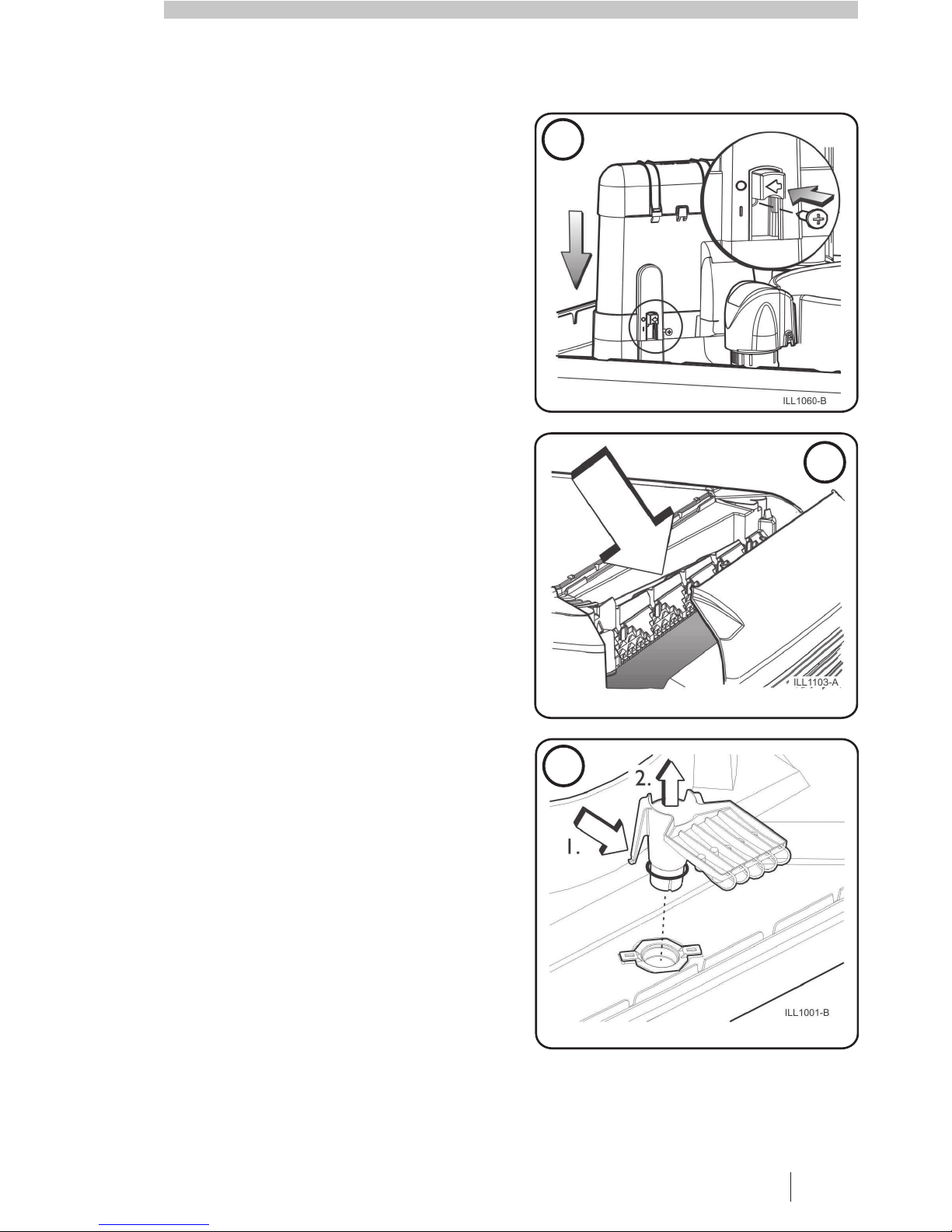

•A. Turn off the power switch inside

the cooler.

•B. Check and clean the lid water

channels .

•C. If fitted, first unclip and then

remove the bleed system as shown.

Allow the tank water to drain. Do not

lose the o-ring.

•Thoroughly clean the tank and pump

filter.

WARNING: We recommend

maintenance is carried out by an

authorised service agent. Climbing

onto the roof is hazardous and can

result in personal injury or property

damage. Failure to carry out

maintenance will affect your

warranty coverage.

•Do not replace the bleed system.

(If a Drain Valve is fitted it will

automatically drain.)

•Re-fit the pad frames.

9CPL Evaporative Cooler

PRE-SEASON SERVICE

REMOVAL OF PAD FRAMES

•Turn off the power supply to the air

cooler

•Remove the pad frames as shown.

•Ensure the power switch in the cooler

is off.

•Gently wash the pads to remove any

dust build up during the winter period. If

the pads are in poor condition, replace

them.

•Replace the bleed system if it was

removed during previous maintenance

and ensure the o-ring is fitted. (If the

cooler is fitted with a drain valve this will

not be necessary as it will automatically

close when the cooler turns on).

•Turn on the power switch inside the

cooler.

•Turn on the water and then the power.

•Re-fit the pad frames and run the

cooler.

To remove a pad frame, insert a flat

screw driver tip into the slot as shown

and lever until disengagement occurs.

Take hold of the pad frame and pull it

towards you until the internal side clips

disengage.

Pivot the pad frame outwards and lift

up. Take care not to damage the pad.

Repeat these steps for the remaining

pad frames.

IMPORTANT: Do not damage the

pads with high pressure water spray.

WARNING: Do not run the air cooler

with the pad frames removed.

10SEELEY INTERNATIONAL – OWNER’S MANUAL

PROBLEM – Unpleasant Odour

CAUSE ACTION

1. Odour from new pads. Allow time to condition by running the

air cooler.

PROBLEM – Inadequate Cooling

CAUSE ACTION

1. Dry pads. Check water flow to pads.

Inspect fitment of distributor cap.

Check for blocked or kinked hose. If

blocked, dismantle, clean and flush or

unkink the hose.

2. Insufficient exhaust

openings for conditioned

air.

Ensure sufficient openings. Refer to

chart on Pg. 2

3. Excessive ambient

humidity

(See also Insufficient

exhaust)

On days where the ambient humidity

is high, the cooler will not reduce the

temperature as much as on drier

days.

If your wall control displays SERVICE or should you consider that your

cooler requires service, contact your local Dealer or the Service number on

the back of this manual.

TROUBLE-SHOOTING GUIDE

Autres manuels pour CPL450

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cool Air Climatiseur

Cool Air

Cool Air CPL450 Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
