Introduction
The HDMI Extender Equalizer
is a high performance cable equalizer allows
HDMI/DVI
cable runs up to 50 meters. It corrects digital error and
automaticall provides equalization up to 40dB to compensate for cable
transmission loss, it will eliminate digital noise (sparkles) to ensure ou to
receive perfect HDTV picture after long cable transmission.
Features
* Full automatic equalization up to 40 dB at 825 MHz (1.65Gbps), no
s stem control required.
* Extend cable runs up to 50 meters-40 meters from the source to the
equalizer plus 10 meters from the equalizer to the projector, TV/monitor.
* Maintains high HDMI single link video resolution up to UXGA/1080p.
* Can be powered directl from the cable. However, it's recommended to
use external power adaptor for long cable application.
* HDCP compliant, HDMI is backward compatible with DVI.
* Plug and pla , eas to install.
Operating Functions
and Controls
Front Panel
1. HDMI input connector: Connect to the output of your HDMI source
equipment.
2. Power input: Connect the supplied DC 5V po er supply into this unit.
3. Power LED: The LED ill illuminate hen the po er is connected.
4. HDMI output connector: Connect to the input of your HDMI display.

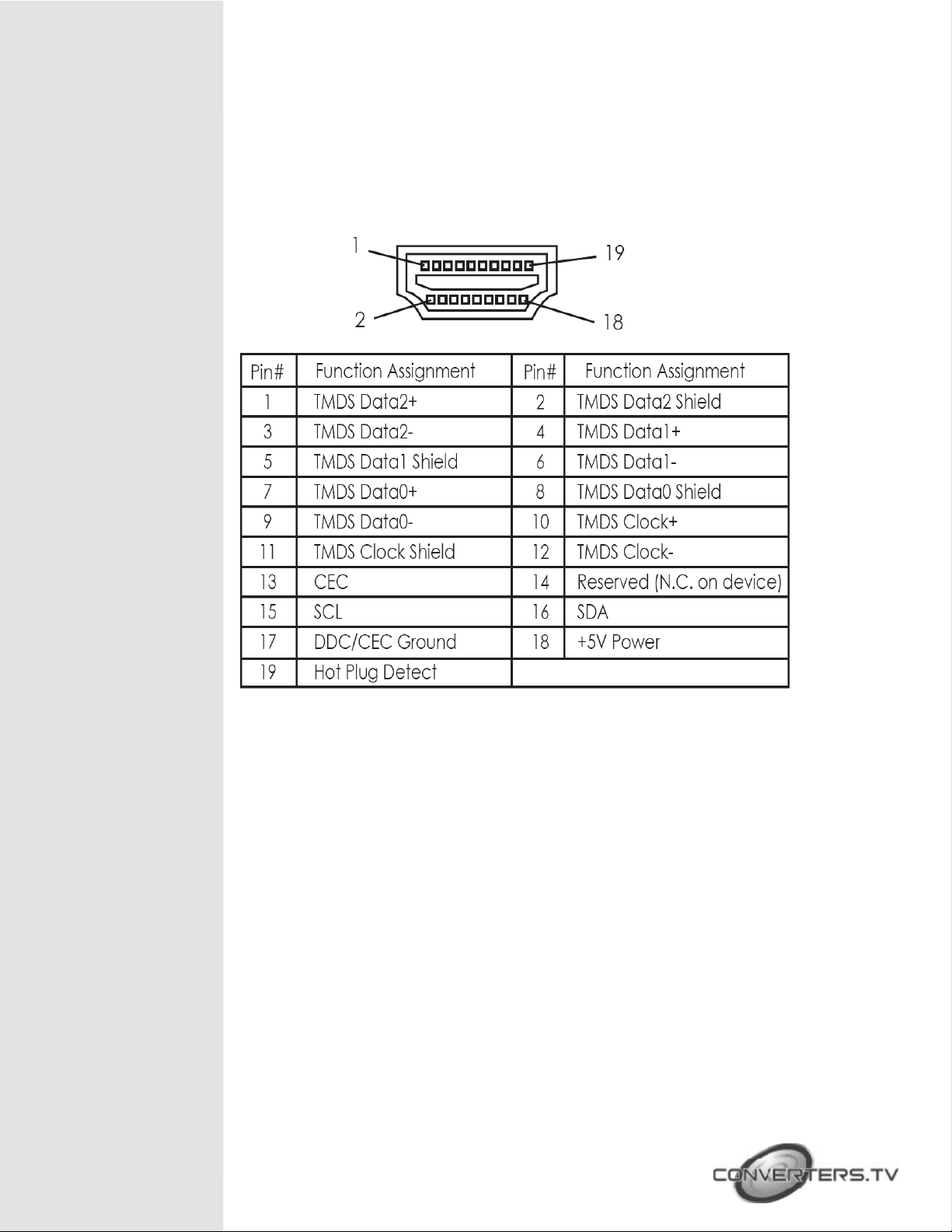

HDMI Connector
Pin Assign ent
Specifications
* Compliant with HDMI 1.2
* HDCP is compliant with HDCP 1.1 downward compatible to HDCP 1.0
* HDCP pass through.
* Operation requency : Up to 165MHz
* HDMI data rate: 1.65Gbps(single link)
* Input/Output resolutions:
PC: VGA, SVGA, XGA, SXGA, UXGA up to 165MHz
HD: 480i/576i, 480p/576p, 720p, 1080i, 1080p
* Dimension: 72(D)x 76(W)x 30(H)mm
* Power: 5V center-positive

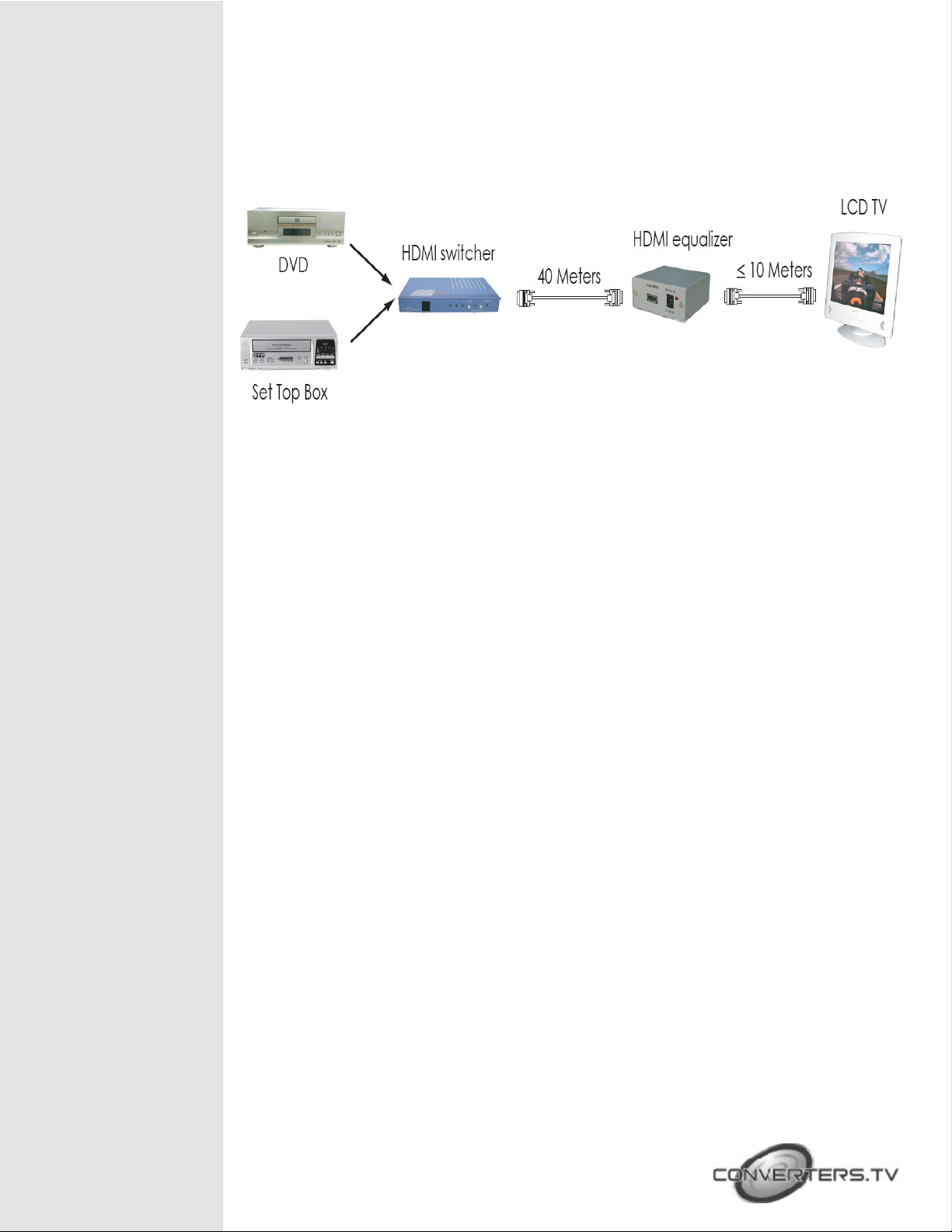

Note: Connect the long HDMI/DVI cable from the source to the input of
HDMI Extender Equalizer and place the unit next to your display.
Connection and
Installation
