Contemporary Research Smart Display Controllers share several features in

common:

• Networks displays through existing CATV coax wiring

• Integrates through the set’s Smart data port or card slot

• Saves control costs by taking advantage of the set’s internal tuner,

character generator, and IR receiver

• Delivers absolute operation of power on/off and volume levels

• Offers selective lockout of front-panel control and IR control sensor

• Features low-loss internal RF tap that reduces installation costs

• Restores operation after power loss from non-volatile memory

• Optional IC-RC remote for setup and interactive control

• Optional buzzer for alert applications

• Available in 1-way and 2-way control versions

Models

ICC-PRZ Smart Display Controller

• Integrates Philips, RCA, and Zenith Smart displays and TVs

• Mounts to back of display

• Connects to Smart display data port

ICC-PSC Philips SmartCard

• Integrates Philips Smart displays and TVs

• Installs into Philips SmartCard slot

• Bezels for old and new style Philips TVs

• No external power supplies or cables to install

ICC-ZS2 Zenith SuperPort Card

• Integrates Zenith Smart displays and TVs

• Installs into Zenith SuperPort card slot

• No external power supplies or cables to install

Smart Display Controllers simply and easily integrate commercial

Smart TVs and displays from Philips, RCA, and Zenith - taking direct

control of the displays’s onboard tuner, character generator, and

advanced control features.

Related Products

SignStream HDTV Digital Signage

iC Commander HD Display System

ABC-Net Media Access System

iC-Net Display Controllers

iC-Net Tuner Controllers

iC-Net Head Ends

Applications

Schools

Retail Stores

Sports Venues

Civic Facilities

Corporate Buildings

Houses of Worship

Entertainment Spaces

crwww.com

AV Tuners

Sales Support

Planning an iC-Net or SignStream

application? Our Sales Support

staff will be happy to work with

you, providing expert integration

assistance and a complete systems

proposal.

Tech Support

Need tech help? Give us a call. Our

tech support staff are experts in

the integration industry, so we can

research solutions in the proposal

stage, advise on programming

requirements, and resolve

installation issues.

Our job is to make our solutions

work seamlessly with your system,

performing as promised.

iC-Net Smart Display Controllers

Feature ICC-PRZ ICC-PSC ICC-ZS2

Type Smart Display Controller Philips SmartCard Zenith SupertPort Card

Models ICC1-P Philips, 1-way*

ICC2-P Philips, 2-way*

ICC1-R RCA, 1-way

ICC2-R RCA, 2-way

ICC1-Z Zenith, 1-way

ICC2-Z Zenith, 2-way

*Use with Philips displays with

Smart Express data ports

ICC1-PSC2, Low prole

ICC2-PSC2, Low prole

ICC1-PSC, Older models

ICC2-PSC, Older models

ICC2-PSC/AV, AV Inputs

ICC1-Z, 1-way

ICC2-Z, 2-way

Physical 5.47” W x 6.35” H x 1.13” D

12 oz

Enclosure mounts on display

PSC: 4.3” W x 3.4” D

PSC2: 4.93” W x 2.41” D

Card: 5.585” D

6 oz

Mounts in card slot

1.12” W x 3.73” H x 5.95” D

6 oz

Mounts in card slot

Front Panel iC-Net LED (Green)

COM LED (Yellow)

Error LED (Red)

iC-Net LED (Green)

COM LED (Yellow)

iC-Net LED (Green)

COM LED (Yellow)

RF RF In: ‘F’, female, 75 ohm impedance, connects to CATV system

RF Out: ‘F’, female, 75 ohm impedance, connects to display, less than -1.5 dbmV loss

ICC-Net Carried over the same RF coax connection as TV channels

Receive: (ICC2, ICC1) Mid-band VHF, 74.7MHz, sent from iC-Net Head End

Transmit: (ICC2 only) Sub-band, 5.6MHz sent to Head-End Network Controller

±80 KHz max carrier deviation, +49dBmV nominal

Display Control RJ-11 female 6-pin Telco In card slot In card slot

Closure Control 2 Solid-State output switch closures, max 50 mA, 24 VDC, switch to GND

IC-RC Remote Optional remote for 2-way controllers, supports RCA, Philips, and Zenith control

One remote required for system-wide setup and testing of 1-way and 2-way systems

Power 2.1mm coaxial jack, 100 mA max

9 to 16.5 VDC, 12 VDC typical.

RCA displays provide power

Provided by display Provided by display

Includes Smart TV data link cable

RF Loop Cable

12 VDC PS, 100 mA

PSC Card

Cover plate

2 RCA RF cables

F to RCA adapter (PSC2)

---

Options IC-RC Wireless IR Remote

Alert Buzzer (Factory option)

Speciﬁcations

Contemporary Research • 17630 Davenport Rd., Suite 113 • Dallas, TX 75252

Phone: 972-931-2728 • Toll Free: 888-972-2728 • Fax: 972-931-2765

ICC-PRZ

ICC-PSC

Warranty

All CR products feature a full

two-year warranty.

Smart Display Controllers

ICC-ZS2

IC-RC Remote (optional)

crwww.com

Autres manuels pour ICC-PSC

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Contemporary Research Contrôleurs

Contemporary Research

Contemporary Research ICW-IRC Guide de l'utilisateur

Contemporary Research

Contemporary Research ICC-PSC Manuel utilisateur

Contemporary Research

Contemporary Research VCC Manuel utilisateur

Contemporary Research

Contemporary Research ICC1-232 Manuel utilisateur

Contemporary Research

Contemporary Research ICC-PRZ Manuel utilisateur

Contemporary Research

Contemporary Research ICC1-232 Manuel utilisateur

Contemporary Research

Contemporary Research ICC2-VDC Manuel utilisateur

Contemporary Research

Contemporary Research ICW-STA Manuel utilisateur

Contemporary Research

Contemporary Research ICC1-IRX Manuel utilisateur

Contemporary Research

Contemporary Research ICC-ZS2 Manuel utilisateur

Contemporary Research

Contemporary Research ICC1-IR Manuel utilisateur

Contemporary Research

Contemporary Research ICC1-232 Manuel utilisateur

Contemporary Research

Contemporary Research ICW-ZS2 Manuel utilisateur

Contemporary Research

Contemporary Research ICC-PSC2 Instructions et recettes

Contemporary Research

Contemporary Research ICC1 Manuel utilisateur

Contemporary Research

Contemporary Research ICC1-ZS2 Instructions et recettes

Contemporary Research

Contemporary Research ICC-ZS2 Instructions et recettes

Contemporary Research

Contemporary Research ICA-FT6 Manuel utilisateur

Contemporary Research

Contemporary Research ICC2-VDC Manuel utilisateur

Contemporary Research

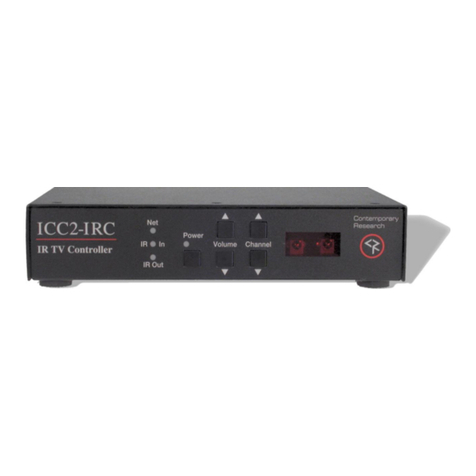

Contemporary Research ICC2-IRC Manuel utilisateur
