EP 201 IP Phone User manual

VoIP Phone

EP 201

User Manual

Safety Notices

Please read the following safety notices before installing or using this phone. They are crucial for the

safe and reliable operation of the device.

zPlease use the external power supply that is included in the package. Other power supplies may

cause damage to the phone, affect the behavior or induce noise.

zBefore using the external power supply in the package, please check with home power voltage.

Inaccurate power voltage may cause fire and damage.

zPlease do not damage the power cord. If power cord or plug is impaired, do not use it, it may

cause fire or electric shock.

zThe plug-socket combination must be accessible at all times because it serves as the main

disconnecting device.

zDo not drop, knock or shake it. Rough handling can break internal circuit boards.

zDo not install the device in places where there is direct sunlight. Also do not put the device on

carpets or cushions. It may cause fire or breakdown.

zAvoid exposure the phone to high temperature, below 0 or high humidity. Avoid wetting the

unit with any liquid.

zDo not attempt to open it. Non-expert handling of the device could damage it. Consult your

authorized dealer for help, or else it may cause fire, electric shock and breakdown.

zDo not use harsh chemicals, cleaning solvents, or strong detergents to clean it. Wipe it with a

soft cloth that has been slightly dampened in a mild soap and water solution.

zWhen lightning, do not touch power plug or phone line, it may cause an electric shock.

zDo not install this phone in an ill-ventilated place.

zYou are in a situation that could cause bodily injury. Before you work on any equipment, be

aware of the hazards involved with electrical circuitry and be familiar with standard practices for

preventing accidents.

Sistemi Integrati di Telefonia VoIP

Table of Content

1. INTRODUCING VI2006 VOIP PHONE.............................................................................................. 5

1.1. THANK YOU FOR YOUR PURCHASING EP201 ...................................................................................... 5

1.2. DELIVERY CONTENT.......................................................................................................................... 5

1.3. KEYPAD............................................................................................................................................ 6

1.4. PORT FOR CONNECTING .................................................................................................................... 7

2.INITIAL CONNECTING AND SETTING................................................................................................8

2.1. CONNECT THE PHONE ........................................................................................................................ 8

2.2. INITIAL SETTING................................................................................................................................9

2.2.1. PPPoE mode........................................................................................................................... 9

2.2.2. Static IP mode:..................................................................................................................... 10

2.2.3. DHCP mode...........................................................................................................................11

3. BASIC FUNCTIONS ........................................................................................................................... 12

3.1. BASIC OPERATION........................................................................................................................... 12

3.1.1. Accepting a call.................................................................................................................... 12

3.1.2. Making a call......................................................................................................................... 12

3.1.3. Ending a call......................................................................................................................... 13

3.1.4. Transferring a call................................................................................................................ 13

3.1.5. Calling Hold and 3 ways call............................................................................................... 14

3.1.6. Callers................................................................................................................................... 14

3.2. THE HIGH-LEVEL OPERATION ........................................................................................................... 15

3.2.1. Special Keys......................................................................................................................... 15

3.2.2. Call pickup............................................................................................................................ 15

3.2.3. join call.................................................................................................................................. 16

3.2.4. redial/unredial ...................................................................................................................... 16

3.2.5. click to dial ........................................................................................................................... 16

4. SETTING............................................................................................................................................. 16

4.1. SETTING METHODS.......................................................................................................................... 17

4.2. SETTING VIA WEB BROWSE............................................................................................................. 17

4.3. CONFIGURATION VIA WEB .............................................................................................................. 17

4.3.1. BASIC.................................................................................................................................... 17

4.3.1.1. Status ............................................................................................................................. 17

4.3.1.2. Wizard ............................................................................................................................ 18

4.3.1.3. Call Log.......................................................................................................................... 20

4.3.1.4. MMI SET ......................................................................................................................... 20

4.3.2. Network................................................................................................................................. 20

4.3.2.1. WAN Config................................................................................................................... 20

4.3.2.2. Qos Config..................................................................................................................... 22

4.3.2.3. Service Port................................................................................................................... 24

4.3.2.4. SNTP............................................................................................................................... 25

4.3.3. VOIP ...................................................................................................................................... 26

4.3.3.1. SIP Config...................................................................................................................... 26

4.3.3.2. Stun Config.................................................................................................................... 29

4.3.3.3. DIAL PEER setting........................................................................................................ 30

4.3.4. Phone.................................................................................................................................... 33

Sistemi Integrati di Telefonia VoIP

4.3.4.1. DSP Config .................................................................................................................... 33

4.3.4.2. Call Service.................................................................................................................... 34

4.3.4.3. Digital Map Configuration............................................................................................ 36

4.3.4.4. Phone Book................................................................................................................... 37

4.3.5. Maintenance......................................................................................................................... 38

4.3.5.1. Auto Provision............................................................................................................... 38

4.3.5.2. Syslog Config................................................................................................................ 38

4.3.5.3. Config Setting................................................................................................................ 39

4.3.5.4. Update............................................................................................................................ 40

4.3.5.5. Account Config ............................................................................................................. 41

4.3.5.6. Reboot............................................................................................................................ 42

4.3.6. Security................................................................................................................................. 42

4.3.6.1. MMI Filter................................................................................................................................... 42

4.3.6.2. Firewall....................................................................................................................................... 43

4.3.7. Logout................................................................................................................................... 44

4.4. SETTINGS VIA PHONE’S KEYBOARD.................................................................................................. 44

4.4.1. How to set via the phone’s keyboard............................................................................. 44

4.4.2. Phone menu...................................................................................................................... 44

5. APPENDIX .......................................................................................................................................... 45

5.1. SPECIFICATION ............................................................................................................................... 45

5.1.1. Device specification ........................................................................................................ 45

5.1.2. Voice Features.................................................................................................................. 46

5.1.3. Network Features............................................................................................................. 46

5.1.4. Maintenance and Management....................................................................................... 46

5.2. DIGIT-CHARACTER MAP TABLE......................................................................................................... 47

Sistemi Integrati di Telefonia VoIP

1.Introducing IP 201 VoIP Phone

1.1. Thank you for your purchasing IP 201

Thank you for your purchasing EP 201, It’s a full-feature telephone that provides voice

communication over the same data network that your computer uses. This phone functions not only

much like a traditional phone, allowing to place and receive calls, and enjoy other features that

traditional phone has, but also it own many data services features which you could not expect from a

traditional telephone.

This guide will help you easily use the various features and services available on your phone.

1.2. Delivery Content

Please check whether the delivery contains the following parts:

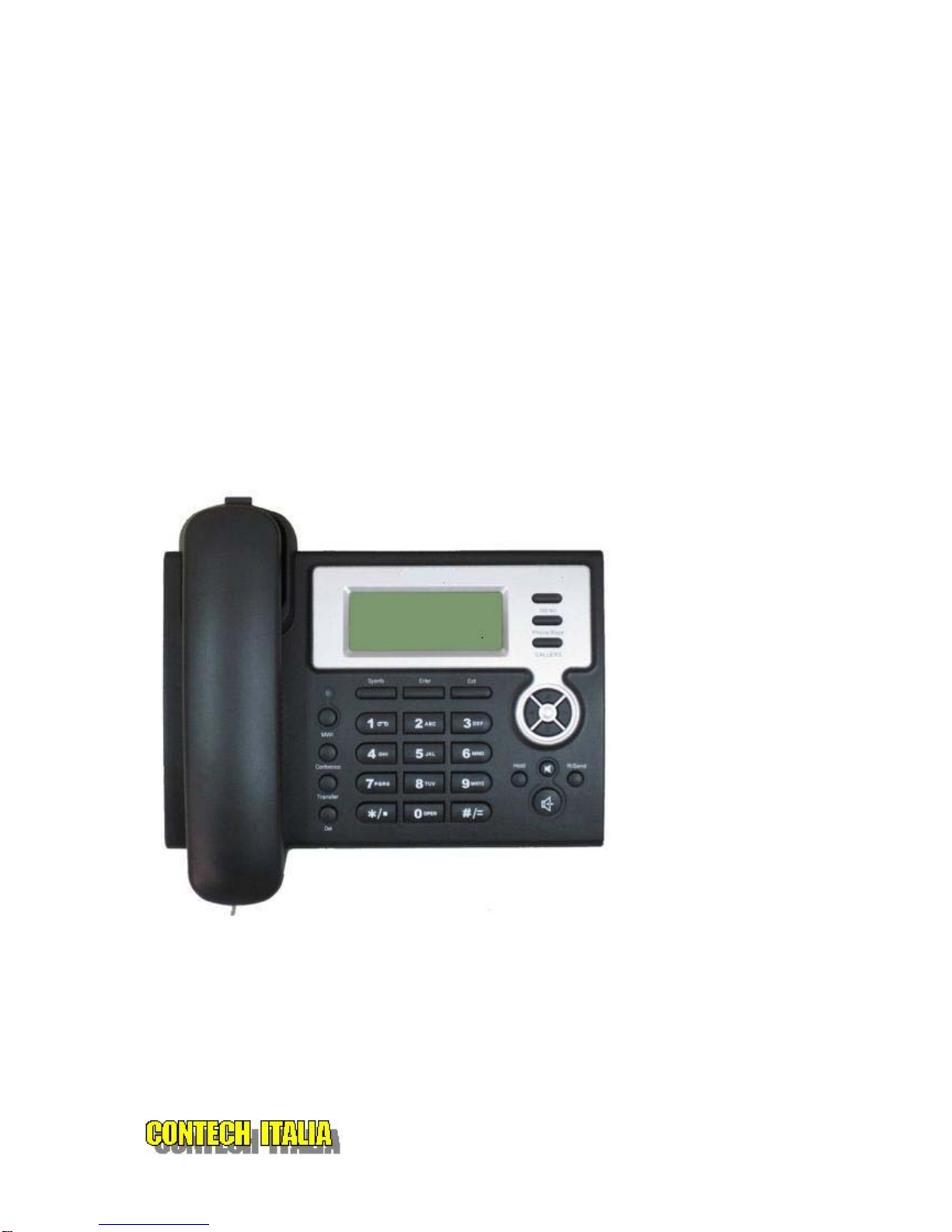

The base unit with display and keypad

The handset

The handset cable

Sistemi Integrati di Telefonia VoIP

The power supply

The Ethernet cable

1.3. Keypad

The numeric keypad with the keys 0 to 9, *, and

# is used to enter

Digits and letters, additionally, the following

keys are available:

Key mapping:

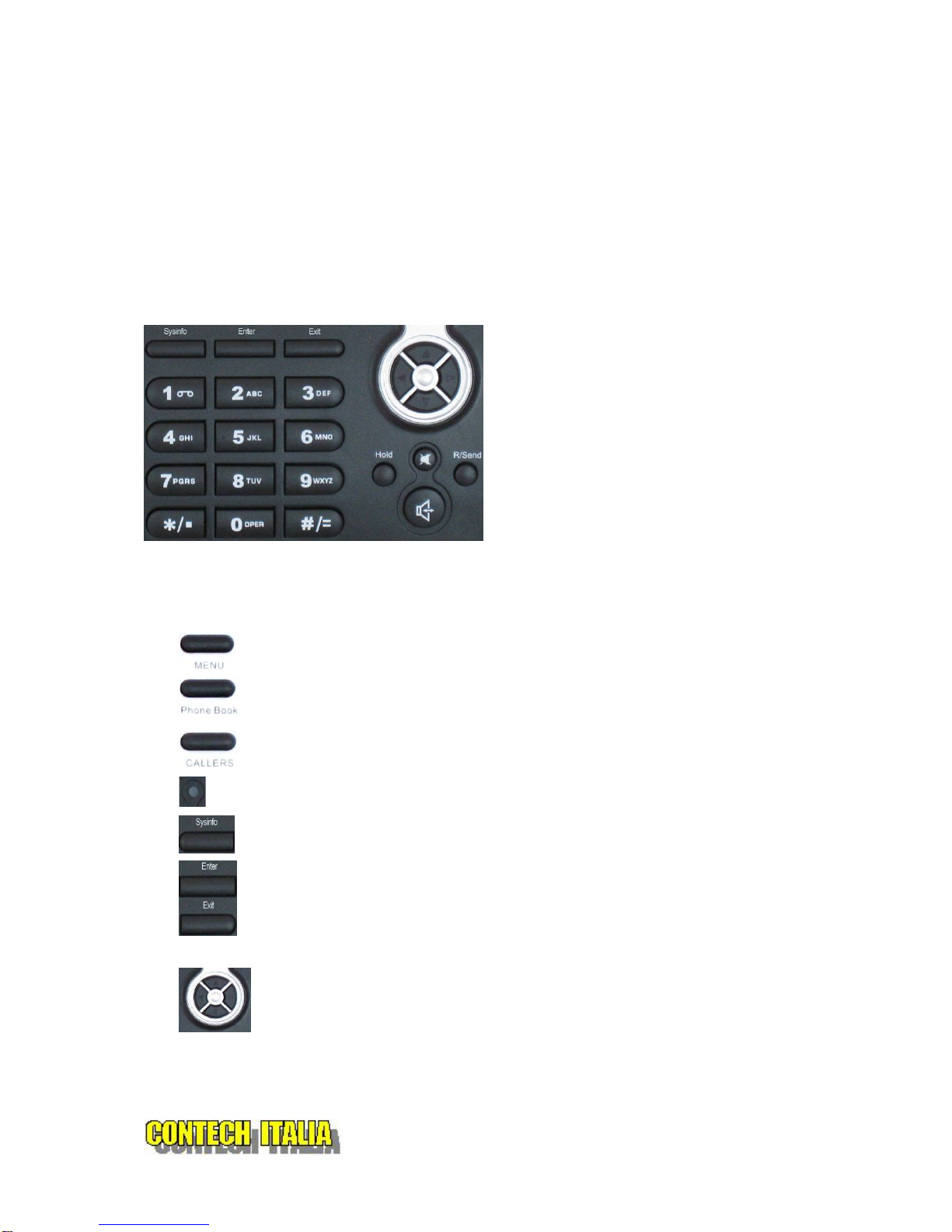

Key Key name Function Description

Menu In idle statepress the MENU key to call up the

menu.

Phone Book In idle mode, press the Phone Book key to check the

record list and add new records and revise the

record. Press this key again will return to idle mode.

Callers In idle/pickup/calling mode, press the Callers key to

Check the Income/Outgoing/Missed calls records.

Press this key again will return to idle mode

LED LED blinks to remind user new voicemail.

System Information In idle mode, press the Sysinfo key to check the

phone setting parameters. Such as local phone

number, local IP and local Gateway IP address.

Confirm Use the Enter key to enter next menu, or confirm the

setting.

Exit Use the Exit key to return to previous menu, ,cancel

the setting, or reject to answer a call.

Navigation Key When you pick up the handset or during calling, you

can use this key to turn up or turn down the handset

volume; when a call comes, you can use this key to

adjust ring volume; you also can use this key to

choose item in the menu, callers or phone book.

MWI Use this key to read old or new message.

Sistemi Integrati di Telefonia VoIP

Transfer Use the key to realize blind transfer or attended

transfer please refer to 3.1.4.-call transfer for more

details).

Conference Use this key to realize the three party call ( pleae

refer to3.1.5-Calling Hold and 3 ways call for more

details)

Delete

In menu, use this key to modify current setting or

delete invalid information. And when you input

number do call out, you can use it to delete

characters

Hold Temporarily hold the active call during the talking;

press the key again to unhold the call. You also can

press this key then input the third party’s phone

number and end with the # key during calling, you

can make a call with the third party and hold the

previous calling. (3.1.5-Calling Hold and 3 ways

call).

Mute Press this key in calling mode, you can hear the

other side, and the other side can not hear you

R/send In the hook off /hands-free mode, use the key to dial

the last call number; use this key to make a quick

dial as soon as you select your desired number in

phone book or callers.

Handfree Enter into hands-free mode.

1.4. Port for connecting

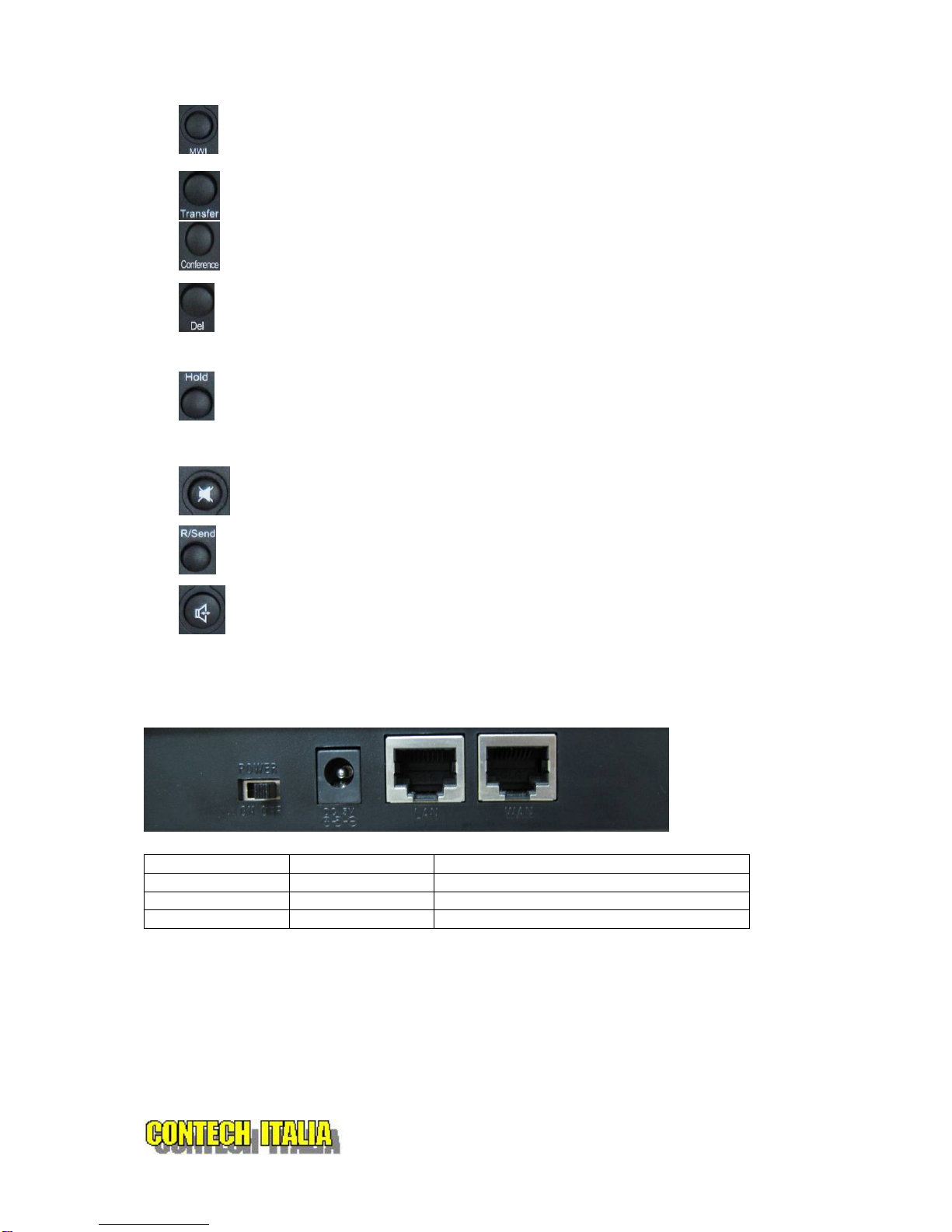

POWER Power switch Select ON/OFF

DC Power port Output: 5V/1.0A

LAN Network port Connect it to PC

WAN Network port Connect it to Network

The phone has two Network ports: The WAN port and the LAN port. Before you connect the power

source, please carefully read Safety Notices of this user manual.

Sistemi Integrati di Telefonia VoIP

2.Initial connecting and Setting

2.1. connect the phone

Step 1: Connect the IP Phone to the corporate IP telephony network. Before you connect the phone

to the network, please check if your network can work normally.

You can do this in one of two ways, depending on how your workspace is set up.

Direct network connection—by this method, you need at least one available Ethernet port in your

workspace. Use the Ethernet cable in the package to connect WAN port on the back of your phone to

the Ethernet port in your workspace. you can make direct network connect. The following two figures

are for your reference.

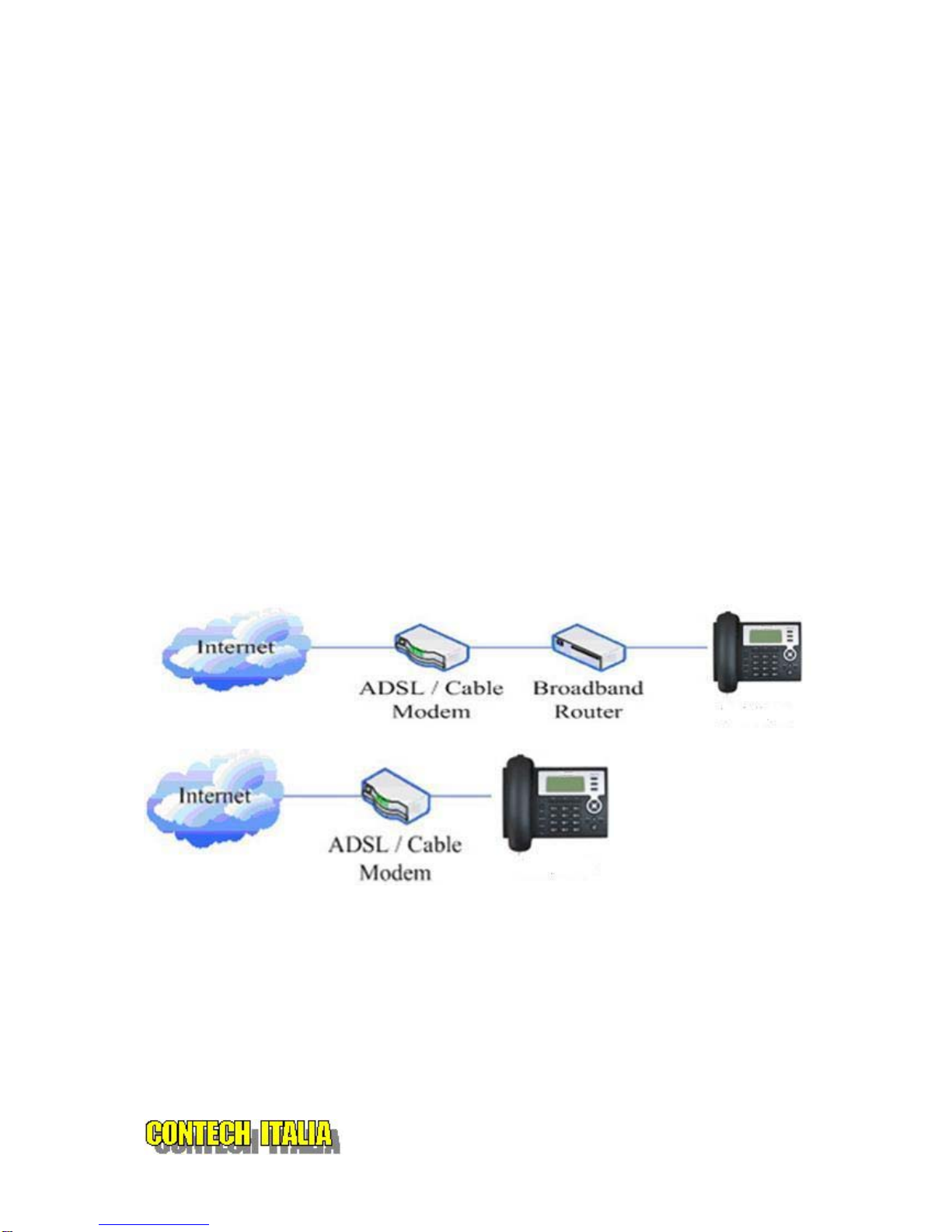

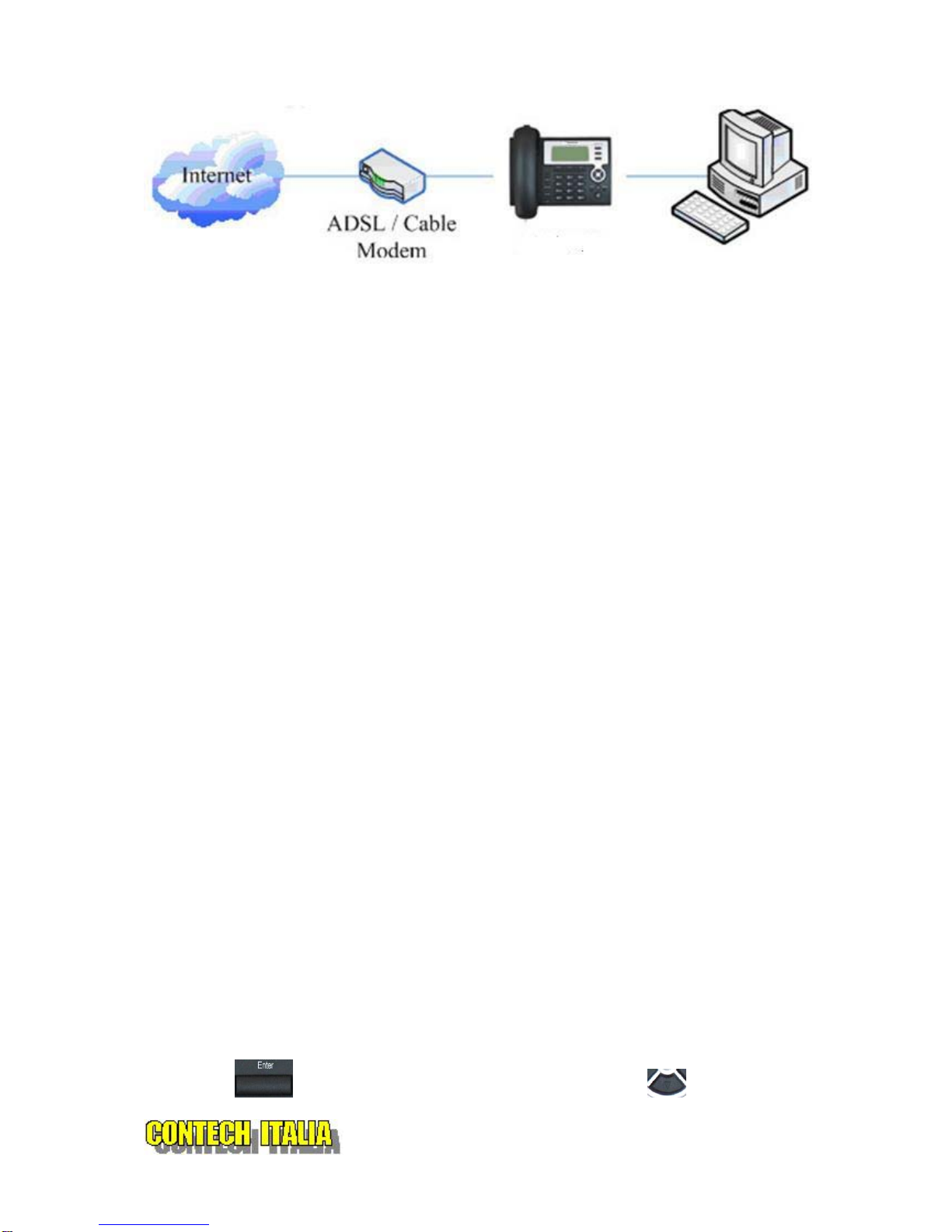

Shared network connection—Use this method if you have a single Ethernet port in your workspace

with your desktop computer already connected to it. First, disconnect the Ethernet cable from the

computer and attach it to the WAN port on the back of your phone. Next, use the Ethernet cable in

the package to connect LAN port on the back of your phone to your desktop computer. Your IP

Phone now shares a network connection with your computer. The following figure is for your

reference.

Sistemi Integrati di Telefonia VoIP

Step 2: Connect the handset to the handset port by the handset cable in the package.

Step 3: connect the power supply plug to the DC port on the back of the phone. Use the power

cable to connect the power supply to a standard power outlet in your workspace.

Step 4: push the on/off switch on the back of the phone to the on side, then the phone’s LCD screen

displays “WAIT LOGON”. Later, a ready screen typically displays the date, time and current network

mode.

If your LCD screen displays different information from the above, you need refer to the next section

“Initial setting” to set your network online mode.

If your VoIP phone registers into corporate IP telephony Server, your phone is ready to use.

2.2. Initial Setting

This VoIP Phone provides you with rich function and parameters setting. If you have enough

knowledge about network and SIP protocol, it is better for you to understand many parameters. But if

you know little about network and SIP protocol, you can also easily make initial setting according to

the following steps to enjoy rapidly high quality voice and low cost from this VoIP Phone.

Before make initial setting, please check if your corporate IP telephony network can work normally,

and you have finished “connect the phone”.

This VoIP Phone Supports DHCP by default. It will receive an IP address and other network-related

settings (Netmask, IP gateway, DNS server) from the DHCP server. If your network supports DHCP,

you can connect this VoIP Phone directly to the network. If your network doesn’t support DHCP, you

need change this VoIP Phone’s network connection setting. According to the following steps,

change this VoIP Phone’s DHCP network connection setting into PPPoE or static IP which your

network supports at present.

2.2.1. PPPoE mode.

1. Press the 3 key for three seconds, then confirm it by the Enter key, your phone network

connection mode will switch into PPPoE mode. Prepare your PPPoE account name and password.

2. Press the MENU key, the LCD screen will display “INPUT PASSWORD”.

3. Input the password (default value is 123), and press the ENTER key, the LCD screen will display

“NETWORK”.

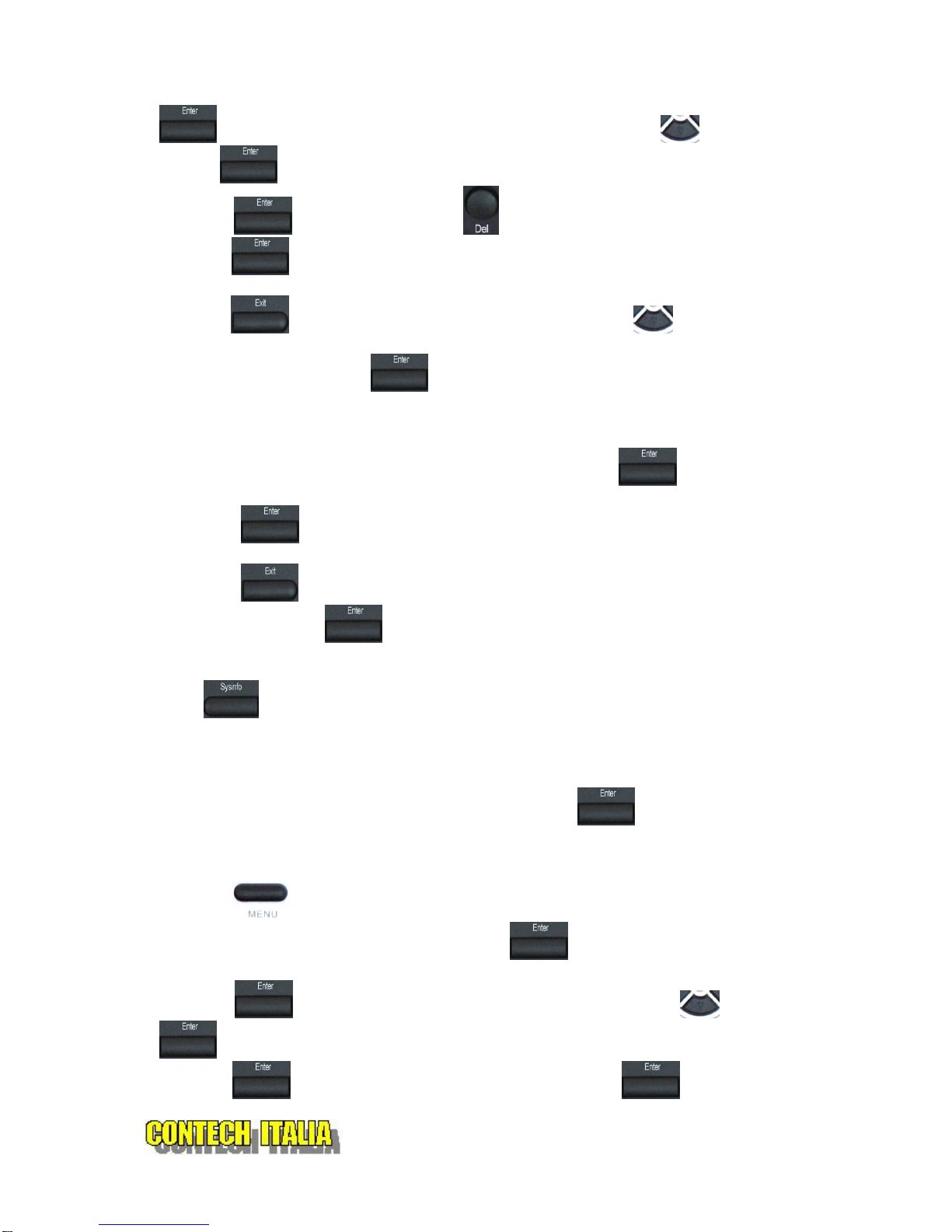

4. Press the key and LCD screen will display “LAN”, press the key, enter it by the

Sistemi Integrati di Telefonia VoIP

key, the LCD screen will display “STATIC NET”. Then press the key again, enter

it by the key, the LCD screen will display “USER NAME”.

5. Press the key and then press the key, input your PPPOE account number then

press the key to confirm. The LCD screen will display the inputted PPPOE account

number.

6. Press the key to return to the previous menu, then press the key, the LCD screen

will display “PASSWORD”. Then press the ENTER key, and the DEL key, input your PPPoE’s

password and confirm it by the Key, the LCD screen will display the password which you

inputted.

7. Press the EXITkey for four times and press the DOWN key, till the LCD screen display “SYSTEM”.

8. Press the ENTER key, the screen display “SAVE”, then press the key again, the LCD

screen will display “ARE YOU SURE”.

9. Press the key, the phone will save your setting and the LCD screen will display

“SAVING NOW”, then return to display “SAVE”.

10. Press the key twice, then press numeric key “3”and hold until the screen display “ARE

YOU SURE”. Press the key, the screen will display “CHANGING”, which means that the

phone is trying to switch to PPPoE mode. If the icom “PPPoE” on the top of the screen keeps blink,

it shows that the phone is trying to access the PPPoE server., and the IP is still static IP if you

press key to display the current IP; if the icon “PPPoE” is showed without blink, it means

that the phone has already gotten IP from PPPoE server.

2.2.2. Static IP mode:

1. Press the 1 key for three seconds, then confirm it by the key, your phone network

connection mode will switch into Static IP mode. Prepare your phone’s network parameters. They

are IP Address of this phone, Subnet Mask, Default Gateway/ Router and DNS. You can ask your

VoIP service provider for those parameters.

2. Press the key, the LCD screen will display “INPUT PASSWORD”.

3. Input password (default is 123), then press the key, the LCD screen will display”

NETWORK”.

4. Press the key, and the LCD screen will display “LAN”. Press the key, then the

key, the LCD screen will display “STATIC NET”.

5. Press the key, the LCD screen will display “IP”. Press the key again and then

Sistemi Integrati di Telefonia VoIP

Table des matières

Autres manuels Contech Italia Téléphone IP

Contech Italia

Contech Italia CX100 Manuel utilisateur

Manuels Téléphone IP populaires d'autres marques

Alcatel

Alcatel 4028 Manuel utilisateur

Polycom

Polycom Polycom VVX 600 Manuel utilisateur

Polycom

Polycom SoundPoint IP 450 Manuel utilisateur

Cisco

Cisco SPA-500 Series Manuel utilisateur

Polycom

Polycom SoundPoint IP 650 Manuel utilisateur

Proximus

Proximus Maestro 3016 IP Manuel utilisateur

Fanvil

Fanvil X4 Manuel utilisateur

Cisco

Cisco 7962 Manuel utilisateur

Snom

Snom 320 Manuel utilisateur

Yealink

Yealink Yealink SIP-T46G Manuel utilisateur

Avaya

Avaya 4625SW Manuel utilisateur

Yealink

Yealink SIP-T52S Manuel utilisateur

Nortel

Nortel 1140E Manuel utilisateur

Nexotek

Nexotek NT-P500 Manuel utilisateur

Avaya

Avaya Integral 5 R3.0 Manuel utilisateur

GE 28320EE2 - Dect 6.0 InfoLink 2 Manuel utilisateur

Avaya

Avaya 4600 Series Manuel de service

Mitel

Mitel MIVOICE OFFICE 400 6940 SIP Manuel utilisateur
