Contacta STS-K072 Manuel d'utilisation

Installation &

User Guide

December 2020

Window Intercom System

Speaker Pod and Screen Mounted

Microphone - STS-K072

Contents

Product Overview

Components

Connections

Installation Instructions

Speaker & Microphone Kit Installation

  StaSideInstallation

Customer/Visitor Installation

Hearing Loop Installation

 AmplierSetup

Troubleshooting

Engineer’s Mode

Contactahasapolicyofcontinuousproductdevelopment,andthereforesmallspecication

changesmaynotbereectedinthismanual.Images,labels,packaging,accessoriesandproduct

coloursaresubjecttochangewithoutnotice.

Speaker & Microphone Components

Product Overview

Window intercom systems provide assistance for clear communication where

normal speech is impaired by use of glass, a security screen or other similar

barriers.

There is an optional hearing loop facility, providing additional assistance for

hearingdevicewearers.

1. Installation and User Manual

2. Amplier

3. IEC Lead

4. Power Supply

5. HearingLoopAerial

(optional)

Fixing Kit:

• Adhesive Clip x 10

• No.6x1/2”CountersunkScrewsx15

• P-Clips x 6

General Components

1. Speaker Pod

2. StaPod

3. Screen Mounted Microphone

with Bent Stem

Connections

LED connection or alert tone (if required)

CondenceLEDtoconrmthesystemispowered

oranalerttonefortheattentionofsta

Stamicrophone

Customer/visitor microphone

CondenceLED(ifrequired)forstatusalerts

and fault detection

Hearing loop aerial

Line in connection for

external audio source

Staspeaker

Customer/visitor speaker

Power input

connection

Use power supply

through ground

supply only

Werecommendthatinstallationiscarriedoutbyaqualiedengineer,

adheringtorelevantstandards.

Checkthecontentsoftheboxtofamiliariseyourselfwiththecomponents.

Installation Instructions

A basic toolkit recommended to install the system will include:

Trim cables if necessary (excluding the power supply)

to the required length to connect to the back of the

amplier.Bareapproximately6mmofthecableendsto

connecttothe2pinplugs.

• Wire Cutters/Strippers

• Tape Measure

• Pencil or Marker Pen

• Cable Ties

• Trunking

• Screwdrivers(FlatorBlade2.5mm

and Phillips Head PH2)

• Battery or Mains Drill

• Drillbits: 2mm, 3mm, 5mm and 7mm

• Cable Tacking Gun (10mm)

Recommended Tools

Staff Counter Side

Customer / Visitor

Counter Side

StaPod

Screen Mounted

Microphone

Speaker Pod

Negative -

or screened cable

Positive +

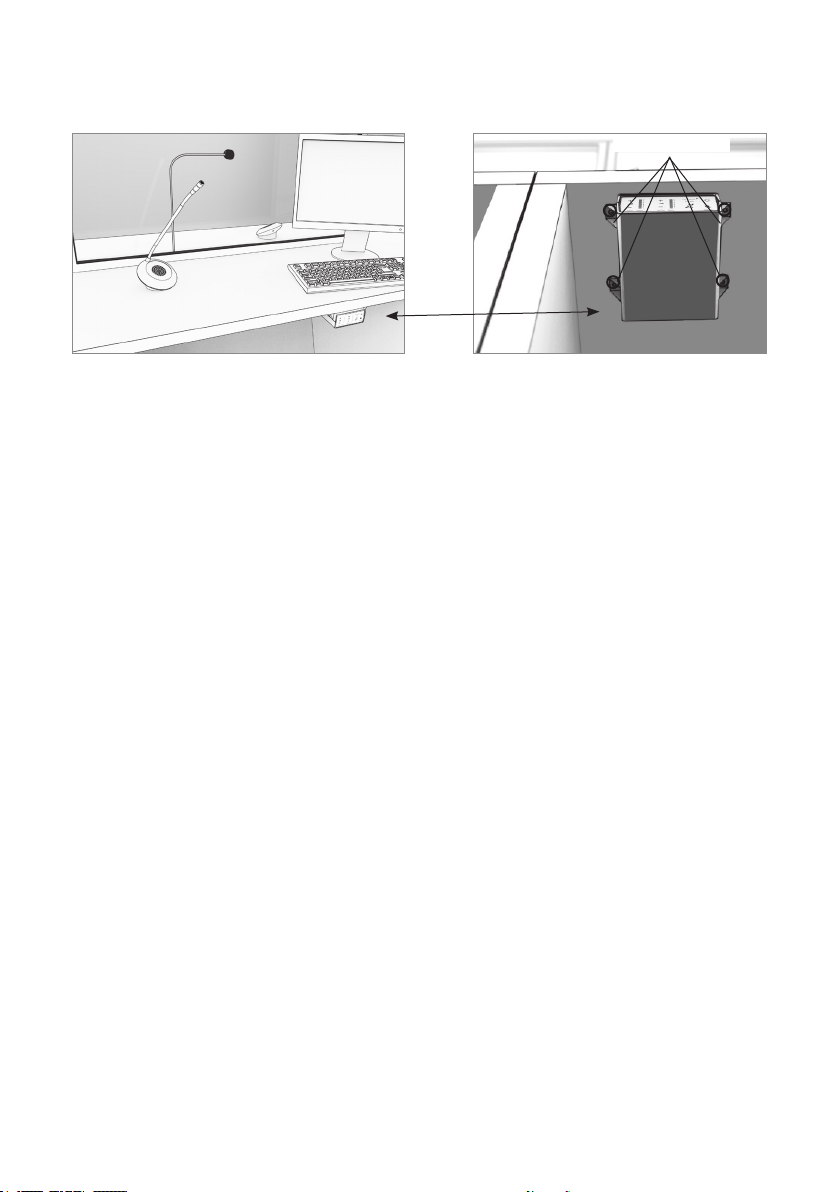

1. Placetheamplierunderthestacounter,ensuringthatitwillnot

obstructstawhentheyaresitting.

2. Markthefourxingpointsfortheamplierunderthecounter.

4. Drillandxtheamplierinplaceusingthesuppliedscrews.

6. Installtheamplier’spowersupplyclosetoapowersocketoutletusing

thesuppliedmountingbracketandxingscrews.

Fixing points

AmplierInstallation

Microphone & Speaker Installation

1. Position the screen mounted microphone stem’s on the customer side of

thecountertop.

2. Markthe2xingpointsand1cableroutereadyfordrilling(seethe

diagrambelow).

3. Drillpilotholesforthexingsandacableholeifneccesary.

4. Feedwiringthroughthecableholebacktotheamplierandxthe

microphoneinplaceusingthesuppliedscrews.

5. Fix the microphone head to the screen using the double-sided pad

supplied.

6. Placethestapodonthestasideofthecountertop,ensuringit

doesnotcauseanobstructionandisasclosetostaaspossible.The

recommended minimum distance between this pod and the screen

mountedmicrophoneis300mm.

Staff Counter Side

Customer / Visitor

Counter Side

StaPod

Screen Mounted

Microphone

Speaker Pod

7. Place the speaker pod on the customer side of the counter top, ensuring it

doesnotcauseanobstruction.

8. Speakerpodsandstapodscanbeeitherfreestandingorxed.Moveto

step14ifyoudonotwishtoxthepodstothecounter.

9. Usecablemanagementholesinthecountertorunthestapodand

speakerpodcablestotheamplier.Iftherearenotalreadycable

managementholes,drillsuitablelocationsneartherearofboththesta

andcustomersidesofthecounter.

10. Removethetopofthepodstogainaccesstothexingpoints.

11. Markthetwoxingpointsonthebottomofbothpods.Thenmarktwo

cable holes to be drilled, one for both the customer/visitor side and the

staside.

12. Ensuretherewillbeaccesstoretrievethecablesthendrilltheholes.

13. Fixthepodstotheirrespectivecounters.

14. Feedthepods’wiresthroughthecablemanagementholes.

15. Routeallcablingneatlytotheamplierlocationonthestaside.

Theaerialshouldbexedunderthedesk-toporcountercentrallyonthe

customer or visitor side, one half mounted horizontally under the counter and

theotherhalfmountedvertically,facingthecustomer/visitor(asintherst

scenariobelow).

Position the aerial under the counter using either the provided P-clips

oranotherxingmethodofyourchoice.Seethediagrambelowfor

recommendedpositioning.

Aistheoptimumlayoutforacounterhearingloop.

B and C are acceptable only if A is not possible and the layout is aligned so

thatthemagneticeldwillbedirectedtowardsuser’sheadheights.

Ensureallhearingloopsignageisdisplayedclearly.

X

Hearing Loop Installation

(Optional)

A B C

AmplierSetup

1. Connectallgreenplugstothebackoftheamplier,followingthe

locationsprintedabovethesockets(seepage4).

2. PowerontheamplierbypressingtheOn/Obutton.

3. Whenpoweredandinnormaloperationalmodetheamplierwilldisplay

VolumeInLED1andVolumeOutLED1assteadygreen.

4. Whentheamplierisswitchedo,allaudioismutedandnoneofthe

LEDsareilluminated.Pressinganybuttonwillturntheamplieronagain.

5. AdjustVolumeInandVolumeOuttoacomfortablelevel.

6. Press and hold the Volume In (+) or (-) buttons to increase or decrease the

level.ThecorrespondingLEDbarwillshowthevolumesetting.

6. Ensure the mouse microphones are placed as close to their intended

usersaspossible.

7. Checktheamplierisfullyfunctionalbyensuringthered‘fault’lightis

NOTshowingonthefront.

8. The Amplifier is now set up.

OurWindowIntercomSystemampliersarepre-settovolumelevels

suitablefornearlyallusers.ShouldyouneedtoadjusttheMaximum

Volume,DuckingorHearingLooplevelsoutsideofthepre-setamplier

parameters,useEngineer’sMode(seepage13).

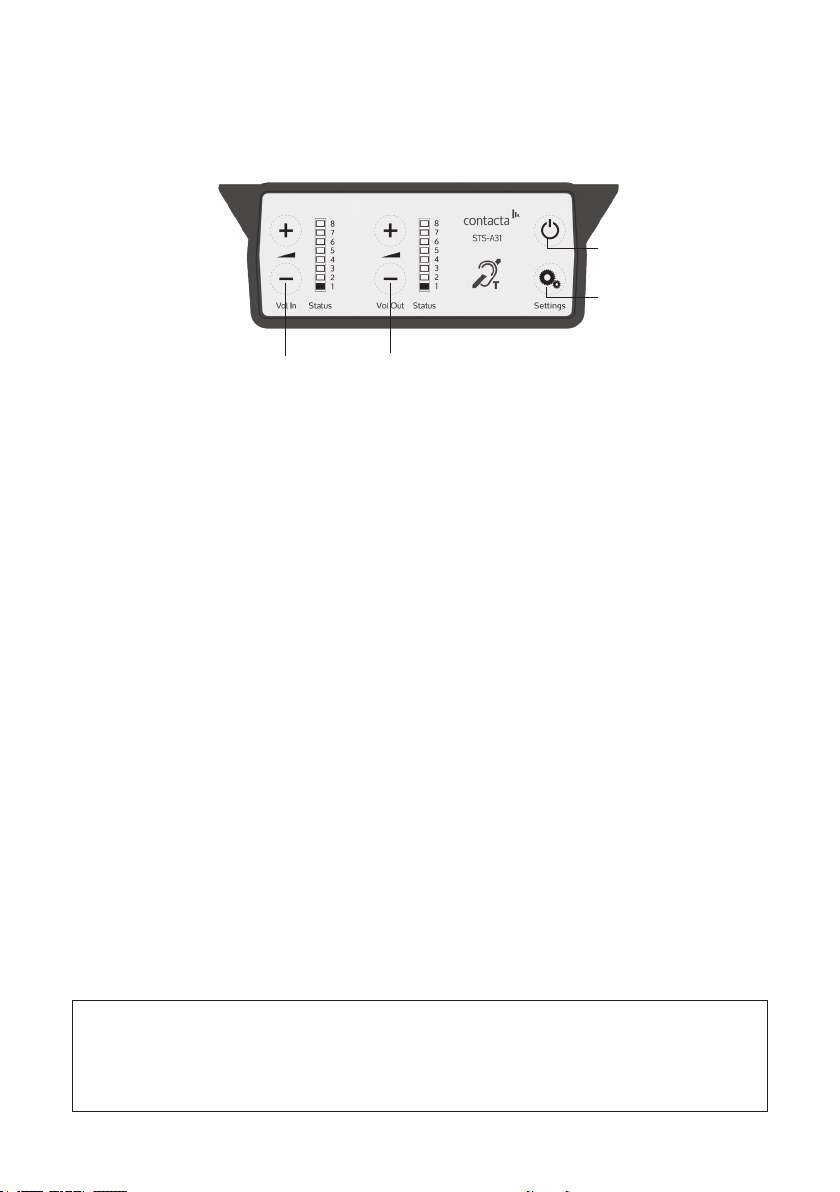

Overview of Front Panel Buttons

Volume In (Customer/Visitor to Staff)

Increase and decrease

Volume Out (Staff to Customer/Visitor)

Increase and decrease

Settings

On/O

Setup
