INSTRUCTION MANUAL

CTULR04

LAND ROVER INFODAPTER

www.connects2.com

ABOUT

The Connects2 Infodapter for Land Rover vehicles provides retention of the vehicle’s

OEM steering wheel controls, amplier, visual park aid and time/date change.

Land Rover Freelander (II) 2006 - 2014

DIP SWITCH SETTINGS

See Fig 1.

Up = Off, Down = On

1: On = Pioneer Head Units. Off = All Other Head Units

2: Setting for reverse camera. On = PAL, Off = NTSC. The default setting is Off (NTSC).

3: Resets the display settings back to default. If the display settings have been

manipulated in a way that it is no longer possible to make adjustments, change the

DIP switch #3 from Off to On and back. This will reset the screen settings to the factory

defaults. During this procedure the screen background will change to red. While the

background is red, no settings can be made.

4: Not applicable

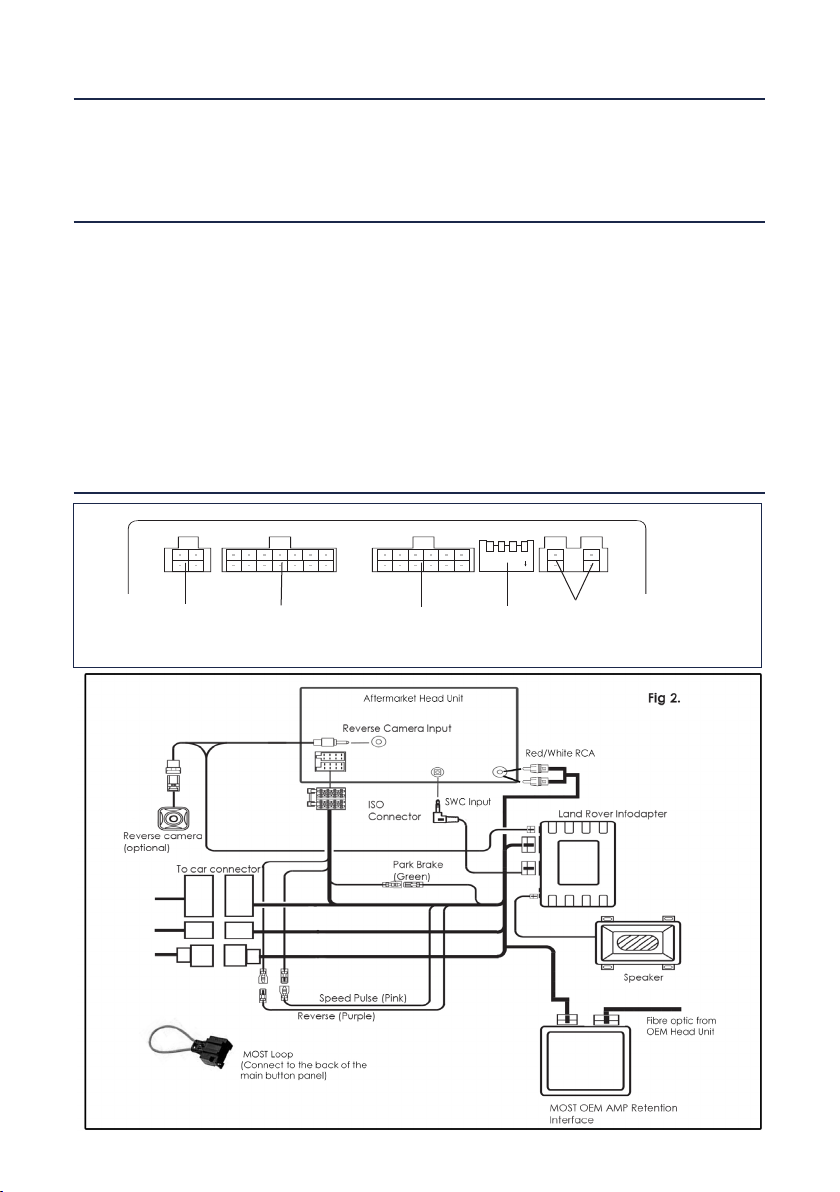

Interface Connections

Fig 1.

234

DIP ON

Reverse Camera output

to head unit and reverse

camera input from

optional camera

Power Harness Steering Wheel

Remote control

connector to

head unit

Dip Switches Not Used

Fig 2.

www.connects2.com 3

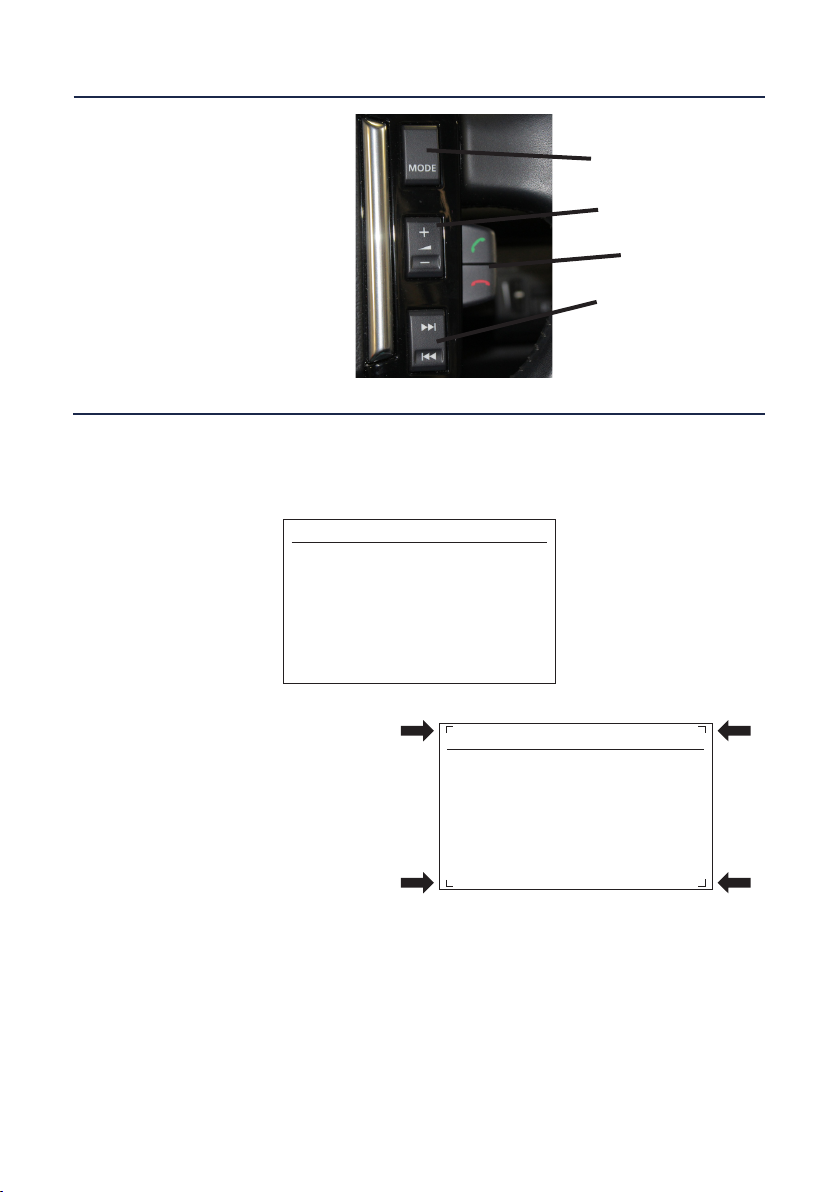

1. Mode

2. Track Up/Down

3. Volume +/-

4. Pick Up/Hang Up

Fig 3.

Steering Wheel Controls

Conguration Menu

To access the menu, push and hold the Mode button for 2 seconds (Fig. 3).(if no speech

button, pick up can be used) This will enable the conguration menu. To navigate

through the menu options use the Track Up/ Track Down buttons. To select a menu

option, push the Mode button once.

Conguration Menu

Screen Size/Position

Picture Settings

Vehicle Settings

Preferences

Language

Version

< Back

Screen Size/Position

Horizontal Size

Horizontal Position

Vertical Size

Vertical Position

< Back

•

o Screen Size/Position -

Make sure all 4 corner markers

are touching the corners of the

aftermarket head unit display.

www.connects2.com

Conguration Menu...continued

Legal Information

Please consult the relevant road trafc laws governing the country in which this product is being operated.

No liability is accepted for material damage, loss or personal injury, directly or indirectly, from installation and

operation of this product. This product should only be operated when safe to do so.

Preferences

Park Assist Version

Camera Connected

Park Brake Source

Restore factory settings

< Back

o Preferences -

Driver Position - Select Left or Right depending

upon vehicle conguration.

Park Brake Source - Set to Speed, Brake or

Always On.

Restore factory settings - Reverts all

Infodapter settings to factory defaults.

(This does not restore vehicle settings)

Picture Settings

Brightness

Contrast

Saturation

<Back

o Picture Settings -

Adjust Brightness, contrast and

colour saturation.

Vehicle Settings

Time/Date

< Back

o Time/Date -

Adjust the vehicle’s Time/Date

settings
