Connects2 CTUJP01 Manuel utilisateur

www.connects2.com

INSTRUCTION MANUAL

CTUJP01

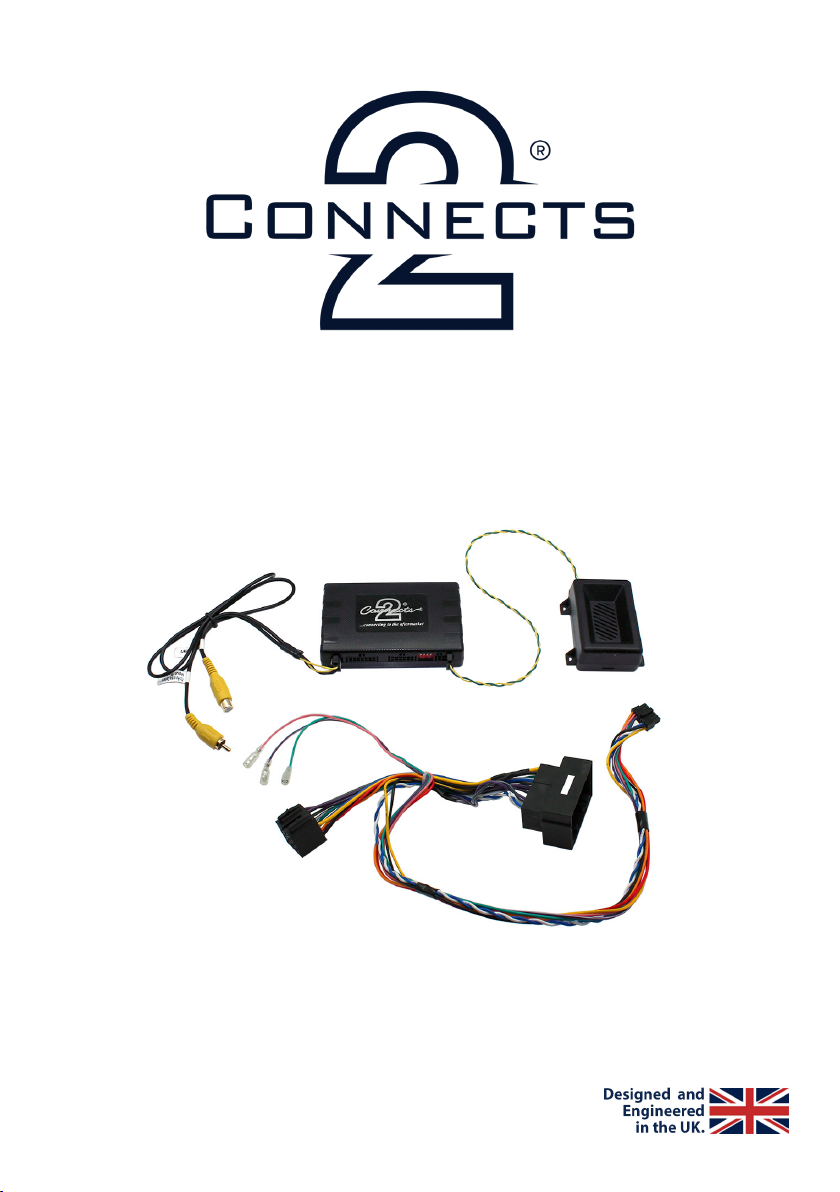

JEEP INFODAPTER

www.connects2.com

ABOUT

The Connects2 Infodapter for Jeep vehicles allows vehicle setting and parking

sensor information to be displayed on any aftermarket head unit with rear camera input.

The Infodapter also allows the use of the steering wheel controls with almost every

steering wheel control compatible head unit on the market.

DIP SWITCH SETTINGS

See Fig 1.

Up = Off, Down = On

1: On = Pioneer head units. Off = All other head units

2: Setting for reverse camera. On = PAL, Off = NTSC. The default setting is Off (NTSC).

3: Resets the display settings back to default. If the display settings have been

manipulated in a way that it is no longer possible to make adjustments, change the

DIP switch #3 from Off to On and back. This will reset the screen settings to the factory

defaults. During this procedure the screen background will change to red. While the

background is red, no settings can be made.

4: Not applicable

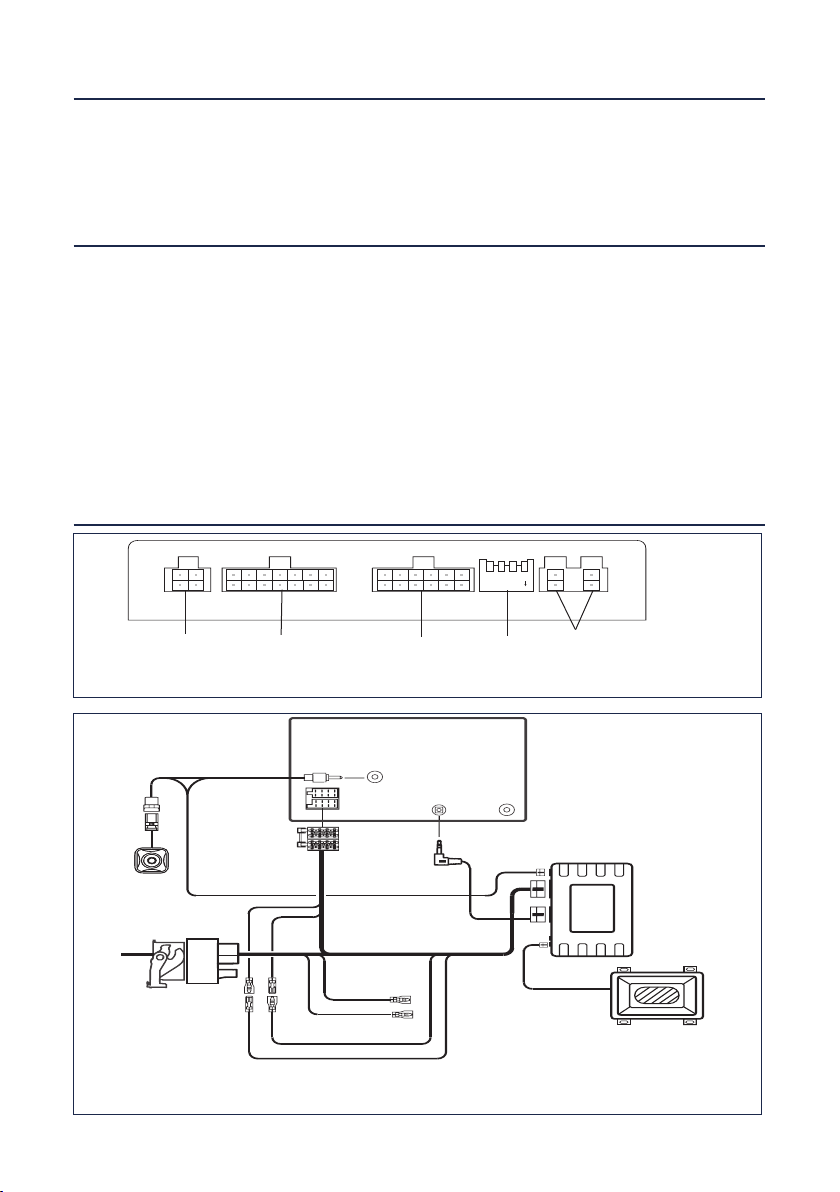

Interface Connections

Fig 1.

234

DIP ON

Reverse Camera output

to head unit and reverse

camera input from

optional camera

Power Harness Steering Wheel

Remote control

connector to

head unit

Dip Switches Not Used

Fig 2.

7 Mute(Grey)

Speed Pulse (Pink)

Reverse (Purple)

1Aftermarket head

Infodapter

Steering Wheel

Control Input

5 ISO

Connector

Reverse Camera Input

10 Reverse camera

(optional)

To car connector

www.connects2.com 3

1 Speech Button

2 Track Up/Down

Fig 3.

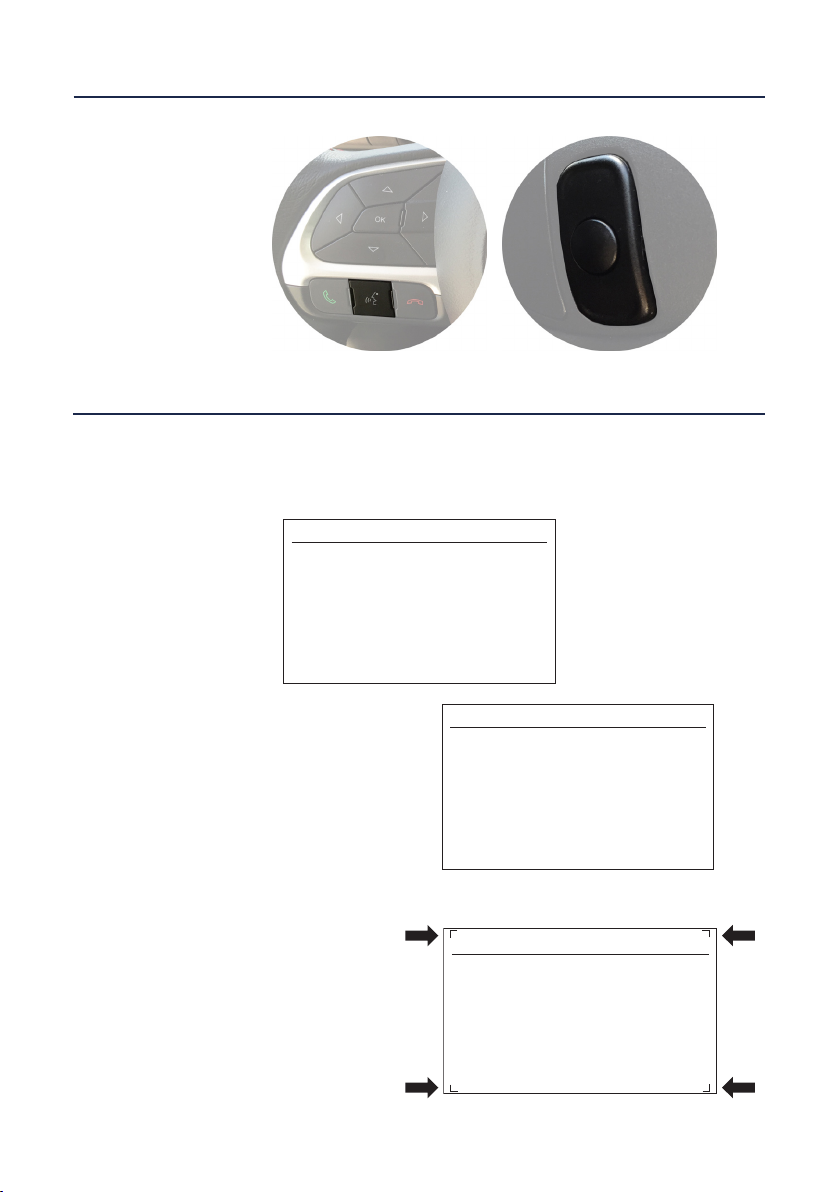

Steering Wheel Controls

Conguration Menu

To access the menu, push and hold the speech button for 2 seconds (Fig. 3).(if no speech

button, pick up can be used) This will enable the conguration menu. To navigate

through the menu options use the Track Up/ Track Down buttons. To select a menu

Conguration Menu

Vehicle Settings

Infodapter Settings

Language

Version

< Back

Vehicle Settings

Display

Clock

Doors and Locks

Lights

Safety and Driving Assistance

Vehicle Off Options

< Back

• Vehicle Settings

Vehicle settings can be adjusted via

the menu. All vehicle setup options

that were available with the original

head unit, are now available through

the aftermarket head unit. See the

vehicle handbook for more information

regarding these features.

Screen Size/Position

Horizontal Size

Horizontal Position

Vertical Size

Vertical Position

< Back

• Infodapter Settings

o Screen Size/Position -

Make sure all 4 corner markers

are touching the corners of the

aftermarket head unit display.

www.connects2.com

Conguration Menu...continued

Legal Information

Please consult the relevant road trafc laws governing the country in which this product is being operated.

No liability is accepted for material damage, loss or personal injury, directly or indirectly, from installation and

operation of this product. This product should only be operated when safe to do so.

Preferences

Park Assist Version 0

Camera Connected Yes

Reverse Priority Park Assist

Park Brake Source Speed

Restore factory settings

< Back

o Preferences -

Park Assist Version - Select according to the

colour conguration of the park assist tted to

the vehicle.

Camera Connected - Select Yes if an optional

camera is connected.

Reverse Priority* - Select which image (Camera

or Park Assist) will be shown by default when

reversing. The driver can select the desired

image by pushing the Source button (Fig.3)

while reversing. (*Note this option is only

available when Camera Connected is set to

Yes)

Park Brake Source - Set to Speed, Brake or

Always On.

Restore factory settings - Reverts all

Infodapter settings to factory defaults.

(This does not restore vehicle settings)

Infodapter Settings

Screen Size/Position

Picture Settings

Preferences

<Back

o Picture Settings -

Adjust Brightness, contrast and

colour saturation.
