CONCORD ULTIMAX Manuel utilisateur
Using the ULTIMAX child car seat 0236-02
To safeguard your child you have
opted for our CONCORD
ULTIMAX seat. This product is
manufactured under strict quality
controls. Its excellent safety
features work best when the seat
is used in accordance with legal
requirements. Be sure, therefore,
to comply fully with the
instructions for its installation and
use.
The ULTIMAX is suitable for
infants from birth up to 18 kg or
for children up to the age of
approx. 4 years. The seat may
be used on all seats in your car
fitted with a three-point seat belt.
On the basis of accident
statistics, we recommend using
the seat behind the passenger
seat.

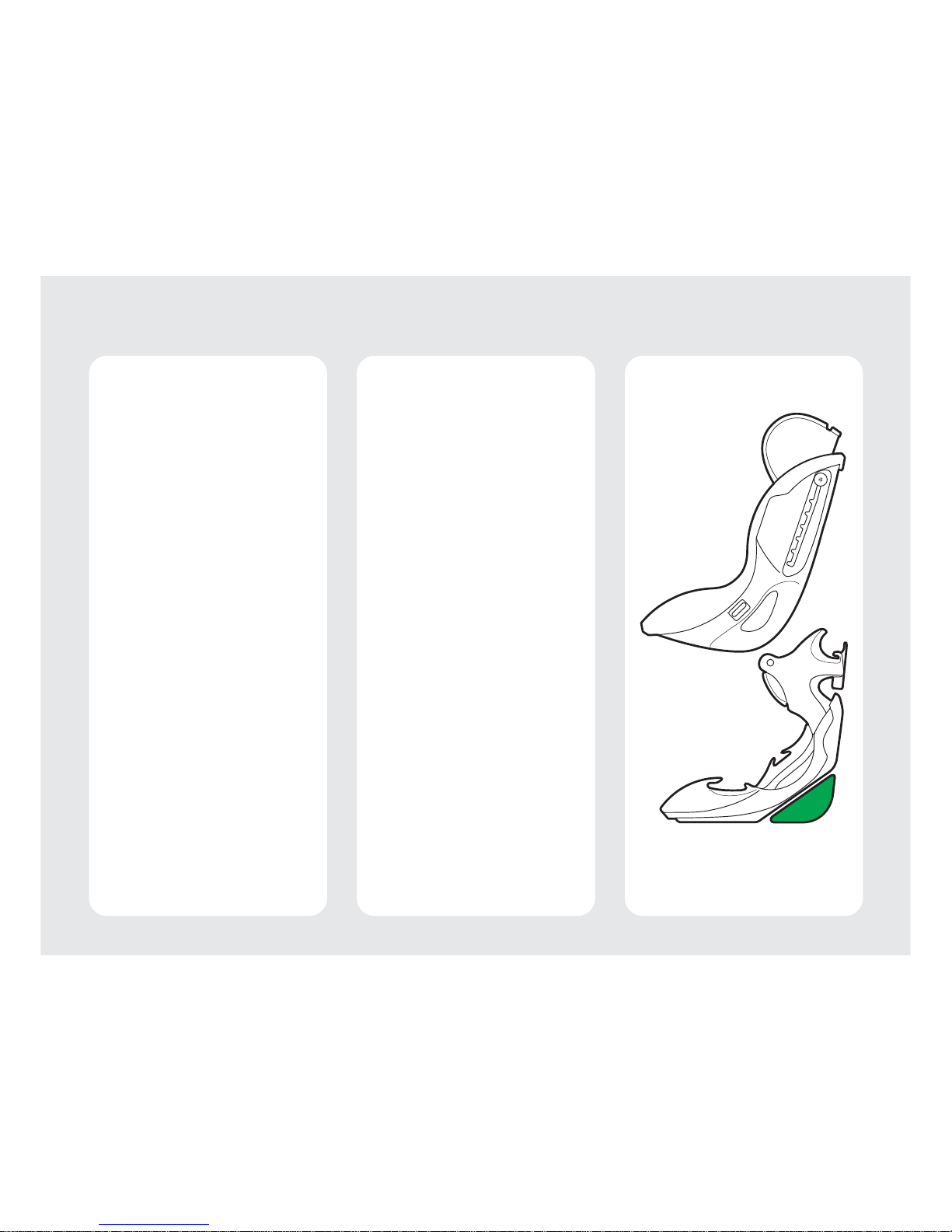

The child car seat comprises
three parts: seat shell (A), base
unit (B) and
reboard wedge (C).
The seat can also be engaged
in four different seat positions
when facing forwards and in one
position when rear-facing.
The seat shell must not be
removed while the child is still
seated in it.
Summary of contents:
1. Rear-facing installation (from
birth to 13 kg).
2. Front-facing installation (from
9 to 18 kg).
3. Securing the child.
4. Adjusting the head support /
adjusting the seat to the
child’s size.
5. Releasing and removing the
seat.
6. Removing the cover /
removing the pelvic insert.
7. Care instructions
8. Important information
9. Warranty terms
10. General information
A
B C
0106-02
2
1
1. Rear-facing installation (from birth to 13 kg) 0237-02
Important!
Do not use on seats
with airbags.
Extreme danger!

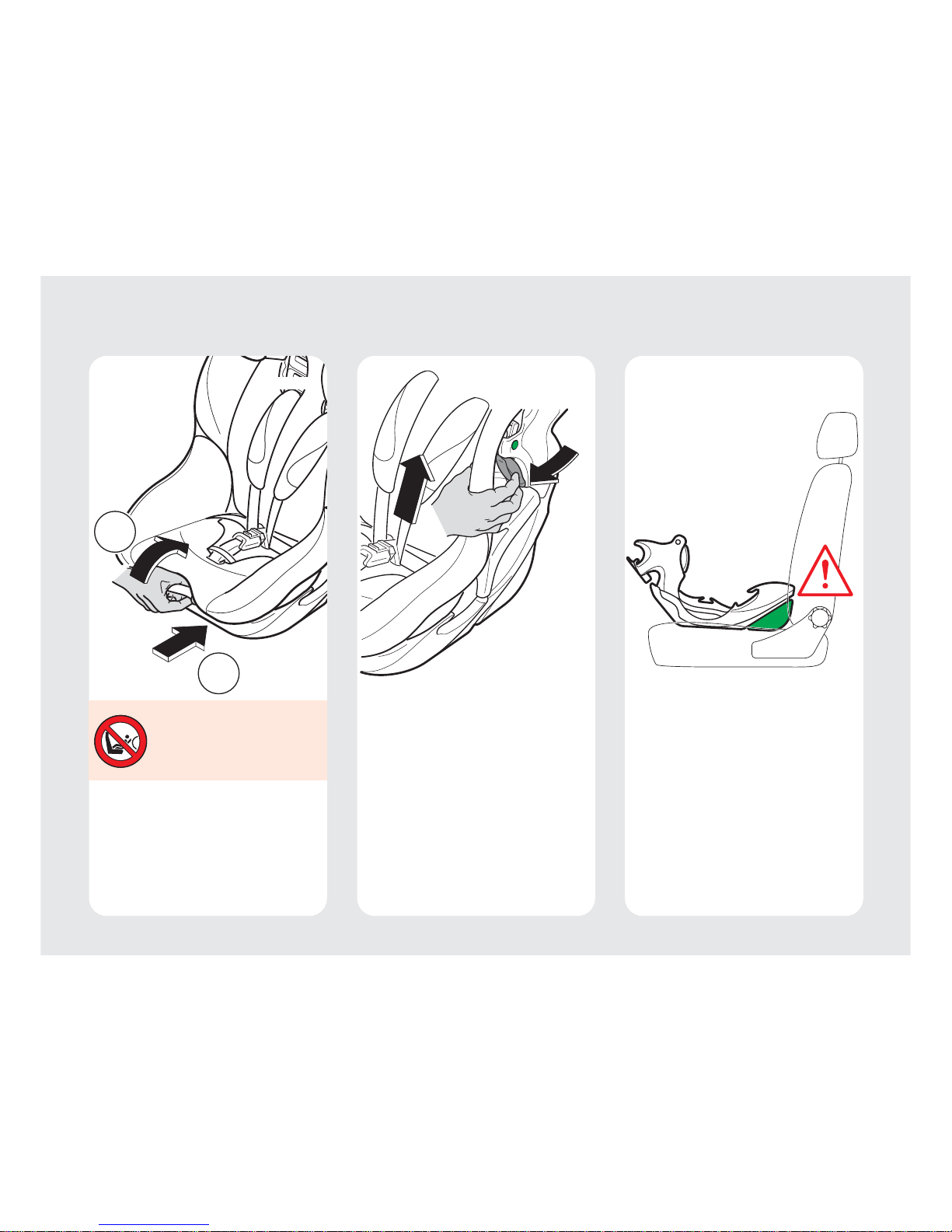

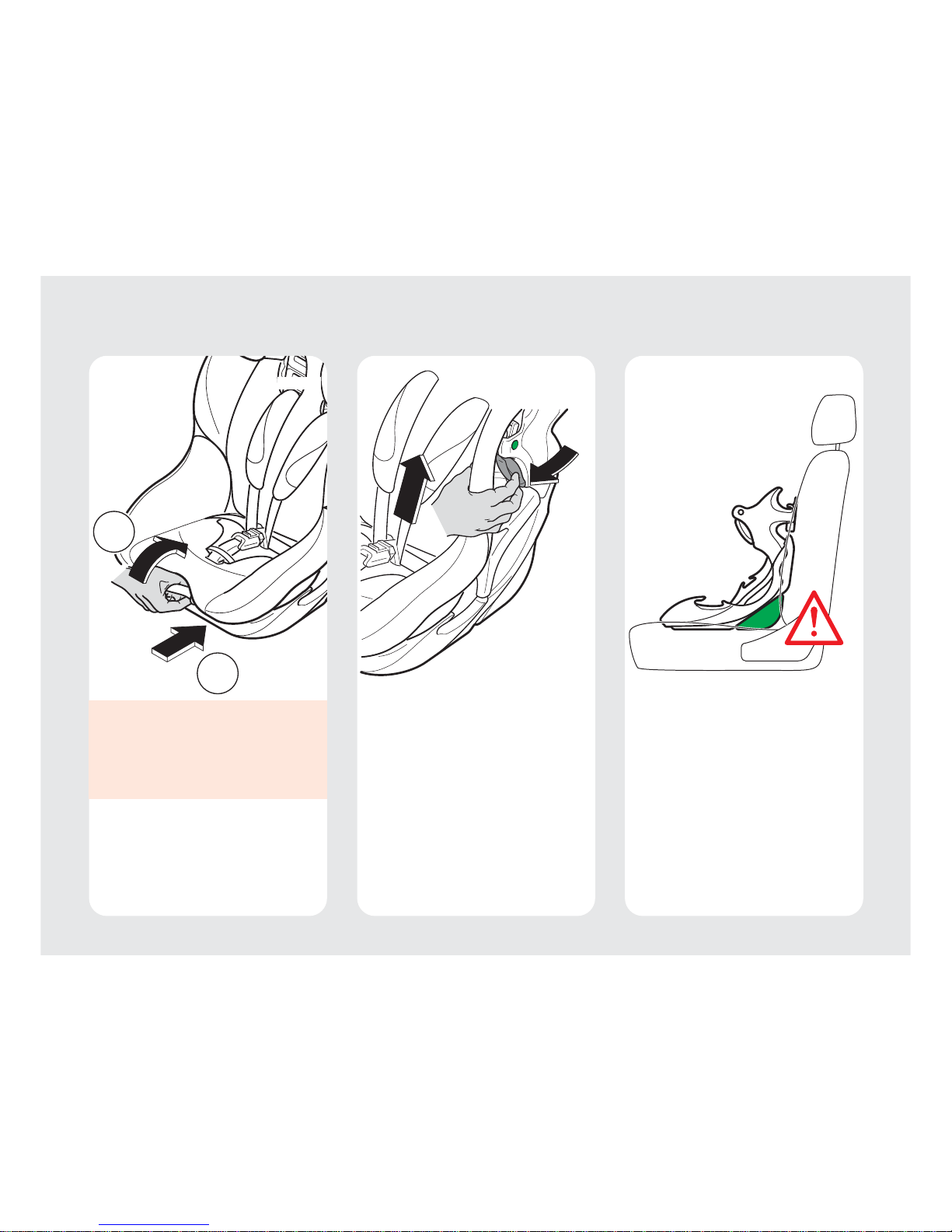

Turn the rotary handle at the front
of the seat shell upwards (1) and
at the same time push the seat
shell into the upright position (2).
Hold the seat shell with your
thumbs on the left and right side
and use your fingers to pull the
grey levers as far as they will go
in the direction of the arrow. Keep
the levers extended and lift the
seat shell upwards and out until
the green component is visible
above the snap mechanism.
Then release the levers and
remove the seat shell.
Insert the base unit into the car
seat as illustrated.
Position the reboard wedge
(green) as shown.
0014-07 0017-06 0013-04
A
I
R
B
A
G
1.2 1.31.1
click
1. Rear-facing installation (from birth to 13 kg) 0238-01

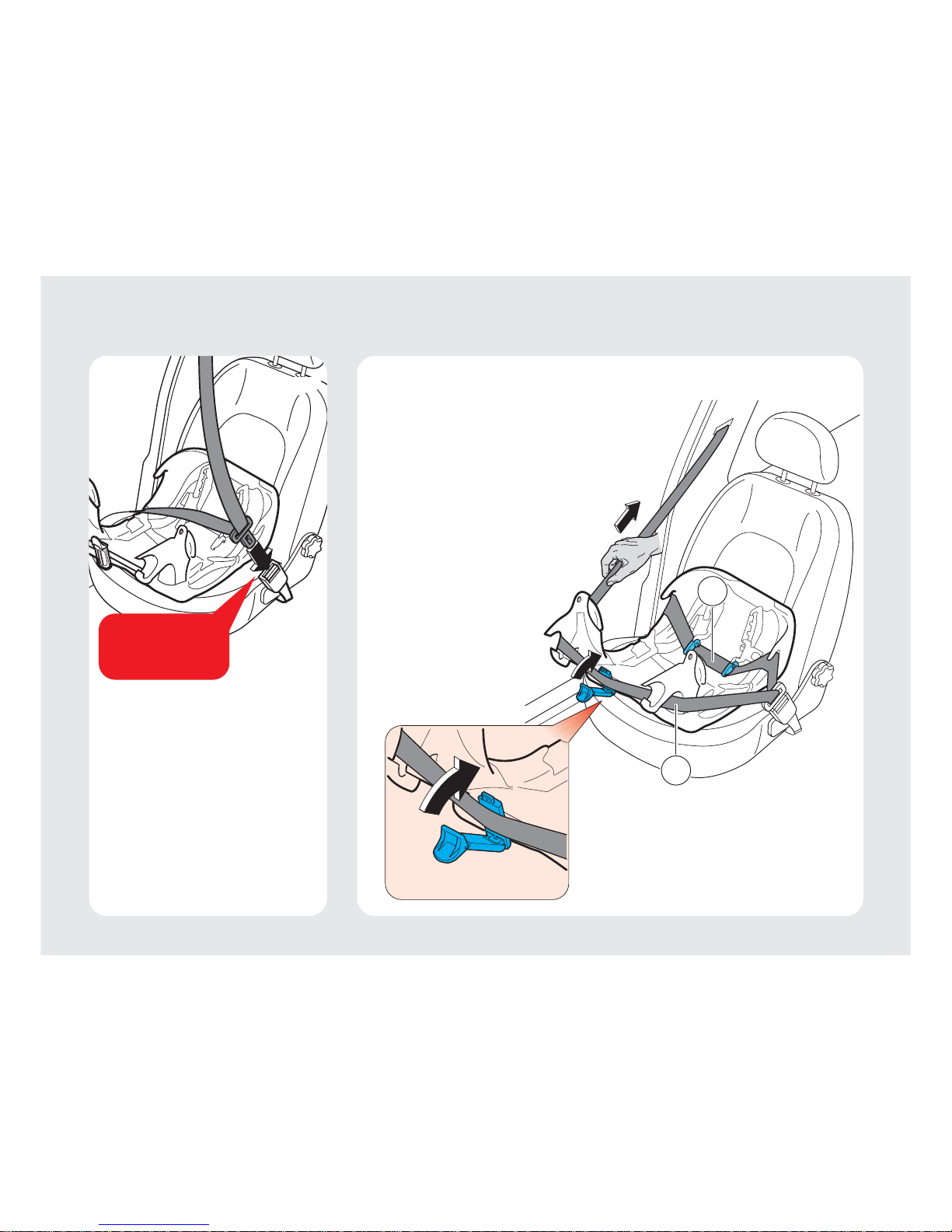

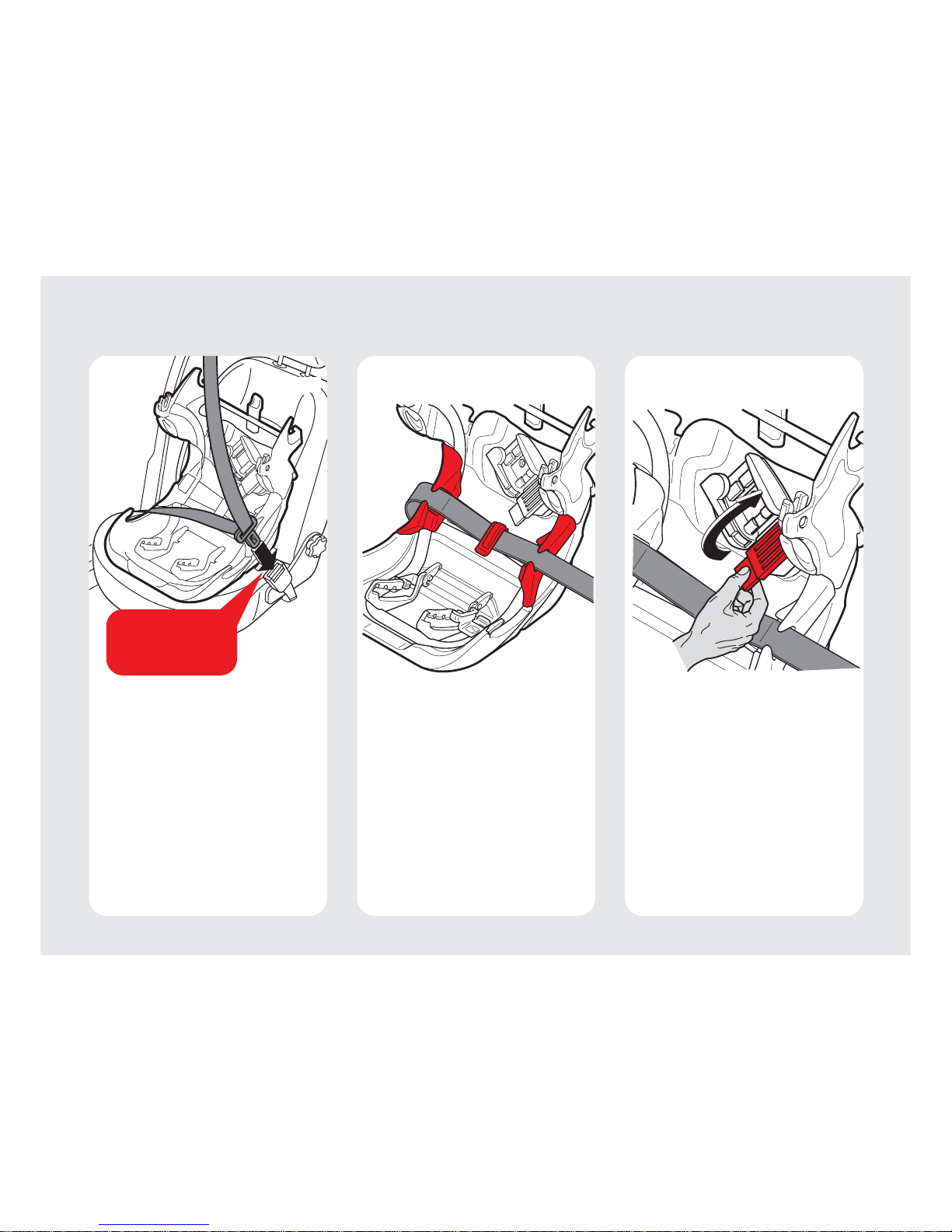

Pass the car seat belt over the
top of the base unit and secure
the belt in the buckle.
Position the lower belt section
(1) (lap belt) under the blue lap
belt guides (see illustration). Pass
the upper belt section (2)
(diagonal belt) around the outside
of the base unit and insert it into
the blue belt clip. Tension the
belt as shown in the illustration,
and close the blue belt clip.
0101-03 0028-05
2
1
1.51.4
1. Rear-facing installation (from birth to 13 kg) 0239-01

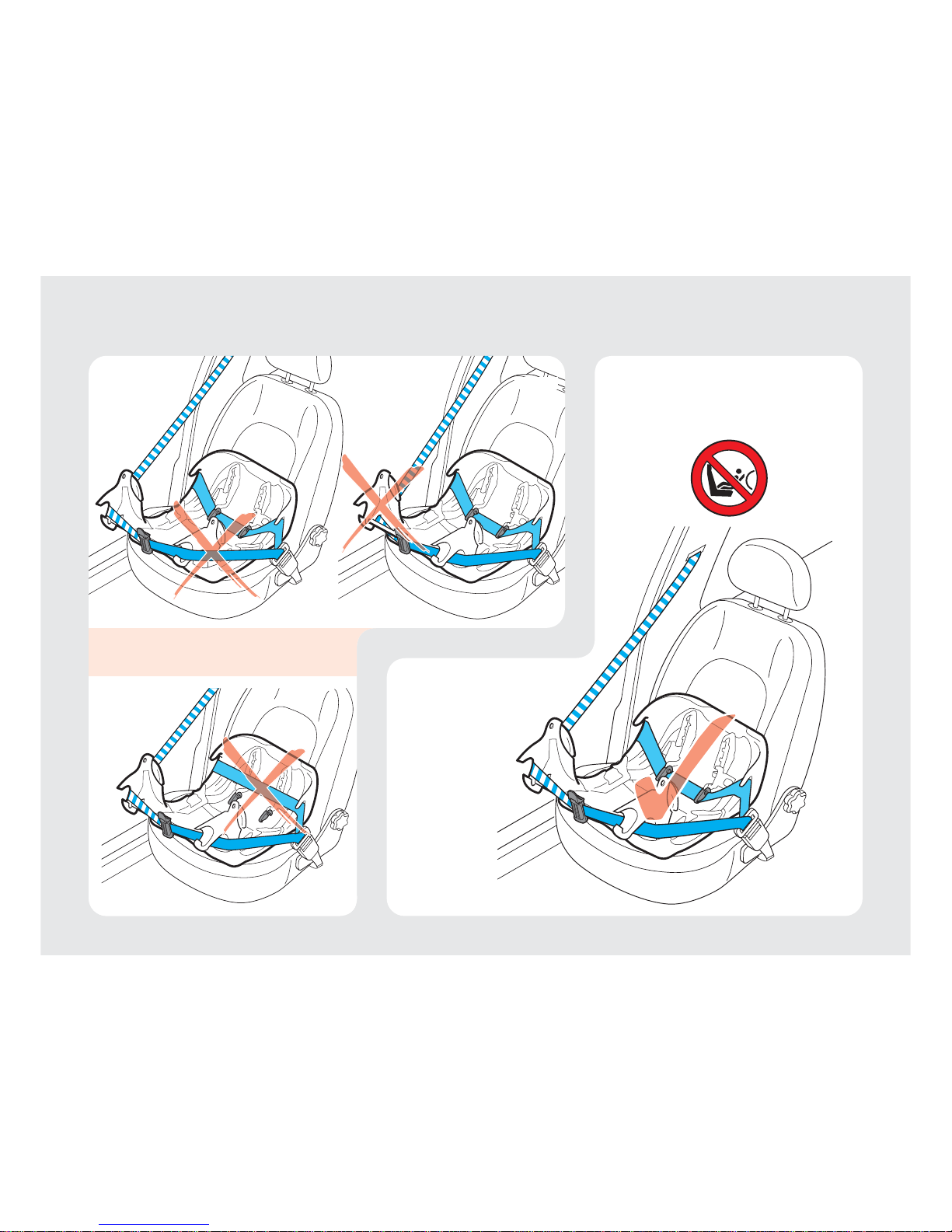

Wrong belt positioning!
Belt positioning when the base unit
is installed correctly.
1.6 0119-06 1.7 0118-04
1. Rear-facing installation (from birth to 13 kg) 0240-02

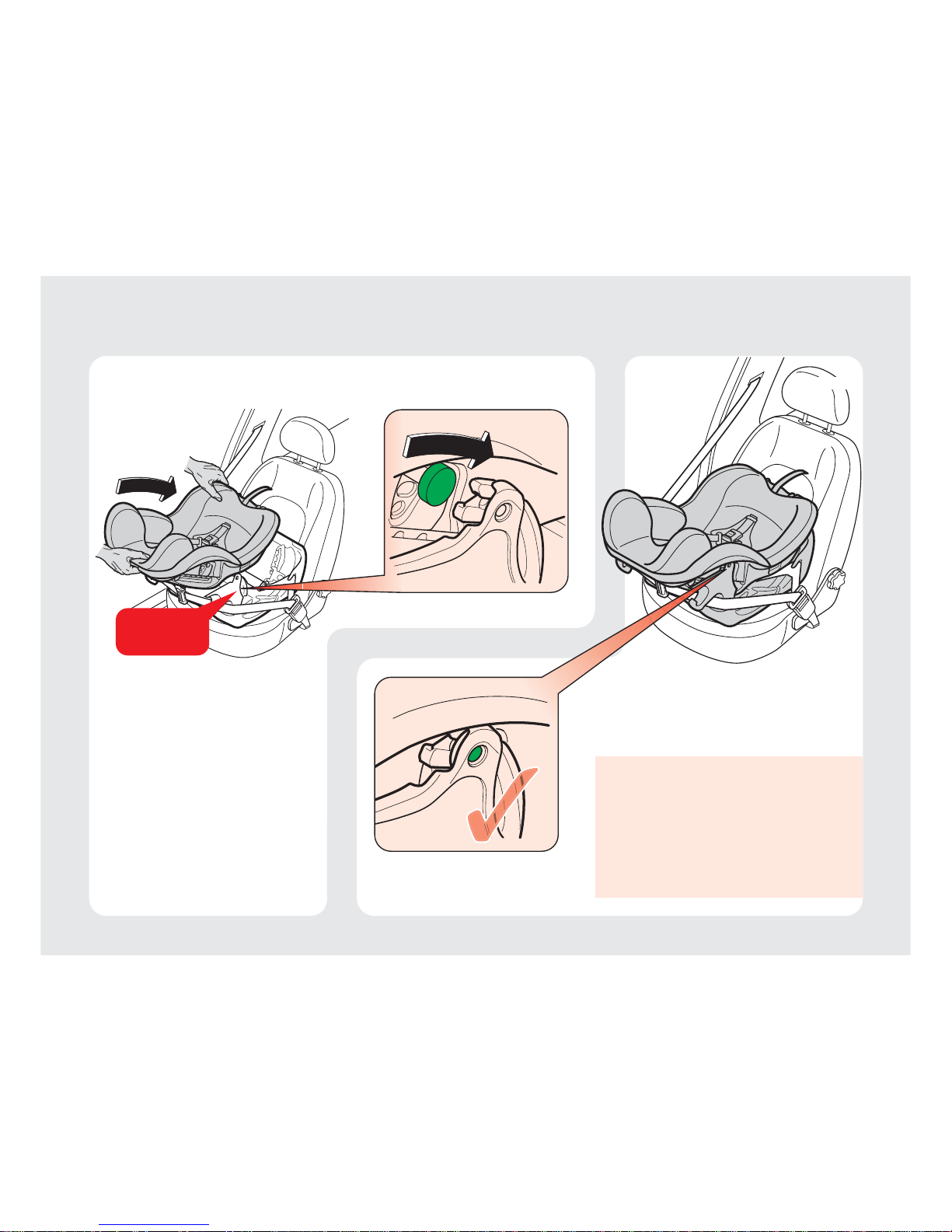

Hold the seat shell as illustrated
and position it on the base unit.
Press the seat shell downwards
until it clicks audibly into position.
Always check that when the seat
shell is inserted a green dot is visible
on both sides through the opening
on the sidepieces. This indicates
that the seat is installed correctly.
When rear-facing the seat may
only be used in the upright
position! If the child’s body weight
exceeds 8 kg, the factory-fitted
pelvic insert should be removed,
see section 6.5.
Disassembly is done in the
reverse order.
click
0088-08 1.91.8 0090-06
2
1
2. Front-facing installation (from 9 to 18 kg) 0241-01
Important!
Front-facing installation is only
suitable from a body weight of
9 kg and without the pelvic
insert, see section 6.5!
Turn the rotary handle at the front
of the seat shell upwards (1) and
push the seat shell into the
upright position (2).
Hold the seat shell with your
thumbs on the left and right side
and use your fingers to pull the
grey levers as far as they will go
in the direction of the arrow. Keep
the levers extended and lift the
seat shell upwards and out until
the green component is visible
above the snap mechanism.
Then release the levers and
remove the seat shell.
Insert the base unit into the car
seat as illustrated. Position the
reboard wedge (green) as
shown.
0014-07 0017-06 0010-04
2.2 2.32.1
click
2. Front-facing installation (from 9 to 18 kg) 0242-01
Pass the car seat belt over the
top of the base unit and secure
the belt in the buckle.
Insert the lower belt section (lap
belt) into the lap belt guides (red)
as illustrated.

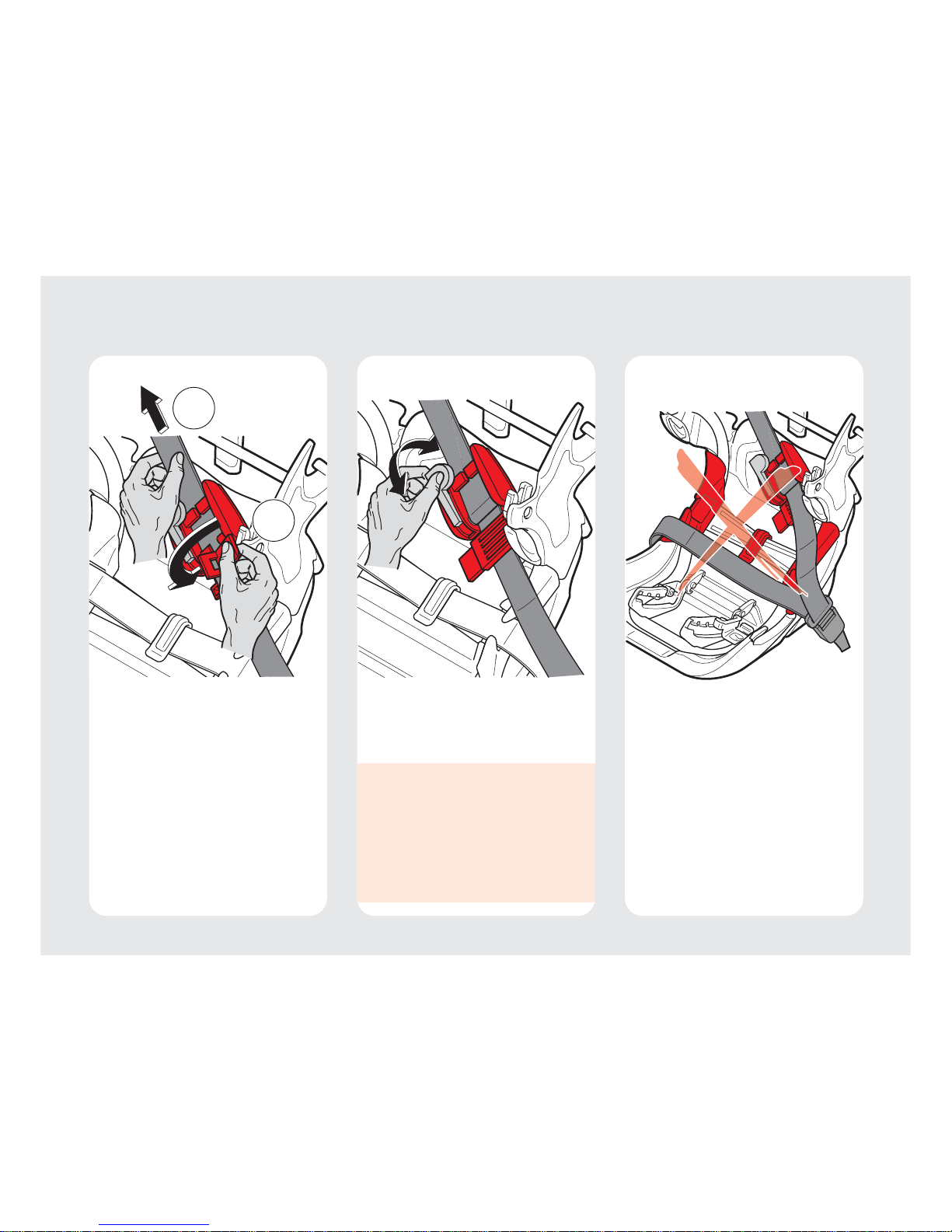

Open the red belt clip on the belt
tensioner.
0030-04 0031-05 0032-05
2.5 2.62.4
2. Front-facing installation (from 9 to 18 kg) 0243-02
Turn the open side of the ratchet
shaft upwards.
Position the upper belt (diagonal
belt) in the opening of the ratchet
shaft and into the guide
mechanism behind it.
The belts must not be twisted!
0029-08 0037-09
2.82.7
1
2
2. Front-facing installation (from 9 to 18 kg) 0244-01

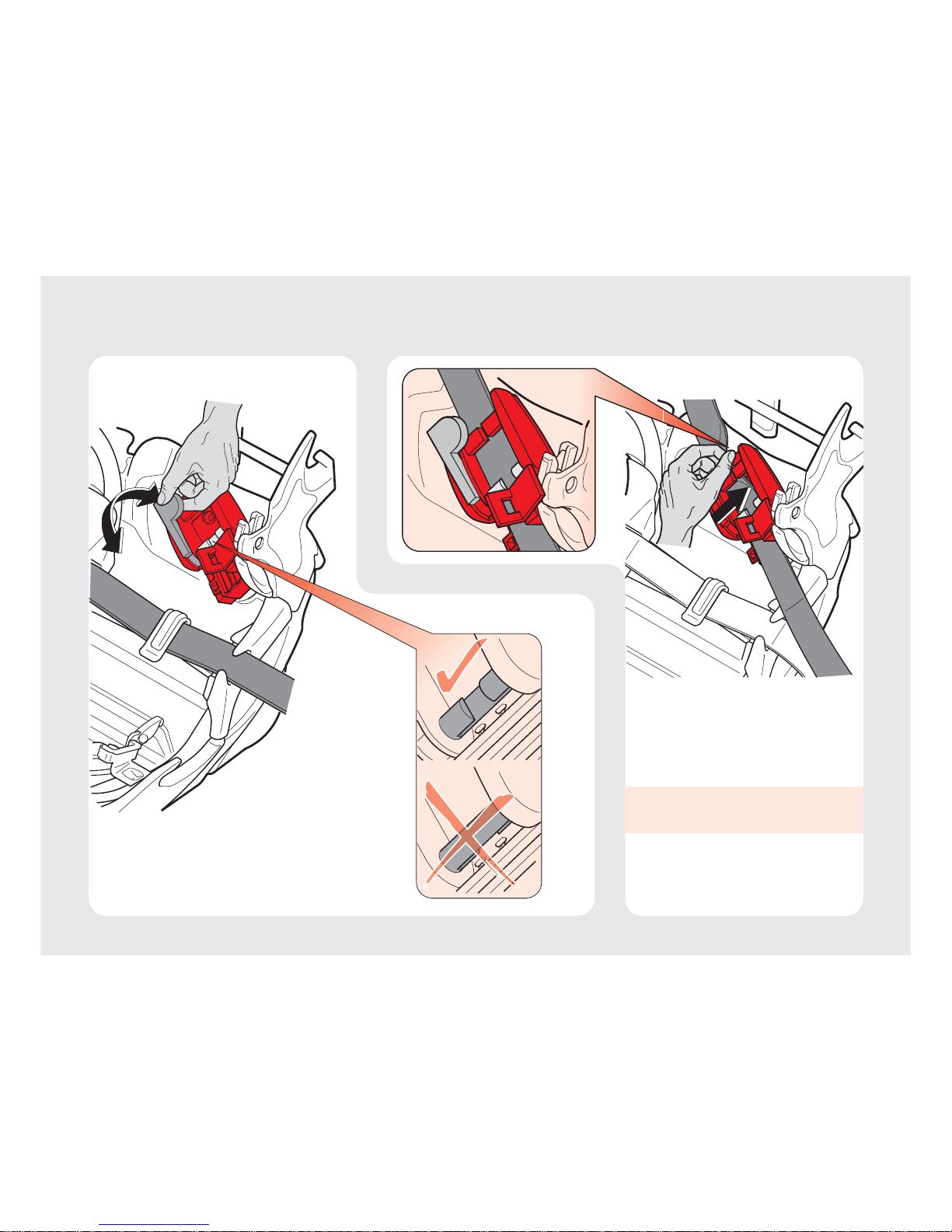

Tighten the upper belt (1) slightly
and close the red belt clip (2).
Then tighten the belt once again.
Use the ratchet to wind the belt
up until the base unit is firmly
secured in the car seat.
The belt must be taut.
The base unit must be
positioned straight on the car
seat, parallel to the direction
of travel. Move the base unit
to adjust if necessary and then
tighten the belt again.
The car safety belt must be
threaded through all three belt
guides.
0039-07 0041-07 0069-08
2.10 2.112.9
