Comtrend Corporation WAP-5883 Manuel utilisateur

Quick Installation Guide

Wireless-N Range Extender

WAP-5883

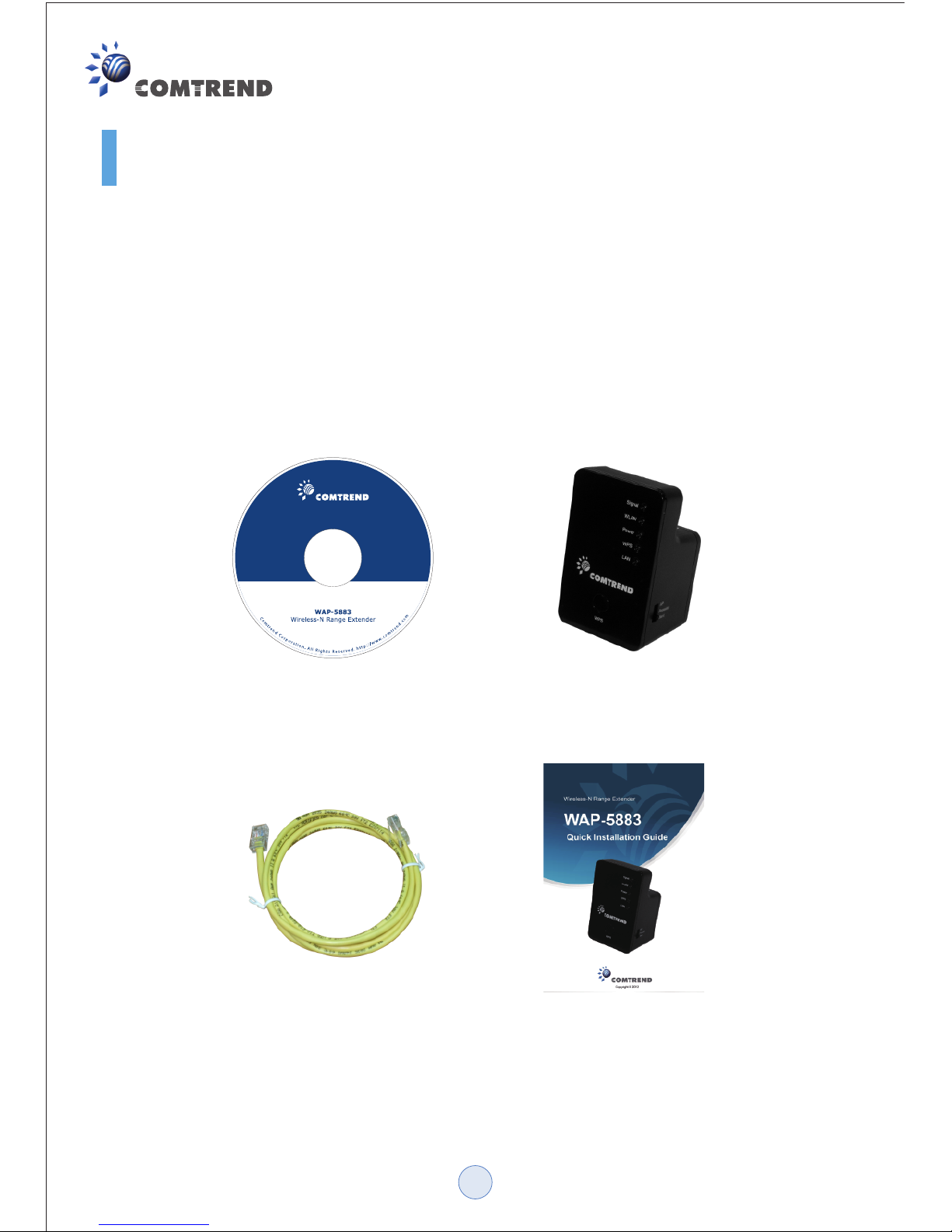

A. Package Contents

3 4

•CDROM (QIG/User Manual) (1)

•Wireless-N Range Extender (2)

•RJ-45 Cable (3)

•Printed QIG (4)

Before you start using this Wireless-N Range Extender, please check if there’s

anything missing in the package, and contact your place of purchase to claim

missing items:

Signal

WLAN

Power

WPS

LAN

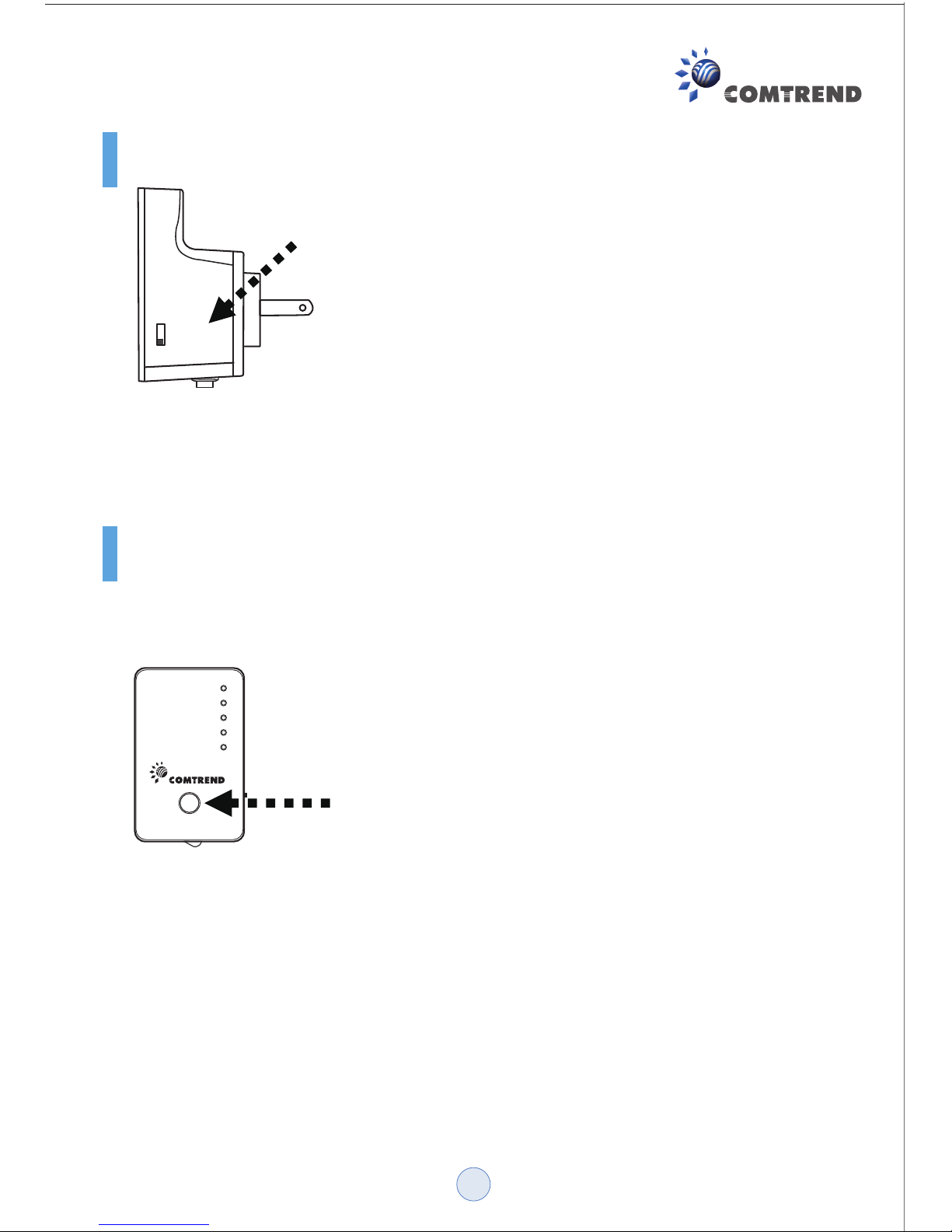

B. Select working mode:

Quick Installation:

1) Press and hold the button on the WAP-5883 for 2 seconds

2)The ‘WPS’ LED will start flashing

3) Press the WPS button on the access point you wish to connect within 2

minutes

Note:

1. In addition to the WPS hardware button setup, you can also login to the Web

user interface for more advanced settings. For detailed setup, see the following

pages.

2. For AP mode installation, no WPS pairing is necessary for initial setup. You

can, however, use the WPS button to pair other wireless devices with the

WAP-5883 when you are ready to associate them to the wireless network.

While the WAP-5883 is set in either Repeater or Client mode, use the WPS

Hardware button on the front of the device to connect to a wireless router (or

access point) quickly and easily.

Repeater

Client

AP (Access Point): Works as a wireless access point for wireless clients

Repeater: Works as a wireless repeater to extend wireless coverage

Client: Works as a wireless network client, to allow other devices to connect

to a wireless network

Repeater

Client

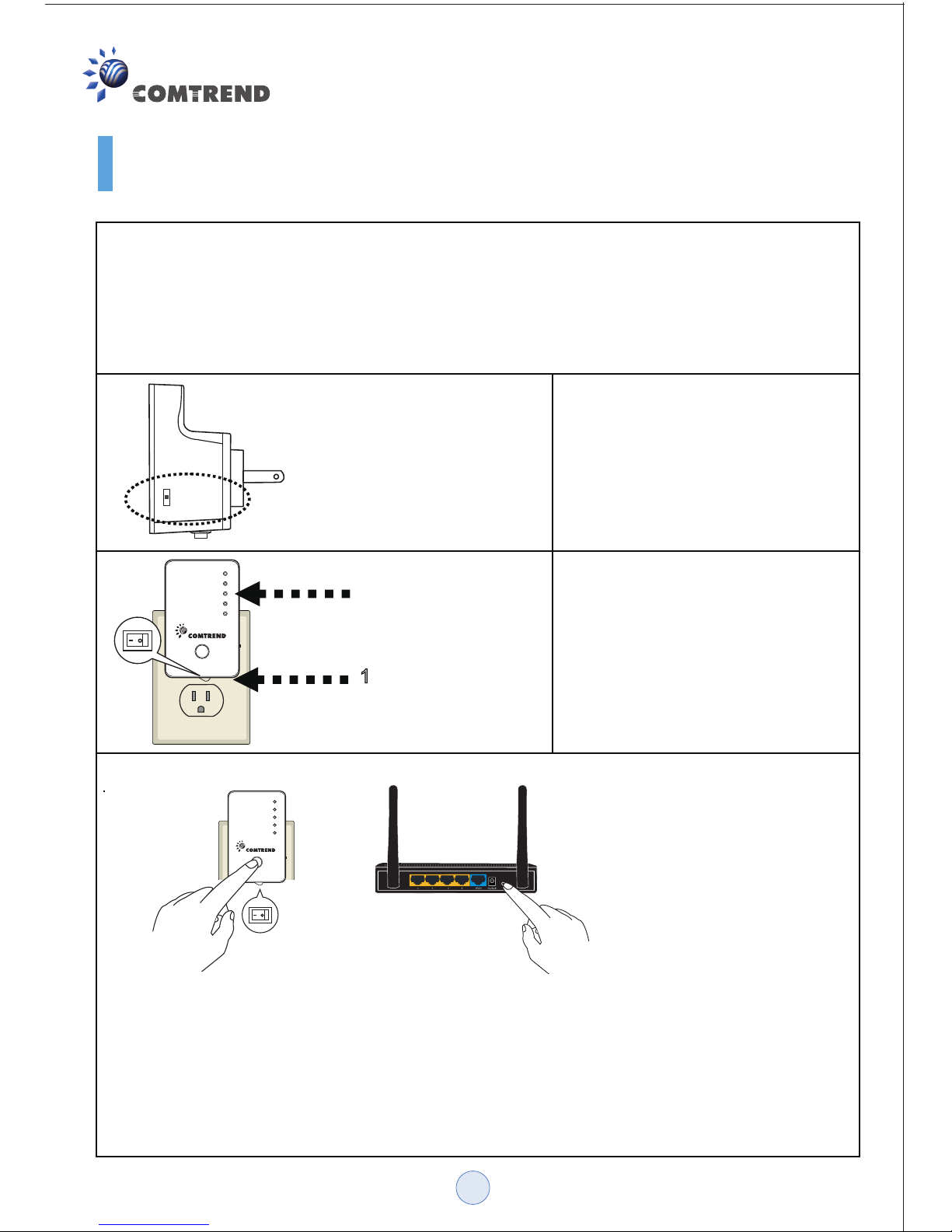

C. Repeater Mode Installation Guide

Repeater mode can extend your wireless signal and coverage, and will help you

solve wireless dead zone problems.

For first time setup and installation, move the extender close to the access point

you wish to connect to and, after installation is complete, move the device to the

place you wish to use it.

Switch to ‘Repeater’ mode.

Plug the WAP-5883 into a

power outlet on the wall, and

flip the power switch to ‘ON’

(1). The ‘Power’ LED should

light up in a few seconds (2). If

not, check if the power outlet

you’re using is working.

(1) Press and hold the WPS button on the extender for 2 seconds, the ‘WPS’

LED will start flashing.

(2) Press the WPS button on the access point you wish to connect to within 2

minutes. If the access point you wish to connect to does not have a hardware

WPS button, you can also use its web configuration menu’s WPS function to

establish a connection. Or you can login to the WAP-5883’s web UI to perform

quick setup (detailed setup is explained in the section that follows below).

Reset/WPS

(

)

( )

Signal

WLAN

Power

WPS

LAN

Using the WPS button to establish a fast and secure connection without a computer:

Signal

WLAN

Power

WPS

LAN

C. Repeater Mode Installation Guide

(3) If the WPS connection is successfully established, the ‘WPS’ LED will light

for 5 minutes; if the ‘WPS’ LED flashes fast, a problem has occurred, please

wait for 2 minutes until the ‘WPS’ LED is off, and start from step (1) to try again.

When quick installation is successful, the ‘Signal” LED will turn on.

(4) Please move the extender to the place you wish to use it (the ideal place will

be the center of your house), you can check the ‘Signal’ LED status to

understand the signal reception level. Steady light: Excellent, Flashing: Good,

Fast flash: poor.

*The following manual is for establishing a connection via the WAP-5883’s WEB

Interface:

NOTE: By default the Comtrend WAP-5883 has a default IP address of

192.168.0.2. To login through the Web Management interface, your computer

(whether connected through wireless or via Ethernet directly to the device) will

need to have an IP in the same range: 192.168.0.x. (where x equals any number

between 3 and 254). If your network has a different IP range, set your computer

to a static IP to configure this device for the first time and set it to match your

network settings.

Use an Ethernet cable to

connect your computer’s

Ethernet port and the

Wireless-N Range Extender’s

Ethernet port.

Use your computer’s wireless

configuration utility to search

for an access point named

‘comtrend’ to connect to.

Open your web browser and

input ‘http://192.168.0.2’ in the

address bar. Ensure your

computer has an IP in the same

range as the WAP-5883

(192.168.0.10 as an example)

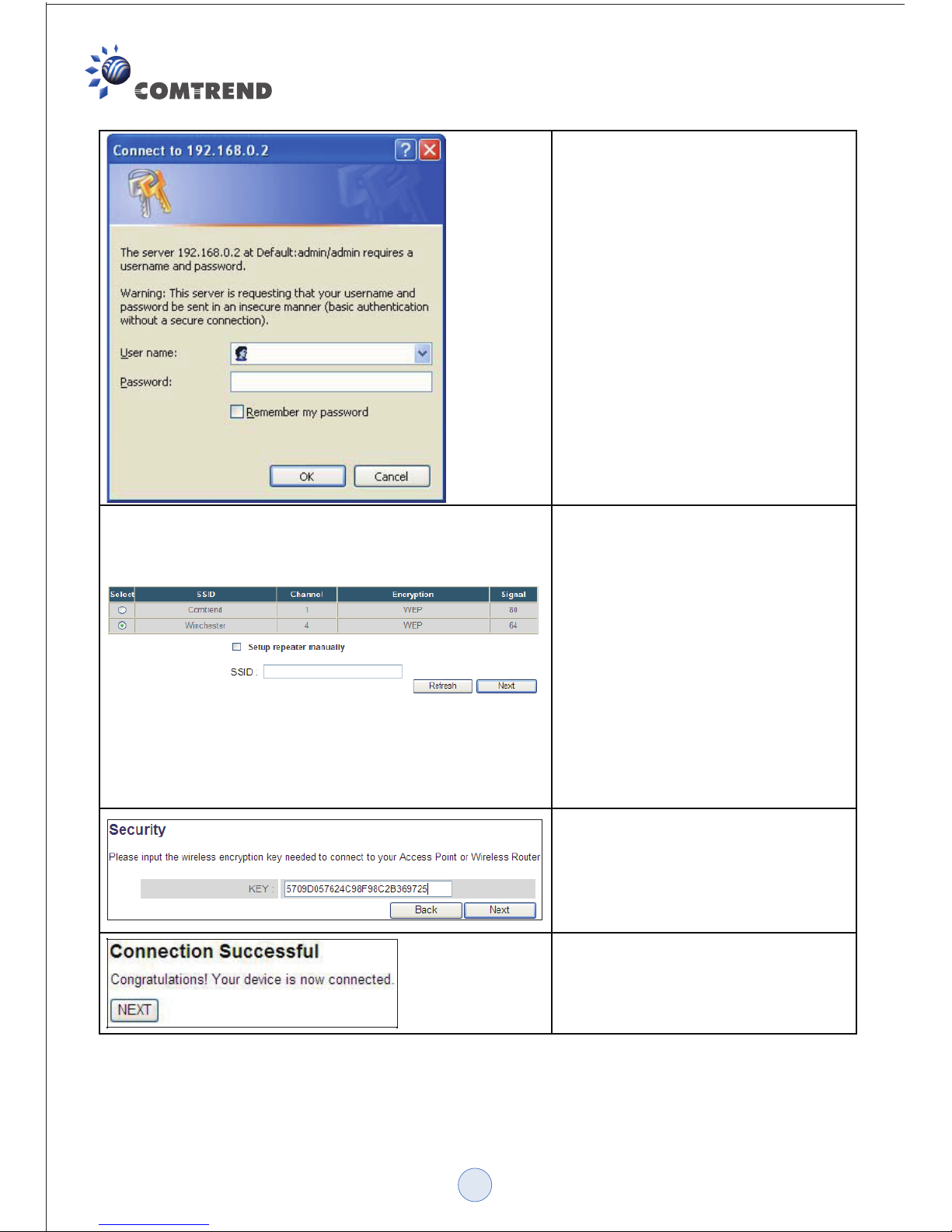

The Wireless-N Range Extender

will prompt you to input the

username and password. The

default username is ‘admin’ and

the default password is ‘admin’.

Click the ‘OK’ button to continue.

All wireless access points

nearby will be displayed in the

list. Select the required access

point and click the ‘Next’ button

to continue. If the access point

you wish to connect to, does

not appear here, click ‘Refresh’

until it appears in the list, or

move the Wireless-N Range

Extender closer to the access

point to which you wish to

connect to.

You’ll be prompted to input the

access point’s wireless security

key. Input it in the ‘KEY’ field

and click ‘Next’ to continue.

Upon successful Connection

Test completion the following

message will be displayed.

Click ‘Next’ to continue.

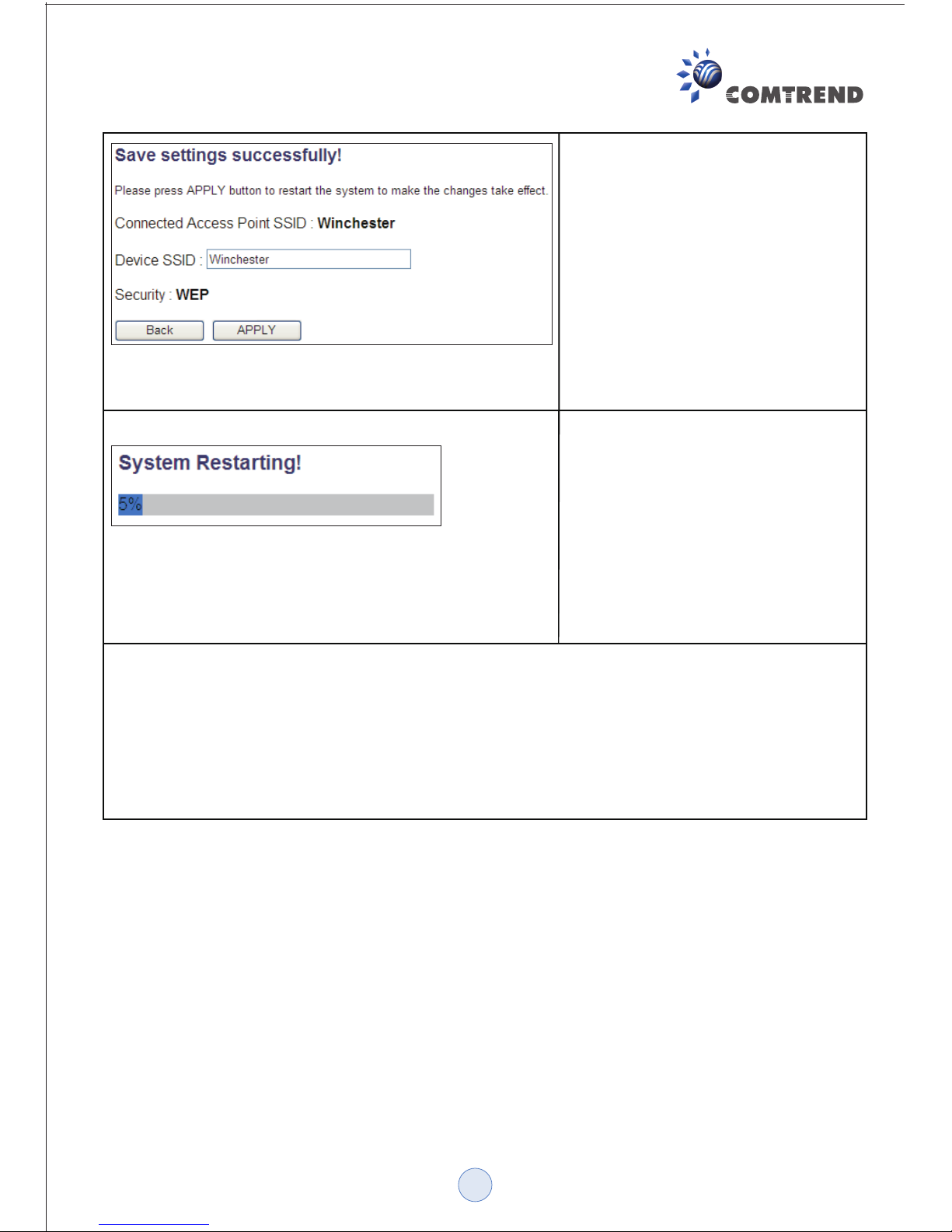

The Wireless-N Range

Extender will display the

connection information for you.

If everything’s correct, click the

‘APPLY’ button to get

connected.

The ‘Device SSID’ will be the

same as the access point’s

SSID you connected to in this

step.

Wait for a few moments for the

Wireless-N Range Extender to

reboot. After rebooting, use

your computer to connect to the

wireless access point by the

SSID you set in the previous

step and start using the

network.

Note: If you wish to run Quick Setup again or had problems logging into the web

UI, push the ‘WPS’ button for 10 seconds until the ‘POWER’ LED starts

blinking, and the device will reset to factory defaults.

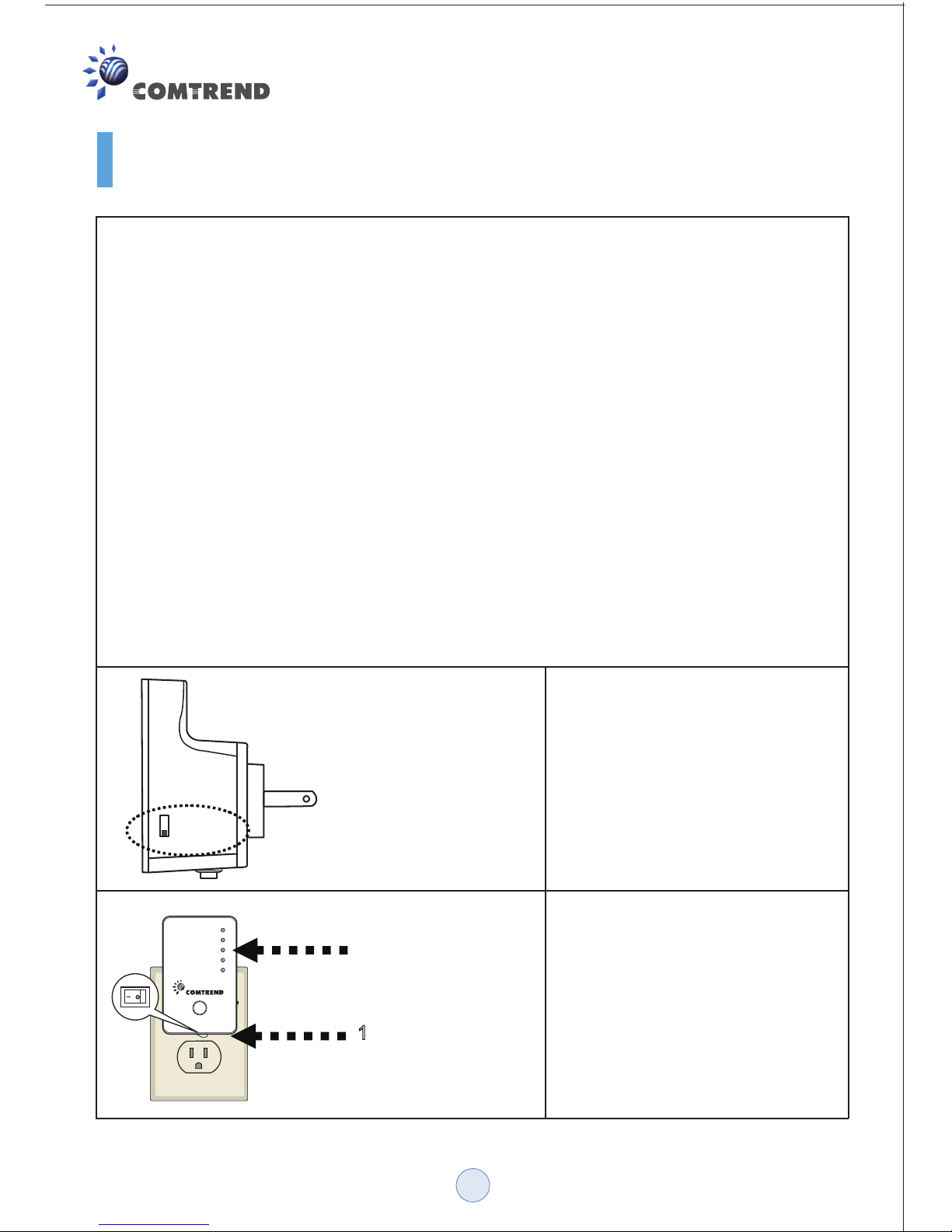

D. Client Mode Installation Guide

Client mode allows a non-wireless networking device to have wireless

capability; it will essentially become your networking device’s wireless network

adapter. You can connect this device to the Ethernet port of your existing

Internet TV, DVD player or game console device with an Ethernet cable.

Setup via WPS button:

(1) Insert this Wireless-N Range Extender into a power outlet on the wall and

switch to ‘Client’ mode.

(2) Use an Ethernet cable to connect it to the Ethernet port of your networking

device.

(3) Follow the same setup procedures ”Using the WPS button to establish

connection” referred to in the “repeater mode installation guide” to

establish a fast and secure WPS connection without a computer.

Switch to ‘Client’ mode.

Plug the WAP-5883 into a

power outlet on the wall, and

flip the power switch to ‘ON’

(1).

You should see the ‘Power’

LED light up in few seconds (2).

If not, check if the power outlet

you’re using is working.

(1)

( )

Signal

WLAN

Power

WPS

LAN

Repeater

Client

D. Client Mode Installation Guide

Connect your computer and

Wireless-N Range Extender by

Ethernet cable.

Open your web browser and

input ‘http://192.168.0.2’ in the

address bar. Ensure your

computer has an IP in the

same range as the WAP-5883

(192.168.0.10 as an example)

The Wireless-N Range Extender

will prompt you to input the

username and password. The

default username is ‘admin’ and

default password is ‘admin’.

Click the ‘OK’ button to continue.

All wireless access points

nearby will be displayed in the

list. Select the required access

point and click the ‘Next’ button

to continue. If the access point

you wish to connect to does

not appear here, click ‘Refresh’

until it appears in the list, or

move the Wireless-N Range

Extender closer to the access

point to which you wish to

connect to.

WPS

Signal

WLAN

Power

WPS

LAN

You’ll be prompted to input the

access point’s wireless security

key. Input it in the ‘KEY’ field

and click ‘Next’ to continue.

Upon successful Connection

Test completion the following

message will be displayed.

Click ‘Next’ to continue.

Recheck the settings you have

made, and click ‘Apply’ to

continue.

Wait for a few moments for the

Wireless-N Range Extender to

reboot. After rebooting, you

can connect to the access

point and use it to access the

network / Internet.

Use an Ethernet cable and

connect it to the Ethernet port

of your networking device.

Note: If you wish to run Quick Setup again or had problems logging into the

web UI, push the ‘WPS’ button for 10 seconds until the ‘POWER’ LED starts

blinking, and the device will reset to factory defaults.
