CompX eLock®is a highly engineered lock with a motor-driven latch. Its uncompromising lock

control electronics include a non-volatile memory that stores 250 user / supervisor codes and

audit trail. With optional LockView®audit trail software, CompX eLock®remembers 1500 access

attempts. Programming is simple with numeric keypad or WindowsTM based LockView®software.

Quick Programming Guide

1. GETTING STARTED:

a. The unit is shipped with no user / supervisor codes

b. Press and hold until the beeping stops

c. Input the new PIN (4 digit min) and press or present new card

d. This PIN / Card is now a supervisor in slot #001

2. ADD A USER:

a. Input a valid supervisor PIN and press or present valid supervisor card

b. Press and hold until beeping stops

c. Input the new user PIN (4 digit min) and press or present new card

3. ADD A SUPERVISOR:

a. Input a valid supervisor PIN and press or present valid supervisor card

b. Press and hold until beeping stops

c. Press and hold again until beeping stops

d. Input new supervisor PIN (4 digit min) and press or present NEW supervisor card

4. DELETE A USER OR SUPERVISOR:

a. Input a valid supervisor PIN and press or present valid supervisor card

b. Press and hold until beeping stops

c. Input the PIN to be deleted and press or present existing card to be deleted

5. ADD A USER WITH A SPECIFIC SLOT ASSIGNMENT:

a. Input a valid supervisor PIN and press or present valid supervisor card

b. Press and hold until beeping stops

c. Enter slot number that will be assigned to user and press

(example: to program slot 6 type 006 )

d. Input the new user PIN (4 digit min) and press or present NEW card

6. DELETE A USER WITH A SPECIFIC SLOT ASSIGNMENT:

a. Input a valid supervisor PIN and press or present valid supervisor card

b. Press and hold until beeping stops

c. Enter slot number to be cleared and press (example: to clear slot 6 type 006 )

d. Enter slot number to be cleared again and press (example: to clear slot 6 type 006 )

See programming

guide included

with optional

LockView ®

software for

advanced

programming

instructions.

NUMERIC

KEYPAD

MAGSTRIPE

CARD

PROX

READER

PROX READER / KEYPAD

DUAL SYSTEM

MAGSTRIPE / KEYPAD

DUAL SYSTEM

Thank you for choosing eLock.

1

2

CompX eLock®Accessories

HID is a trademark of HID Corporation. * These items are offered as Service / Replacement Parts only.

AC ADAPTER

Part Numbers:

EL-2004-9VWB

(for use with the CompX eLock kit)

EL-2004-acWB

(for use with 12V electric strikes)

SUPERVISOR

HID®PROX USER,

SUPERVISOR CARD

Part Number:

EL-2004-Pc (no logo)

EL-2004-Pc-S (CSP logo)

LOCKVIEW®

SOFTWARE KIT

(provided with 7ft., 6-pin RJ11 cable,

1-USB dongle, 1 LockView®CD)

Part Number:

EL-LockViEW-3

HID®PROX TAG

Part Number:

EL-2004-PT

MAGSTRIPE USER,

SUPERVISOR CARD

Part Number:

EL-2004-MSc (no logo)

EL-2004-MSc-S (CSP logo)

LATCH CABLE,

*24”

Part Number:

EL-2004-Lc

RJ 11 EXTENSION

KIT, 4”

Part Number:

EL-2004-RJ kiT

TORX HEAD

DRIVER FOR

FRIG KIT

(Torx head bit also available)

Part Number:

EL-dRV-15

LATCH SPLITTER

(for running up to 2 latches)

Part Number:

EL-2004-LS

MOTORIZED

LATCH*

Part Number:

EL-LaTch-3

3

TEMPLaTE on

oPPoSiTE PagE

4

1.81

7.77

NoTe:

Don't forget

to fill out and

return your

warraNTy

card!

CompX eLock®Surface Mounting

Use the diagrams below as a template for holes to be drilled and for mounting your CompX eLock®

.

Put this template on the outside of the cabinet door where the eLock will go, and you can drill right through

it to mount your CompX eLock®

. Mount with 2 shorter, steel colored screws.

#1a

#2

#3

#4

#5

#6

#1b

#1a, b Mounting Holes

required

#2 Battery Latch Cable

required

#3 Alarm

optional

#4 Battery Cable*

optional

#5 RJ11 Port

required only if using LockView

#6 AC Wall Adapter*

optional

* If you're using a battery

cable,then a wall adapter

is not required. If you're using

a wall adapter, then battery

cable is not required.

Hole Function

warNiNg:

Print this page and

measure the line

above. It is ONE

INCH LONG. If it

measures less than

or more than one

inch, the template

measurements also

need to be scaled

accordingly.

FaiLure To

do so couLd

resuLT iN

misdriLLed

hoLes.

1”

5

warNiNg: Print this

page and measure the line

above. It is ONE INCH

LONG. If it measures less

than or more than one inch,

the template measurements

also need to be scaled

accordingly.

FaiLure To do so

couLd resuLT iN

misdriLLed hoLes.

1”

CompX eLock®Latch Dimensions

LockView®Software

qAdd, edit, view and delete users / supervisors and their credentials

qAdd, edit and delete CompX eLocks®

qAssign access rights between users / supervisors and CompX eLocks®in the database

qUSB connection required

qDownload, view, save, print, archive and delete audit trails

qDual credential access available

qSet real time clock

qTime based access restrictions

qCreate user groups

qWindowsTM based

LockView is a Registered Trademark of CompX International. Windows is a trademark

of the Microsoft Corporation. Specifications may vary based on user application.

Use the diagrams below as a template for holes to be drilled and for mounting your

CompX eLock®latch. Put this template on the inside of the cabinet door where the latch

will go, and you can drill right through it to mount your CompX eLock®latch.

Mount with 4 longer, black colored screws.

6

TEMPLaTE on

oPPoSiTE PagE

7

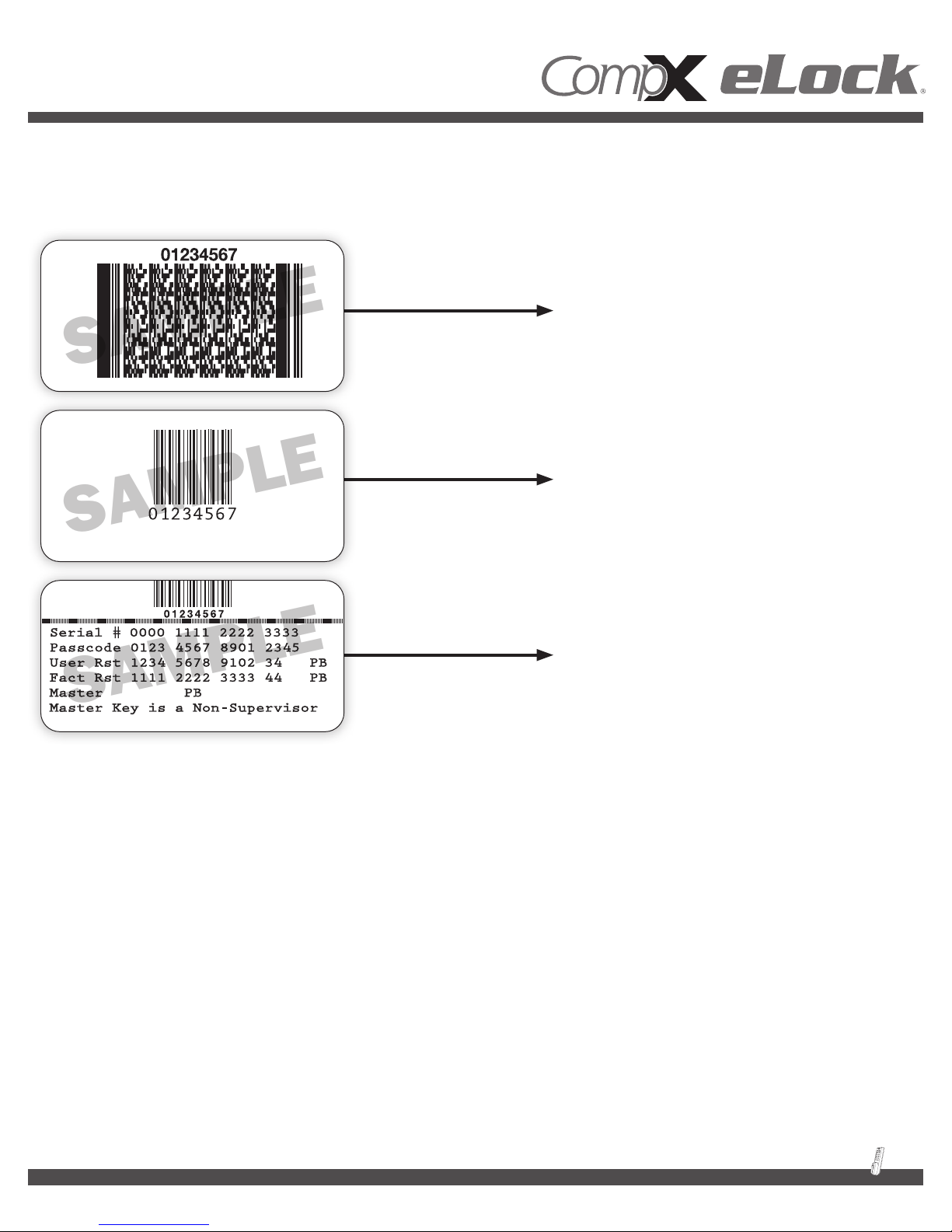

2d bar code. Provides the same information as sticker

number three, but a 2d laser scanner is needed to

decode the information.

1d bar code. Place this sticker on or around the CompX

eLock® unit to help identify which codes to use if

resetting the lock is necessary.

Keep this sticker in a safe location.

Serial #: Needed to identify CompX eLock® units

Passcode: Unique to lock. Needed for LockView.

Prevents unauthorized LockView use

User Rst: Allows administrator or owner to erase

all user codes from eLock unit but keep

supervisor codes

Fact Rst: Erases all codes from eLock, including

settings. eLock unit will need to be set

up again after a Factory Reset

Sticker #1

Sticker #2

Sticker #3

sample

sample

sample

CompX eLock®Warranty Card

These stickers are included with each CompX eLock® unit. Please review the information and keep the stickers in a

safe location as they may be needed to reset or identify a speciﬁc eLock unit. The codes shown here are not real codes.

They are representations of what the stickers will look like.

8

sample

Copyright © 2009 CompX Security ProductsPart #: 331926-0000-00

864.297.6655

compxelock.com

[email protected]

PO Box 200

Mauldin, SC 29662

CompX eLock®Warranty Card

NoTe:

Don't forget

to fill out and

return your

warraNTy

card!

sample

Sticker

#3

Afﬁx one copy of sticker #3

(see page 7) to the CompX

eLock® registration card

and return to CompX Fort

at address shown on the

registration card.

Revised 11.2.09
