COMPX EcoForce Manuel utilisateur

ecoForce — Recessed mount instructions

ecoForce – RECESSED mount

No-battery push button cabinet lock

Thank you for purchasing the ecoForce no-battery

push button cabinet lock – recessed mount version –

manufactured by CompX.This instruction sheet explains

how to operate the lock, install the lock and change

the combination from the standard factory combination

1-2-3-4-5. The buttons give a clear indication when

properly pressed. Each button can only be used once

in the combination. You can use any of the buttons in

any order and you can press two or more buttons at the

same time as one step in your combination.

FACTORY DEFAULT COMBINATION is 1-2-3-4-5

1. Press Clear Button down completely

2. Press Combination Buttons down in order and one-at-a-time

3. Rotate Knob 90˚ clockwise to unlock

4. Return Knob 90˚ counter-clockwise to lock

MODELS WITH KEY OVERRIDE

1. Insert key completely

2. Rotate key 90˚ clockwise to unlock

3. Return Knob 90˚ counter-clockwise to re-lock

Discover a lost or forgotten combination by following the instructions at compxecoforce.com

ecoForce features

To operate:

To change or to set the combination:

1. Clear Button

2. Combination Buttons

3. Knob

4. Key Override

(some models)

5. Programming Slide

1 2 3 4

To Change the Combination:

1. Press Clear Button down completely

2. Press current Combination Buttons down in order and one-

at-a-time

3. Slide Programming Slide towards the knob

4. Press Clear Button down completely to clear current

combination

5. Enter new combination in steps by pressing buttons in the

order you choose; you can use any of the buttons in any

order and you can press two or more buttons at the same

time as one step in your combination. To set code 1–2&3–4,

you would press 1, then simultaneously press 2 & 3, then

press 4.

A user code can be as short as one digit or up to five digits.

You may press each button only once, and you may press

all five buttons simultaneously if so desired. If you make a

mistake or enter an incorrect code, press the clear button

and start over.

6. Rotate Knob 90˚ clockwise to set combination

7. Return Knob 90˚ counter-clockwise to re-lock

ecoForce — Recessed mount instructions

ecoForce – RECESSED mount

No-battery push button cabinet lock

To recessed mount install the lock, use

the ecoForce mounting templates on the

following pages. ecoForce manual or self-

locking can be configured to meet dozens of

latching points (see ecoForce latching point

sheet: compx.com/downloads).

For surface mounting instructions, see compxecoforce.com

Examine the door for mounting. If the hinges

are on the right side of the door use a Right

Hand template, and if the hinges are on

the left side of the door use a Left Hand

template. Place the template on the door

considering your pre-determined latching

points before drilling.

To install:

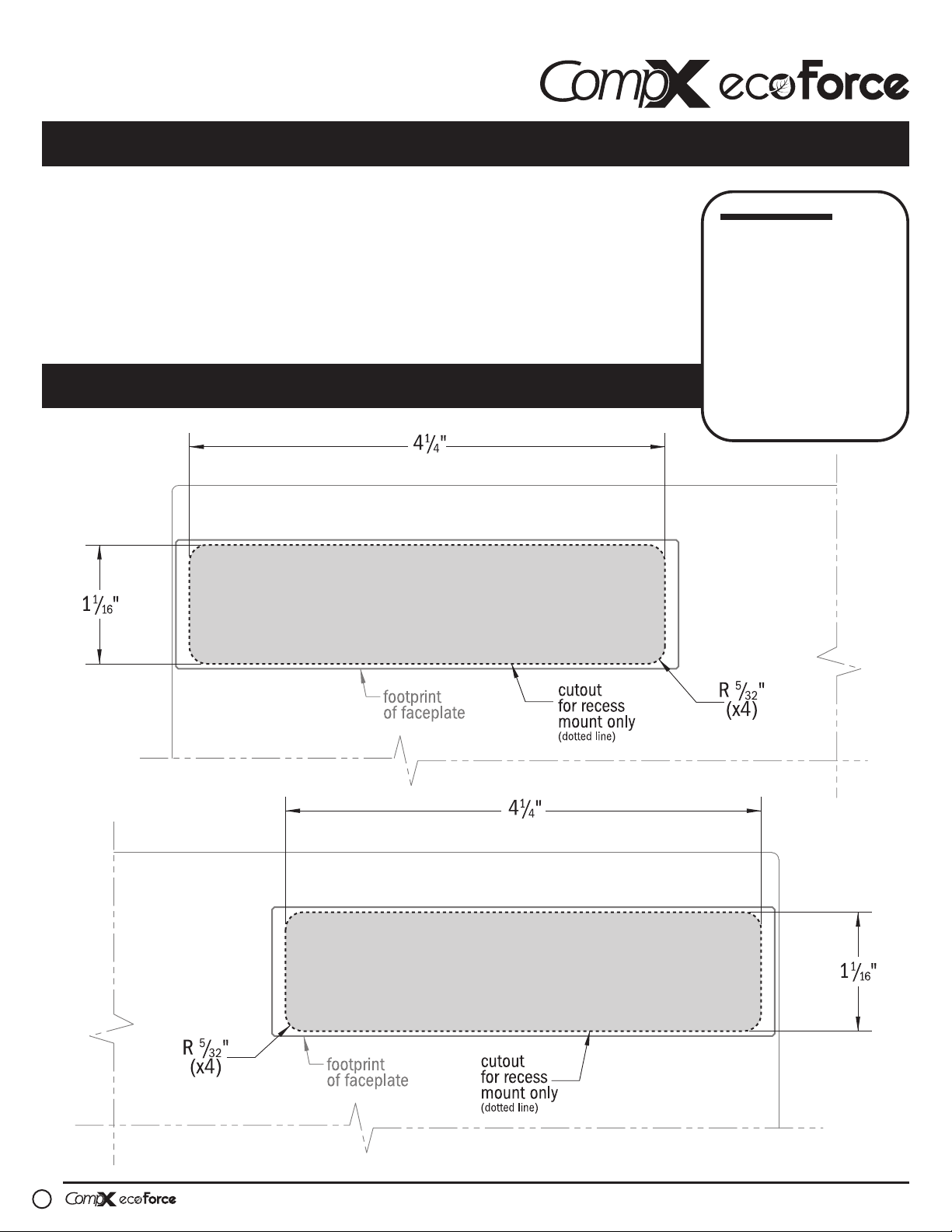

Installation templates – horizontal right hand & horizontal left hand

WARNING: Print this

page and measure the line

above. It is ONE INCH

LONG. If it measures less

than or more than one inch,

the template measurements

also need to be scaled

accordingly.

FAILURE TO DO SO

COULD RESULT IN

MISDRILLED HOLES.

Right hand

Left hand

ecoForce — Recessed mount instructions

ecoForce – RECESSED mount

No-battery push button cabinet lock

Installation templates – vertical right hand & vertical left hand

WARNING: Print this

page and measure the line

above. It is ONE INCH

LONG. If it measures less

than or more than one inch,

the template measurements

also need to be scaled

accordingly.

FAILURE TO DO SO

COULD RESULT IN

MISDRILLED HOLES.

Vertical right hand Vertical left hand

Recessed mount requires mounting brackets, made for speciﬁc material thicknesses.

N302053-160

thicker material

than 5/16"

N3-2053-161

5/16" to 5/8"

N3-2053-162

thinner material

than 5/8"

ecoForce – RECESSED mount

No-battery push button cabinet lock

Part #: X756162536K0000B

Any companies and/or products referred to herein are marks or registered trademarks of their respective companies, owners and/or mark holders.

Installation templates – inverted right hand & inverted left hand

Inverted

right hand

WARNING: Print this

page and measure the line

above. It is ONE INCH

LONG. If it measures less

than or more than one inch,

the template measurements

also need to be scaled

accordingly.

FAILURE TO DO SO

COULD RESULT IN

MISDRILLED HOLES.

Inverted

left hand
