Compupal HS-BT01 Manuel utilisateur

Bluetooth Wireless Stereo Headset

Quick Start Guide

HS-BT01

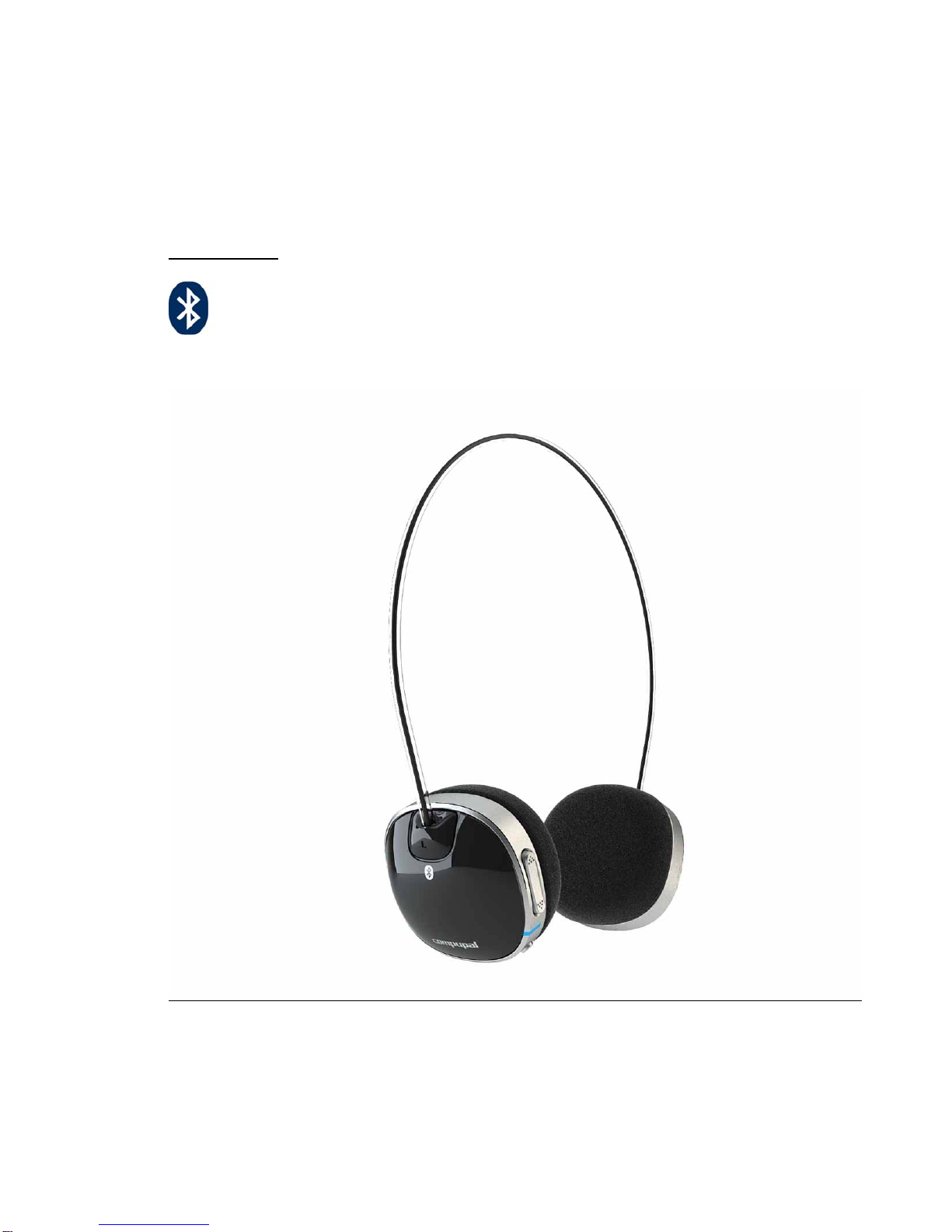

Product Picture

FCC Warning:

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

NOTE: changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

FCC RF warning statement: The device has been evaluated to meet general RF

exposure requirement. The device can be used in portable exposure condition without

restriction.

Introduction

Thanks for purchasing this Bluetooth Wireless Stereo Headset. The headset is ideal for your

audio source such as notebook, PC, smart phone and other devices with Bluetooth. The

ergonomic design and high quality materials make the headset comfortable for daily use.

Headsets with DSP technology bring clear sound and amazing feeling.

The package contents

1. One Bluetooth Wireless Stereo Headset

2. One 1M standard USB cable

3. Quick Start Guide

CAUTION

Read all safety and operating instructions below before this device is operated.

1. Stop using this product immediately if it causes discomfort or pain. When using this

product, it is recommended that you limit volume to help avoid harm to your ears and

danger resulting from being unable to hear what is going on around you.

2. Keep the device out of extreme heat and humidity.

3. Do not use the device near water, such as sinks, bathtubs, swimming pools, washing

machines, tubs of water, etc.

4. Observe all signs and instructions that require an electrical device or radio product to be

switched off in designated areas, such as petrol/refueling stations, hospitals, blasting

areas, potentially explosive atmospheres or aircraft.

5. The headset has a wireless range of up to 10M, but wireless performance may be affected

in different operating environment.

6. Barriers and other wireless devices may affect the performance of headset.

7. Power time may differ depending on personal habits.

8. Please do not rotate the headset until the head band is set / pushed to lowest position.

PLEASE NOTE: the information in this quick start guide was correct at the time of publication,

but some minor changes may have been made late in the product’s development.

Structure of Headset

(图片)

A. Volume up/down button

B. Blue LED (Power indication and pairing indication)

C. Red LED (Battery charge indication and low-voltage indication)

D. Ф6mm Omni-directional microphone

E. Multifunction button (Answer call / Hang up / Play/pause / Power on/off / Pairing )

F. Mini USB jack

G. Adjustable headband (用小图标标示)

H. 1M standard USB cable

I. Quick Start Guide

Power On/Power Off

（图示）

A. Power On

1. If the headset had never been paired any Bluetooth device before, push the multifunction

button about 8 seconds and the headset will automatically go to the pairing mode, and the

blue LED will fast twinkle.

2. If the headset had ever been paired some Bluetooth device before, push the multifunction

button about 5 seconds to power on and the blue LED will slowly twinkle. The headset will

automatically search the last paired Bluetooth device for 3 minutes and it will shut down

automatically without pairing.

B. Power Off

1. Push the multifunction button about 5 seconds and the red LED will short flash and go off.

Headset connection

1 Take the headset out of package, chose the suitable headband for you and press the

multifunction button.

1.1 If the headset had ever paired some Bluetooth device before, push the multifunction button

about 5 seconds and the headset will automatically search the last paired Bluetooth device.

Besides, the blue LED will slowly twinkle（图示）

1.2 If the headset had never paired any Bluetooth device before, make sure the headset is

power off and long press the multifunction button around 8 seconds until the blue LED flash

rapidly to indicate pairing mode. （图示）

2. Activate the Bluetooth feature on the phone or other devices, then use their setting to

add/search/discover new Bluetooth devices. （图示）

3. Select “HS-BT01” from the list of Bluetooth devices shown on the phones or other devices.

If ask for a pass code, enter four zeros “0000”. Some phones also ask to confirm headset

connection after pairing. （图示）

4. Blue LED will stop flashing but keep solid after the headset is successfully paired. （图示）

5. select “play through headset” in your smart phone if required

6. Adjust the headband to your favorite. （图示）

Enjoying music

1. After connection, play the music and enjoy the on the headset.

2. Adjust the volume on headset or Bluetooth devices to your favorite level.

3. Pause or resume the song, please short press the multifunction button.

4. The music will automatically pause if answer or dial a call and resume the music after the

call ending.

CAUTION – Playing too loudly may affect your hearing.

Calling

1. When the headset is connected to the phone with Bluetooth, all callings could be

exchanged to the headset automatically.

2. Accept or end a call by short press the multifunction button. Long press the multifunction

button for refusal.

Battery Charging

1. The red LED will continually flash if the battery is in low power.

2. Take out the USB cable from the package; connect the mini USB plug into mini USB jack

on the headset, and the other end to an USB port on your PC, etc. The red LED will stop

flashing and keep solid.

3. The red LED will turn off if charging finished. Usually it will take 3 hours for fully charging.

Multifunction Button Introduction

Function Button Operation

Turn on Multifunction Button Long Press (5s)

Pair Multifunction Button Longest press (8s)

Turn off Multifunction Button Long Press (5s)

Answer Call（call

mode）Multifunction Button Short Press

End Call（call mode）Multifunction Button Short Press

Refuse Call（call

mode）Multifunction Button Long Press (5s)

Play（Music Mode）Multifunction Button Short Press

Pause（Music Mode）Multifunction Button Short Press

Trouble shooting

See below for solutions to common problems.

Symptom Solution

LEDs are not light

Power button is not turned on. The battery is out of

power.

Verify the Bluetooth function of smart phone

or other devices is turned on.

Don’t turn on too many headset and Bluetooth

device at the same time when connecting.

Please turn other headsets and turn on the

paired headset in order to avoid interference.

Failed to pair successfully within 3 minutes.

Please repeat the pairing procedure.

Make sure the blue LED is flashing

quickly(under pairing mode)

Connection failure

Make sure the input pass word is right if

required.

Check the red LED is flashing (the battery is

in low voltage). Please charge the battery

immediately

Sound is distortion

Check the whether the sound is too loudly

and decrease volume if necessary

Specification (Headset)

zRF transmit power: 9dBm

zRF receive sensitivity: -85dBm

zWorking current: 25mA

zSignal-to-noise ratio: ≥83dB

zFrequency response: 40Hz - 20kHz

z10m, 360°Bluetooth working range

zDrivers: 30mm x 2 neodymium drivers

zHeadset dimension (W x D x H): 157.8 x 52.5 x 169.8 mm

Specification (Microphone)

zФ6mm Omni-directional microphone

Specification (Battery)

zOperating current/voltage: [email protected]

zLi-ion battery capacity: 320mAh

zBattery working time: 15 hrs (@ call mode), 12 hrs (@ music mode)

zCharging time: 3 hrs
