COMPRO VideoMateIP50 Manuel utilisateur
VideoMate IP50/50W
Indoor Fixed Network Camera
Installation Guide
Compro Technology, Inc.
www.comprousa.com
2
Copyright © 2001-2010. Compro Technology, Inc. No part of this document may
be copied or reproduced in any form or by any means without the prior written
consent of Compro Technology, Inc.
Compro, VideoMate, Poladyne, Play with Power, and the Compro logo are
trademarks of Compro Technology, Inc. Other names and marks are trademarks
of their respective owners.
COMPRO makes no warranties with respect to this documentation and disclaims
any implied warranties of merchantability, quality, or fitness for any particular
purpose. The information in this document is subject to change without notice.
COMPRO reserves the right to make revisions to this publication without
obligation to notify any person or entity of any such changes.
Compro Technology, Inc. www.comprousa.com
Tel. +886 2 2918 0169, Fax +886 2 2915 2389
4/F, No.12, Alley 6, Lane 45, Pao Shin Road Hsintein City, Taipei, Taiwan.
3
Table of Contents
IP50 / 50W Network Camera Hardware Layout ................... 4
Package Contents ................................................................. 4
Assembly and Disassembly the Stand................................... 5
Mounting on the Ceiling........................................................ 6
Cable Connections ................................................................. 6
Wireless Connection............................................................... 7
IP50(W) Digital I/O Connector Block ................................... 7
Web Browser Access (Internet Explorer) ........................... 20
The Internet Setting ........................................................... 22
Access the IP Camera via 3GPP Mobile Phone .................... 23
Access the IP Camera via iPhone/mobile device ................ 24
Start ComproView ................................................................25
Firmware Update ................................................................ 30
Troubleshooting.................................................................. 31
Initial Hardware / Software Setup ..........................................31
Installation ........................................................................31
iWizard .............................................................................32
Hardware wiring check........................................................32
Camera Reset ....................................................................33
Trouble with the ActiveX Client ..............................................34
Trouble with ComproView ......................................................36
Remote Viewing via Internet Explorer .....................................38
4
IP50 / 50W Network Camera Hardware Layout
Package Contents
* IP50/IP50W indoor network IP camera
* Quick Installation Guide
* Software CD (Includes ComproView software and manual file)
* DC adapter AC100V-240V in / DC12V
* Screws for ceiling mount
* Screw mount
* LAN cable
*Wireless antenna (IP50W only)
5
Assembly and Disassembly the Stand
Assembly
Disassembly
6
Mounting on the Ceiling
If user wants to set IP50(W) on the wall, please use the screws to fix
the bracket on the flat surface. After the bracket is fixed on the wall,
please try to adjust the angle to the desire position.
Cable Connections
If user connects the IP camera on the intranet, then the same group
of user can share that IP camera to use.
1. Plug in the power adapter to camera.
2. Use the standard RJ-45 network cable to connect with the Compro
IP 50(W).
Important!
If the power cable (IP50W) and the network cable (IP50) are not
securely fastened, it could lead to unstable connection.
7
Wireless Connection (IP50W only):
On the IP50W model, you also have the option of using the wireless
connection method. Please keep in mind that you can only have one
active connection only, via LAN or wireless.
If user connects the IP camera on the intranet, then the same group
of user can share that IP camera to use. Please ensure that the
wireless antenna had been securely fastened, otherwise it could lead
to unstable connection.
Important!
1. The operation of the IP50W wireless network may be interfered
should there be other 2.4GHz devices working in the vicinity, e.g.
microwave oven, digital cordless camera, etc. You may experience
slow frame rate or drops in connection; up on such situation, we
suggest that you try to move the IP camera around the area or try
to shut off other appliances.
2. Since wireless cameras cause interferences during transmission,
you may encounter erratic behaviors when there are more than
10x operating in close proximity.
3. The default wireless connection method is via 802.11g standard
and you should experience a stable connection of up to 20 meters
between the access point and the camera unit. Your wireless
performance may vary depending on the operating environment,
building material, etc.
IP50(W) Digital I/O Connector Block
The I/O connector on the back of the IP50W provides a central
interface between your home security system and various output
devices.
The two digital inputs are normally used with security sensors, e.g.
passive infrared sensor (PIR), smoke detector, door/window open
sensor, etc. This input works by detecting a change in the state, open
and closed circuit. You can check the status of the circuit by going to
the Setup > Event Setup > I/O Status.
8
The output port is normally used to trigger external audio or visual
indicators, e.g. sirens or strobe lights, etc.

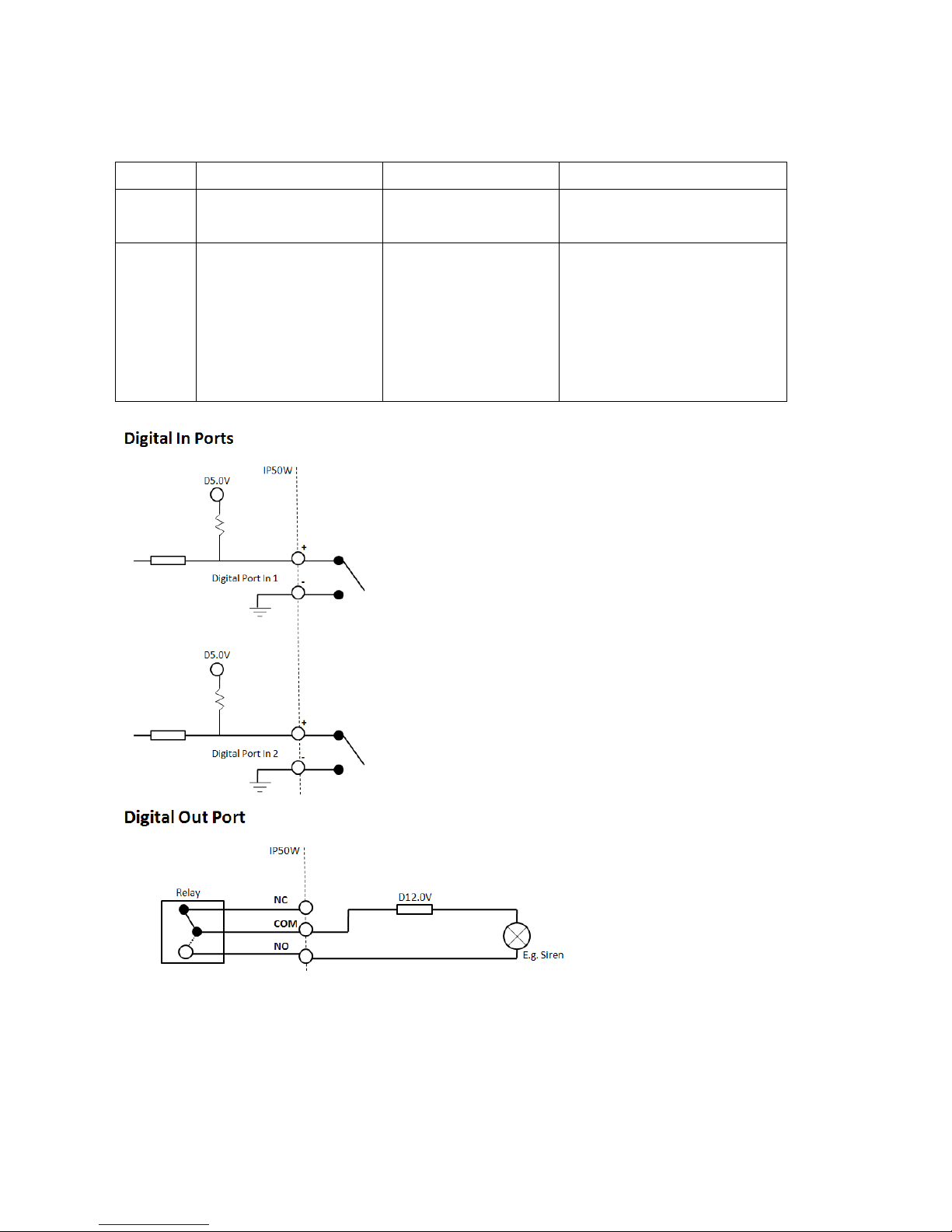

Pin
Name
Specification
Note
1 –4
Digital Input
Ports 1 & 2
Max 5VDC,
60mA
Floating, TTL
5 - 7
Digital Output
Port
Max 24VDC, 1A
or
Max 125VAC,
1A
You can only use
either the normally
open (NO) or
normally closed
(NC) at any given
time.
Note: The above output scenario is where the siren will only sound
when it the input had been triggered. Should you wish to use the
other way where the output device is always on when it had not been
triggered, please use NC.
9
Hardware and Software Installation
Before Compro software installation, user has to make sure the IP
Camera is beside you. The installer on the software CD will help you to
step-by-step install IP camera hardware and software on your
system.
1. Insert the Compro software installation CD to CD-ROM drive, it will
automatic start the program for installation, please select your
language at first.
2. Please click “IP Camera Setup”and “Start”to install your IP
camera. Also, you can select other icons to open the related
documents, browse CD contents, or exit.
10

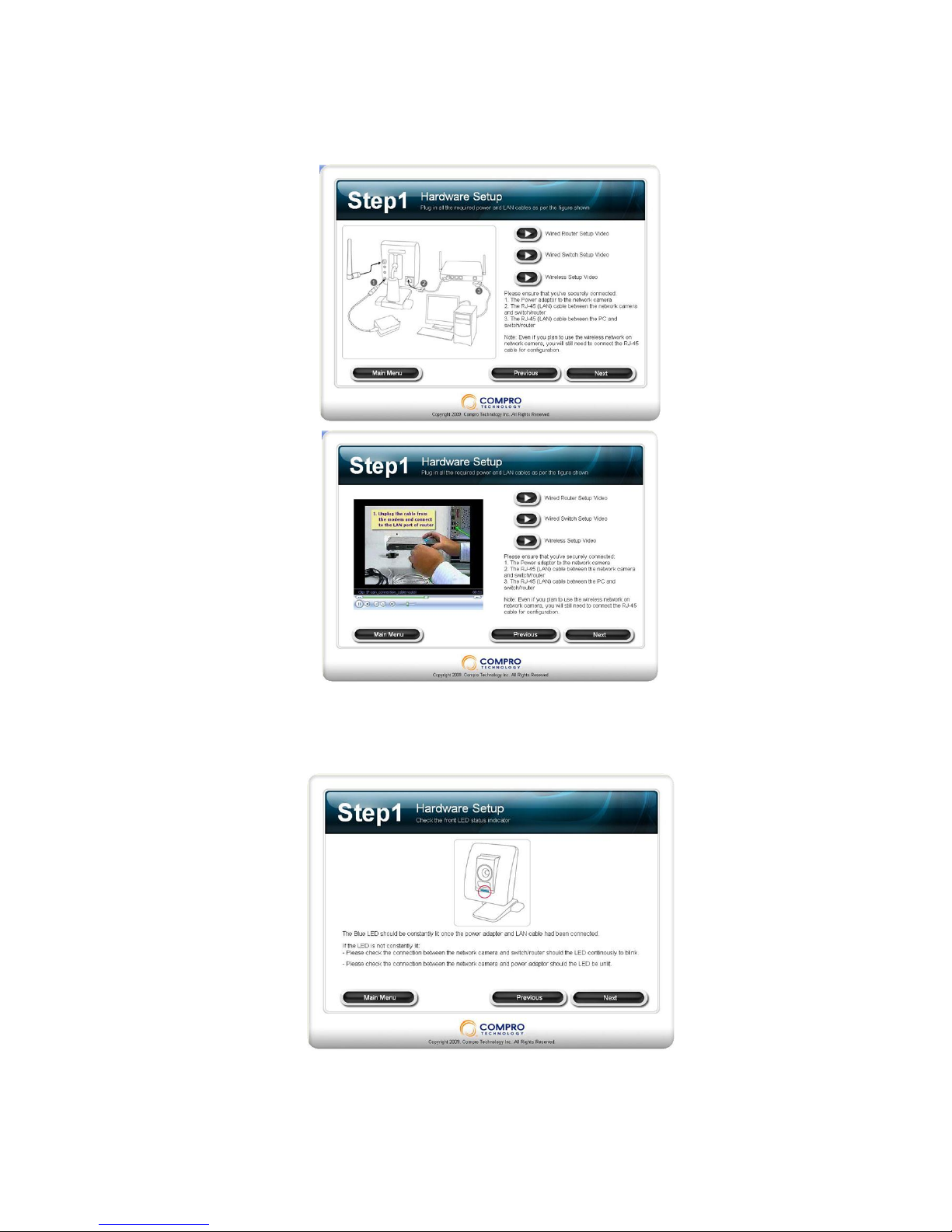

3. Step1: Connect your camera as the picture shown, or you can click
to watch the tutorial video. After connect all the network and
power cables, please click “Next”.
4. Check the LED light of IP camera is working properly. And click
“Next”to searching your camera.
