COMPRO M3F - STARTUP Manuel utilisateur

VideoMate Vista M3F/M5F

PCI Tuner Card

Start Up Guide

Compro Technology, Inc.

www.comprousa.com

document may be copied or reproduced in any form or by any means

without the prior written consent of Compro Technology, Inc.

Compro, VideoMate, Poladyne, Play with Power, and the Compro logo

are trademarks of Compro Technology, Inc. Other names and marks

are trademarks of their respective owners.

Compro makes no warranties with respect to this documentation and

disclaims any implied warranties of merchantability, quality, or fitness

for any particular purpose. The information in this document is subject

to change without notice. COMPRO reserves the right to make

revisions to this publication without obligation to notify any person or

entity of any such changes.

Compro Technology, Inc.

Tel. +886 2 2918 0169, Fax +886 2 2915 2389

4/F, No.12, Alley 6, Lane 45, Pao Shin Road

Hsintein City, Taipei, Taiwan.

www.comprousa.com

Table of Contents

About VideoMate Vista M3F / M5F PCI TV Card............ 4

VideoMate Vista M3F/M5F Package Contents ........................ 5

VideoMate Vista M3F / M5F Connectors ........................ 6

MCE Remote for Vista M3F / M5F TV Card.................... 7

Hardware Installation ...................................................... 9

Software Installation...................................................... 12

Remote Power On/Off................................................... 13

ComproDTV Vista Gadget Tool for Vista ...................... 15

ComproDTV MCE Add-in.............................................. 17

HID (Human Interface Device) for Compro Remote................ 18

Open and close the ComproDTV 4 control panel ......... 19

ComproDTV 4 ............................................................... 20

ComproFM 2 ................................................................. 27

Troubleshooting ............................................................ 28

About VideoMate Vista M3F / M5F PCI TV Card

Compro VideoMate Vista M3F / M5F is a PCI analog TV/FM capture card,

which brings universal analog TV/FM broadcasts to your desktop PC. It turns

your computer into a home entertainment center by bringing you analog TV

viewing, FM listening, S-Video/Composite video input. It also certified for

Windows Vista 32/64 bit system.

MINIMUM SYSTEM REQUIREMENTS

Your PC must meet or exceed the following system requirements to watch TV

on your PC.

z1.7 GHz Pentium IV or equivalent CPU for DVD-Quality recording or

timeshifting

z512 MB System Memory

zAvailable PCI slot.

zSound card or on-board sound chip

zGraphics card or on-board graphics chip support DirectX 9.0

zCD-ROM driver for software installation.

zWindows XP SP2, Vista x86/x64

z50 MB free disk space for basic software installation

zATX power supply and a computer case with a separate power switch

cable from power on button for power up feature in Vista M5F

RECOMMENDED SYSTEM REQUIREMENTS

To use all the features of VideoMate Vista M3F/M5F PCI card, your PC should

meet the following requirements.

z2.4 GHz for PIP mode

z1.0 GB System Memory

zAvailable PCI slot

zSound card or on-board sound chip

zGraphics card or on-board graphics chip support DirectX 9.0

zCD-ROM for software installation

zWindows Vista x86/x64

zUpdate the latest drivers of VGA, motherboard, and soundcard from

vendors.

z50 MB free space for software installation

z600 MB (VCD-quality) to 3 GB (DVD-quality) per hour of recorded video

zATX power supply and a computer case with a separate power switch

cable from power on button for power up feature in Vista M5F

VideoMate Vista M3F/M5F Package Contents

Vista M3F/M5F

PCI TV card

IR Receiver

Installation CD Start Up Guide

MCE Remote I-type to F-type

TV Converter

FM Antenna 3 in 1 video/audio

input cable

Power Up cable

Ulead Software CD

AUX-Out cable

Batteries

VideoMate Vista M3F / M5F Connectors

Item Function Description

1 TV Tuner-In Analog TV cable

2 FM Tuner-In Connect to an FM antenna feed.

3 IR Connect the IR receiver here.

Audio-In

(Blue)

Use an audio patch cable to connect to an audio source,

such as a VCR, DVD or VCD. (Option for audio patch

cable, not included in the package )

S-Video-In

(Black)

Use an S-Video patch cable to connect to a video source,

such as a VCR, DVD or VCD. (Option for S-video patch

cable, not included in the package )

9-pin

connector

for (3 in 1

converter

cable)

Composite-In

(Yellow)

Use a Composite video patch cable to connect to a video

source, such as a VCR, DVD or VCD. (Option for

composite video patch cable, not included in the package )

5 To Sound Card

AUX-IN

Use an internal audio patch cable to connect to the

AUX-IN port of your sound card.

6 To Ca s e Po w er

Switch

Connect the ATX Power Switch cable of your computer

case here.

7 To Mainboard Power

Switch Connector

Use the supplied power switch patch cable to connect to

the ATX Power Switch pins on the mainboard.

567

MCE Remote for Vista M3F / M5F TV Card

Compro VideoMate Vista M3F / M5F bundles the easy-to-use Microsoft

certified remote control to controls the Media Center and also ComproDTV,

ComproFM software. Some keys are special designed for Windows Vista

Premium/Ultimate, it may not be used in Windows XP system.

No. ComproDTV 4 ComproFM 2 MCE

0-9 Number Key Preset stations Number Key

10 Into sleep mode Into sleep mode Into sleep mode

11 Videos (MCE) Videos (MCE) Videos (MCE)

12 Radio (MCE) Radio (MCE) Radio (MCE)

13 Music (MCE) Music (MCE) Music (MCE)

14 Pictures (MCE) Pictures (MCE) Pictures (MCE)

15 Recorded TV (MCE) Recorded TV (MCE) Recorded TV (MCE)

16 MCE Guide MCE Guide MCE Guide

17 Live TV (MCE) Live TV (MCE) Live TV (MCE)

18 DVD Menu (MCE) DVD Menu (MCE) DVD Menu (MCE)

19 DVD Sub (MCE) DVD Sub (MCE) DVD Sub (MCE)

20 Up arrow or select

Mono/Stereo/SAP Up arrow Up arrow

21 Replay

or switch TV format Scan channel(Down) Left arrow

22 Down arrow

or snapshot Down arrow Down arrow

23 Advance in

Timeshifting Scan channel(Up) Right arrow

24 OK Playlist OK

25 EPG (US only) Open on-line help Back

26 Media Center Media Center Media Center

27 Zoom In/Out Max/Min More

28 Volume up Volume up Volume up

29 Volume down Volume down Volume down

30 Mute Mute Mute

31 Channel up Channel up Channel up

32 Channel down Channel down Channel down

33 Record Record Record

34 Stop/Live Stop/LIVE Stop/LIVE

35 Replay/Rewind Rewind Rewind

36 Timeshift Play/Pause Play/Pause Play/Pause

37 Advance/Fast forward Fast forward Fast forward

38 The last channel The last channel Skip rewind

Hardware Installation

Warning

Unplug your PC’s main power cord before installing VideoMate Vista

M3F/M5F PCI card. Failure to do so may cause damage to your VideoMate

Vista M3F/M5F PCI card and void your warranty.

1. Shut down your computer and unplug main power cord.

2. Remove the computer case cover.

Power Up Connections

(Step 3~6 only apply with VideoMate Vista

M5F TV card for power up feature)

3. Locate the ATX power switch pins on your computer case and trace the

wires to the power switch connector on your mainboard. The ATX power

switch cable is normally a twisted pair cable with a two-pin connector as

shown above.

39 Timeshift Play/Pause Play/Pause Play/Pause

40 Change scale of screen ----- Skip Forward

41 ----- Enter frequency -----

42 Channel surf ----- -----

43 Sleep function Sleep function Clear

44 ComproDTV ComproDTV Zoom

45 Playlist Playlist Enter

46 C.C Language ----- Red

47 ComproDVD ComproDVD Green

48 ComproDTV ComproDTV Yellow

49 ComproFM ComproFM Blue

50 Setup Setup Teletext on/off

Note

On the mainboard, the ATX power switch pins are usually labeled “POWER

SW” or similar. It is vital to remember the position of these pins for a later step

in the installation process.

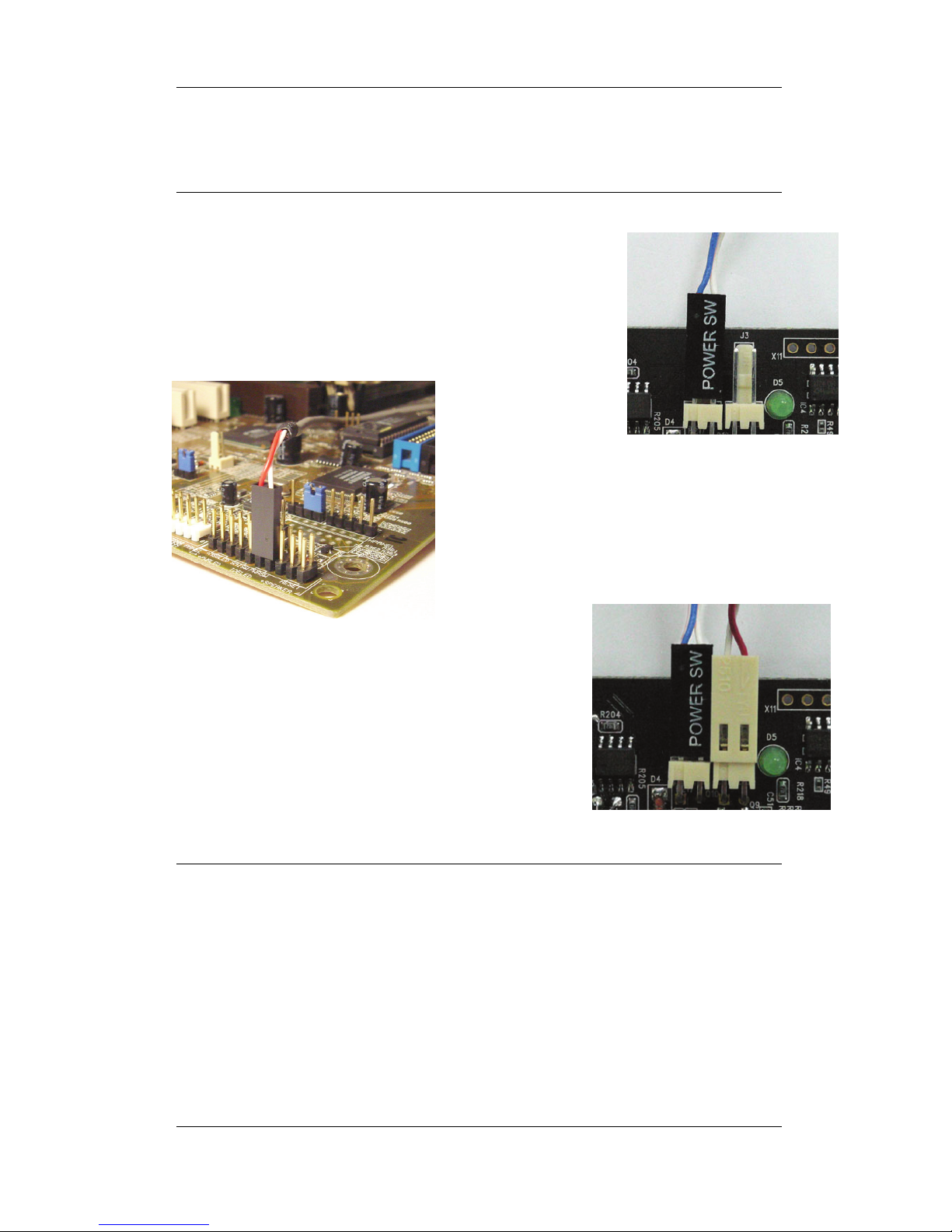

4. Unplug the ATX power switch cable from the

mainboard and connect it to the white connector

named “JS1” on the VideoMate Vista M3F/M5F PCI

card, as shown on the right.

5. Connect the black socket of Power Up

patch cable to the power switch

connector on the mainboard.

6. Connect the white socket of Power Up patch

cable to the connector named “JS2” on the

VideoMate Vista M3F/M5F PCI Tuner card.

Note

Double check your work. If you plug the cables into the incorrect pins, your PC

may not start or function improperly.

Connect the white end of the Power Up patch cable to the TV tuner card and

the black end to the mainboard.

Power Up Scheduling is not required for using VideoMate Vista M3F/M5F PCI

card. If you don’t want to use Power Up Scheduling from the Windows Shut

down state, you can skip the power switch circuit connections, in other words,

you can skip Power Up Connections in steps 3 through 6. You can still use

scheduled recording from Standby mode or powered on state.
