Comprehensive CHE-HD200 Manuel utilisateur
CHE-HD200
HDMI 4K Extender with one-way IR up to 230ft
VER 1.0
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction............................................................................................
2. Features..................................................................................................
3. Package Contents................................................................................
4. Specifications........................................................................................
5. Operation Controls and Functions......................................................
5.1 Transmitter Panel.............................................................................
5.2 Receiver Panel................................................................................
5.3 IR Pin Definition................................................................................
6. Application Example............................................................................
1
1
2
2
3
3
4
5
7
1. Introduction
2. Features
☆HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
☆Supports 18Gbps bandwidth
☆Supports input and output video resolution up to 4k2k@60Hz 4:4:4, extends
distance up to 164ft / 50 meters
☆Supports one HDMI loop output
☆Supports one-way IR pass-through
☆Supports HDR function
☆Supports PoC (Power over Cable) function, it means that either transmitter
or receiver is powered supply by 12V/1A power adapter, the other doesn’t
need power supply.)
☆Supports automatic copy EDID function
☆Compact design for easy and flexible installation.
1/7
The HDMI 18Gbps Extender can extend high definition video / audio signal
and one-way IR, and the distance is up to 164ft / 50 meters between trans-
mitter and receiver over a single Cat5e/6 cable. It supports resolution up to
4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. In addition, the extender is equi-
pped with one-way IR pass-through which allows for source control and one
HDMI loop output.
The extender includes two units: transmitter unit and receiver unit. The trans-
mitter unit is responsible for capturing HDMI input signal and carries the signal
via one cost effective Cat6 cable, and emitting IR control signals. The receiver
unit is responsible for receiving the HDMI signal and transmitting IR control
signal.
The extender offers the most convenient solution for HDMI extension over a
single Cat5e/6 with long distance capability, and is the perfect solution for
any application.
3. Package Contents
①1× HDMI 18Gbps Extender (Transmitter)
②1× HDMI 18Gbps Extender ( Receiver)
③1× IR Blaster cable (1.5 meters)
④1× 20~60KHz IR Receiver cable (1.5 meters)
⑤1× 12V/1A Locking Power adapter
⑥4× Mounting Ears
⑦1× User Manual
4. Specifications
Human body model — ±8kV (Air-gap discharge) &
±4kV (Contact discharge)
ESD Protection
Technical
HDCP Compliance HDCP 2.2 / HDCP 1.4
Video Bandwidth 18Gbps
Video Resolution Up to 4K60Hz 4:4:4
Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4
Color Depth 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr
4:2:2/4:2:0)
8-bit (4K60Hz 4:4:4 )
HDMIAudio Formats
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby
TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS
HD Master, DTS HD-HRA, DTS-X
HDMI Compliance HDMI 2.0
2/7
Connections
Transmitter
Receiver
Inputs: 1x HDMI Type A [19-pin female]
1x SERVICE [Micro USB, Update port]
Outputs: 1x HDMI Type A[19-pin female]
1x IR OUT [3.5mm Stereo Mini-jack]
1x CAT OUT [RJ45, 8-pin female]
Inputs: 1x IR IN [3.5mm Stereo Mini-jack]
1x CAT IN [RJ45, 8-pin female]
1x SERVICE [Micro USB, Update port]
Outputs: 1x HDMI Type A[19-pin female]
5. Operation Controls and Functions
5.1 Transmitter Panel
Power Supply Input: AC 100 - 240V 50/60Hz
Output: DC 12V/1A
Operating
Temperature
3.84 W
Storage Temperature
32 - 104°F / 0 - 40°C
Relative Humidity -4 - 140°F / -20 - 60°C
Power Consumption
20 - 90% RH (no condensation)
Dimensions
BlackColor Transmitter / Receiver:
61mm [W] x 88mm [D] x 18mm [H]
Mechanical Metal EnclosureHousing
Weight Transmitter: 160g, Receiver: 155g
CAT OUT SERVICE IR OUT DC 12V
HDMI IN
HDMI OUT
1 2 3
456 7 8
3/7
Resolution / Distance 4K60 - Feet / Meters 4K30 / 1080P - Feet / Meters
CAT5e
HDMI IN/OUT
164ft / 50M164ft / 50M
30ft / 10M10ft / 3M
The use of “Premium High Speed HDMI” cable is highly recommended.
CAT6/6a/7 197ft / 60M 230ft / 70M
5.2 Receiver Panel
HDMI OUT DC 12VIR INSERVICECAT IN
12
345 6 7
HDMI IN HDMI input port, connect to HDMI source device such
as DVD or PS4 player with an HDMI cable.
HDMI loop output port, connect to HDMI display device
such as TV or Projector with an HDMI cable.
Power Indicator
Lamp (Green) The lamp will illuminate when the transmitter is powered
on.
Connect to CAT IN port on the receiving end with a
CAT6 cable.
Number Name Function description
1 HDMI OUT
2
3 CAT OUT
4
SERVICE port For firmware updated use.
Data signal
Indicator Lamp
(Orange)
The lamp will illuminate when the transmitter and the
receiver have signal transmission.
IR OUT Connect to wideband IR Blaster cable. The IR signal is
from the IR IN port of the receiver.
5
6
7
8 DC 12V
Plug DC 12V/1Apower supply into the unit and connect
the adapter to an AC outlet.
(Note: The extender supports PoC function, it means
that either transmitter or receiver is powered supply by
12V/1A power adapter, the other doesn’t need
power supply.)
4/7
5.3 IR Pin Definition
IR Receiver and Blaster pin’s definition as below:
IR RECEIVER IR BLASTER
CAT IN Connect to CAT OUT port on the transmitter end
with a CAT6 cable.
HDMI OUT HDMI output port, connect to HDMI display device such
as TV or Projector with an HDMI cable.
Number Name Function description
1
2
3
Data signal
Indicator Lamp
(Orange)
The lamp will illuminate when the transmitter and the
receiver have signal transmission.
Power Indicator
Lamp (Green) The lamp will illuminate when the receiver is powered
on.
4
SERVICE port For firmware updated use.
IR IN Connect to wideband IR Receiver cable. The IR signal
will send to the IR OUT port of the transmitter.
5
6
7 DC 12V
Plug DC 12V/1Apower supply into the unit and connect
the adapter to an AC outlet.
(Note: The extender supports PoC function, it means
that either transmitter or receiver is powered supply by
12V/1A power adapter, the other doesn’t need power
supply.)
5/7
IR Blaster
IR Receiver
TV
HDMI IN
HDMI Extender 50m
Transmitter
HDMI OUT
CAT OUT SERVICE IR OUT DC 12V
HDMI Extender 50m
HDMI OUT
DC 12VIR INSERVICECAT IN
Receiver
LAN
LAN
DVD
DVD remote
IR blaster cable
IR receiver cable
CAT 5e/6 cable

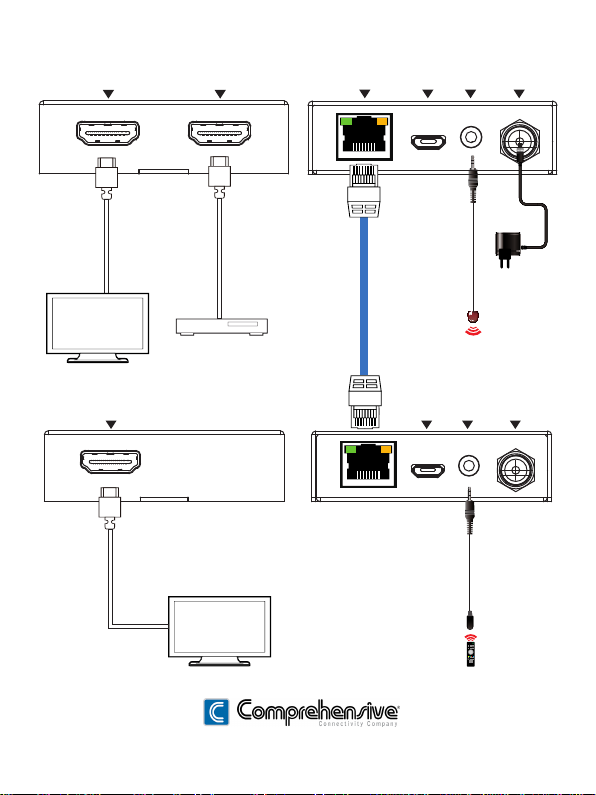

The following is IR system diagram about IR cable use method.
Note: IR remote sends signal distance for 0~5
meters / 0~8 meters, and angle is plus-minus
45 degrees / vertical direction .
6/7
IR Blaster Signal
Power
NC
IR Signal
Power
Grounding
6. Application Example
DVD or Blu-ray Player
IR Extender
CAT OUT SERVICE IR OUT DC 12V
HDMI IN
HDMI OUT
HDMI OUT DC 12VIR INSERVICECAT IN
LAN
Power Supply
LAN
UHDTV
UHDTV
Transmitter
Receiver
Cat 5e/6
7/7
IR blaster
