QuickSpecs Compaq AlphaServer ES40

Compaq AlphaStation ES40

DA-10392 North America — Version 57 — March 18, 2003 1

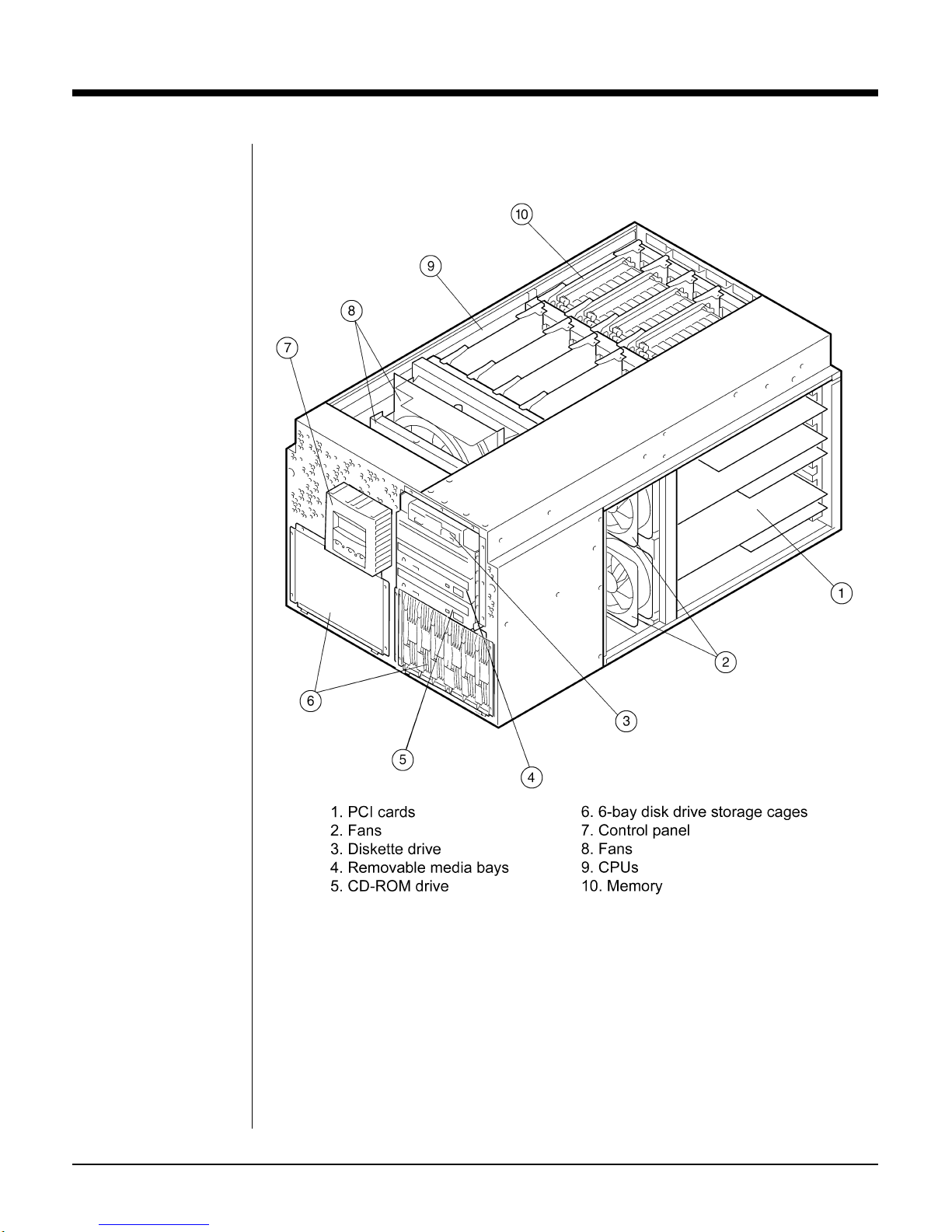

Overview

At A Glance

AlphaServer™/AlphaStation ™

ES40 Systems include:

•

Alpha 21264 68/833-MHz CPU

with 8-MB L2 Dual Data Rate

Cache

•

6-10 64-bit PCI I/O

expansion slots

•

512-MB, 1-GB, 2-GB, or 4-GB

memory options (AlphaServers)

•

512-MB memory option

(AlphaStations)

•

1.44-MB diskette drive

•

600-MB 48X IDE CD-ROM drive

•

Two 9-pin serial ports

•

One 25-pin parallel port

•

RMC dedicated serial port, 6-pin

MMJ connector

•

Dual USB ports

•

Keyboard and mouse port

•

Knockouts for two 68-pin

SCSI connections

•

Auto-sensing power supply

•

Integral remote system

management console

•

Customer documentation

•

Tru64™ UNIX™ or OpenVMS™

Factory Installed Software

•

90-day software warranty

•

Protected by HP Services,

including three-year hardware

warranty, on-site with 5 x 9 next

business day response

QuickSpecs Compaq AlphaServer ES40

Compaq AlphaStation ES40

DA-10392 North America — Version 57 — March 18, 2003 2

Standard Features

Processor Alpha 21264 68/833-MHz CPU

Cache Memory 8-MB L2 Dual Data Rate Backup Cache (68/833-MHz CPU)

Upgradability Supports additional processors and upgrades of memory and hard drives

Memory Minimum 512 MB – AlphaServer ES40 Model 1

512 MB – AlphaStation ES40

1 GB – AlphaServer ES40 Model 2

Maximum 16 GB (16 DIMM slots) Model 1; 32 GB (32 DIMM slots) Model 2 (see Step 3)

Network Controller Choice of Ethernet controllers

Expansion PCI I/O slots 6 slots Model 1; 10 slots Model 2

Storage Diskette Drive 1.44-MB diskette drive in dedicated slot

CD-ROM 600-MB 48X IDE CD-ROM

Hard Drives Choice of 18.2-GB, 36.4-GB, 72.8-GB, or 146-GB drives

Interfaces Parallel 1 25-pin parallel port

Serial 2 9-pin serial ports

USB Dual USB ports

Keyboard 1 port

Mouse 1 port

Remote systems management 1 dedicated remote systems management port

SCSI connections Two 68-pin SCSI connections knockouts

Graphics Optional

Form Factor Tower, Pedestal, Rackmount (M-Series Cabinet)

Power Supply Auto sensing power supply, hot swappable, N+1 (see Step 4)

Manageability Compaq Insight Manager™

OS Support AlphaServer ES40 Tru64 UNIX systems include pre-installed software, Base license, Unlimited User license,

Server Extension license, Internet Express, and Secure Web Server

AlphaStation ES40 Tru64 UNIX systems include pre-installed software, 2-user Base license and Compaq Open3D

traditional license

AlphaServer ES40 OpenVMS systems include pre-installed software, Base license with System Manager license

and Enterprise Integration Server License Package for OpenVMS V3.1

AlphaStation ES40 OpenVMS systems include pre-installed software, Base license, Concurrent Use 1-user

license, NAS 150 Client license, Compaq MMS RT license and Compaq Open3D traditional license

Minimum OS support −Tru64 UNIX V4.0F, OpenVMS V7.2-2, Linux RedHat V6.2, Linux SuSE V6.3 or greater

Service and Support Protected by HP Services including a three-year on-site hardware warranty with next business day response.

Software warranty is a 90-day telephone advisory. Training, consulting, network integration, software support,

comprehensive system maintenance and guaranteed uptime services are also available for customers requiring

higher levels of service and support.

QuickSpecs Compaq AlphaServer ES40

Compaq AlphaStation ES40

DA-10392 North America — Version 57 — March 18, 2003 3

Systems/Options

Step 1 −

−−

−Select system

AlphaServer ES40 systems require the mandatory selection of the following items:

• Disk drive cage or StorageWorks™ shelf (Step 5)

• System disk drive (Step 5)

• System enclosures: Tower, Pedestal, or Rack Kit (Step 6)

• Ethernet adapter (Step 8)

• Storage adapter (Step 10)

• Software media and documentation for first system onsite

NOTES: ES40 Model 1 to Model 2 Upgrade Kit available −see Step 16.

Only 2-5-2 part numbers are factory integrated.

AlphaServer ES40 Systems

ES40 OS CPU PCI I/O Slots Memory/Cache Order Number

Model 1 Tru64 UNIX 833 MHz 6 512 MB/8 MB DA-62CAA-CA

Model 1 Tru64 UNIX 833 MHz 6 1 GB/8 MB DA-62CAA-DA

Model 1 Tru64 UNIX 833 MHz 6 2 GB/8 MB DA-62CAA-EA

Model 2 Tru64 UNIX 833 MHz 10 512 MB/8 MB DA-64CAA-CA

Model 2 Tru64 UNIX 833 MHz 10 1 GB/8 MB DA-64CAA-DA

Model 2 Tru64 UNIX 833 MHz 10 2 GB/8 MB DA-64CAA-EA

Model 2 Tru64 UNIX 833 MHz 10 4 GB/8 MB DA-64CAA-FA

Model 1 OpenVMS 833 MHz 6 512 MB/8 MB DY-62CAA-CA

Model 1 OpenVMS 833 MHz 6 1 GB/8 MB DY-62CAA-DA

Model 1 OpenVMS 833 MHz 6 2 GB/8 MB DY-62CAA-EA

Model 2 OpenVMS 833 MHz 10 512 MB/8 MB DY-64CAA-CA

Model 2 OpenVMS 833 MHz 10 1 GB/8 MB DY-64CAA-DA

Model 2 OpenVMS 833 MHz 10 2 GB/8 MB DY-64CAA-EA

Model 2 OpenVMS 833 MHz 10 4 GB/8 MB DY-64CAA-FA

AlphaStation ES40 Systems

Model 2 Tru64 UNIX 833 MHz 10 512 MB/8 MB DA-64CAA-CW

Model 2 OpenVMS 833 MHz 10 512 MB/8 MB DY-64CAA-CW

QuickSpecs Compaq AlphaServer ES40

Compaq AlphaStation ES40

DA-10392 North America — Version 57 — March 18, 2003 4

Systems/Options

Step 2 −

−−

−Additional CPU Modules −

−−

−Optional

• One CPU included, three additional CPUs are supported

SMP upgrade, includes one 67/667-MHz CPU with 8-MB cache and Tru64 UNIX

SMP license

KN610-BB

SMP upgrade, includes one 67/667-MHz CPU with 8-MB cache and OpenVMS

SMP license

KN610-BC

SMP upgrade, includes one 68/833-MHz CPU with 8-MB cache and Tru64 UNIX

SMP license

KN610-CB

SMP upgrade, includes one 68/833-MHz CPU with 8-MB cache and OpenVMS

SMP license

KN610-CC

From: To:

EV67 667-MHz CPU EV68 833-MHz CPU

Upgrade console firmware to V5.9-24 as minimum revision

Upgrade system hardware with EV68 CPUs

Ensure all system firmware matches console version V5.9-24

EV6 500-MHz CPU EV68 833-MHz CPU

Upgrade console firmware to V5.9-24 as minimum revision

Upgrade system hardware with EV68 CPUs

Re-install V5.9-24 console firmware

Ensure all system firmware matches console version V5.9-24

Step 3 −

−−

−Memory −

−−

−Optional

• Systems include one memory option

• Model 1 systems supports four memory options (total of 16 DIMMs)

• Model 2 systems support eight memory options (total of 32 DIMMs −see Note below)

• Memory performance considerations: Interleaved operations reduce the average latency and increase the memory throughput over non-

interleaved operations. With one memory option (4 DIMMs) installed, memory interleaving will not occur. With two identical memory

options (8 DIMMs) installed, memory read-write operations are two-way interleaved. With four identical memory options (16 DIMMs)

installed, memory read-write operations are four-way interleaved, maximizing memory through-put

512-MB memory option (4 x 128-MB DIMMs) MS610-CA

1-GB memory option (4 x 256-MB DIMMs) MS610-DA

2-GB memory option (4 x 512-MB DIMMs) MS610-EA

4-GB memory option (4 x 1024-MB DIMMs) MS610-FA

NOTE: ES40 configurations that require maximum N+1 power (three power supplies)

are restricted to a maximum of 24-GB of mixed memory (sixteen 1-GB DIMMs

and sixteen 512-MB DIMMs). If N+1 maximum power is not required, 32-GB of

memory is supported.

QuickSpecs Compaq AlphaServer ES40

Compaq AlphaStation ES40

DA-10392 North America — Version 57 — March 18, 2003 5

Options

Step 3 −

−−

−Memory −

−−

−Optional (continued)

NOTE:

Linux configurations with large memory require the installation of a patch.

The patch to support greater than 2 GB of memory per system is located at:

http://www.kernel.org/pub/linux/kernel/people/andrea/patches/v2.2/2.2.17 (patch

name: bigmem-2.2.18pre2-18.bz2)

The following minimum operating system versions require the patch:

− Linux RedHat V6.2

− Linux SuSE V6.3 (Kernel V2.2.17)

The following operating system minimum versions support greater than 2 GB of

memory:

− Linux RedHat V7.0 (installs Kernel V2.2.17)

− Linux SuSE V7.0 (installs Kernel V2.2.16)

When installing Linux SuSE V7.0 on a system with more than 2 GB of memory, user

will be prompted for a (ramdisk) floppy. To create a floppy:

− Mount the SuSE V7.0 installation CD-ROM #1 on the system.

− Mount a blank formatted floppy (if not formatted, execute the following

command: fdformat/dev/fd0H1440).

− Change directory, to the ″disks″directory on the install CD-ROM.

− Execute the following command to create the floppy contents:

dd if=install of=/dev/fd0.

Use this floppy when prompted by the install procedure for a floppy.

Step 4 −

−−

−Additional Power Supplies −

−−

−Required for third and fourth CPUs and/or second Disk Drive Cage

• One power supply supports two CPUs, up to 12 memory DIMMs, and one disk card cage; order second power supply if N+1 power is

required.

• Two power supplies support third and fourth CPU, 13 to 32 memory DIMMs (up to 24-GB of memory), and/or two disk card cages; order

third power supply if N+1 power is required for third and fourth CPUs, 24-GB of memory, and/or two disk card cages.

• Three power supplies support 32 GB of memory without N+1 power.

• Three power supplies support a maximum of 24 GB of memory with full N+1 power.

• Each additional power supply ordered with a tower system requires an additional country-specific power cord.

• Pedestal system and Rack kit include three internal power cords regardless of the number of power supplies ordered; Pedestal systems

support 120 V and 240 V power cords.

ES40 720W power supply H7906-A9

QuickSpecs Compaq AlphaServer ES40

Compaq AlphaStation ES40

DA-10392 North America — Version 57 — March 18, 2003 6

Options

Step 5 −

−−

−Disk Drive Cage or StorageWorks Shelf −

−−

−Mandatory

• Tower enclosure supports one system and two disk drive cages

• Pedestal enclosure supports one system and two disk drive cages, two Universal 42xx/43xx StorageWorks shelves or three BA36R

StorageWorks shelves

• M-Series cabinets support five systems each with two disk drive cages and up to six StorageWorks shelves

Step 5a −

−−

−Disk Drive Cage −

−−

−Requires selection of system disk drive

Disk Drive Cages 6-bay disk drive cage with cable for use with 1-inch Universal drives – requires

mandatory selection of UltraSCSI adapter and SCSI cable (Step 10) per disk drive cage

BA610-6D

6-bay disk drive cage with embedded Ultra2 LVD adapter; supports internal SCSI

1-inch Universal drives or tapes only

OpenVMS V7.2-2 requires OpenVMS Tima Kit located at:

- http://ftp.support.compaq.com/patches/.new/openvms.shtml

Tru64 UNIX V4.0F requires Patch Kit 2 (BL13):

- DUV40FAS0002-19991116.tar

BA610-6E

NOTE: See AlphaServer ES40 Configuration Chart for Storage Adapters in Step 10.

18.2-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive 3R-A3848-AA

36.4-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive 3R-A3838-AA

System Disk Drives

(Supported in Disk Drive Cage and

Universal StorageWorks Shelves)

36.4-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive 3R-A3849-AA

72.8-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive 3R-A3839-AA

72.8-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive 3R-A3851-AA

146-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive 3R-A3841-AA

Step 5b −

−−

−StorageWorks BA36R Shelf −Requires selection of UltraSCSI adapter and SCSI cable (Step 10) and system disk drive

• StorageWorks Shelf supports seven 3.5-inch x 1.6-inch hard disk drives; with addition of redundant power supply, only six drives are

supported

• StorageWorks shelf kits are mounted back-to-back in pedestals and cabinets

StorageWorks UltraSCSI single-bus shelf kit BA36R-RC

StorageWorks UltraSCSI split-bus shelf kit; BA36R-RD

NOTE: When ordering a split-bus shelf that will be mounted in a Pedestal Enclosure,

order one BN37A-03 cable for KZPCM-DA adapter, BN37A-03 cable for

3X-DEPVZ-AA combo adapter, or one BN38C-03 for 3X-KZPCA-AA or

KZPBA-CA adapter.

3-meter SCSI cable BN37A-03

System Disk Drive

(Supported in StorageWorks

BA36R Shelf)

36.4-GB Wide UltraSCSI 10,000 rpm disk drive DS-RZ1FC-VW

QuickSpecs Compaq AlphaServer ES40

Compaq AlphaStation ES40

DA-10392 North America — Version 57 — March 18, 2003 7

Options

Step 5 −

−−

−Disk Drive Cage or StorageWorks Shelf −

−−

−Mandatory (continued)

Step 5c −

−−

−StorageWorks Model 4314R and Model 4354R Universal Drive Shelves

• StorageWorks Model 4314R and 4354R Ultra2 SCSI (LVD) single-bus and split-

bus Universal drive shelves; refer to StorageWorks Enclosure 4300 Family

QuickSpecs when configuring shelves. When selecting a DS-SL13R-xx split-bus

shelf, order two UltraSCSI adapters. Model 43xx shelves are compatible with

Wide Ultra2 (LVD) adapters only.

• BN38C-05 cable is required per channel if the connection is not VHDCI/VHDCI.

DS-SL13R shelves include one 12-foot VHDCI/VHDCI SCSI cable.

• Note that the depth of a DS-SL13R-xx shelf does not allow front and rear

mounting.

StorageWorks Model 4314R Ultra3 SCSI (LVD) single-bus Universal drive rackmount

shelf, includes one power supply, U.S. (190209-0011)

DS-SL13R-AA

StorageWorks Model 4314R Ultra3 SCSI (LVD) single-bus Universal drive rackmount

shelf, includes one power supply, Japan (190209-291)

DS-SL13R-AJ

StorageWorks Model 4354R Ultra3 SCSI (LVD) split-bus Universal drive rackmount

shelf, includes two redundant power supplies, U.S. (190211-0011)

DS-SL13R-BA

StorageWorks Model 4354R Ultra3 SCSI (LVD) split-bus Universal drive rackmount

shelf, includes two redundant power supplies, Japan (190211-291)

DS-SL13R-BJ

To add additional power supply for single-bus Universal shelf, U.S. (212980-B21) DS-SE2UP-AA

To add additional power supply for single-bus Universal shelf, International

(119826-B31)

DS-SE2UP-AI

Model 4314T Ultra3 SCSI, single-bus tower enclosure, U.S. (190210-001) DS-SL13T-AA

StorageWorks Model 4314T Standalone

Enclosure for Universal Drives

Model 4314T Ultra3 SCSI, single-bus tower enclosure, International (190210-B31) DS-SL13T-AB

Model 4314T Ultra3 SCSI, single-bus tower enclosure, Japan (190210-291) DS-SL13T-AJ

QuickSpecs Compaq AlphaServer ES40

Compaq AlphaStation ES40

DA-10392 North America — Version 57 — March 18, 2003 8

Options

Step 6 −

−−

−System Enclosures −

−−

−Mandatory selection of Tower, Pedestal, or Rack Kit

Step 6a −

−−

−Tower Enclosure

• Tower enclosure supports one system

• Tower enclosure ordered in North America includes 120V power cord; country-specific power cord mandatory for all non-North American

systems; additional power cord mandatory for each power supply ordered with a system installed in a tower enclosure

Tower Enclosure BA61M-MT

Step 6b −

−−

−Pedestal Enclosure

• Pedestal enclosure supports one system, two Universal 43xx StorageWorks shelves or three UltraSCSI BA36R StorageWorks shelves

• Pedestal enclosures (BA61P-PA, 120V/BA61P-PB, 240V) support Universal shelves

• 120V pedestal enclosure includes two external 120V power cords; 240V pedestal enclosure requires two country-specific power cords

• Pedestal enclosure includes two factory-configured power strips that provide five available outlets; if the number of BA356-RC/RD power

supplies requires a sixth outlet, this can be accommodated only if the system chassis is limited to two H7906-A9 power supplies

120V Pedestal Enclosure, includes two external power cords BA61P-PA

240V Pedestal Enclosure, requires two country-specific power cords BA61P-PB

Step 6c −

−−

−Rack Kit for M-Series Cabinet

• Rack Kit required for each AlphaServer ES40 system installed in a new or existing M-Series Cabinet

• Rack Kit supports one system

Rack kit for AlphaServer ES40, includes dress bezel, slides, three internal power cords,

all bracketry and hardware for mounting in M-Series cabinets

BA61R-RM

NOTE: Factory integration of an ES40 system drawer in a 9000 rackmount cabinet using rack kit, 3X-BA61R-RC, is not supported. Contact

Custom Systems or Compaq Certified Integration Partner.

Step 7 −

−−

−M-Series Cabinets

M-Series cabinet enclosures support up to four systems, up to six StorageWorks shelves, and/or two BA370 enclosures; M-Series Enclosures

require selection of the following items:

• H9A10 or H9A15 cabinet, 120V or 240V

• Rack kit for each system

• H9A10 or H9A15 rear cabinet extender

• Cabinet front door based on cabinet height

• Factory integration

• Ballast kit if only one system is ordered for the H9A15 cabinet

NOTE: For configurations beyond those listed in the following charts, contact CustomSystems.

QuickSpecs Compaq AlphaServer ES40

Compaq AlphaStation ES40

DA-10392 North America — Version 57 — March 18, 2003 9

Options

Step 7 −

−−

−M-Series Cabinets (continued)

Cabinet Configuration Chart for AlphaServer ES40 (8U) with StorageWorks Shelves (4U)

Cabinet Rack Kit Cabinet

Extender Cabinet

Height/Space Systems BA356 Shelves DS-SL13R 120V

Shelves

BA356/

DS-SL13R

BA356 DS-SL13R

H9A10-MC/MD

BA61R-RM H9C10-TE 67-inches/34U 1 6 8 6 4

2 6 5 6 1

3 2 2 4 0

0 0 0 0

H9A15-MC/MD

BA61R-RM H9C15-TE 79-inches/41U 1 6 8 6 5

2 6 5 6 2

3 6 2 6 0

4 2 0 2 0

0 0 0 0

NOTES:

1. Contact CustomSystems for cabinet configurations with four AlphaServer ES40 systems installed in H9C10-MC/MD cabinet.

2. Japan only – 240V cabinet required when using universal shelves

3. When using a combination of BA356 and DS-SL13R shelves in the same cabinet, do not remove the top fan (only remove fan when

using DS-SL13R shelves exclusively)

4. Installation of one AlphaServer ES40 system in an H9A15 cabinet requires the mandatory selection of a ballast kit.

5. When adding the 5th system drawer, replace H7600-AA or -DB power controller with H7602-EA or -DB power controller. When replacing

H7600 controllers, replace all associated power cords; order BN35S-4E power cords for H7602-EA and H7602–DB power controllers.

• Required selection of one cabinet

M-Series Cabinets • Two H7600-xx power distribution units are standard in the M-Series cabinet

• For cabinet configurations that require a third power distribution unit (H7600-xx),

contact CustomSystems at 1-800-282-6672.

67-inch cabinet with 59.5-inch or 34U of usable vertical space, 120V dual-24A

controller, each with 10 NEMA 5-15R outlets, input power plug NEMA L5-30P,

Americas, Asia Pacific; includes rear door and top fan tray

H9A10-MC

67-inch cabinet with 59.5-inch or 34U of usable vertical space, 240V dual-16A

controller, each with 12 IEC C13 outlets, input power plug IEC 309, 16A, Europe;

includes rear door and top fan tray

H9A10-MD

79-inch cabinet with 71.7-inch or 41U of usable vertical space, 120V dual-24A

controller, each with 10 NEMA 5-15R outlets, input power plug NEMA L5-30P,

Americas, Asia Pacific; includes rear door and top fan tray

H9A15-MC

79-inch cabinet with 71.7-inch or 41U of usable vertical space, 240V dual-16A

controller, each with 12 IEC C13 outlets, input power plug IEC 309, 16A, Europe;

includes rear door and top fan tray

H9A15-MD

QuickSpecs Compaq AlphaServer ES40

Compaq AlphaStation ES40

DA-10392 North America — Version 57 — March 18, 2003 10

Options

Step 7 −

−−

−M-Series Cabinets (continued) • Required selection of one cabinet extender for each H9A10 or H9A15 cabinet

Rear Cabinet Extender

Rear cabinet extender, top gun blue, for H9A10-MC/MD cabinets H9C10-TE

Rear cabinet extender, top gun blue, for H9A15-MC/MD cabinets H9C15-TE

• Required selection of door based on cabinet height

Cabinet Front Door

Front door, top gun blue, for H9A10-MC/MD cabinet enclosure H9C10-TF

Front door, top gun blue, for H9A15-MC/MD cabinet enclosure H9C15-TF

• Required

Factory Integration

Factory Integration of systems and storage devices assembled and configured in

cabinet enclosure in predefined locations

YS-ASCAA-AA

• Required only if one system is ordered for the H9A15 cabinet

Ballast Kit • Ballast is added to a cabinet at particular locations for specific configurations to

meet safety regulations for installation, operation, and service; see Cabinet

Configuration Charts.

Two 35 to 40 lb steel plates H9C10-MC

• Optional

Shelves Supported in M-Series Cabinets

UltraSCSI single-ended RETMA rack, single-bus personality module, 180W power

supply

BA36R-RC

UltraSCSI single-ended RETMA rack, split-bus personality module, 180W power supply BA36R-RD

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Compaq Ordinateur de bureau

Compaq

Compaq 8000 - Elite Convertible Minitower PC Manuel d'utilisation et d'entretien

Compaq

Compaq Presario 4000 Series Fiche technique

Compaq

Compaq Evo D310 Micro-Desktop Manuel utilisateur

Compaq

Compaq Presario S7000 - Desktop PC Instructions d'installation

Compaq

Compaq 133756-004 - Deskpro EN - 6550 Model 6400 Manuel utilisateur

Compaq

Compaq 8000 - Elite Convertible Minitower PC Guide rapide

Compaq

Compaq 127507-008 - Deskpro EP - 64 MB RAM Manuel utilisateur

Compaq

Compaq dx2420 - Microtower PC Manuel utilisateur

Compaq

Compaq 127507-008 - Deskpro EP - 64 MB RAM Instructions d'installation et d'entretien

Compaq

Compaq Presario Series Manuel utilisateur

Compaq

Compaq dc5850 - Microtower PC Manuel d'utilisation et d'entretien

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Manuel de référence

Compaq

Compaq ProSignia 320 - Desktop PC Manuel utilisateur

Compaq

Compaq Evo D310 Micro-Desktop Manuel utilisateur

Compaq

Compaq Presario 6000 Series Manuel utilisateur

Compaq

Compaq 239158-999 - Mini Tower - Power Supply 250... Manuel d'utilisation et d'entretien

Compaq

Compaq D300v - Evo - 128 MB RAM Manuel

Compaq

Compaq 127507-008 - Deskpro EP - 64 MB RAM Guide de référence rapide

Compaq

Compaq dc5800 - Microtower PC Manuel utilisateur

Compaq

Compaq SR1000 Manuel utilisateur

Compaq

Compaq Presario 6500 - Desktop PC Instructions d'installation

Compaq

Compaq Armada 7800 6266 T 5000 D 0 1 Manuel

Compaq

Compaq Evo Workstation w6000 Instructions d'utilisation

Compaq

Compaq AP250 - Deskpro Workstation - 128 MB RAM Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

HP m9060n - Pavilion - Elite Fiche technique

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

HP Presario SV7000 - Desktop PC Manuel utilisateur

HP ProDesk 400 G5 Manuel

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur
