Hardware Reference Guide

Compaq Evo Desktop D310v Series

Document Part Number: 293388-001

August 2002

This guide provides basic information about upgrading this series of

computers.

Compaq, the Compaq logo, and Evo are trademarks of Compaq Information

Technologies Group, L.P. in the U.S. and other countries.

Microsoft, MS-DOS, Windows, and Windows NT are trademarks of Microsoft

Corporation in the U.S. and other countries.

All other product names mentioned herein may be trademarks of their respective

companies.

Compaq Computer Corporation shall not be liable for technical or editorial

errors or omissions contained herein or for incidental or consequential damages

in connection with the furnishing, performance, or use of this material. The

information in this document is provided “as is” without warranty of any kind,

including, but not limited to, the implied warranties of merchantability and

fitness for a particular purpose, and is subject to change without notice. The

warranties for Compaq products are set forth in the express limited warranty

statements accompanying such products. Nothing herein should be construed as

constituting an additional warranty.

This document contains proprietary information that is protected by copyright.

No part of this document may be photocopied, reproduced, or translated to

another language without the prior written consent of Compaq Computer

Corporation.

ÅWARNING: Text set off in this manner indicates that failure to follow

directions could result in bodily harm or loss of life.

ÄCAUTION: Text set off in this manner indicates that failure to follow

directions could result in damage to equipment or loss of information.

Hardware Reference Guide

Compaq Evo Desktop D310v Series

First Edition (August 2002)

Document Part Number: 293388-001

Hardware Reference Guide iii

Contents

1 Hardware Upgrades

Installation Sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

Removing the Access Panels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

Removing the Front Bezel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4

Installing Additional Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5

Installing or Removing an Expansion Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7

Removing a 5.25 Inch Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–9

Removing a Diskette Drive or Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10

2 Battery Replacement

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

3 Routine Care & Shipping Information

Routine Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1

CD-ROM Drive Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

Shipping Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3

4 Electrostatic Discharge

Preventing Electrostatic Damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

Grounding Methods. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

Index

Hardware Reference Guide 1–1

Hardware Upgrades

Installation Sequence

It is very important that you follow this sequence of steps to ensure

the proper installation of any optional equipment.

For more information about Computer Setup, refer to the Computer

Setup (F10) Utility Guide.

1. If the computer is turned on, turn it off and disconnect the power

cord from the wall outlet.

ÅWARNING: To reduce the risk of personal injury from electrical shock

and/or hot surfaces, be sure to disconnect the power cord from the wall

outlet, and allow the internal system components to cool before touching.

ÅWARNING: To reduce the risk of electrical shock, fire, or damage to the

equipment, do not plug telecommunications or telephone connectors into

the network interface controller (NIC) receptacles.

ÄCAUTION: Static electricity can damage the electronic components of

the computer or optional equipment. Before beginning these procedures,

ensure that you are discharged of static electricity by briefly touching a

grounded metal object. See Chapter 4, “Electrostatic Discharge,” for more

information.

2. Open the computer by removing its access panels. See the

procedure for removing the computer access panels later in this

chapter.

3. Install any optional equipment. See the applicable sections of this

guide or refer to the documentation provided with the optional

equipment for instructions.

1–2 Hardware Reference Guide

Hardware Upgrades

4. Replace the computer cover.

5. Turn on the monitor, computer, and any devices you want to test.

Reconfigure the computer, if necessary. For more information about

Computer Setup, refer to the Computer Setup (F10) Utility Guide.

Removing the Access Panels

1. Shut down the operating system properly, then turn off the

computer and any external devices.

2. Disconnect the power cord from the power outlet, and disconnect

any external devices.

ÄCAUTION: Before removing the computer access panel, ensure that the

computer is turned off and that the power cord is disconnected from the

electrical outlet.

3. Remove the two screws that secure the access panel to the

computer chassis.

✎Remove the right access panel to upgrade memory or an expansion

card. Remove the left access panel to upgrade a drive.

Hardware Reference Guide 1–3

Hardware Upgrades

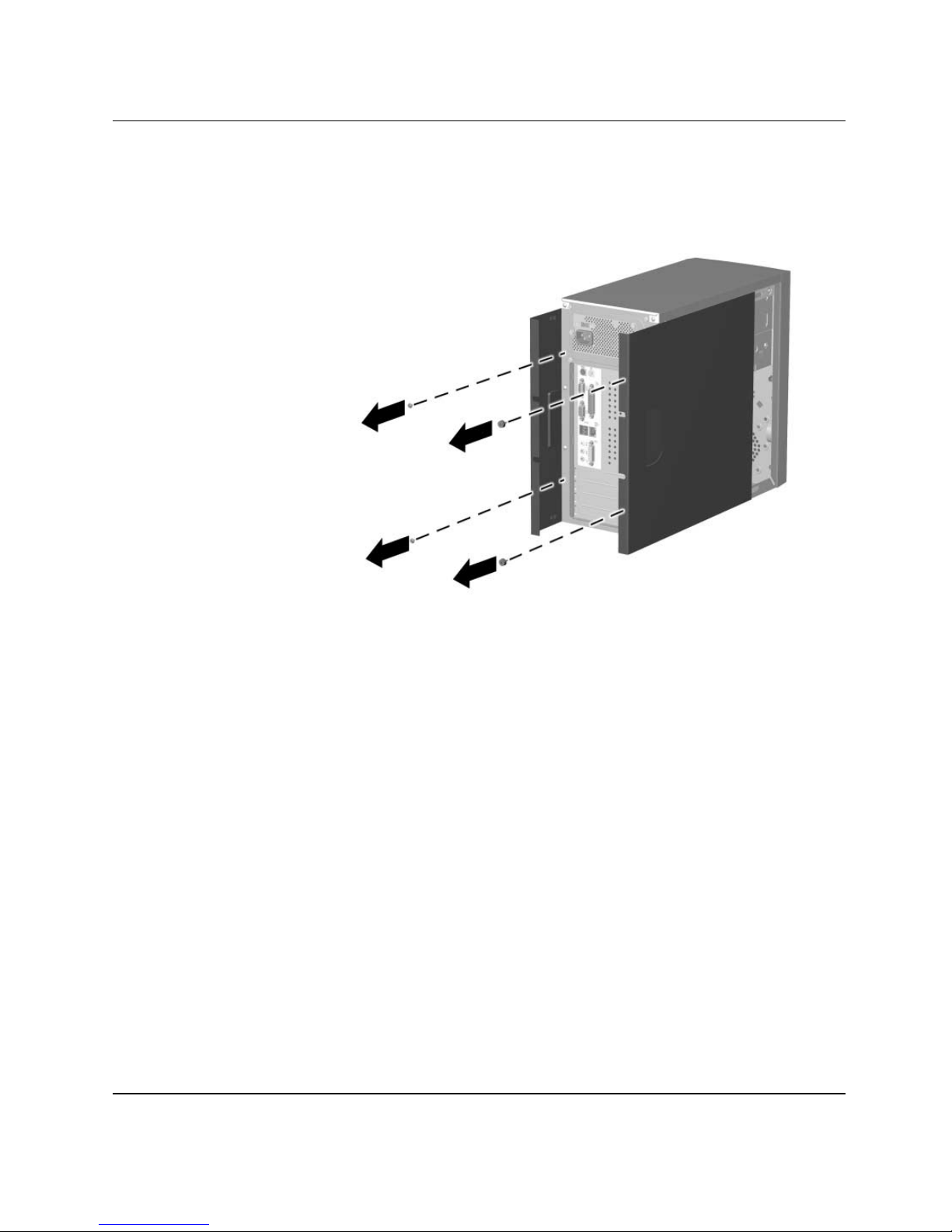

4. Slide the access panel back about 1 inch (2.5 cm), then lift it away

from and off the unit.

Removing the Computer Access Panels

To replace the access panel, reverse steps 1-4.

1–4 Hardware Reference Guide

Hardware Upgrades

Removing the Front Bezel

✎Remove the front bezel to upgrade a drive.

1. Shut down the operating system properly, then turn off the

computer and any external devices.

2. Disconnect the power cord from the power outlet, and disconnect

any external devices.

3. Remove the computer access panels.

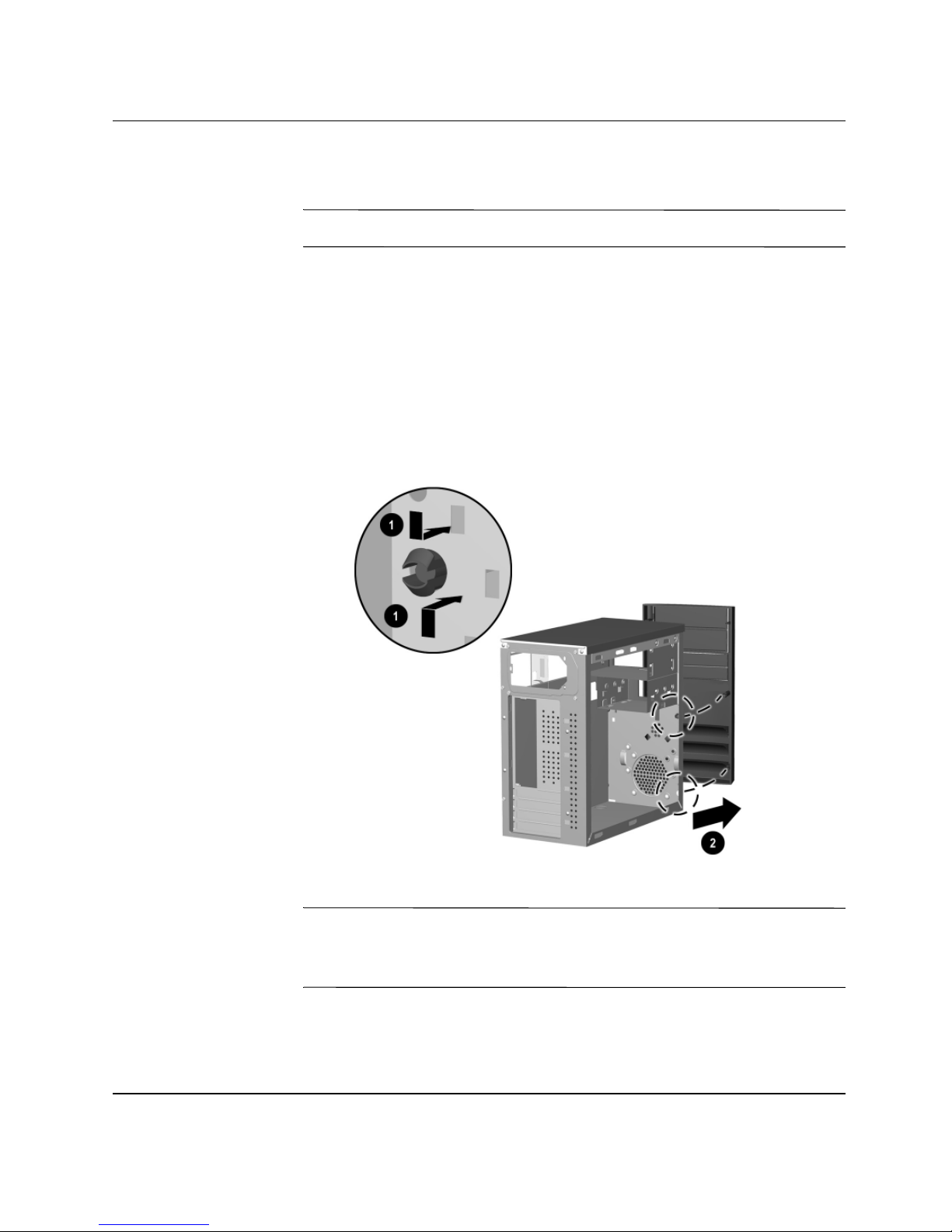

4. Squeeze the two circular tabs inside the front of the chassis 1,

then pull the front bezel away from the chassis to release it 2.

Removing the Front Bezel

✎When replacing the front bezel, ensure that the circular tabs are

properly aligned with the chassis before pressing the front bezel into

place.

Hardware Reference Guide 1–5

Hardware Upgrades

Installing Additional Memory

ÄCAUTION: Your memory module sockets have gold metal contacts.

When upgrading your memory, it is important to use memory modules

with gold metal contacts to prevent corrosion and/or oxidation resulting

from having incompatible metals in contact with each other.

ÄCAUTION: Static electricity can damage the electronic components of

the computer or optional cards. Before beginning these procedures,

ensure that you are discharged of static electricity by briefly touching a

grounded metal object. Refer to Chapter 4, “Electrostatic Discharge,” for

more information.

ÄCAUTION: When handling a memory module, be careful not to touch

any of the contacts. Doing so may damage the module.

1. Shut down the operating system properly, then turn off the

computer and any external devices.

2. Disconnect the power cord from the power outlet, and disconnect

any external devices.

3. Remove the access panel and locate the memory module sockets.

ÅWARNING: To reduce risk of personal injury from hot surfaces, allow

the internal system components to cool before touching.

1–6 Hardware Reference Guide

Hardware Upgrades

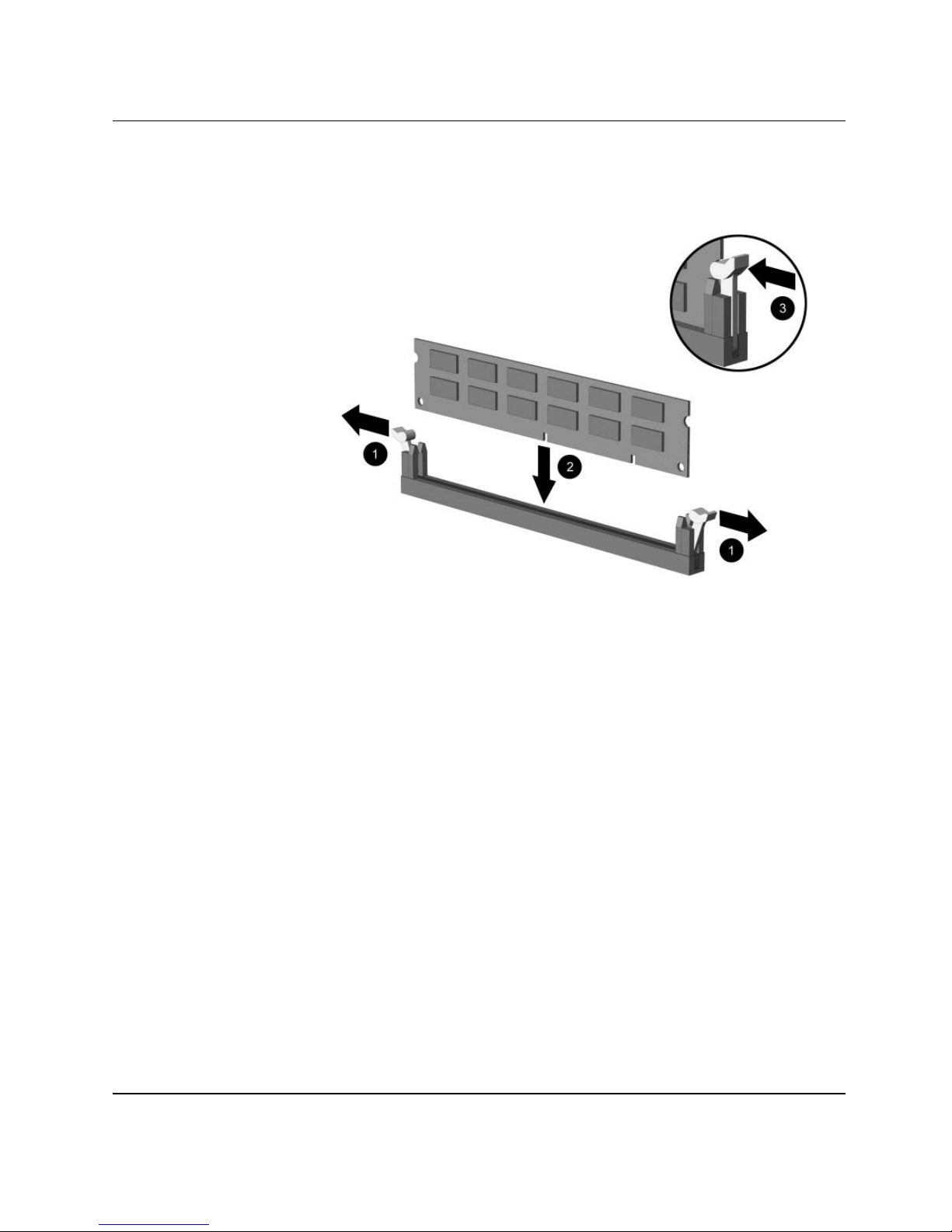

4. Open both latches of the memory module socket 1, and insert the

memory module into the socket 2.

Installing a Memory Module

5. Begin by installing a module into the socket nearest the

preinstalled module, and install the modules following the

numerical order of the sockets.

6. A memory module can be installed in only one way. Match the

notch on the module with the tab on the memory socket. Push the

module down into the socket, ensuring that the module is fully

inserted and the latches on each end snap back into place 3.

7. Repeat steps 4 to 6 for any additional modules that you want to

install.

8. Replace the access panel.

The computer should automatically recognize the additional memory

the next time you turn on the computer.

Hardware Reference Guide 1–7

Hardware Upgrades

Installing or Removing an Expansion Card

1. Shut down the operating system properly, then turn off the

computer and any external devices.

2. Disconnect the power cord from the power outlet, and disconnect

any external devices.

3. Remove the access panel.

If installing an expansion card, skip to step 8.

4. To remove an expansion card, disconnect any cables attached to

the expansion card.

5. Remove the screw at the top of the expansion slot.

6. Hold the card at each end and carefully rock it back and forth

until the connectors pull free from the socket. Be sure not to

scrape the card against other components.

7. Store the card in anti-static packaging.

8. Install a new expansion card or an expansion slot cover to close

the open slot.

If not installing an additional expansion card, skip to step 10.

9. Remove the expansion slot cover.
