commercial cool CCF43P40 Manuel utilisateur
42 in. Ceiling Fan
User Manual
MODEL CCF43P40
Page 2
ENGLISH
Thank you for purchasing our
Commercial Cool product. This
easy-to-use manual will guide you
in getting the best use of your fan.
Remember to record the model
and serial numbers. They are on a
label on the rear.
Staple your receipt to your manual.
You will need it to obtain warranty service.
Model number
Serial number
Date of purchase
PRODUCT REGISTRATION
CONTENTS
SAFETY INFORMATION
Important Safety Instructions..........................................................................................................................................3-4
SET UP & USE
Parts..............................................................................................................................................................................................5-6
Features.......................................................................................................................................................................................... 7
Preparing for Installation........................................................................................................................................................ 8
Mounting Bracket Installation........................................................................................................................................9-10
Blade Installation........................................................................................................................................................................11
Mounting Fan Assembly .................................................................................................................................................12-14
Wiring.............................................................................................................................................................................................15
Securing Fan to Ceiling..........................................................................................................................................................16
Light Fixture Installation........................................................................................................................................................17
Operation......................................................................................................................................................................................18
Cleaning + Maintenance........................................................................................................................................................19
TROUBLESHOOTING & WARRANTY
Before You Call For Service .............................................................................................................................................. 20
Customer Service ...................................................................................................................................................................20
Troubleshooting........................................................................................................................................................................21
Limited Warranty.....................................................................................................................................................................22
Page 3
ENGLISH
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
1. READ ALL INSTRUCTIONS BEFORE USE
2. Installation work and electrical wiring must be done by qualied
person(s) in accordance with all applicable codes and standards,
including re-rated construction.
3. Use this unit only in the manner intended by the manufacturer. If you
have any questions contact the manufacturer.
4. After making the wire connections, gently push connections into
outlet box with wire nuts pointing up. The wires should be spread
apart with the grounded conductor and the equipment grounding
conductor on one side of the outlet box and ungrounded conductor
on the other side of the outlet box.
5. Before you begin installing the fan, Switch power off at Service panel
and lock service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such
as a tag, to the service panel.
6. Be cautious! Read all instructions and safety information before
installing your new fan. Review the accompanying assembly
diagrams.
7. When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.
8. Make sure the installation site you choose allows the fan blades to
rotate without any obstructions. Allow a minimum clearance of 7
feet (2.1 meters) from the oor to the trailing edge of the blade.
WARNING
WARNING - Hazards or unsafe
practices which COULD result in
severe personal injury or death
DANGER
DANGER - Immediate hazards
which WILL result in severe
personal injury or death
CAUTION
CAUTION - Hazards or unsafe
practices which COULD result in
minor personal injury
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN SUPPORT OF 35 LBS (15.9
KGS) OR LESS” AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET
BOX AND/OR SUPPORT DIRECTLY FROM BUILDING STRUCTURE. MOST OUTLET
BOXES COMMONLY USED FOR THE SUPPORT OF LUMINARIES
ARE NOT ACCEPTABLE FOR FAN SUPPORT AND MAY NEED TO BE REPLACED.
CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.
Page 4
ENGLISH
SAFETY INFORMATION
9. To reduce the risk of re, electric shock, or personal injury, this fan
must be mounted to an outlet box marked suitable for fan support.
And use mounting screws provided with the outlet box. (Mounting
must support at least 35 lbs. (15.9 kgs)
10. WARNING: TO REDUCE THE RISK OF PERSONAL INJURY Do not
bend blade holders during installation to motor, balancing or during
cleaning. Do not insert foreign object between rotating blades.
11. Attach the mounting bracket using only the hardware supplied with
the outlet box. Fan is only to be mounted to an outlet box marked
“Acceptable for Fan Support”.
12. Do not install within a zone measured 3 feet horizontally and 8 feet
vertically from the top of the bathtub rim or shower stall threshold.
13. Before servicing or cleaning unit, Switch power off at Service panel
and lock service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such
as a tag, to the service panel.
14. All set screws must be checked and re-tightened where necessary
before installation.
15. Installation work and electrical wiring must be done by qualied
person(s) in accordance with applicable codes and standards,
including re-rated construction.
READ AND SAVE THESE
INSTRUCTIONS
HOUSEHOLD USE ONLY
WARNING
To reduce the risk of re or electric shock, do not use this fan with any solid-state
speed control device.
WARNING
To reduce the risk of personal injury, do not bend the blade brackets when installing
the brackets, balancing the blades, or cleaning the fan. Do not insert forgeign objects
in between rotating fan blades. Use only with light kits marked suitable for use in
damp locations.
Page 5
ENGLISH
SET UP & USE
PARTS

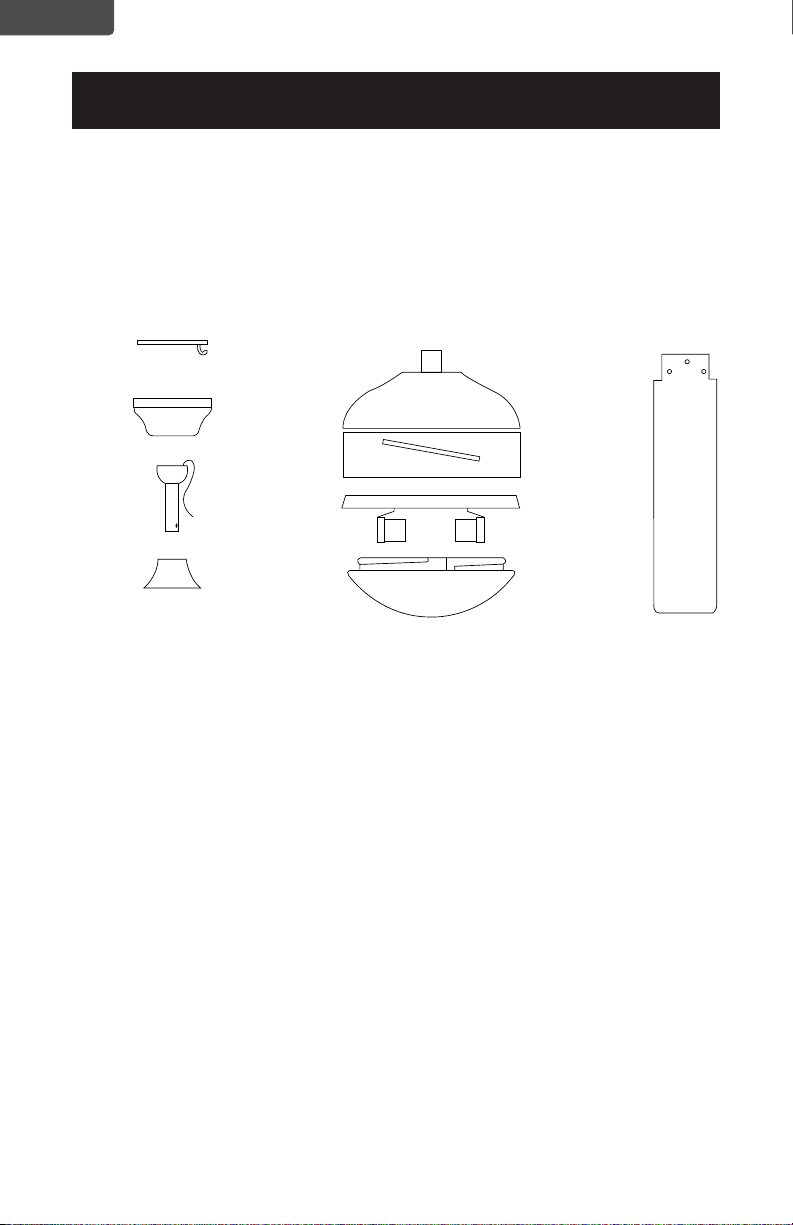

Mounting Bracket
Blade (3)
*Light Fixture
Hardware Pack
* Bulbs not included with light xture (2) type A-19, 9W bulbs required.
Canopy
Screws
Screws for fan blade
Wire Connectors
Washers for fan blade
Motor Housing
Slide Switch
6” Downrod
Pull Chains (2)
Pull Chain Extentions (2)
Page 6
ENGLISH
Ladder
Screwdrivers
Pliers
Wire Strippers
Electrical Tape
(optional) Power drill and drill bit

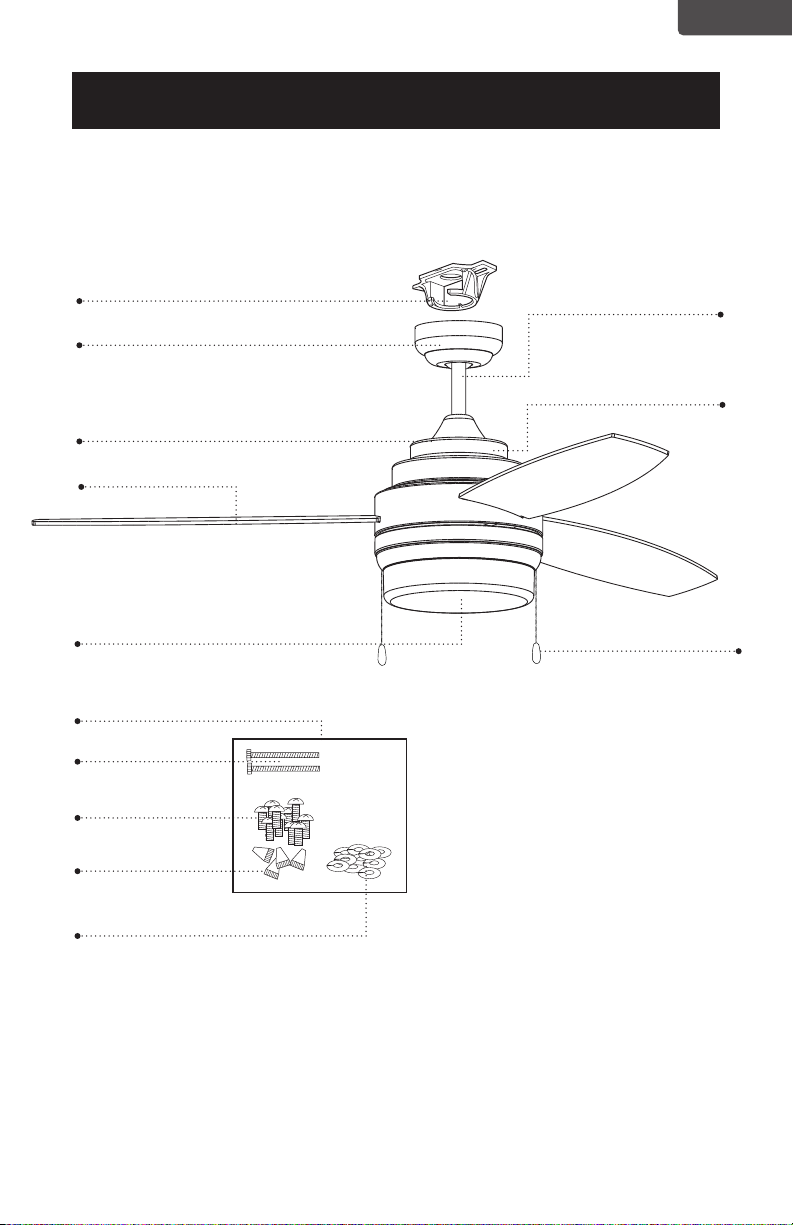

A. Mounting Bracket
B. Canopy
C. 6” Downrod assembly
D. Yoke Cover
E. Fan Motor Assembly
F. Motor Cover
G. Glass Cover (Light Fixture)
H. Fan Blades (3)
Pull Chain (2)
Pull Chain Extensions (2)
A
B E
F
G
C
D
H
RECOMMENDED TOOLS
PARTS INCLUDED
SET UP & USE
Page 7
ENGLISH
SET UP & USE
FEATURES
Downrod
Installation
For normal ceilings
Vaulted Ceiling
Installation
May require a
longer downrod
(sold separately)
CAUTION
To reduce the risk of injury to persons, the fan must be installed so that the blades are
at a height greater than 7 feet (2.1 meters) above the floor.
This fan is designed for indoor use only.
Flush
Installation
For normal ceilings
Page 8
ENGLISH
PREPARING FOR INSTALLATION

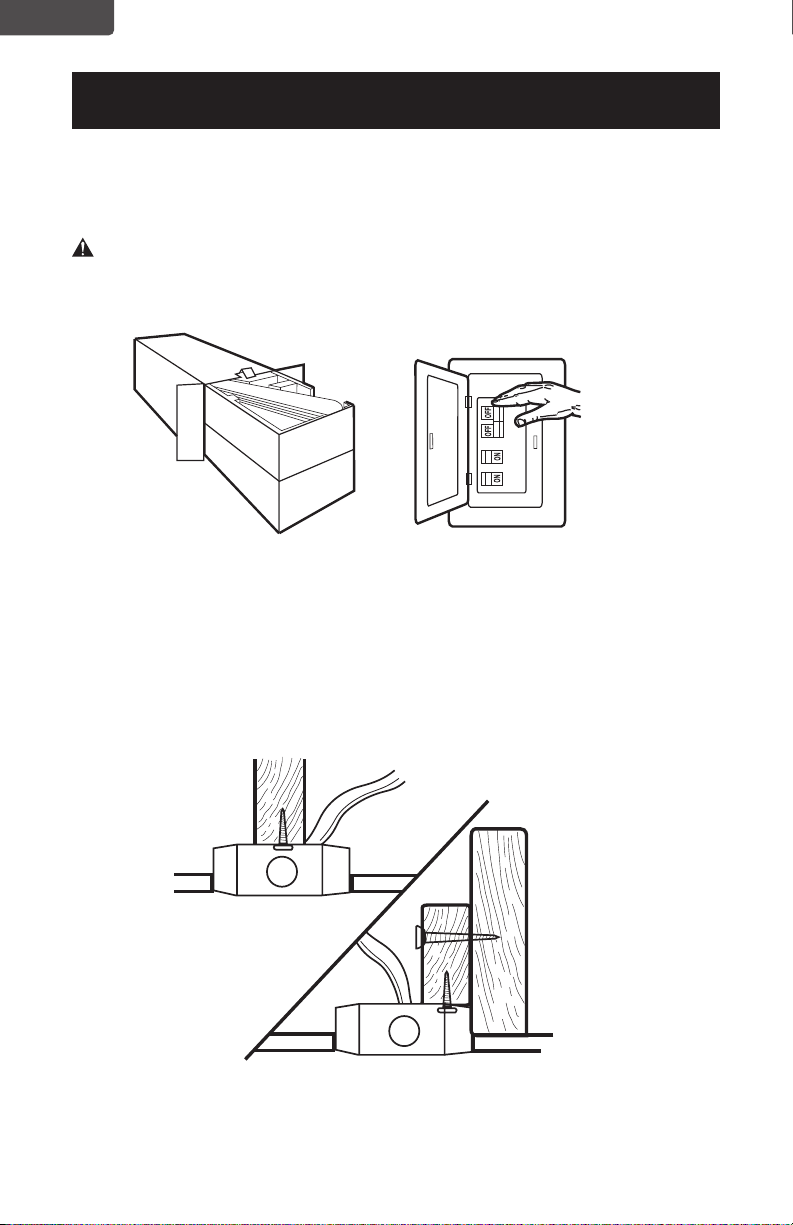

1. Unpack and inspect fan carefully to be certain all contents are included.
WARNING: Turn off power at the breaker box or fuse panel to avoid possible
electrical shock.
2. Use a listed metal outlet box suitable for fan support (rated for 35 lbs (15.9 kgs).
Before attaching fan to outlet box, ensure the outlet box is securely fastened by at
least two points to a structural ceiling member (a loose box will cause the fan to
wobble).
SET UP & USE
Page 9
ENGLISH
MOUNTING BRACKET INSTALLATION

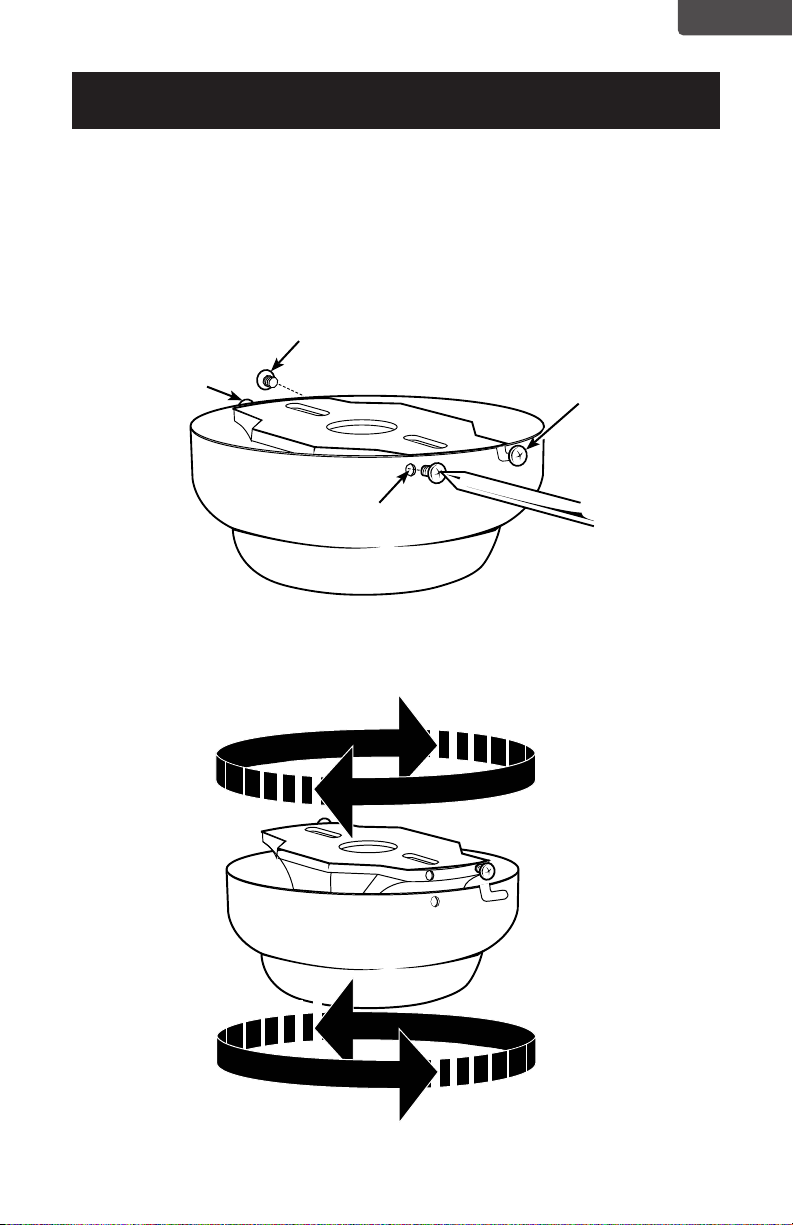

3. Remove the screws from the two mating holes (2) on the canopy. Loosen (do not
remove) the screws in the mating slots (1) on the canopy. Rotate the mounting
bracket and remove from the canopy.
2
1
1
2
2
1
1
2
SET UP & USE
Page 10
ENGLISH

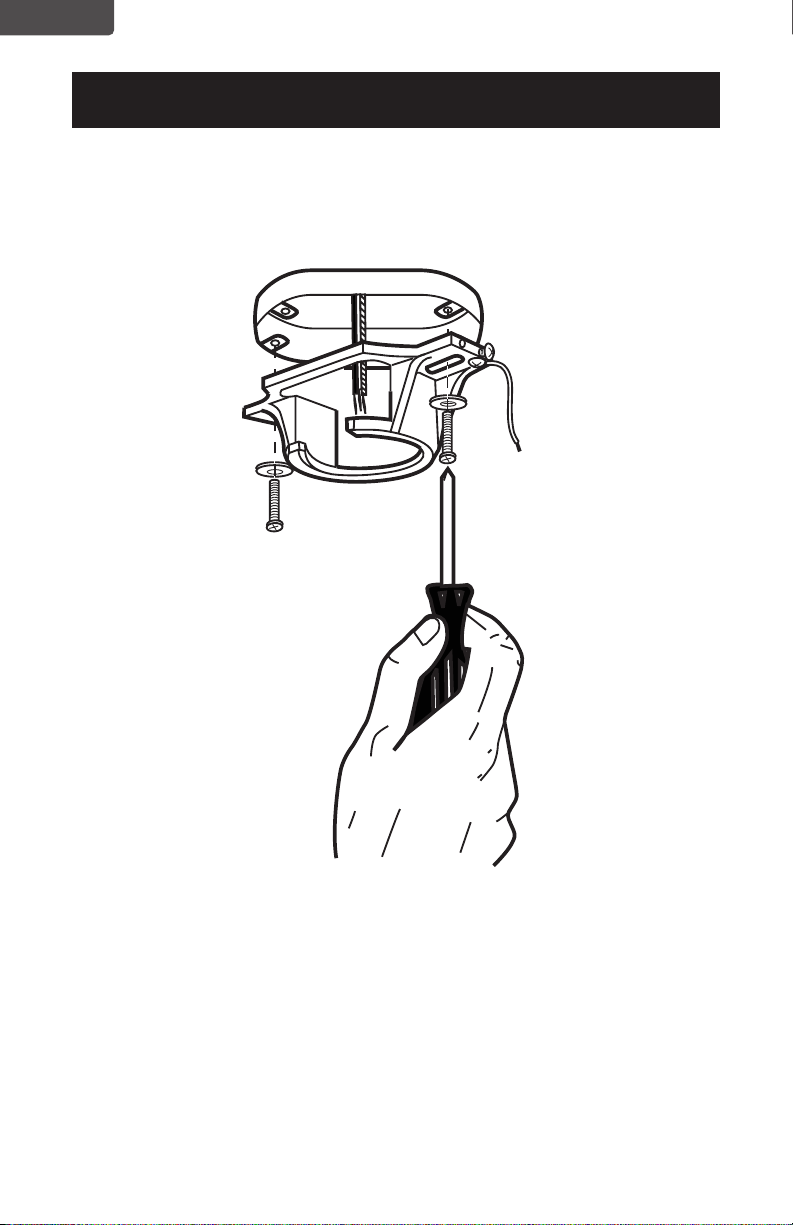

4. Install mounting bracket to outlet box in ceiling using the screws and washers
provided with the outlet box.
SET UP & USE
