COMMAX LOBBY PHONE DRC-700S

User Manual

Intelligent Security & Fire Ltd.

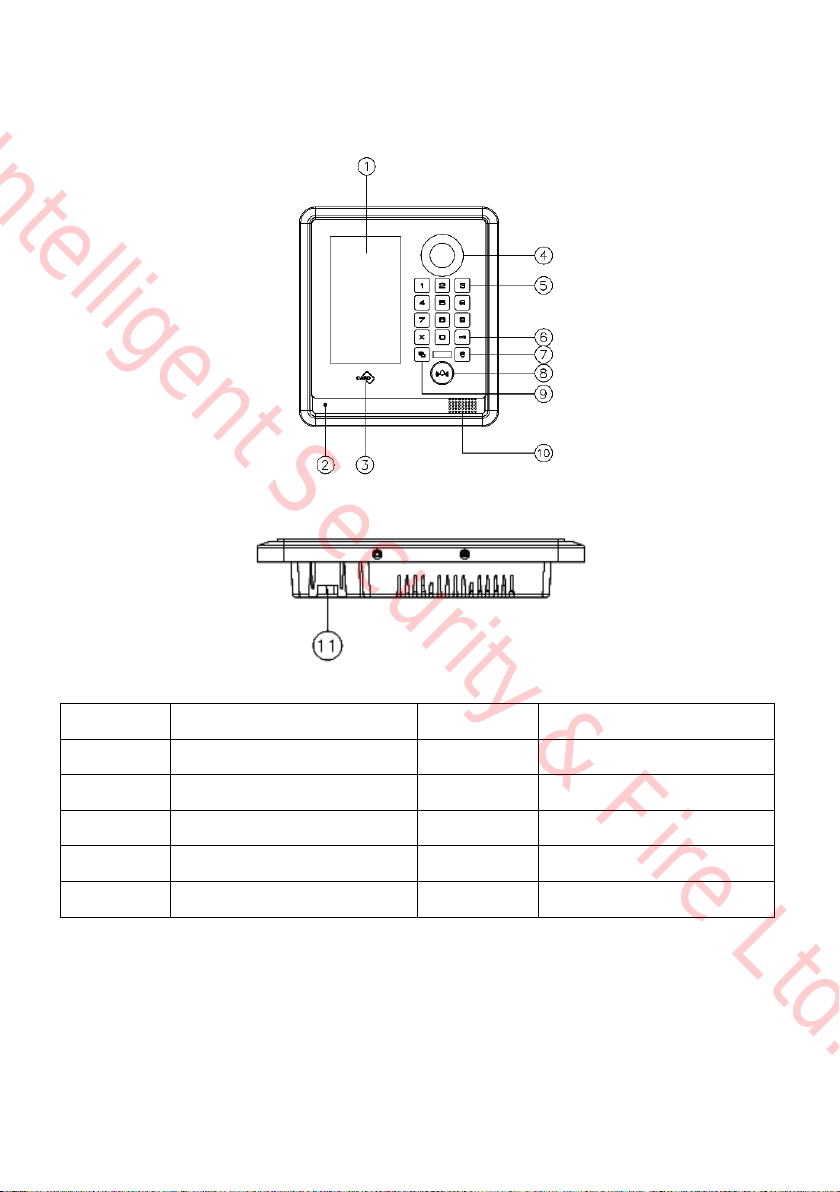

Part names

①

TFT-LCD Screen

⑦

Security Button

②

Mike

⑧

Call Button

③

RF CARD Receiver

⑨

Program Button

④

Camera

⑩

Speaker

⑤

Dial Button

⑪

LAN

⑥

Electric Key Button

Intelligent Security & Fire Ltd.

1. Main Screen Setting

1.1. Main Screen

Skin Theme

Flip Clock

Red Clock

Green Clock

Black Clock

1.2. Status

Icon

Description

Icon

Description

Lan Connection

Registered server status

Display out post lobby

phone

Not Registered server status

Display building lobby

phone

RF-Card Data save status

Intelligent Security & Fire Ltd.

2. Security Call

①Push (Security Guard Post) Button

②Push (Call) button

③Call sound is ringing and call Security Guard Post.

④Call Security Guard Post when guard answer call. (Time: 1 min.)

⑤Press “X”button when terminate call.

⑥Security Guard push ‘Open door’button, “Door is open”voice

comment then door is open.

⑦If line is busy, call it later.

Picture1. Call security Guard

※This is to call up the registered guard stations in advance by a

manager

Intelligent Security & Fire Ltd.

3. Call house

3.1. Communication call between residence

I. When building number is set in advance:

When building No. already registered to Call Prefix

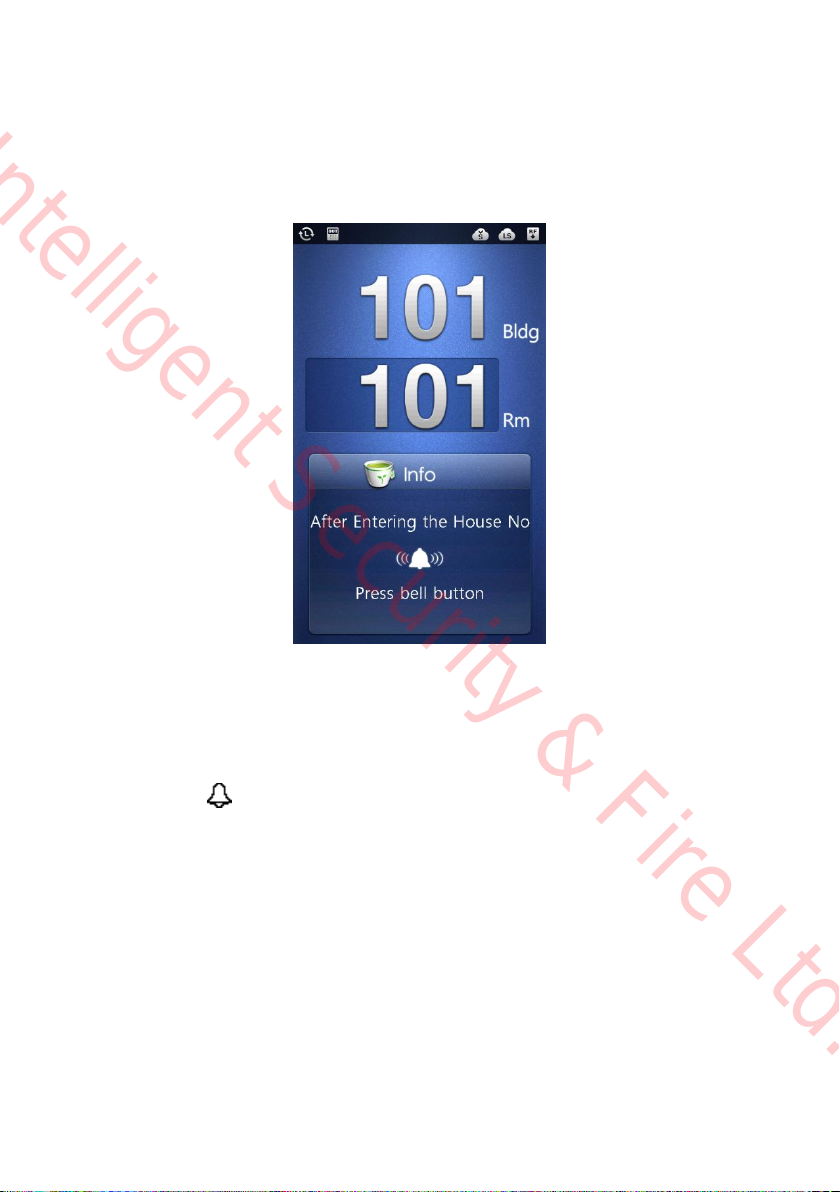

Picture2. Screen for registering house No.

①Input unit No. to key board.

Ex) Unit 101 input ‘101’

②Push (call) button.

③Ringing call sound and call unit.

④When tenants answer call, calling is on. (Max. time: 1 min)

⑤Press “X”button when terminate call.

⑥Tenant push ‘Open door’button, “Door is open”voice comment

then door is open

Intelligent Security & Fire Ltd.

II. When building number is NOT set in advance:

When building number hasn’t been registered Call Prefix yet.

Picture3. Building house No. register screen

①Input Building No. to key board.

Ex) Building 101 input ‘101’

②Input unit No. to key board.

Ex) Unit 101 input ‘101’

③Push (call) button.

④Ringing call sound and call unit.

⑤When tenants answer call, calling is on. (Max. time: 1 min)

⑥Press “X”button when terminate call.

⑦Tenant push ‘Open door’button, “Door is open”voice comment

then door is open

Intelligent Security & Fire Ltd.

4. Access authorization

4.1 Opening the entrance with RF card.

①Tag RF card to ‘Card tagging window’.

②The common entrance get be opened with a vocal message, “door

opens”when the access is successful.

③The entrance does not be opened when the access fails with

sound.

Picture4. Tag RF-Card

4.2 Access by PIN No.

I. Building Number designated case:

Building Number designated in Call Prefix

①Input unit No. through key board.

②Push (Key) button.

③Input designated house PIN No.

④Push (call) button.

⑤If access authorization is successful, Door is open with “Door is

open”voice message.

⑥If access is failed, warning sound is activated.

Intelligent Security & Fire Ltd.

II. Building Number is not designated case:

Building Number is not designated in Call Prefix

①Input Building No. through key board.

EX) Building 101 Input 101

②Push (call) button.

③Input unit No. through key board.

Ex) Unit 101 Input 101

④Push (call) button.

⑤If access authorization is successful, Door is open with “Door is

open”voice message.

⑥If access is failed, warning sound is activated.

Picture5. Input password (PIN)

Intelligent Security & Fire Ltd.

4.3. Use password for accessing when system is OFF-Line

(No connection with Local server)

①Push (Key) button.

②Input PIN number.

③Push (call) button.

※This function is not activate when it is On-Line (possible to interface

with local server status).

※Please, should delete OFF-LINE PIN number when On-Line mode is

activated.

Intelligent Security & Fire Ltd.

5. Set up

Set up

①Push button.

②Input PIN number.

③Push (call) button.

※We recommend user change initial password (0000) then use products

for security.

※Initialize password: + “0000”+ + + + +

button map

※” “is DOT (.) for IP address typing.
