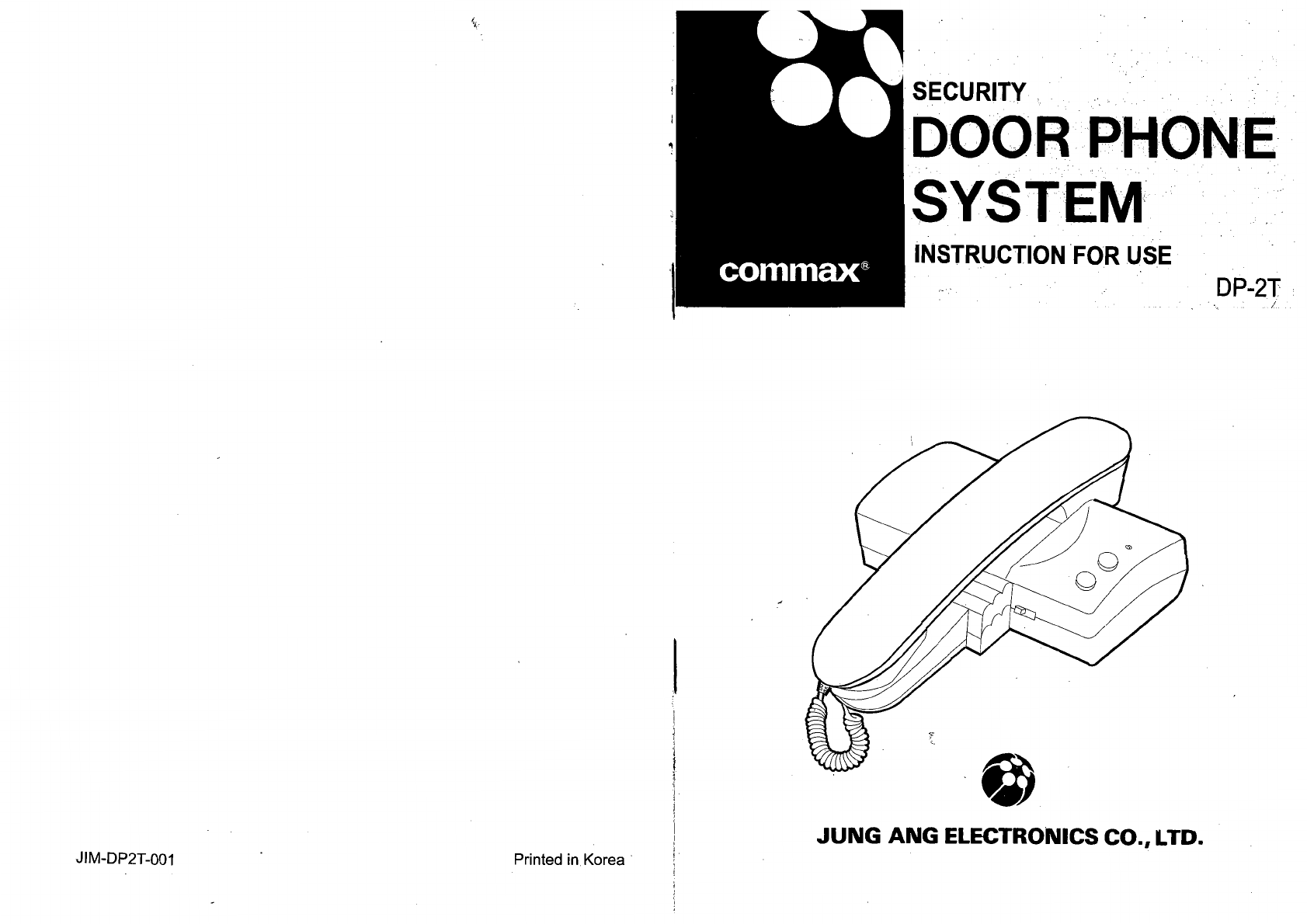

Commax DP-2T Manuel utilisateur

<,,,

SECURITY.

DOOR PHON

SYST·EM

INSTRUCTION

FOR

USE

DP-2T

~..:-

JUNG

ANG

ELECTRONICS CO.,LTD.

JJM-DP2T-001 Printed

in.

Korea ·

• INTRODUCTION

Congratulation

the purchase

your new Security Doorphone System!

Please read these instructions carefully before installing

your;

system and follow

all

the directions to ensure proper installation.

This instruction manual explains

simple steps how to install, use

.•

and care for

your new security system

homes, offices or businesses.

• PARTS CHECKLIST

Room Station

Mounting Bracket

Mounting Screws

MagneticSwitchs

Door station

EfiDJ

Magnetic Switch

"""'

Mounting Bracket

Door Station

''''

Screws

Figure 1

• FEATURES

ROOM STATION

Handset

Lift to communicate with your visitor.

2. Theft Enunciator Device

Sounds Alarm ifthe invader comes in.

3.Hook

Choose operation or stand-by mode

by handset.

4. Security Lamp

See set security mode.

5. Security Button

Push to set security mode.

6. Door Release Button

Releases the door to let your visitors

·after checking them.

DOOR STATION

Speaker---,

Call Button

Microphone

Screw-·-

•---

Mounting

Bracket

Figure 2

Call Sound Volume

Permits the adjustment

the call

sound volume.

8. AC Power cord

Plugs the room station

to the AC

outlet.

Terminal A

connection to the electric door

opener.

Terminal B

Connection to the door station.

11. Terminal C

connection to the magnetic switch.

Junction

Ill

•lai!Go

Terminal

Figure 3

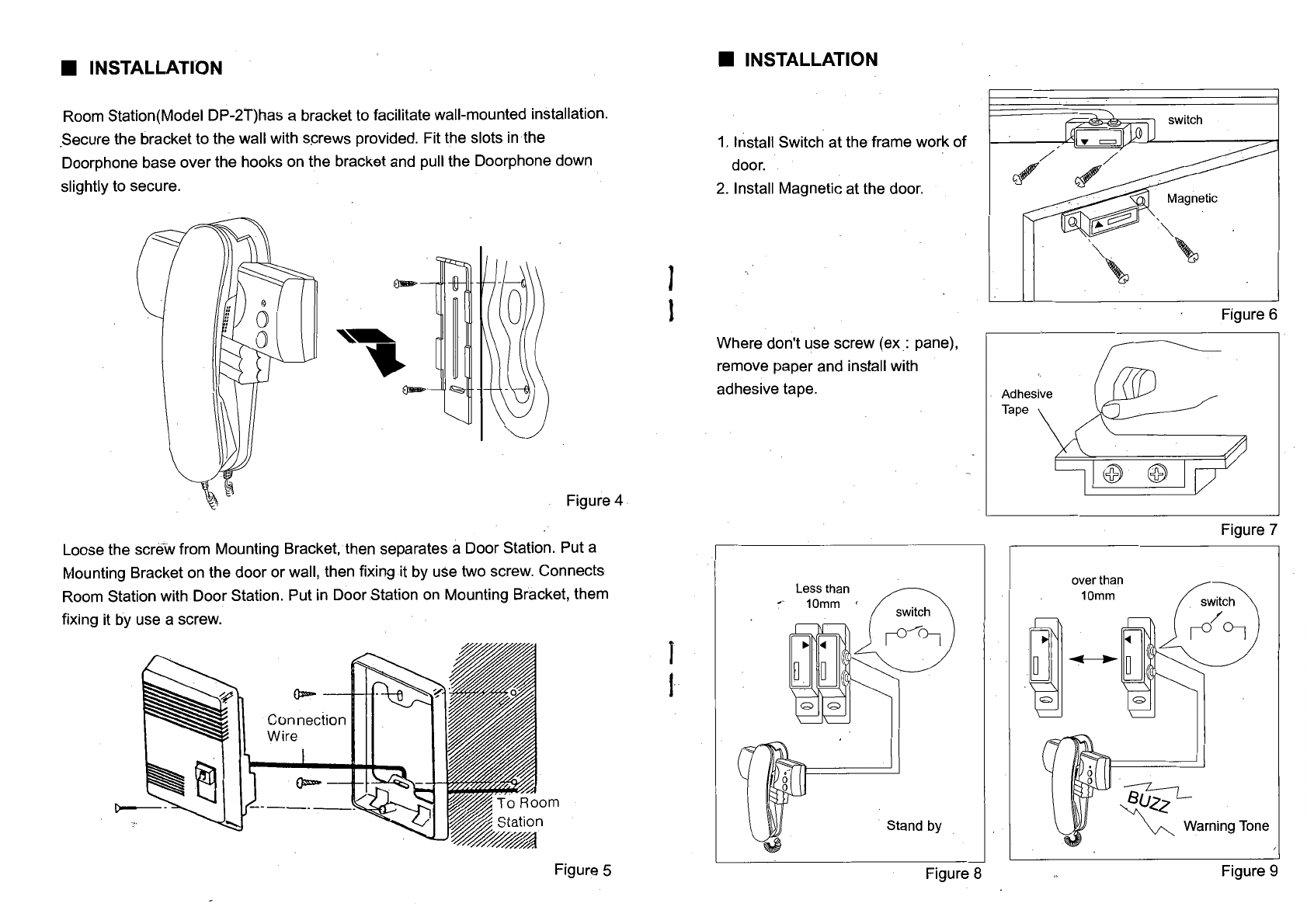

• INSTALLATI'ON

Room Station(Model DP-2T)has a bracket to facilitate wall-mounted installation.

.Secure the bracket to the wall with screws provided. Fit the slots

the

Doorphone base over the hooks on the bracket and pull the Doorphone down

slightly to secure.

e--

""•

Figure 4

Loose the screw from Mounting Bracket, then separates a Door Station. Put a

Mounting Bracket on the door or wall, then fixing it by use two screw. Connects

Room Station with Door Station. Put

Door Station on Mounting Bracket, them

fixing it by use a screw.

Figure 5

• INSTALLATION

Install Switch at the frame work

door.

Install Magnetic at the door.

Where don't use screw

(ex:

pane),

remove paper and install with

adhesive tape.

Stand by

Figure 8

Adhesive

Tape

"",

@ @

over than

10mm

Figure 6

Figure 7

Warning Tone

Figure 9

• INSTALLATION

Install the Magnetic Switch at the

window.

Figure 10

• WIRING

Door Station

Magnetic Switch

Install the Magnetic Switch at the door.

Power Source

Figure

Electric

Door Opener

Power Source

Figure 12

• OPERATION

Insert AC Power Cord to outlet after wiring.

Visitor Calling:

A visitor presses the Call Button on the Door Station.

A call tone

heard which verifies the call was placed.

The visitor then talks handsfree after you answer the

call.

Room Station :

Pick up the Handset to talk to the visitor.

Hanging up the Handset returns the Room Station to

stand by mode.

Note. call sound can

adjusted by Call Sound Volume.

(Figure

Operating the Electric Door Opener:

If desired depress and hold the

Door

Release Button which

will activate the electric door strike (optional accessory

required).

Security Alarm

When

Push

Security Button, Security Lamp

"ON". And

setting security mode.

When Magnetic part Switch over than 1

Omm

by invader.

Alarm Sound hear at Room Station and Door Station.

If desired stop alarm sound, push Security Button again

so Security Lamp

"OFF" and security mode cancel.

• SPECIFI CATION

Power Source

Power Consumption

Call Tone

Alarm system

Maximum Wiring Distance

0/120/220/230/240V, 50-60Hz

4.5W

2 sound electronic chime

Warning tone

50m/165feet(22AWG)
