Comeup GTD-650 Manuel utilisateur

Heavy Duty Hoist

Model:

GTD

PN: 750265 12V

750280 24V

Introduction

Feature

Line lifting:

295 kg / 650 lb wire rope first layer

Wire rope: 3.6 mm × 18.3m galvanized aircraft A7 × 19

Brake:

Mechanical spring applied and permanent motor

dynamic brakes together

Control:

Handheld pendant switch powers the hoist

Unpacking

．

．．

．

Hoist assembly……………………………………………………………

1 pc

．

．．

．

Control box………………………………………...................................

1 pc

．

．．

．

Remote control……………………………………………………………

1 pc

．

．．

．

Wire rope with hook………………………………………………………

1 pc

Read this manual carefully

Carefully read and understand this manual before operating the winch.

Careless winch operation may result in personal injury, danger to others and or

damage to property

Information requesting or parts ordering

Please specify the following information:

．

．．

．

Hoist PN

．

．．

．

Part description

．

．．

．

Serial number

．

．．

．

Replacement part number

．

．．

．

Quantity for each part

Installation

Before using the winch ensure all electrical components are in good condition

and all connections are sound.

Hoist mounting

．

．．

．

Four (4) M8 x 25L 8.8 grade with 22 N-m torque settings (maximum) high

tensile steel bolts must be used in order to sustain the loads imposed on the

winch mounting

Wire Rope Replacement

．

．．

．

Feed the end of the wire rope through the anchor hole in the drum and make

a loop in the anchor pocket. Insert a wedge in the loop and tighten the rope

for securing purpose.

．

．．

．

Make sure the first layer of wire rope is tight and maintain a freeboard at least

1.5 x rope diameter.

．

．．

．

Wire rope shall be wound in an under-wound orientation only.

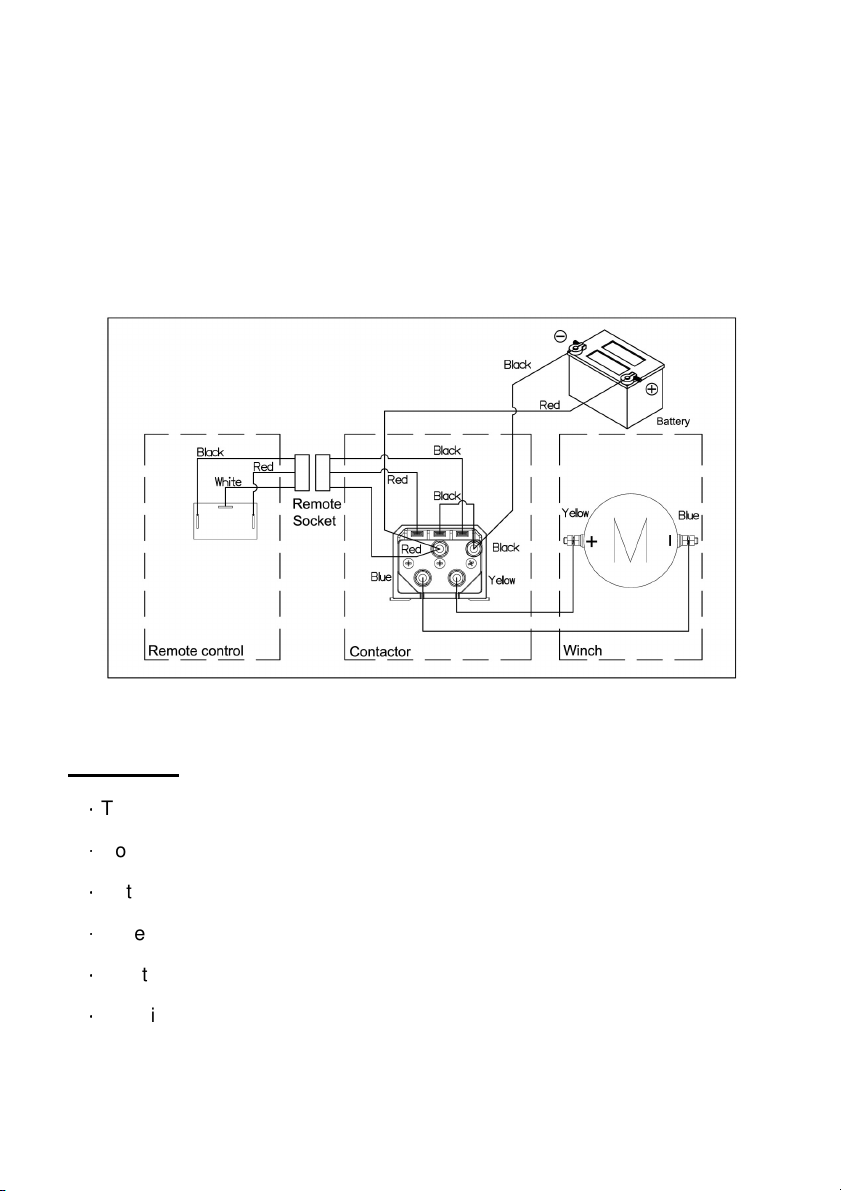

Wiring Diagram

Attach the black lead firmly to the negative (–)battery terminal and red lead to

the positive (+) battery terminal. The voltage drop for the winch motor must not

exceed 10% of the nominal voltage of 12/24vdc.

Warning

．

The operator shall always work in compliance with the operating instructions.

．

Do not Overload the winch. Overload protection should be provided.

．

Not for the Transporting or lifting of personnel.

．

Excessive inching should be avoided

．

Don’t try to move obstructed loads and side-pull of load is not allowed

．

A minimum of 5 compete wraps of rope on the drum is required at all times

Parts List

Item No. Description Part No. Qty

1 Motor 12V 882417 1

Motor 24V 882288

2 Motor couple kit 880988 1

3 Drum bushing 880990 2

4 Drum kit 882322 1

5 Tie bar kit 880992 1

6 Tie bar kit 880993 2

7 Gearbox support rack 880994 1

8 3

stage carrier 880995 1

9 2

stage carrier 880996 1

10 1

stage carrier 880997 1

11 2

ring gear kit 880998 1

12 1

shaft kit 880999 1

13 Gearbox kit 882418 1

14 Gearbox rear cover kit 882320 1

15 Remote control 880025 1

16 Control box 12V 882313 1

Control box 24V 882314

16-1 Remote socket kit 880029 1

16-2 Control pack 12V 882315 1

Control pack 24V 882316

17 Mounting hardware 882545 1

18 Wire rope w/hook 882323 1

Hoist Assembly (GTD650)
