Quick reference Guide for

Single-User Kit HFX-7000M

also available in

French and Spanish

QUICK

REFERENCE

GUIDE

monitor backplate

×1 ×1 ×4 ×4

screws

dry wall

anchors

EX-7000H - Monitor

EX-7000H 1209/4EX-DSME

PUSH HERE

HFX-7000M Kit

Replaceable call buttons

for 2 usersfor 1 user for 4 users screwsexternal unit

×3 ×3

dry wall

anchors

×1

×1 ×1 ×1

PUSH HERE

EX-DSME - External unit

screwspower supply

×1 ×2

1209/4 - BUS Power supply

Passion.Technology.Design.

QUICK

REFERENCE

GUIDE

EN FR ES

Quick reference Guide for

Single-User Kit HFX-7000M

also available in

French and Spanish

Technical manual

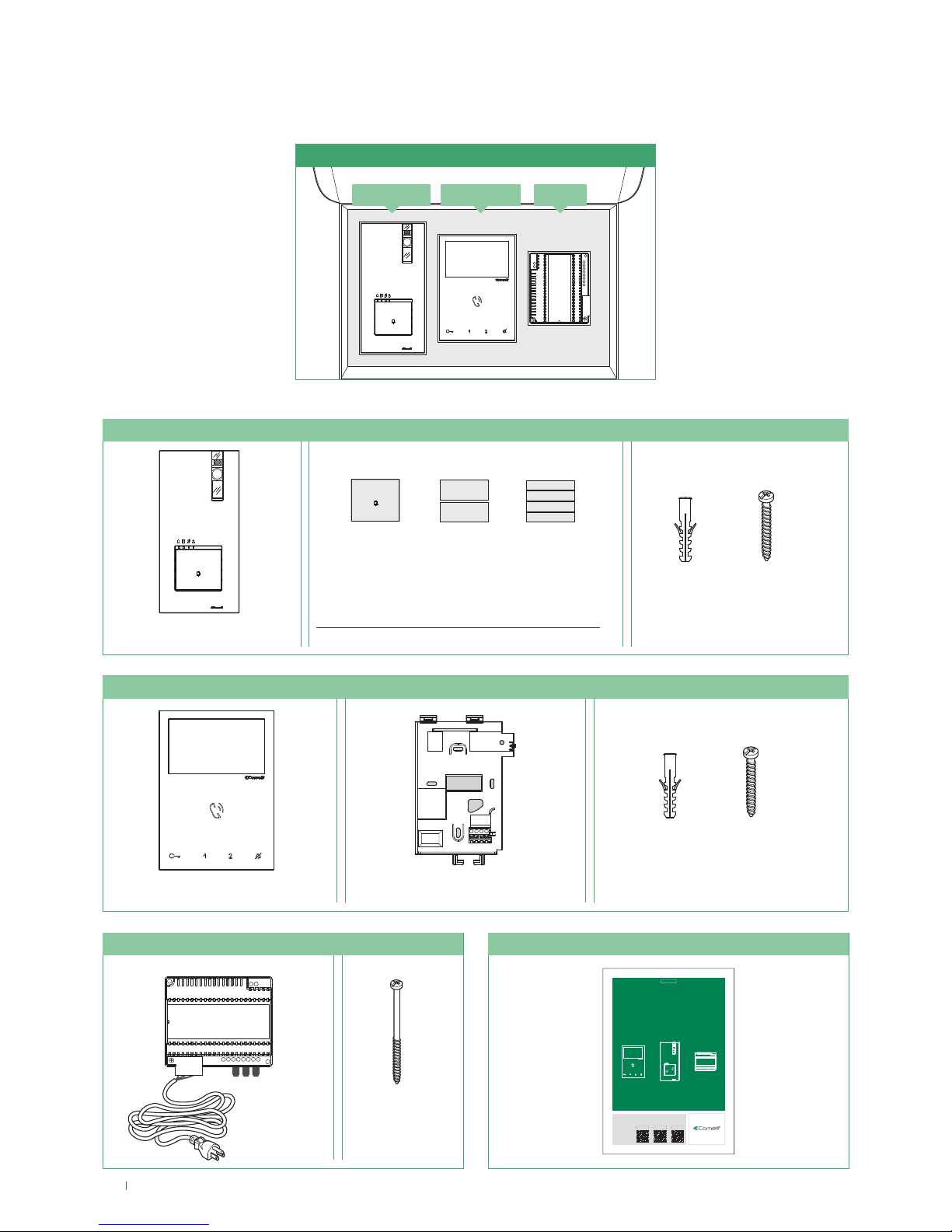

1. Contents of the package

2. Parts identiﬁcation

2.1 EX-DSME EXTERNAL UNIT 3.79 in

7.72 in

1.06 in

PUSH HERE

10.

11.

12.

13.

14.

15.

16.

PUSH HERE

1. Die-cast aluminium cover

2. Camera lighting LED

3. Wide-angle colour camera

4. Loudspeaker

5. Indicator LED

call sent / lock-release enabled

audio enabled / system engaged

6. Call button 1 / 2 / 4 users

For instructions on replacing the nameplate, see page 13.

For instructions on enabling the buttons on 2/4 button

front panels, see the “special functions programming”

section on the complete manual.

7. Microphone

8. Terminal block M1

LL bus line connection

RTE timed local lock-release input

COM common input for RTE and DO contacts

DO door open indication input

9. PR programming input/output switch

10. CNF programming confirmation switch

11. Loudspeaker volume control

12. Audio balance (Factory default do not touch)

13. Terminal block M2

SE- SE+ connection for electric door lock

NC relay normally closed contact

NO relay normally open contact

Crelay common contact

14.JP1 enable RC network for door lock filter on relay contacts

ON CONTACTS C. NO. ON CONTACTS C. NC.

DISABLED: CLEAN CONTACT

15.DIP SWITCH for function programming

16.Microphone volume control

4.52 in 0.83 in

6.29 in

2.2 EX-7000H MONITOR

1. Loudspeaker volume control

2. Brightness control

3. 4.3" Color LCD Screen

4. Call volume adjustment (high - medium - low)

5. Microphone

6. Capacitive-touch keys

7. Speaker and audio activation key / Paging call key

8. S1 Micro-switches for user code setting

9. S2 Micro-switches for programming keys and functions

DIP 1-2-3-4 for key function programming

DIP 5-6 access to programming

DIP 7 unused

DIP 8 leave default setting (OFF)

10.Factory setting - DO NOT CHANGE!

11. Factory setting - DO NOT CHANGE!

12. CV 5 Video closing jumper

13. Pin for securing terminal block

Terminal block for system connection:

L L Bus line connection terminals

CFP1 CFP2 Outside door call input

Capacitive-touch key description:

Press the desired key once to activate the function associated

with it.

Wait for approximately 1 sec. before pressing the same

key again. Pressing the same key several times in quick

succession will cancel the command.

Lock-release key

Key 1 Actuator function (programmable)

Key 2 Self-ignition function (programmable)

Privacy key

Speaker and audio activation key / Paging call key

Indicator LED description:

Lock-release LED

slow continuous ﬂashing: door open

1 ﬂash after pressing: door opening conﬁrmation

continuous ﬂashing: call in progress

1 ﬂash after programmation: Conﬁrm “Key programming executed”

Privacy LED (red)

steady: privacy function enabled

3 ﬂashes (every 5 sec.): doctor function enabled

continuous ﬂashing: device in programming mode

Audio key LED

steady (with call): audio activated

steady (idle): automatic answer activated

continuous ﬂashing: incoming call

4.17 in 3.52 in

2.44 in

50-60Hz

OUTPUT/SORTIE 34V 0.5A 2A 1'on/5'o

ta=40°C

110V-240V 1.4A

LNL4

INPUT/D'ENTREE

Dopo un cortocircuito,per ripristinare l'apparecchio,

interrompere l'alimentazione per circa 1 minuto.

To reset the operation after a short circuit,cut o mains

voltage for about 1 minute.

Apres un court circuit, pour remettre en fonction l'appareil,

interrompre l'alimentation pendant environs une minute.

L2L2L1L1

C US

Art.1209/4

1. 2.

3.55 in

1.42 in 2.28 in

2.3 1209/4 BUS POWER SUPPLY

2.4 PARTS IDENTIFICATION FOR EXPANSION

ADDITIONAL INTERNAL UNIT

EX-7000H

The Art. EX-7000H is the additional internal unit for Single-User Kits (see

page 4 for further information)

ADDITIONAL EXTERNAL UNIT

EX-DSQE

1405

EX-DSME

The art. EX-DSQE is the additional external unit for Single-User Kits

and contains the external unit art. EX-DSME (see page 3 for further

information) and the Video door expander art. 1405 (see point 2.4.1 for

further information)

1. LM LM Art. 1209/4 connection

2. LS | LS additional external unit connection

LP | LP main external unit connection

1. LP LP external unit connection

2. L1 | L1 monitor connection 1

L2 | L2 monitor connection 2

L3 | L3 monitor connection 3

L4 | L4 monitor connection 4

3. Video closing jumpers (REMOVE

WHEN LINE IS USED)

4. L N mains power input 110-240

2.4.1 Video door expander art. 1405

1209/4

EX-7000H

expansion monitor

EX-7000H

expansion monitor

EX-7000H

expansion monitor

EX-DSME

HFX-7000M

3.1.2 Maximum expansion monitors in daisy chain connection

3.1.1 Single-User Kit art. HFX-7000M

1209/4

EX-7000H

EX-DSME

HFX-7000M

3. System installation

Maximum 2 monitors

per output

Wire Assignment Wire Assignment Wire Type A MAX B MAX C MAX

SINGLE PAIR CABLE CAT5

24AWG

1,115 feet

(340 m)

557 feet

(170 m)

557 feet

(170 m)

DOUBLE PAIR

CABLE

CAT5

24AWG

1,312 feet

(400 m)

656 feet

(200 m)

656 feet

(200 m)

MULTI PAIR CABLE

FOLLOW THE COLORS

SHOWN IN THE DIAGRAM!

GREEN

ORANGE

BLU

GREEN / WHITE

ORANGE / WHITE

BLU / WHITE

BROWN / WHITE

BROWN

CAT5

24AWG

1,312 feet

(400 m)

656 feet

(200 m)

656 feet

(200 m)

non-braided cable AWG22 1,115 feet

(340 m)

557 feet

(170 m)

557 feet

(170 m)

non-braided cable AWG18 1,181 feet

(360 m)

590 feet

(180 m)

590 feet

(180 m)

3.1 OPERATING DISTANCES AND SYSTEM LAYOUT

1209/4

EX-7000H EX-7000H

expansion monitor

EX-7000H

expansion monitor

EX-7000H

expansion monitor

1405 14051405

EX-DSME EX-DSME EX-DSME EX-DSME

HFX-7000M

EX-DSQE

expansion external unit

EX-DSQE

expansion external unit

EX-DSQE

expansion external unit

3.1.3 Full System Expansion Diagram

EX-DSQE

1405

EX-DSME

NOTE: This system is capable to expanding up to 4 external units and 4 internal units. For alternative application please consult

our technical support engineer first.

At the first connection on the riser, the internal units automatically acquire theirs sub-addresses.

The LEDs and flash simultaneously for some seconds. After the procedure the LEDs will turn off.

The art. EX-DSQE is the additional external unit for Single-User Kits and contains the external unit art. EX-DSME and the art.

1405 Video door expander.

85 764321

EX-7000H

LL O

NC C

EX-DSME

34 Vdc

S1 A

1209/4

L1 L1 L2 L2

110-240V

LP LP L3 L3 L4 L4

LEAVE

DEFAULT SETTING

Local lock release button

Wiring diagram: MNVK/039QCU

STANDARD INSTALLATION

Basic single-user kit

85 764321

EX-7000H

S1 A

1209/4

L1 L1 L2 L2

110-240V

LP LP L3 L3 L4 L4

85 764321

EX-7000H

S1 A

EX-DSME

85 764321

EX-7000H

S1 A

85 764321

EX-7000H

S1 A

REMOVE WHEN LINE IS USED

REMOVE CV5

HFX-7000M

REMOVE CV5

LEAVE DEFAULT SETTING

LEAVE DEFAULT SETTING LEAVE

DEFAULT SETTING

LEAVE

DEFAULT SETTING

Wiring diagram: MNVK/Q19U

CV5

Video Closing Jumper

MAXIMUM EXPANSION IN DAISY CHAIN CONNECTION

Expanded single-user kit

0 1 2 3

85 764321

EX-7000H

HFX-7000M

S1 A

1209/4

L1 L1 L2 L2

110-240V

LP LP L3 L3 L4 L4

85 764321

EX-7000H

S1 A

85 764321

EX-7000H

S1 A

85 764321

EX-7000H

S1 A

1405

THESE DEVICES

MUST BE STORED TOGETHER MAXIMUN CABLE LENGHT FOR 1405: 3 feet

LL O

NC C

EX-DSME

85 764321

LL O

NC C

EX-DSME

85 764321

LL O

NC C

EX-DSME

85 764321

LL O

NC C

EX-DSME

85 764321

REMOVE WHEN LINE IS USED

SET THE ADDRESS SET THE ADDRESS SET THE ADDRESS

LEAVE DEFAULT SETTING

LEAVE DEFAULT SETTING LEAVE DEFAULT SETTING LEAVE DEFAULT SETTING

Wiring diagram: MNVK/012BQCU

EX-DSQE

1405

EX-DSME

EXTERNAL UNIT ADDRESSING

DIP 1 DIP 2 DIP 3 CODE

0 0 0 0 (default)

1 0 0 1

0 1 0 2

0 0 1 3

The addresses must be consecutive!

correct: 0,1,2,3 / incorrect: 0,1,3

Local lock release button

Expanded single-user kit

MAXIMUM EXPANSION
