Colors CR4-GBA Manuel utilisateur
CR4-GBA
www.colorsled.comE-mail:colors@colorsled.com Version A/00
RGBW LED Strip Controlier/Remote
Specification
CK4-GBA
滚滚长江东逝水
www.colorsled.comE-mail:colors@colorsled.com
CR4-GBA CK4-GBA
DC12-48V
Max 240W@12V
Max20A,5Ax4CH
L175*W45*H27mm
Max 20.5A
DC12-48V
Max 720W@36V
-30℃— +55
℃
Max 480W@24V
Max 960W@48V
RF2.4GHz+ Push Dim
30m(Barrier-free space)
4096 (2^12) levels
0-100%
CE ,RoHS
5 years
IP20
RF(2.4GHz)
3VDC(2032 Battery)
＜5mA
＜10uA
1 years
1 zone
L107*W58.5*H9mm
IP20
-30℃— +55℃
CE、RoHS
5 years
Max 60℃
Reverse polarity,Over-heat,
Over-load, Short circuit
Model NO. Model NO.
Input voltage
Input current
Output voltage
Output current
Output power
Input singal
Control distance
Controller
Dimming gray scale
Dimming range
Protection
Production size
Ta
IP rating
Warranty
Output singal
Working voltage
Working current
Remote
Standby current
Standby time
Remote distance
Zone
Size
IP rating
Ta
Warranty
30m(Barrier-free space)
Tc
● Certification: CE, RoHS
www.colorsled.comE-mail:colors@colorsled.com

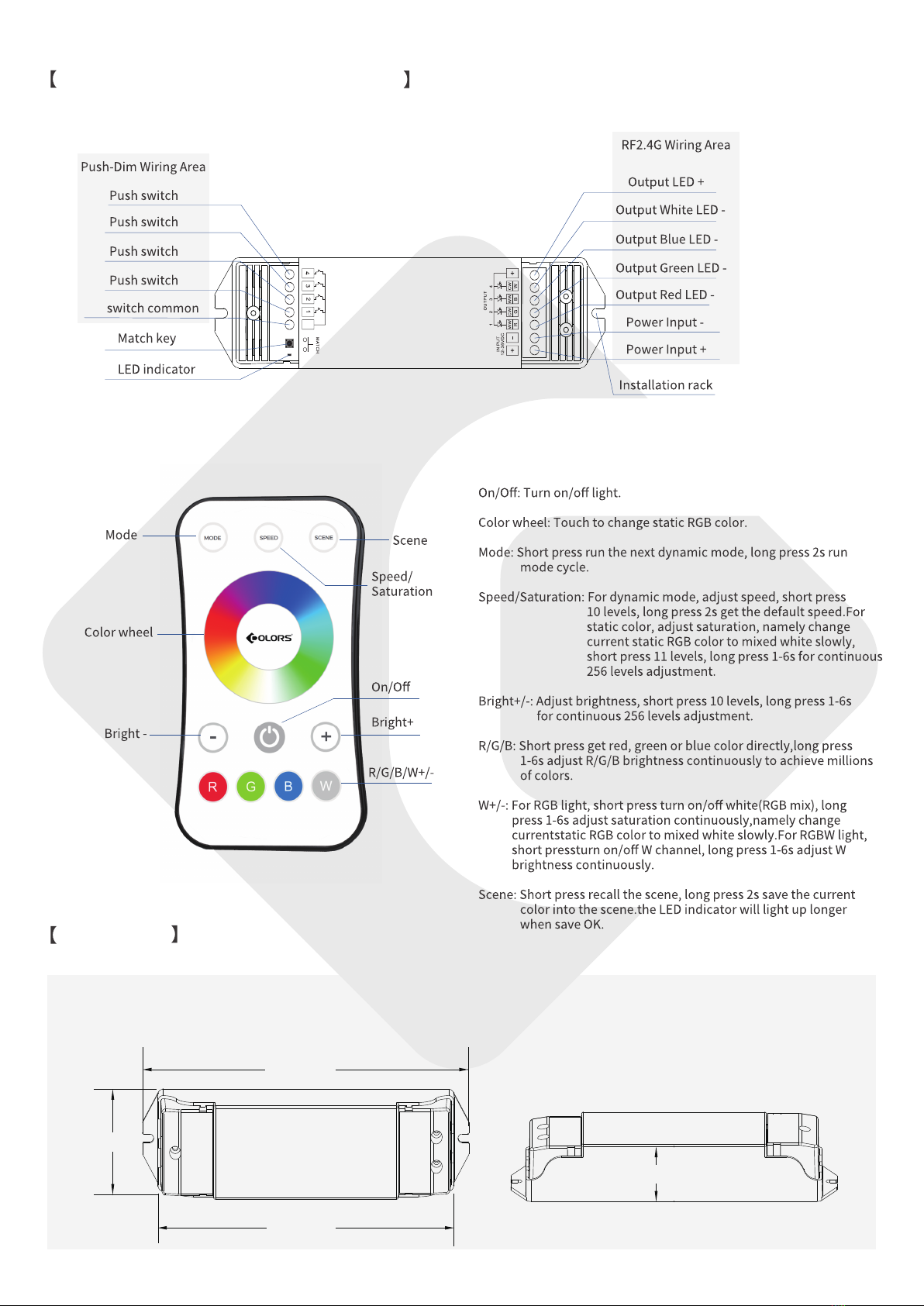

Operation identification description
27mm
175mm
160mm
45mm
Push-Di m
GND
Dimensions
2. CK4-GBA :
1. CR4-GBA :
1. CR4-GBA :
R
G
B
W
www.colorsled.comE-mail:colors@colorsled.com
W
Pu sh-Dim
GN D
AC220-240V
9mm
58.5mm
58.5mm
107mm
63.00 mm
68.00 mm
37.00 mm
Note: Before the first use,
please remove the
protective film on the
battery.
Back holder
CR2032
Battery
To fix the remote, two options are offered for selection:
Option 1:
fix the remote' back holder on the wall with two screws.
Option 2:
the remote' back holder to the wall with tape.
Stick
Note: If the LED indicator is not on when press key,it is due to
dead battery or bad contact caused by multiple plugging,
please replace the battery, or raise the battery shrapnel with
a screwdrive.
2. CK4-GBA :

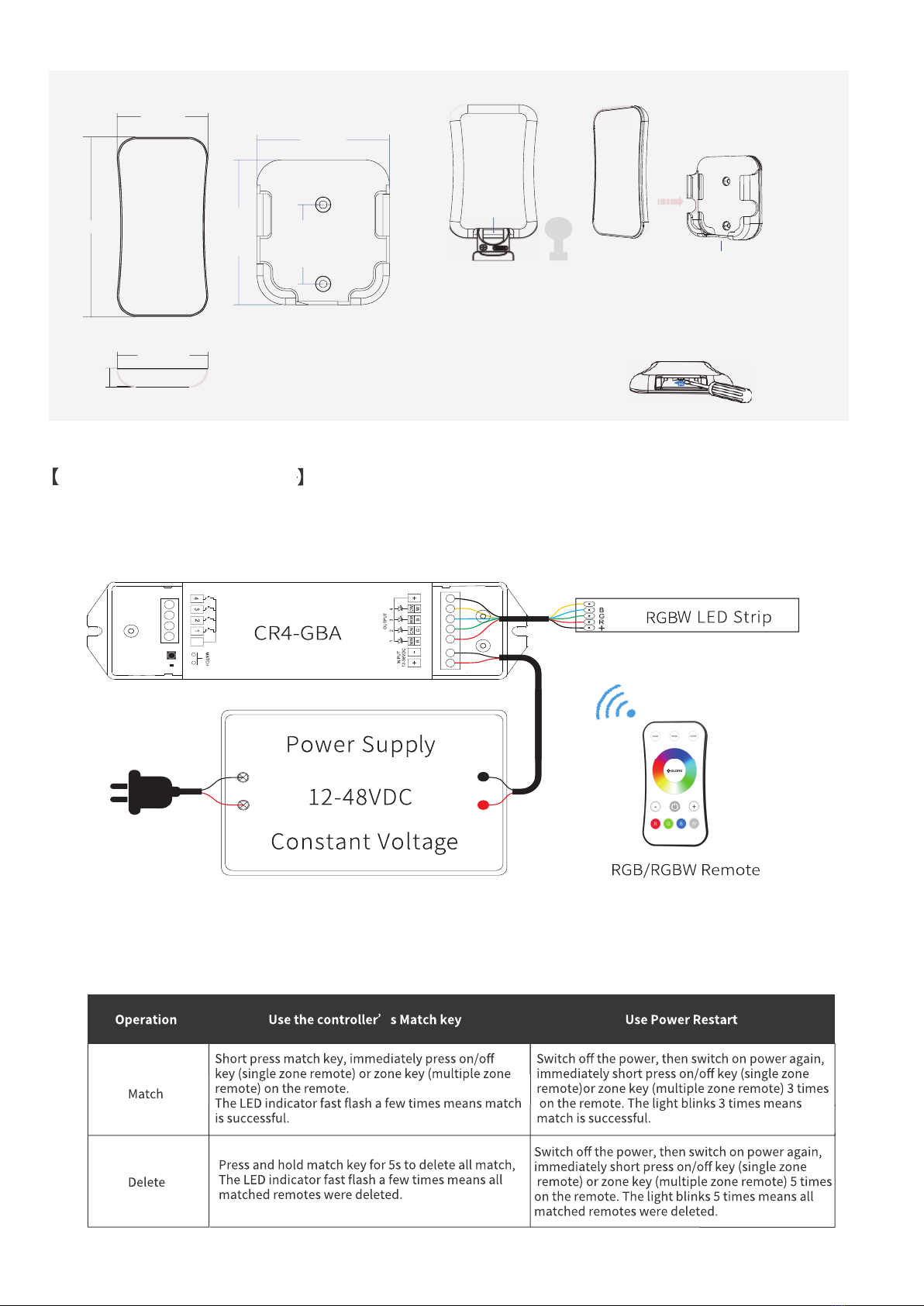

Wiring IntroductionRF2.4G
1. Wiring Diagram :
2. RF2.4G Match Remote Control (two match ways) :
www.colorsled.comE-mail:colors@colorsled.com
+
+
+
+
Push-Dim
GND
CR4-GBA
AC220-240V
30m 30m 30m

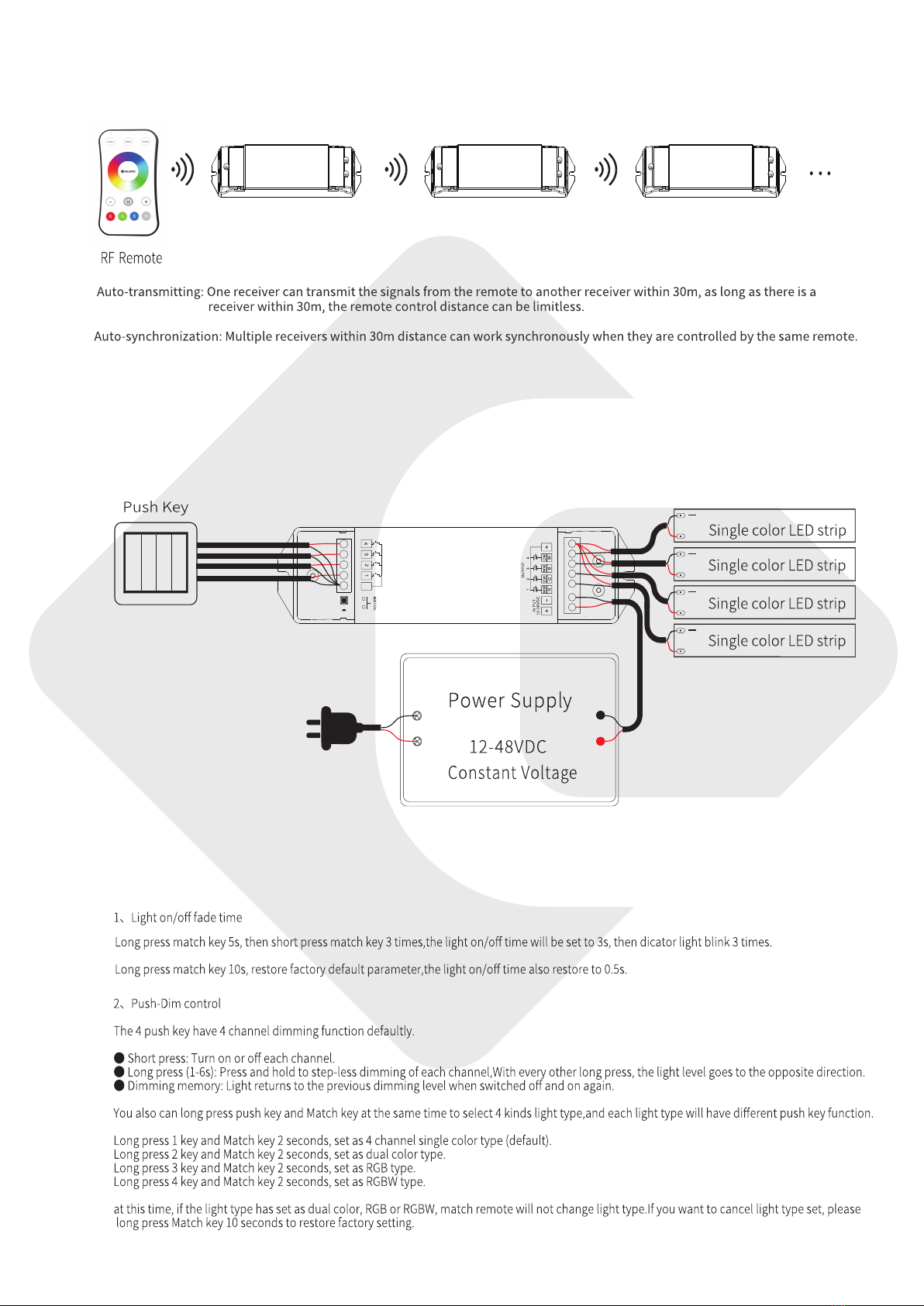

3. Application notes:
【Push-Dim Wiring Introduction】
1. Wiring Diagram :
2. Push-Dim Function :
www.colorsled.comE-mail:colors@colorsled.com
Yellow cyan purple smooth
RGB jump
RGB smooth
6 color jump
6 color smooth
RGB fade in and out
Red fade in and out
Green fade in and out
Blue fade in and out
White fade in and out
1
2
3
4
5
6
7
8
9
10
3. Push-Dim RGB/RGBW Dynamic Mode List
NO. NO.
CR4-GBA 1PCS 1PCS
1PCS
1PCS
2PCS
CK4-GBA 1PCS
1PCS
1PCS
2PCS
/1PCS
/
1PCS
/
Model NO.
CR4-GBA L178*50*38
mm 1PCS
1PCS
100PCS
100PCS
0.108
0.037
10.8
3.7
15.2 285*245*220
8.2
CK4-GBA L114*65*20 mm
350*240*230
Model NO.
1. Packing List :
2. Packing Information :
Packing
www.colorsled.comE-mail:colors@colorsled.com
Precautions
1. Receiver placement may offer up to 30m communication distance. Metals and other metal materials will reduce the range.
Strong signal sources such as WiFi routers and microwave ovens will affect the range.We recommend for indoor applications
that receiver placements should be no further apart than15m.
2. The number of controllers controlled by one remote control should not be too many to avoid mutual interference of remote control
5. Gently handle remote, be ware of falling .
4. If no response from the receiver, please re-match the remote.
3. When installing batteries in the remote control, pay attention to the positive and negative poles of the batteries.
6. For indoor and dry location use only.
Please remove the battery when not in use for a long time; when the remote control distance becomes smaller or the remote control
fails frequently, please replace the battery in time.
signals. It is recommended to replace the controllers with power expanders as much as possible.
