Pole Assembly

–You will need to assemble and connect one

pole at a time to the hub.

–Do not completely assemble poles.

a) Beginning at spring-clip end of pole,

assemble all but the last shock-corded

section. The pole and one section

should curve downward. (illus. 1)

b) Locate the center top clip on the fabric

and attach it to the Hub

(illus. 1), (illus. 3)

c) Starting at the corner, Insert the

spring-clip end of the pole through the

webbing loop and then into the

pole sleeve pushing it toward the center

(illus. 1)

d) Insert the spring-clip end into one of the

hub ports until it clicks into position.

That pole will now partially stand up.

(illus. 2), (illus. 3), (illus. 4)

e) Repeat for each of the three

remaining poles (illus. 3)

13’x11’ SkyDome™Screenhouse

When You Are Ready To Set Up Your

Shelter

–Select a level area clear of rocks,

branches and other hard or sharp objects.

–Do not set up your shelter under trees.

–For easier set up, two or more people

are recommended.

–Place fabric in center of selected location

and assemble above fabric.

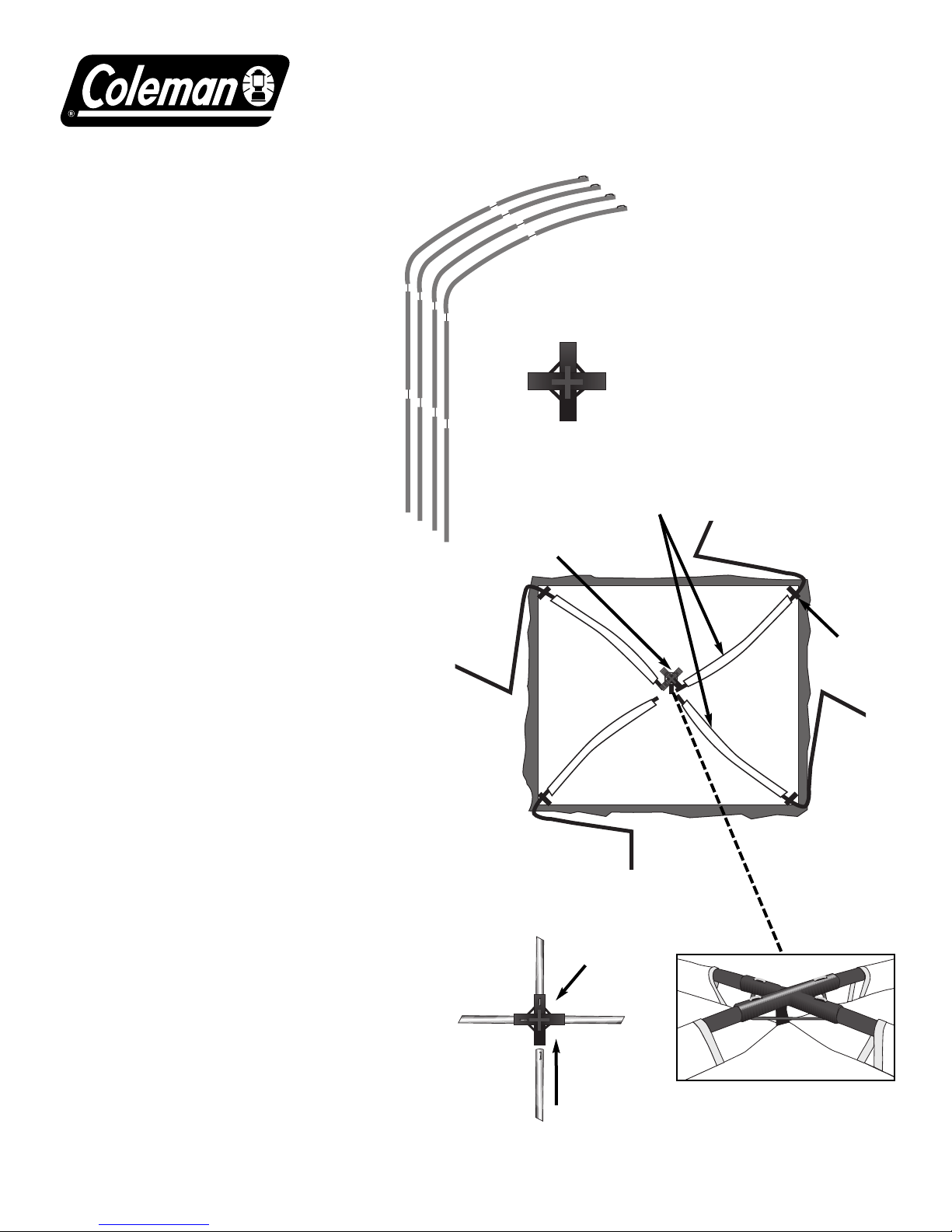

ASSEMBLY PARTS

Instructions apply to Part Number 9392-513

Poles (4) Part No. 9392-1071

Hub (1) Part No. 9392-2101

Illus. 3

Poles clipped into position in

the hub

Illus. 2

Poles inserted

into hub

Illus. 1

Poles inserted through

webbing loop and

pole sleeves

Hub

Pole Sleeves

Webbing

Loop

Hub clipped

to fabric

PRINTED IN SRI LANKA Rev. 11/04

Things You Should Know

• Never store shelter, even for a short period of time, without drying it thoroughly and

brushing off caked dirt. Do not pack stakes or poles inside your shelter. Use

separate storage bag.

• STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF. NEVER

PULL ON THE SHELTER FABRIC OR STAKE LOOP TO REMOVE STAKE.

• SHELTER POLES SHOULD NOT BE LEFT TELESCOPED TOGETHER

DURING STORAGE.

• Do not leave your shelter set-up for weeks at a time, be aware that exposure to the

ultraviolet rays of the sun can seriously damage material and/or cause it to become

discolored.

WARNING: Keep all flame and heat sources away from this shelter fabric.

This shelter meets the flammability requirements of CPAI-84. The fabric will burn if

left in continuous contact with any flame source. The application of any foreign

substance to the shelter fabric may render the flame-resistant properties ineffective.

THE COLEMAN CO., INC.

3600 N. Hydraulic • Wichita, Kansas 67219

1-800-835-3278 • www.coleman.com

MADE IN SRI LANKA

Attach Shelter to Frame

–When the poles are attached to the hub,

and the shelter is partially standing, hook

the webbing loop into position over the

metal bracket.(illus. 4), (illus. 5)

Complete Shelter

–Fully extend each pole by straightening

all shock-corded pole sections.

–Insert the pin on the pin and ring

system, at the corner of the SkyDome

fabric into the the pole end.

(illus. 6), (illus. 8)

–Repeat for remaining poles.

–Adjust poles to pull the shelter

taut and stake down through

the fabric loops at the end of

pin and ring. (illus. 7), (illus. 8)

–Attach corner clips to poles.

–Attach guy lines to fabric

guy loops at each corner

and stake out. (illus. 8)

–Doors can be secured open.

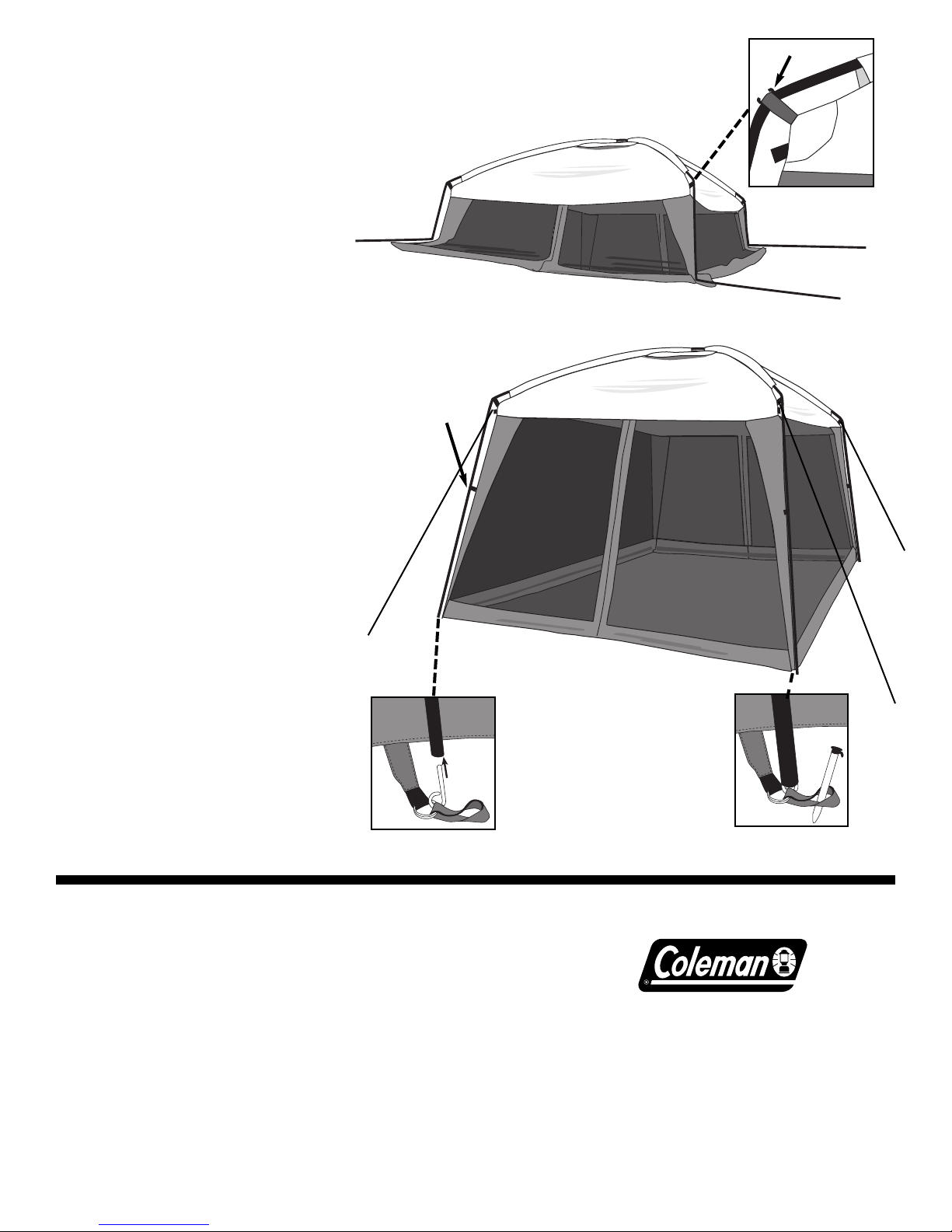

illus. 4 Screen House clipped to

partially assembled frame

illus. 6

Insert into the pole end

illus. 5

Metal bracket

for webbing loop

illus. 8

Completed shelter with guy

lines staked out.

illus. 7

Stake through stake loop

bracket

Corner

clips
