Coleman 9392-522 Manuel utilisateur

Pole Assembly

– You will need to assemble and connect

one pole at a time to the hub.

– Do not completely assemble poles.

a) Beginning at spring-clip end of pole,

assemble all but the last shock-corded

section. The pole and one section

should curve downward. (illus. 2)

b) Insert the spring-clip end into one of

the hub ports until it clicks into position.

(illus. 1), (illus. 2)

c) Repeat for each of the three remaining

poles. (illus. 2)

12’x12’ Insta-Clip Screen House

When You Are Ready To Set Up

Your Shelter

– Select a level area clear of rocks,

branches and other hard or sharp objects.

– Do not set up your shelter under trees.

– For easier set up, two or more people

are recommended.

– Place fabric in center of selected location

and assemble above fabric.

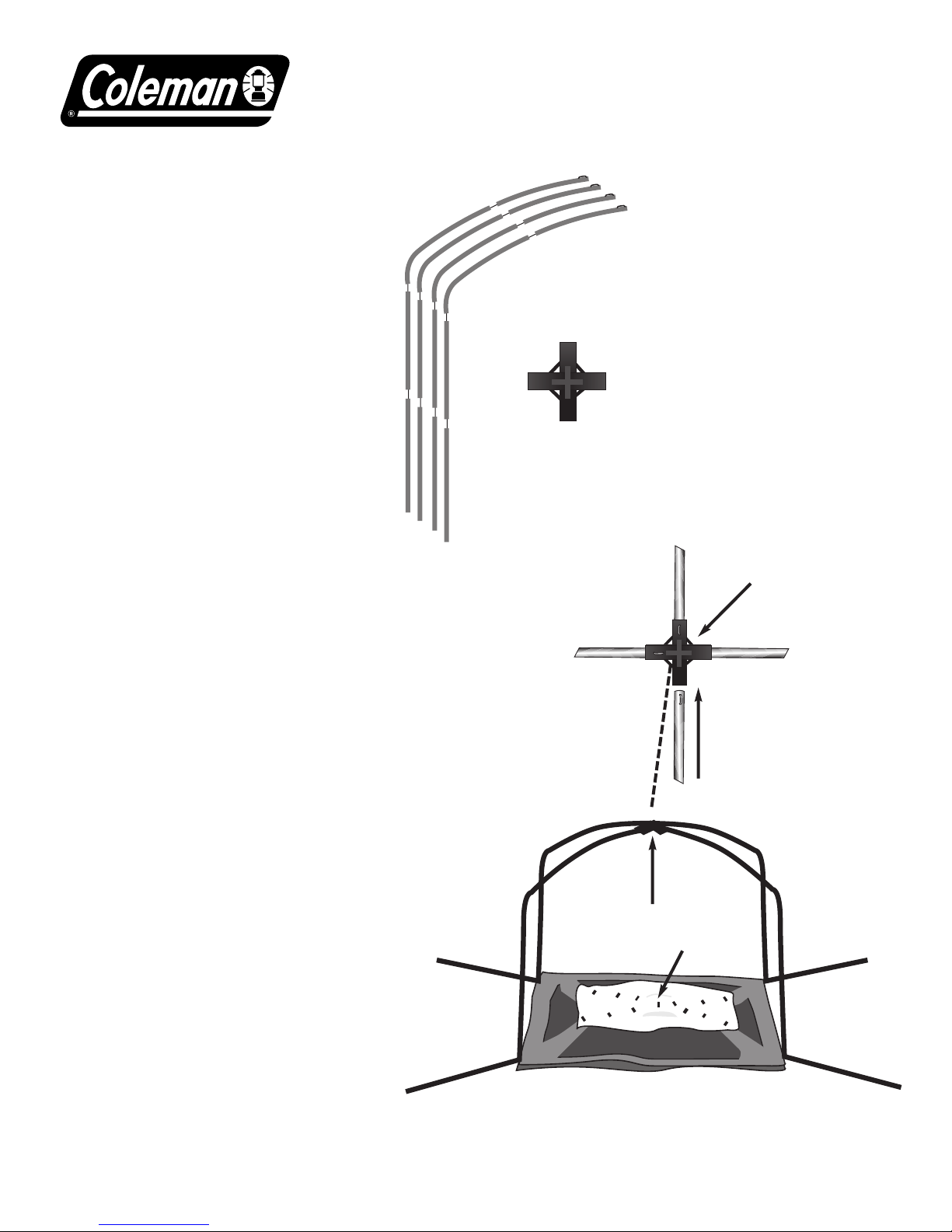

ASSEMBLY PARTS

Instructions apply to Part Number 9392-522

Poles (4) Part No. 9392-1151

Hub (1) Part No. 9392-1091

Illus. 2

Screen House laid out in position

with partially assembled frame

locked into hub.

Illus. 1

Poles inserted

into hub

Hub

Frame Clips

PRINTED IN SRI LANKA Rev. 11/04

Things You Should Know

• Never store shelter, even for a short period of time, without drying it thoroughly and

brushing off caked dirt. Do not pack stakes or poles inside your shelter. Use

separate storage bag.

• STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF. NEVER

PULL ON THE SHELTER FABRIC OR STAKE LOOP TO REMOVE STAKE.

• SHELTER POLES SHOULD NOT BE LEFT TELESCOPED TOGETHER

DURING STORAGE.

• Do not leave your shelter set-up for weeks at a time, be aware that exposure to the

ultraviolet rays of the sun can seriously damage material and/or cause it to become

discolored.

WARNING: Keep all flame and heat sources away from this shelter fabric.

This shelter meets the flammability requirements of CPAI-84. The fabric will burn if

left in continuous contact with any flame source. The application of any foreign

substance to the shelter fabric may render the flame-resistant properties ineffective.

THE COLEMAN CO., INC.

3600 N. Hydraulic • Wichita, Kansas 67219

1-800-835-3278 • www.coleman.com

MADE IN SRI LANKA

Attach Shelter to Frame

– With the frame still partially set up,

clip the center of the Screen House

to the center hub. (illus. 3)

– Starting towards the center of the

Screen House, clip the shelter fabric

to the poles.

Complete Shelter

– Fully extend each pole by straightening

all shock-corded pole sections.

– Insert the pin on the pin and ring

system, at the corner of the Screen

House into the the pole end.

(illus. 4), (illus. 6)

– Repeat for remaining poles.

– Adjust poles to pull the shelter

taut and stake down through

the fabric loops at the end of

pin and ring. (illus. 5), (illus. 6)

– Attach guy lines to fabric

guy loops at each corner

and stake out. (illus. 6)

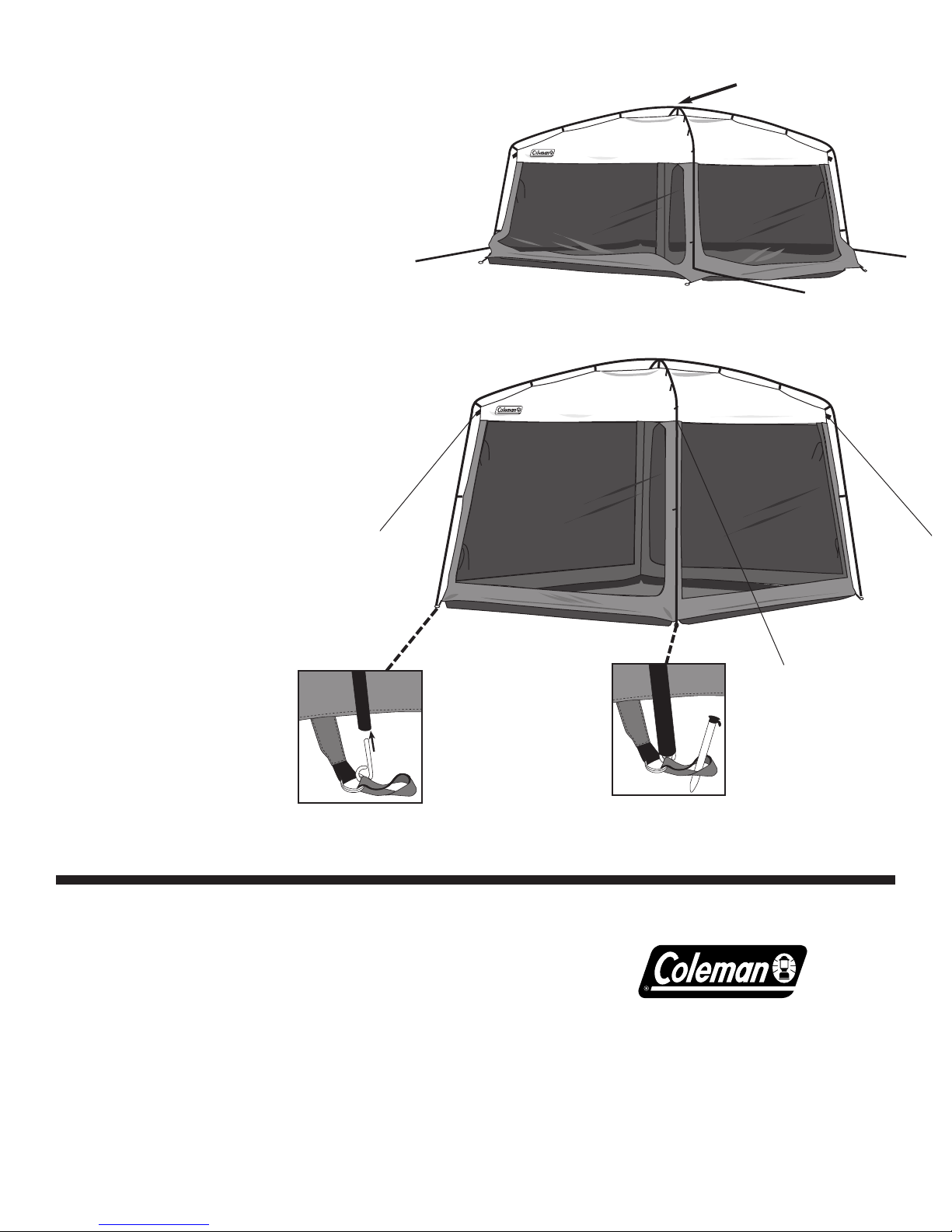

illus. 3 Screen House clipped to

partially assembled frame

Start by attaching the

center of the Screen

House to the pole hub.

illus. 4

Insert into the

pole end

illus. 6

Completed shelter

with guy lines

staked out

illus. 5

Stake through

stake loop
