Coleman 2000001377 Manuel utilisateur

Connect Frame to Tent

– Insert one end of main tent pole onto

pin of pin & ring system, at tent

corner. (illus. 3)

– Go to opposite end of pole and

gradually apply pressure to the pole

forming an arch until you are able to

insert the pin into the pole.

– Repeat for second pole. (illus. 4)

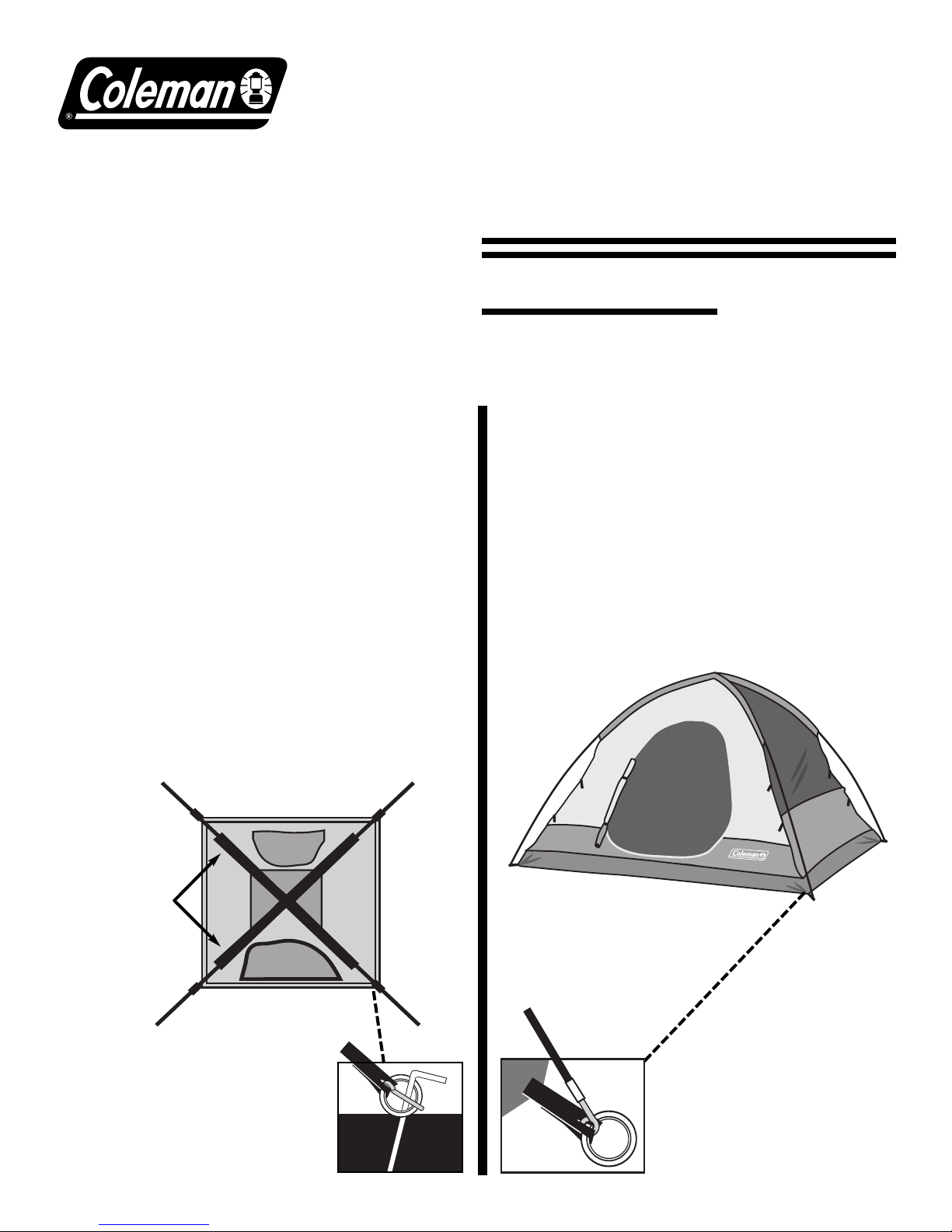

1Layout & Positioning

of Tent, Pole Assembly

– Layout and position tent with door

facing desired direction. (illus. 1)

– Unzip door.

– Stake down tent corners only, using

the rings at the end of the stake loops.

(illus. 2) Keep the floor taut.

– Assemble frame poles by

interlocking shock-corded poles.

This will make two long poles.

– Insert the poles diagonally into pole

sleeves. The center of the poles should

cross forming an “X” in the middle of

tent. (illus. 1)

Assembled

poles

inserted

through

pole

sleeves

illus. 1

illus. 4

Tent frame set-up

illus. 2

Tent stake through ring

illus. 3

Insert pole end onto

pin & ring

SUNRISE POINT™10’x 8’

When You Are Ready

To Set Up Your Tent

– Select a level campsite clear of

rocks, branches and other hard

or sharp objects.

– Do not set up your tent under trees.

– For best results in windy conditions,

do not position the door of tent

into the wind.

(1) Rainfly

Pole

Rainfly Part No.

5010000489

(2) Main Tent

Poles

POLE ASSEMBLY PARTS

Instructions apply to Part Number 2000001377

Part No. 5010000430

Part No. 5010000431

3Attach Tent to Frame

Using Frame Clips

– Attach frame clips along

the edges of tent to frame poles.

(illus. 5), (illus. 6)

– Make any adjustments to the tent

corner stakes that are needed.

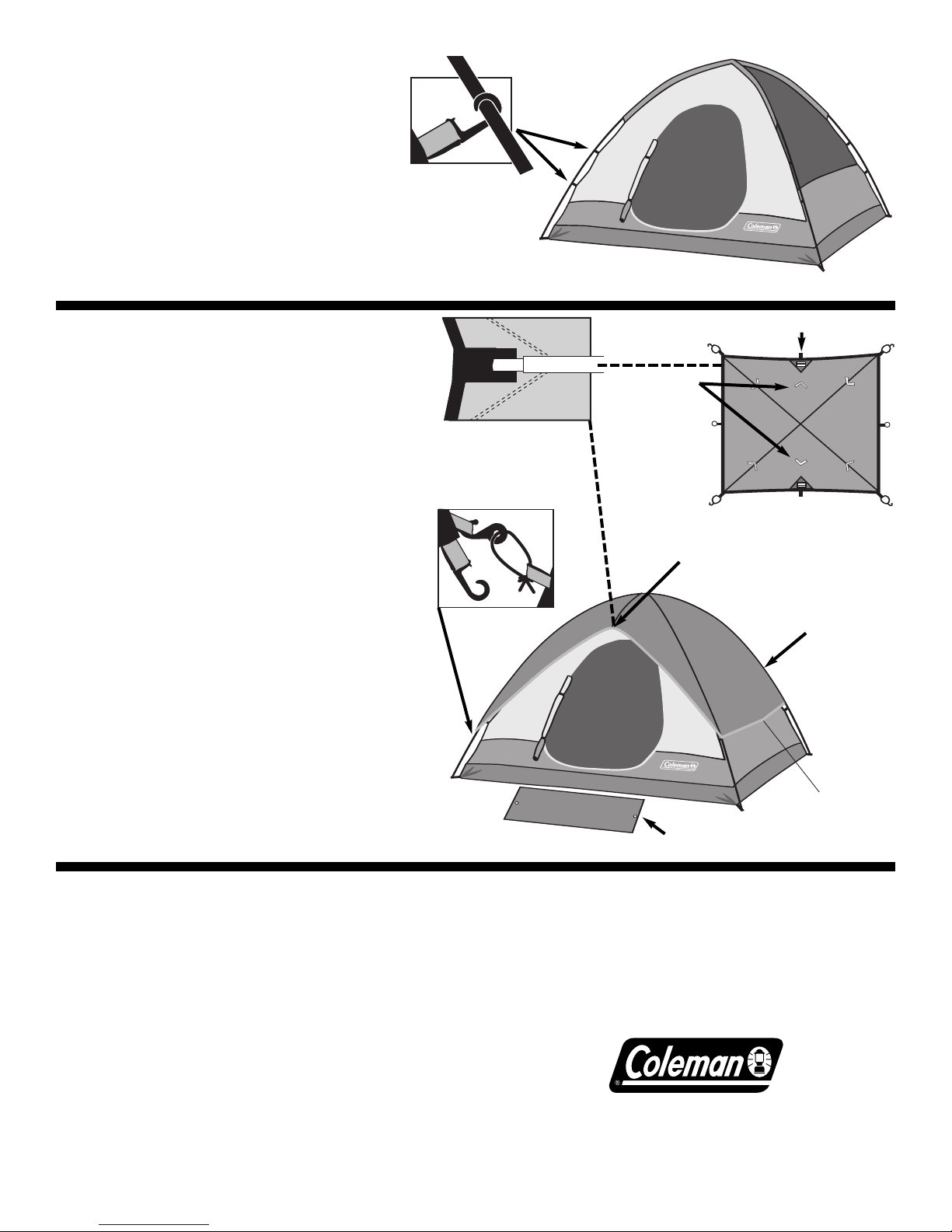

4Attach Rainfly

– Assemble rainfly pole by

interlocking shock-corded pole.

– Insert rainfly pole into reinforced

pockets located at the center

edges of the underside of rainfly.

(illus. 7), (illus. 8)

– Attach underside of rainfly to the

rainfly pole. (illus. 8)

– Drape rainfly over tent frame, pole

side down. Rainfly pole should point

out over door and rear window.

– Connect the four elastic loops with

“S” hooks, (found at the rainfly

corners) to fabric loops near

frame clips. (illus. 9)

– Secure rainfly with attachments

located on underside of fly. (illus. 10)

– Stake out tent with (6) guylines.

(illus. 10)

illus. 6

Assembled tent without rainfly.

illus. 5

Frame clips

illus. 7 Insert rainfly

pole piece into pocket

on underside of rainfly.

illus. 10

Completed tent with rainfly.

illus. 8

Side

guyline

Underside

of rainfly

attaches

to frame

poles

Rainfly pole pockets

Rainfly pole pocket

Pole

attachments

THE COLEMAN CO., INC.

3600 N. Hydraulic • Wichita, Kansas 67219

1-800-835-3278 • www.coleman.com

MADE IN CHINA

PRINTED IN CHINA Rev.11/07

Things You Should Know

• Under certain conditions (cold weather, high humidity, etc.)

condensation will form on the inside surfaces of your tent. Condensation is

caused by water vapor from your breath, perspiration, or any wet clothing

inside your tent. It is NOT LEAKAGE through the tent fabric. It can be

minimized by removing wet clothing from your tent and by providing good

ventilation through the tent.

• Never store tent, even for a short period of time, without drying it

thoroughly and brushing off caked dirt. Do not pack stakes or poles inside

your tent. Use a separate storage bag.

• STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.

NEVER PULL ON THE TENT FABRIC OR TENT STAKE LOOP TO

REMOVE STAKE.

• TENT POLES SHOULD NOT BE LEFT TELESCOPED

TOGETHER DURING STORAGE.

• Seam sealer has not been provided with your tent. For additional protection

we recommend seam sealing your tent prior to camping. Seam sealer may be

purchased through your local retailer or at your local sporting goods store.

• Do not leave your tent set-up for weeks at a time, be aware that

exposure to the ultraviolet rays of the sun can seriously damage nylon

material and/or cause it to become discolored.

WARNING: KEEP ALL FLAME AND HEAT SOURCES

AWAY FROM THIS TENT FABRIC. This tent meets the

flammability requirements of CPAI-84. The fabric will burn

if left in continuous contact with any flame source. The

application of any foreign substance to the tent fabric may

render the flame-resistant properties ineffective.

illus. 9

“S” hooks

Stake down doormat
