Coleman AT200-B Manuel utilisateur
POWERSPORTS

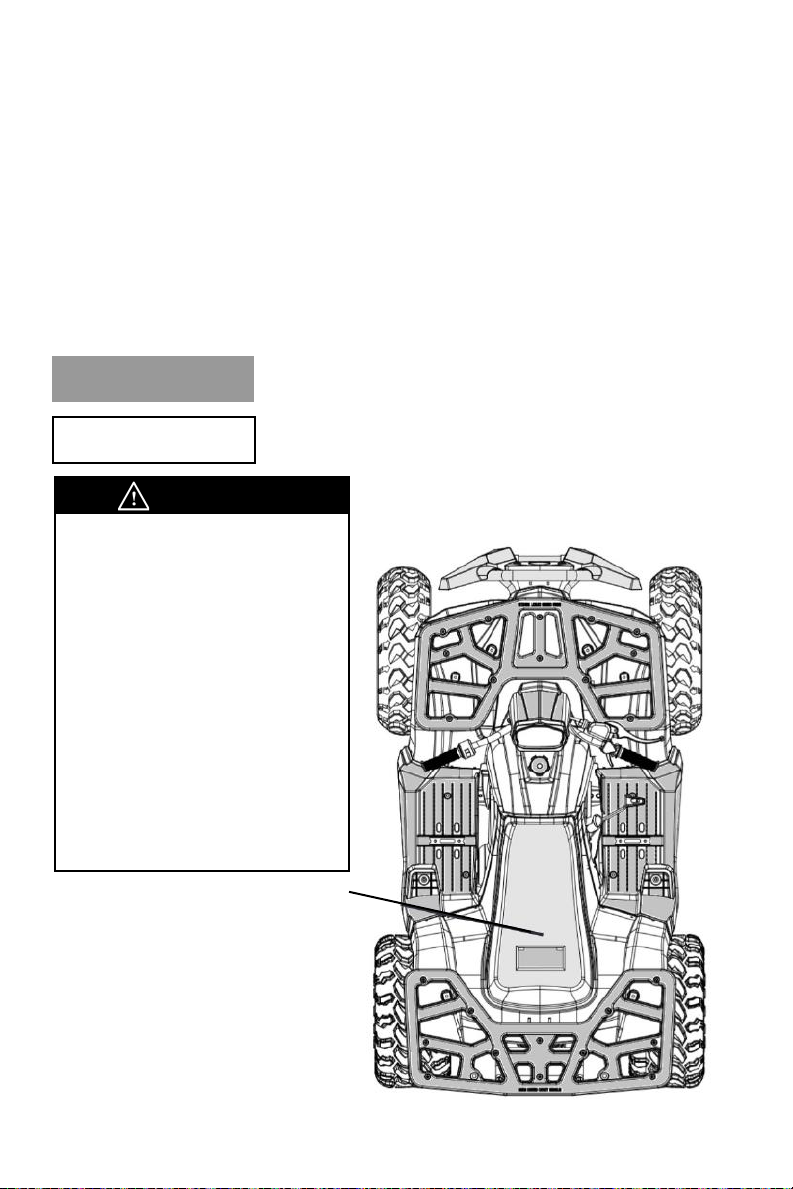

THIS ATV WAS SHIPPED
WITHOUT ENGINE OIL.
ALWAYS FILL WITH THE
CORRECT AMOUNT AND
GRADE OF ENGINE OIL
AS LISTED IN THE
OWNER’S MANUAL
ASSEMBLY/PRE-RIDE
INSPECTION INSTRUCTIONS
NEVER ATTEMPT TO START THIS ATV WITHOUT READING AND
UNDERSTANDING THE OWNER’S/ OPERATOR’S MANUAL. THE
OWNER’S OPERATOR’S MANUAL PROVIDES INFORMATION ON
SAFETY, PARTS, FUNCTIONS, PRE-RIDE INSPECTION,
STARTING AND MAINTENANCE
WARNING
FOR QUESTIONS ABOUT THESE ASSEMBLY INSTRUCTIONS,
CALL COLEMAN POWERSPORTS 888-405-8725
CAUTION
WARNING
AT200-B
01J05R21
M8 Lock Nuts
Lor
AT200
PARTS
POWERSPORTS
THISATV WAS SHIPPED
WITHOUT ENGINE OIL.
ALWAYSFILL WITH THE
CORRECTAMOUNT AND
GRADE OF ENGINE OIL
AS LISTED IN THE
OWNER’S MANUAL
ASSEMBLY/PRE-RIDE
INSPECTION INSTRUCTIONS
NEVER ATTEMPTTO START THIS ATV WITHOUT READINGAND
UNDERSTANDINGTHE OWNER’S/ OPERATOR’S MANUAL. THE
OWNER’S OPERATOR’SMANUAL PROVIDES INFORMATION ON
SAFETY,PARTS, FUNCTIONS, PRE-RIDE INSPECTION,
STARTINGAND MAINTENANCE
WARNING
FOR QUESTIONS ABOUT THESEASSEMBLY INSTRUCTIONS,
CALL COLEMAN POWERSPORTS 888-405-8725
CAUTION
WARNING

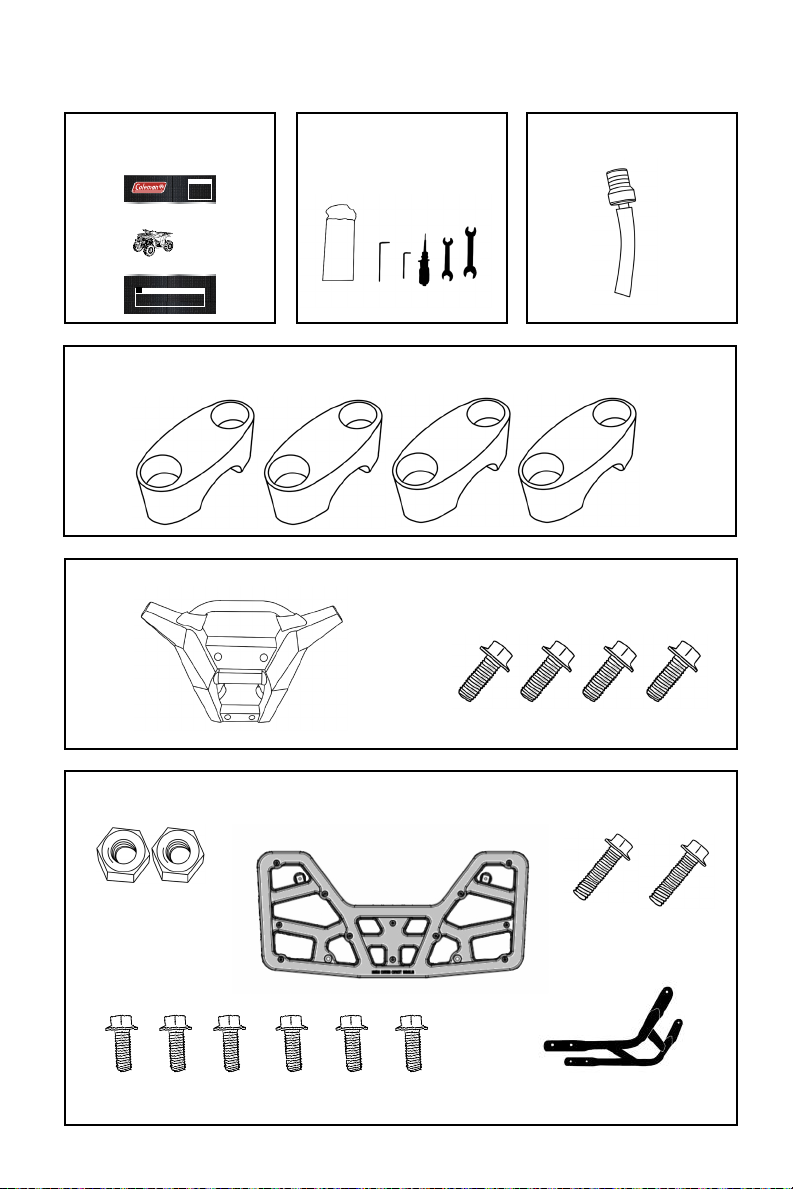

OWNER’S MANUAL TOOL KIT FUEL VENT TUBE
HANDLEBAR BRACKET CLAMPS
FRONT BUMPER
REAR CARRIER ASSEMBLY
M8 x 20 Bolts
M8 x 16 Bolts
M8 Lock Nuts
M20 Washers
M20 Lock Washers
Hub Caps
Rear Carrier Support
M8 x 30 Bolts
1
Lor
AT200

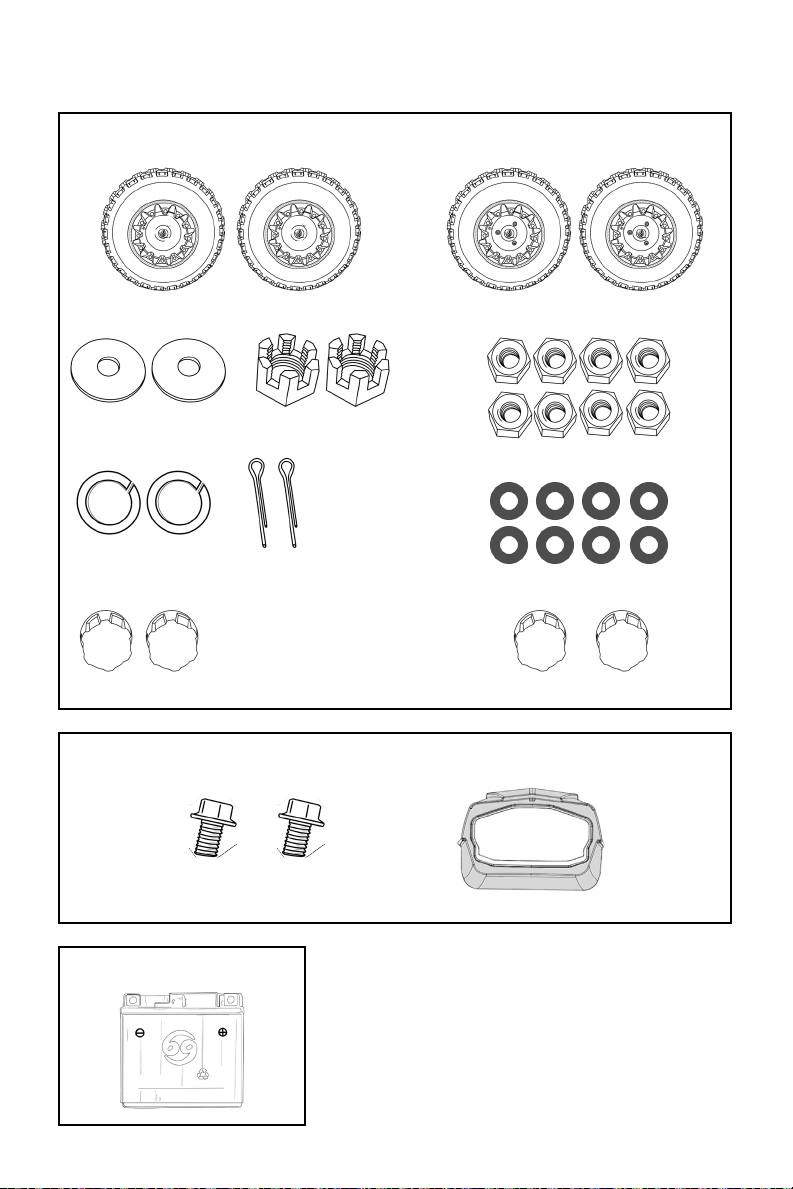

PARTS (continued)
TIRE ASSEMBLY
Front Tires Rear Tires
M20 Washers
M10 Lock Nuts
Hub Caps
M20 Lock Washers
Hub Caps
M10 Washers
Cotter Pins
M20 Castle Nuts
DISPLAY CONSOLE ASSEMBLY
M6 X 16 Bolts
BATTERY
2

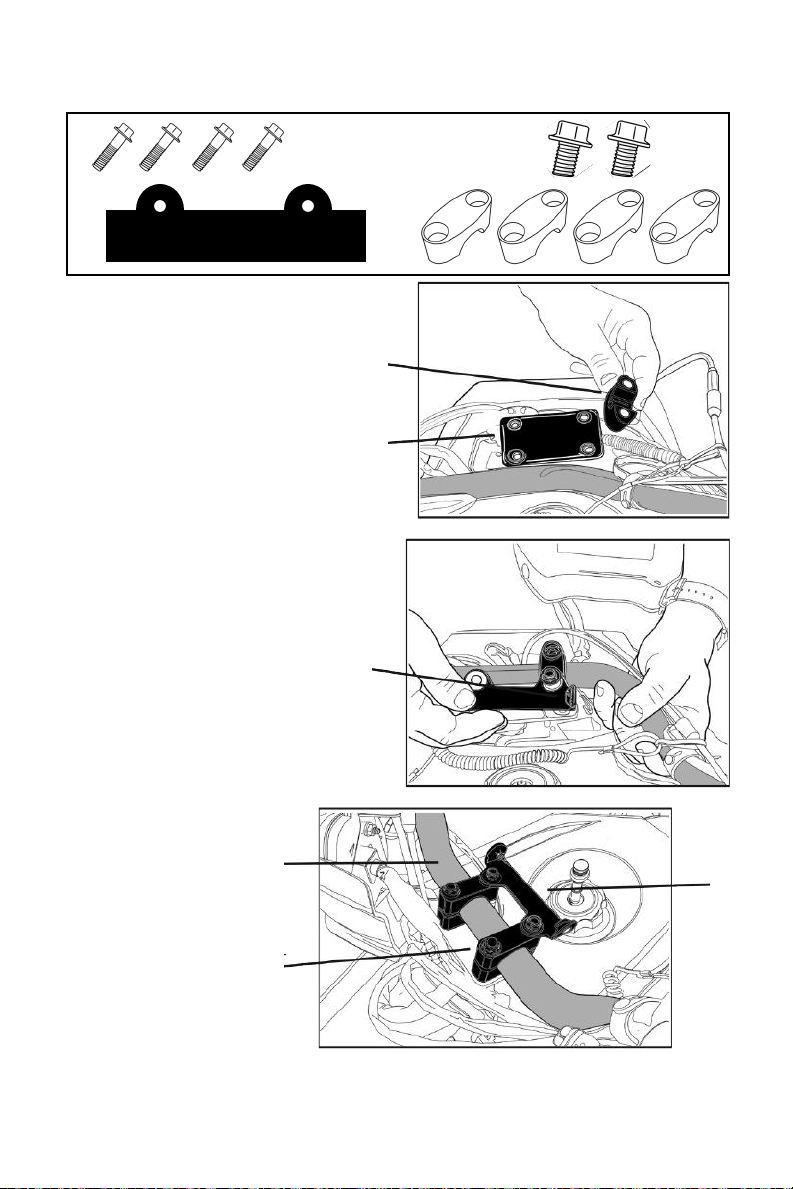

HANDLEBAR INSTALLATION
HANDLEBAR PARTS
Handlebar Clamp
Bracket
Steering Assembly
Bracket
Display Console
Bracket
Handlebar
M10 x 30
Bolts
Display Console
Bracket
1. Attach bottom
clamp brackets to
steering assembly
bracket using
M10 x 30 bolts,
M10 Lock Washers
and M10 Lock Nuts
3

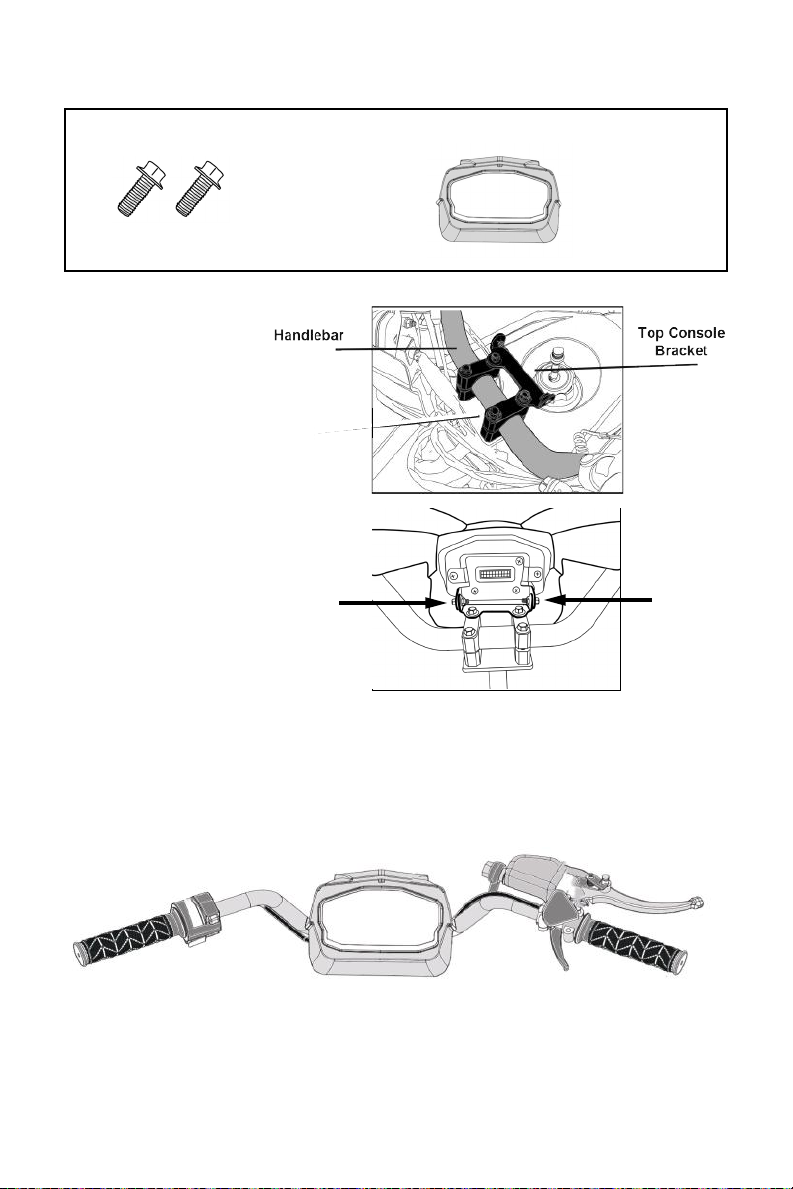

DISPLAY CONSOLE INSTALLATION
Display Console
Bracket
HANDLEBAR PARTS
1. Attach bottom
side of display
console to the
display console
bracket using
2 - M6 x 16 bolts
M6 x 16 Bolts
M6 x 16 Bolt M6 x 16 Bolt
4
REAR WHEEL INSTALLATION
M6 x 16 Bolt
REAR WHEEL PARTS
Tires
Hub Caps Large Washers
M20 Lock Washers M20 Castle Nuts
1. Fill tires with 10 PSI of air before assembly.
2. Install each wheel - ensure the tread faces forward and
valve stems face out.
3. Attach each wheel using large M20 Washer, M20 Lock
Washer, and M20 Castle Nut
4. Install Cotter Pin through axle end and bend over the ends.
5. Install Hub Caps
Install Hub Caps
5

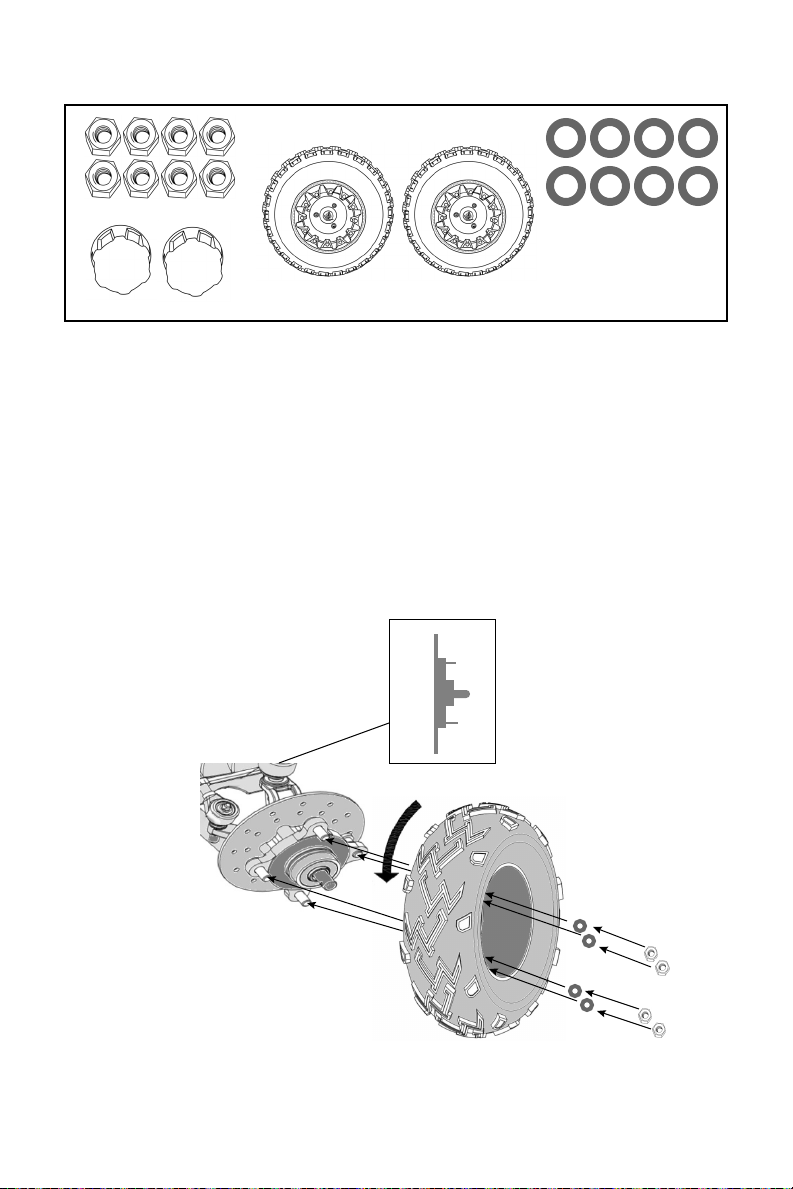

FRONT WHEEL INSTALLATION
Tires
FRONT WHEEL PARTS
Hub Caps
M10 Washers
1. Fill tires with 10 PSI of air before assembly.
2. Install each wheel - ensure the tread faces forward and
valve stems face out.
3. Attach each wheel with M10 Washer followed by M10 Lock
Nut. Repeat for each wheel stud (Torque nuts 25ft. lbs)
4. Install Hub Caps
M10 Lock Nuts
6

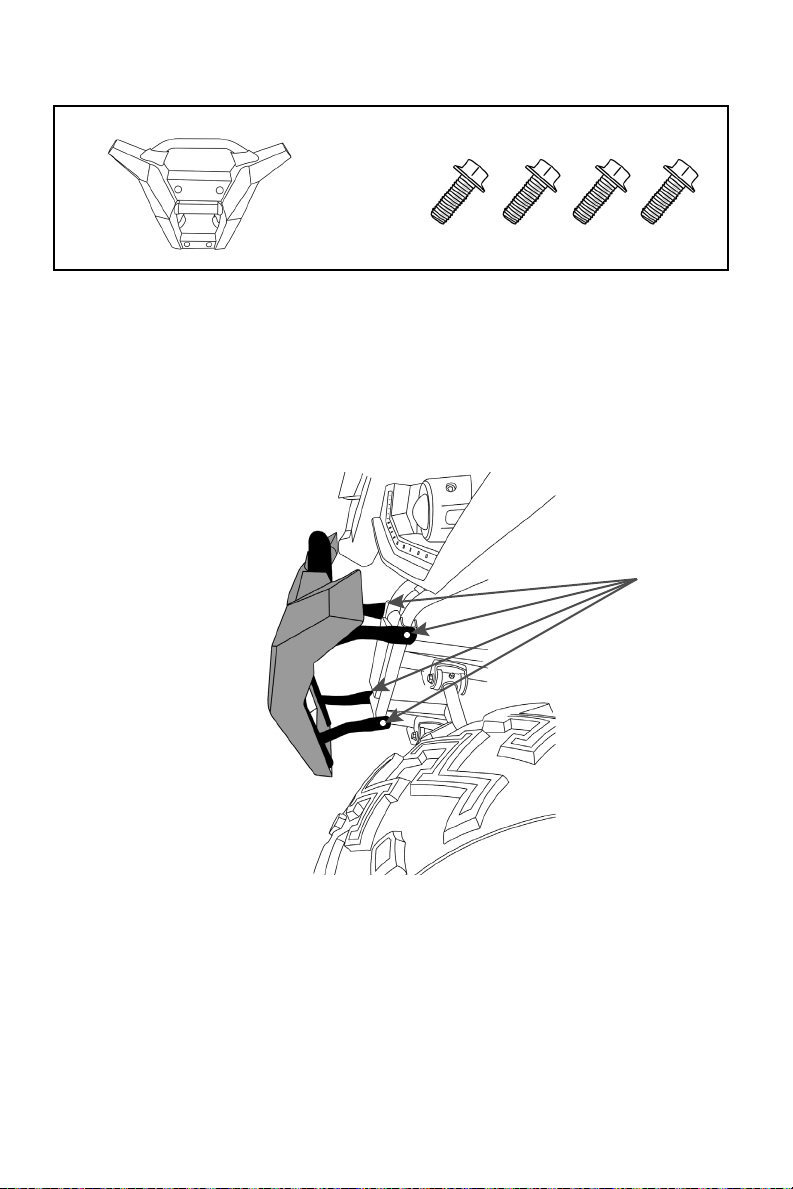

FRONT BUMPER INSTALLATION
M10 Washers
BUMPER PARTS
M8 x 20 Bolts
M8 x 20 Bolts
1. Install front bumper to front frame with M8 x 20 Bolts
7

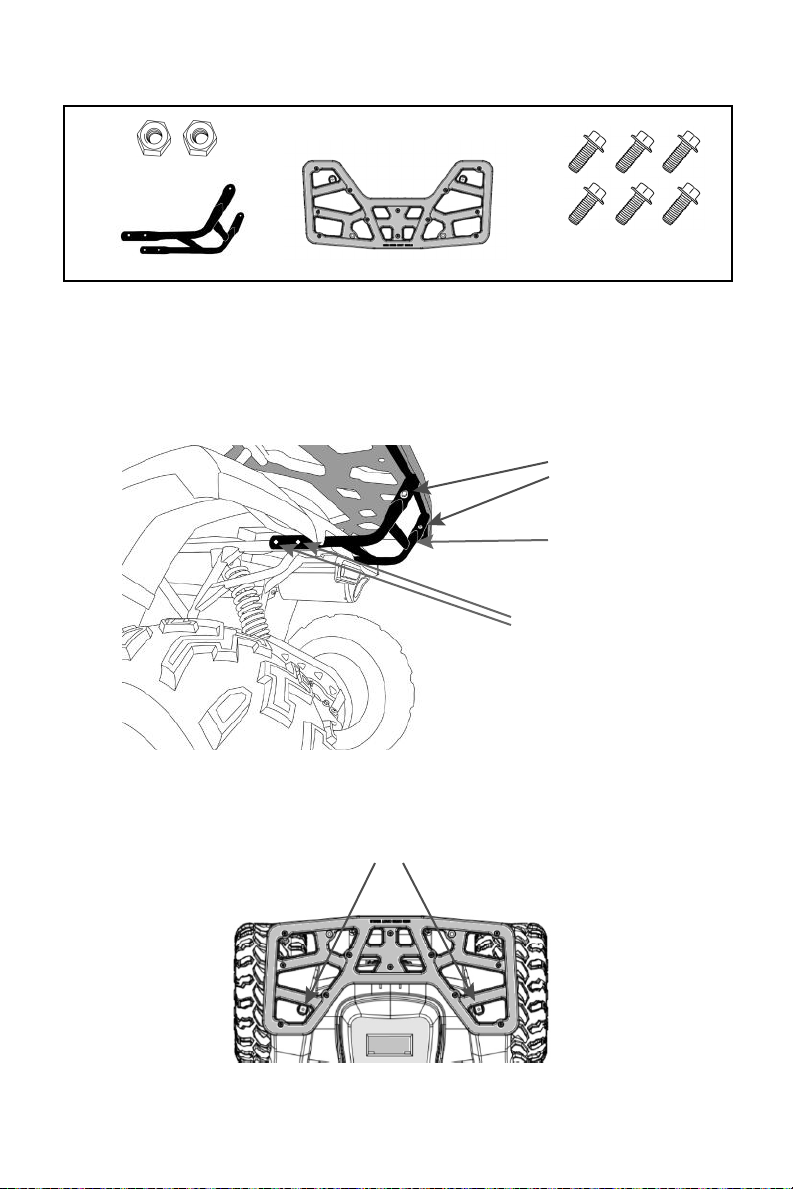

REAR CARRIER INSTALLATION
M8 x 20 Bolts
REAR CARRIER PARTS
M8 Lock Nuts
M8 x 16 Bolts
1. Install Rear Carrier Support with 4 - M8 x 16 bolts
to the rear frame.
2. Attach Rear Carrier to Rear Carrier Support with
2 - M8 x 16 bolts and 2 - M8 x 30 bolts.
M8 x 30 Bolts
M8 x 16 Bolts
M8 x 16 Bolts
M8 x 16 Bolts
Rear Carrier
Support
Rear Carrier Support
8
BATTERY INSTALLATION
BATTERY INSTALLATION
1. Insert battery into battery tray with the battery terminal nuts and bolts
already installed on the battery.
2. Attach both battery straps
3. Remove battery terminal nuts and bolts from battery.
4. Connect positive cable to positive battery terminal and re-screw battery
terminal bolt.
5. Connect negative cable to negative battery terminal and re-screw
battery terminal bolt.
6. Reinstall seat.
NOTICE Positive (+) cable is red in color.
Negative (-) cable is black in color.
TIP This Coleman Powersports AT200 ATV has two positive (+) cables red
in color. Both attach to the positive terminal on battery.
WARNING
Battery electrolyte is poisonous and
dangerous, contains sulfuric acid,
which can cause severe burns. Avoid
contact with skin, eyes or clothing.
Always shield your eyes when
working near batteries.
KEEP OUT OF REACH OF CHILDREN.
DO NOT OPEN BATTERY.
Ventilate when charging or using in
an enclosed space.
KEEP AWAY FROM SPARKS, FLAMES,
CIGARETTES OR OTHER SOURCES OF
IGNITION.
Battery
9
