OPERATING MANUAL
EASY-LOAD®
PUMP HEADS
®®
A-1299-0377
Edition 16
1-800-MASTE FLEX (627-8373) (U.S. and Canada only)
11 (847) 549-7600 (Outside U.S.) • (847) 549-7600 (Local)
www.masterflex.com • techinfo@coleparmer.com
Thermo Fisher Scientific
1-800-637-3739 (U.S. and Canada only)
11 (847) 381-7050 (Outside U.S.) • (847) 381-7050 (Local)
www.thermoscientific.com • fluidhand[email protected]
EXPLANATION OF SYMBOLS
CAUTION: Risk of danger. Consult the Operator's Manual for
nature of hazard and corrective actions.
CAUTION: Risk of crushing. Keep fingers away from rotor while
pump is in operation. Stop pump before loading or unloading tubing.
2
SAFETY PRECAUTIONS
WARNINGS: Turn drive off before removing or installing tubing. Fingers
or loose clothing could be caught in the rollers.
Stop the drive when changing the tubing or its position in
the rotor mechanism (the rotor is partially exposed when
the LOADING LEVER is in the open position).
NOTE: Use only MASTERF EX precision tubing with MASTERF EX pumps to
ensure optimum performance. Use of other tubing may void applicable
warranties.
C-FLEX, NORPRENE, PHARMED, TYGON — Reg TM Saint-Gobain Performance Plastics Corp.
Trademarks bearing the ® symbol in this publication
are registered in the .S. and in other countries.
WARNING: PRODUCT USE LIMITATION
This product is not designed for, nor intended for use in patient connected
applications; including, but not limited to, medical and dental use, and
accordingly, has not been submitted for FDA approval.
PUMP FOR LIQUID
ORIGINAL IN TRUCTION
Number of rollers: 3
Maximum pump speed (rpm): 600
Nominal torque load-Running: up to 90 oz-in (6.5 kg-cm)
Housing materials: Polysulfone (PSF) or Polyphenylene sulfide
(PPS), stainless steel (SS), anodized aluminum, nylon
Roller/bearing materials: Cold-rolled steel (CRS)/Cold-rolled steel (CRS) or
Stainless steel (SS)/Sealed stainless steel
Rotor materials: Cold-rolled steel (CRS) or Stainless steel (SS)
Operating temperature ‡ :32°F to 104°F (0°C to 40°C )
Storage temperature: -49°F to 149°F (-45°C to 65°C)
Humidity: 0 to 90% (non-condensing)
Dimensions (W × H × D):
Operating: 49⁄16 in × 4 in × 23⁄16 in
(116 mm × 102 mm × 56 mm)
Open: 49⁄16 in × 513/16 in × 23⁄16 in
(116 mm × 148 mm × 56 mm)
Weight: 1 lb (0.45 kg)
Noise level: <70 dBA @ 1 meter
Compliance (for CE mark):EN809 (EU Machinery Directive)
* As tested with NORPRENE®, PHARMED®BPT and TYGON®tubing. Values will be less with silicone and C-FLEX®.
‡ Use in this temperature range for continuous duty operation with no decrease in performance or product life. Pump
heads will wor outside this range with some possible reductions in performance or product life.
Pump Head no. Pump Material Occlusion haft Length L/ ®Tubing
07518-00 PSF/C S Fixed Short L/S®13, 14, 16, 25, 17, 18
07518-02 PSF/C S Fixed Short L/S®15, 24
07518-10 PSF/SS Fixed Short L/S®13,14, 16, 25, 17, 18
07518-12 PSF/SS Fixed Short L/S®15, 24
07518-20 PSF/C S Fixed Long L/S®13, 14, 16, 25, 17, 18
07518-22 PSF/C S Fixed Long L/S®15, 24
07518-30 PSF/SS Fixed Long L/S® 13,14, 16, 25, 17, 18
07518-32 PSF/SS Fixed Long L/S®15, 24
07518-60 PPS/SS Fixed Short L/S®13, 14, 16, 25, 17, 18
07518-62 PPS/SS Fixed Short L/S®15, 24
07518-80 PPS/SS Fixed Long L/S®13, 14, 16, 25, 17, 18
07518-82 PPS/SS Fixed Long L/S®15, 24
SPECIFICATIONS
L/ ®Flow Rate Max. Discharge Pressure* Vacuum* uction Lift*
Tubing @1 rpm @ 600 rpm psig (bar) @ 600 rpm @ 600 rpm
mL/Rev mL/min in (mm) Hg ft (m) H2O
L/S®13 0.06 36 40 (2.7) 26 (660) 29 (8.8)
L/S®14 0.21 130 40 (2.7) 26 (660) 29 (8.8)
L/S®16 0.80 480 40 (2.7) 26 (660) 29 (8.8)
L/S®25 1.7 1000 35 (2.4) 26 (660) 29 (8.8)
L/S®17 2.8 1700 20 (1.4) 20 (510) 22 (6.7)
L/S®18 3.8 2300 15 (1.4) 20 (510) 22 (6.7)
L/S®15 1.7 1000 40 (2.7) 26 (660) 29 (8.8)
L/S®24 2.8 1700 40 (2.7) 26 (660) 29 (8.8)
Typical Flow, Pressure and Vacuum Data:
3
4
INTROD CTION AND GENERAL DESCRIPTION
This /S EASY- OAD®Pump Head when combined with a MASTERF EX®/S®drive
or compatible system is designed to provide a simple easy-to-use peristaltic pump
system. The Pump Head accepts several different tubing sizes for a wide range of
flow rates. The unique over-center cam design and adjustable tubing retention
allows quick tubing changes and greatly reduced maintenance time.
Each pump is supplied complete with a 15 in (38-cm) length of tubing, one
mounting hardware package and this manual. No tools are required to complete
installation.
DRIVE COMPATIBILITY AND SET P
The /S EASY- OAD Pump
Head is compatible with most
MASTERF EX /S drives with a
standard tang interface. Mount
the Pump Head using the 2
screws provided. (See Figure
#1.)
T BE LOADING
1. Be sure the pump drive is
turned off.
2. Rotate the lever to the left
to open the pump.
3. oad tubing of the correct
size. Center the tubing
between the retainers.
(Figure #2.)
4. Rotate the lever to the right
to close. (Figure #3.)
WARNING: Stop the
drive when changing
the tubing or its
position in the rotor
mechanism (the rotor
is partially exposed
when the OADING
EVER is in the open
position).
NOTE: For optimum tubing
life, keep tubing straight where
it enters and exits the pump.
Figure #1. Setup
Figure #2. Open and Load
Figure #3. Close Pump
Mounting Holes
Mounting Bolt
Alignment Holes
Pump Shaft Tang
Motor Shaft
Pins
(On
some
units)
5
T BE LOADING (cont'd)
5. Adjust tubing retainer.
(Figure #4.)
Release the tubing retainer from its
locked position by pushing it slightly
into the body, then downward and
firmly against the tubing.
Repeat for both sides.
NOTE: Tubing retainers usually do
not need to be readjusted when
changing tubing of the same type
and size.
NOTE: There are a few combinations of tubing and materials that may require a
further adjustment of the tubing retainers if the tubing creeps. Open Pump Head,
move tubing retainer down one (1) notch, then close Pump Head. Turn pump on.
If tubing creep persists, repeat procedure.
M LTI-CHANNEL MO NTING
/S EASY- OAD Pump Heads can be mounted in tandem (up to four) depending
upon the torque capabilities of the drive. (See Figure #5.)
Special mounting hardware is required.
See REP ACEMENT PARTS AND ACCESSORIES for mounting hardware.
CAUTION: DO NOT OVERTIGHTEN SCREWS OR WING NUTS.
NOTE: The /S EASY- OAD Pump Head can be used in any combination with
other /S EASY- OAD II Pump Heads. The longer /S EASY- OAD II mounting
hardware is required (not supplied).
NOTE: The tubing on the inside /S EASY- OAD Pump Head(s) can be changed
without dismantling the outside Pump Head(s) from the drive.
Figure #4. Retainer Adjustment
Figure #5. Multi-channel Mounting
Mounting Holes For
Tandem Units
Mounting Bolts
MAINTENANCE
No lubrication is required for the /S EASY- OAD Pump Head.
See REP ACEMENT PARTS AND ACCESSORIES for parts ordering
information. Contact dealer for further repair information.
Cleaning
Use a mild detergent solution to clean the Pump Head.
Do not immerse, nor use excessive fluid.
Disassembling Pump Head
1. Remove Pump Head from drive.
2. Remove the two screws shown in Figure #6.

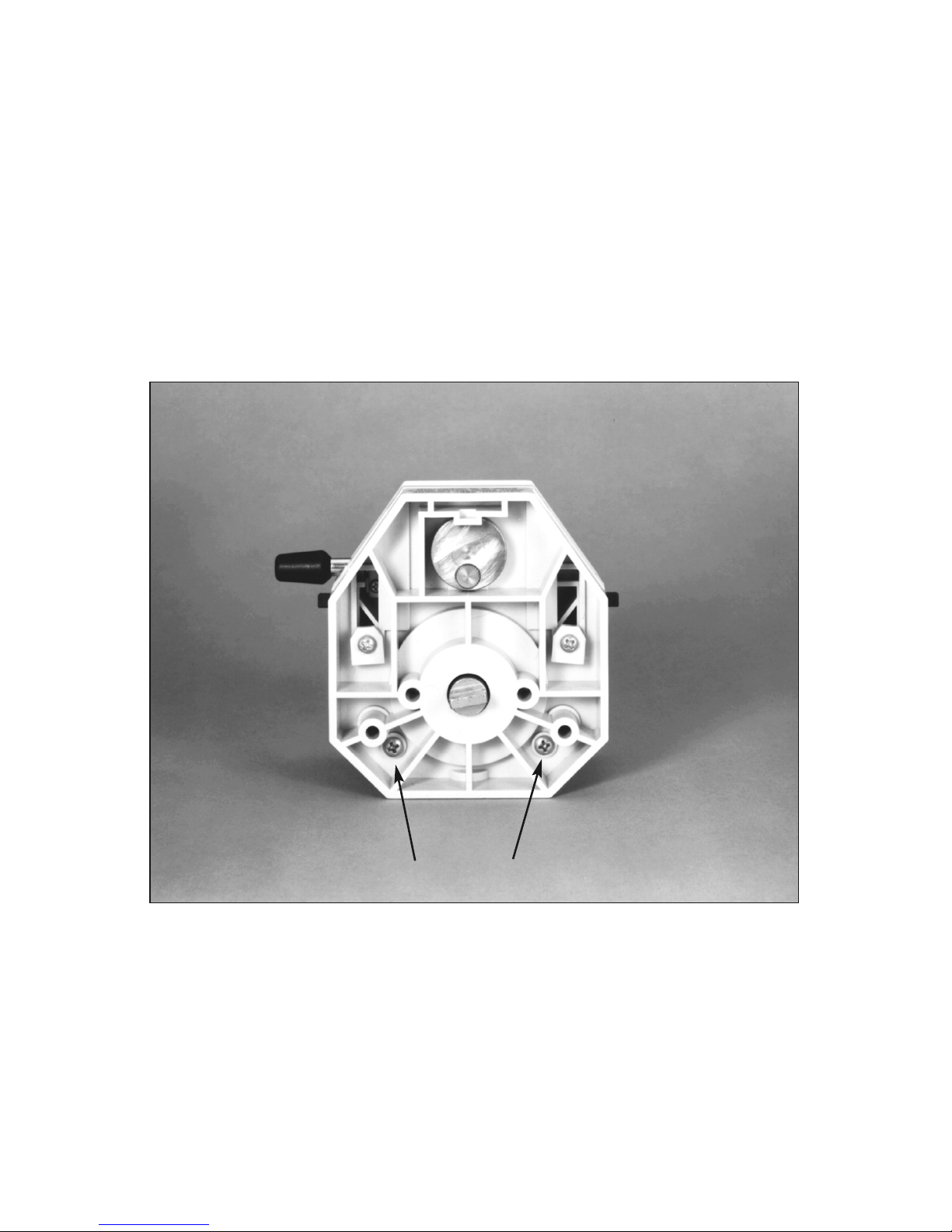

Figure #6. Disassembling Pump Head
3. Remove rotor/bearing support assembly.
4. Replace rotor/bearing support assembly and secure with two screws.
NOTE: Screws have a high/low dual thread. Be careful to engage the threads in
the housing properly.
6
Assembly Screws
REPLACEMENT PARTS AND ACCESSORIES
A. Main body assembly (occlusion bed with rear bearings).
Pump Head no. P F order no. Pump Head no. PP order no.
07518-00, -02, -20, -22 07518-07 ——
07518-10, -12, -30, -32 07518-17 07518-60, -62, -80, -82 07518-67
Pump Head no. hort shaft order no. Pump Head no. Long shaft order no.
07518-00 07518-08 07518-20 07518-28
07518-02 07518-09 07518-22 07518-29
07518-10 07518-18 07518-30 07518-38
07518-12 07518-19 07518-32 07518-39
07518-60 07518-68 07518-80 07518-88
07518-62 07518-69 07518-82 07518-89
B. Rotor/bearing support assembly.
C. Mounting hardware for L/S EASY-LOAD Pump Heads.
Set contains #8-32 screws, washers, and wing nuts
(in 2-, 3- and 4-head hardware).
Number of heads tainless steel
to be mounted order number
107013-04
2 07013-05
307013-08
407013-09
CB
A
7
8Printed in U.S.A.
WARRANTY
se only MASTERFLEX precision tubing with MASTERFLEX pumps to
ensure optimum performance. se of other tubing may void applicable
warranties.
The Manufacturer warrants this product to be free from significant deviations from
published specifications. If repair or adjustment is necessary within the warranty
period, the problem will be corrected at no charge if it is not due to misuse or
abuse on your part, as determined by the Manufacturer. Repair costs outside the
warranty period, or those resulting from product misuse or abuse, may be invoiced
to you.
The warranty period for this product is 2 years from the date of purchase.
PRODUCT RETURN
To limit charges and delays, contact the seller or Manufacturer for authorization
and shipping instructions before returning the product, either within or outside of
the warranty period. When returning the product, please state the reason for the
return. For your protection, pack the product carefully and insure it against
possible damage or loss. Any damages resulting from improper packaging are your
responsibility.
TECHNICAL ASSISTANCE
If you have any questions about the use of this product, contact the Manufacturer
or authorized seller.
1-800-MASTE FLEX (627-8373) (U.S. and Canada only)
11 (847) 549-7600 (Outside U.S.)
(847) 549-7600 (Local)
www.masterflex.com
techinfo@coleparmer.com
*EN809 manufacturered by:
Thermo Fisher Scientific
28W092 Commercial Avenue
Barrington, IL 60010
1-800-637-3739 (U.S. and Canada only)
11 (847) 381-7050 (Outside U.S.)
(847) 381-7050 (Local)
www.thermoscientific.com
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Cole Parmer Pompe à eau
Cole Parmer
Cole Parmer Masterflex Catalyst FH10 Microflex Manuel utilisateur
Cole Parmer
Cole Parmer Masterflex I/P 77600-62 Manuel utilisateur
Cole Parmer
Cole Parmer Masterflex 07525-20 Manuel utilisateur
Cole Parmer
Cole Parmer 74900-20 Manuel utilisateur
Cole Parmer
Cole Parmer MasterFlex I/P 77420-00 Manuel utilisateur
Cole Parmer
Cole Parmer AIR ADMIRAL 79202-00 Manuel utilisateur
Cole Parmer
Cole Parmer Masterflex L/S 77390-00 Manuel utilisateur
Cole Parmer
Cole Parmer VP-200 Series Manuel utilisateur
Cole Parmer
Cole Parmer Barnant Masterflex 07534-04 Manuel utilisateur
Cole Parmer
Cole Parmer 07519-05 Manuel utilisateur
Cole Parmer
Cole Parmer Masterflex L/S 77202-50 Manuel utilisateur
Cole Parmer
Cole Parmer Masterflex L/S 77390-00 Manuel utilisateur
Cole Parmer
Cole Parmer Masterflex B/T Rapid-Load Manuel utilisateur
Cole Parmer
Cole Parmer Mfsterflex I/P Manuel utilisateur
Cole Parmer
Cole Parmer VPS-200 Series Manuel utilisateur
Cole Parmer
Cole Parmer Masterflex L/S 07534-04 Manuel utilisateur
Cole Parmer
Cole Parmer Ismatec Mini-S Series Manuel utilisateur
Cole Parmer
Cole Parmer Mastercraft B/T RAPID-LOAD 77111-30 Manuel utilisateur
Cole Parmer
Cole Parmer Masterflex L/S 7569-00 Manuel utilisateur
Manuels Pompe à eau populaires d'autres marques
Sykes AmeriPumps
Sykes AmeriPumps GP100M Guide de dépannage
DUROMAX
DUROMAX XP WX Series Manuel utilisateur
BRINKMANN PUMPS
BRINKMANN PUMPS SBF550 Manuel utilisateur
Franklin Electric
Franklin Electric IPS Manuel utilisateur
Xylem
Xylem e-1532 Series Manuel utilisateur
Milton Roy
Milton Roy PRIMEROYAL Manuel utilisateur
