Introduction

In this manual, you will find everything needed to start roasting coffee. Included in this copy is a description

of your warranty/guarantee, detailed information on installation and assembly, roasting instructions,

additional information on green beans, and a troubleshooting guide.

About Us

While living in Thailand and unable to find fresh roasted coffee, Ken Lathrop, developer of Coffee Crafter’s

Valenta 7 coffee roaster, conceived of a concept to design and build a reliable, affordable machine

capable of roasting five pounds or more of coffee beans in less than ten minutes.

“My goal was to enable new roasters – to help them roast their own beans and have fun doing it”, says

Lathrop. “My focus was to design and build a roaster that could be easy for anyone to learn and use, a

roaster that could roast five pounds or more per roast batch and was easily installed and affordable for

anyone. From the response we have received from customers and at coffee shows I think we succeeded.”

Coffee Crafters designed and began selling its Artisan V fluid bed coffee roaster in August 2013. “We built

the Artisan roaster specifically to serve small roasters or those new to the industry”, says Lathrop. “The

installation is similar to your home clothes dryer – very simple and straightforward. After installation we

find that our customers are up to speed and roasting typically within 30 minutes.”

Our Mission

To become the best and largest supplier of high-quality affordable coffee “micro-roasting” equipment in

the world.

“Micro-Roasting” defined:

1. Hands on craft roasted coffee

2. Roasting 100 lbs. or less per day

3. Supply “fresh” coffee to Customers immediately after roasting at its peak of freshness

Our Vision

We will maintain an uncompromising commitment to our “micro-roasting” customers by:

 Serving our customers the way we would like to be taken care of.

 Providing our customers with equipment, supplies and information to satisfy all of their micro-

roasting needs.

 Supplying high quality products engineered and manufactured in the USA.

 Delivering affordable equipment factory direct.

Rev

Coffee

Crafters

Introduction

Valenta 7 Complete Roasting & Bean Cooling System Specifications

Roaster Production

35-40 lbs. per hour

Roast Time

8-12 minutes (manually adjustable)

Chaff Collection

Stand-alone chaff canister filter system

Bean Cooling

External 7 lbs. capacity

Roast

Air

Temperature

Variable manual control Fahrenheit or

Celsius

Bean Temperature Thermometer

Included

Roaster Power

50-amp @ 240V Single-phase

amp @ 220v Single

phase

Exhaust System Power

11-amp, 230V 60 Hz single phase

Roaster Heat

8,600 watts

Batch Size

200g to 7lbs

Venting

Intake: 4” metal ducting (provided)

Discharge: 5” metal ducting (not included)

Minimum Floor Space for full system

7’ wide by 3’ deep

Dimensions & Weight

Roaster 71.5’’ tall x 15’’ deep x 60’’ wide

Exhaust Blower 1550 CFM

16.25” wide x 19” deep x 19.75” tall

Shipping Weight

350 lbs.

Shipping Dimensions

1 Pallet (40x48x74 inches)

Electricity

Usage

Full 7 lb. load 0.4 kWh per pound

200-gram load 1.0 kWh per pound

Certification

Coffee Crafters

708 S Clearwater Loop, Suite 105, Post Falls, ID 83854

(509)228-6916 – sale[email protected]

Valenta 7

Coffee Roaster

Energy Efficient Fluid Bed

Coffee Roasting System

Rev

Coffee

Crafters

Warranty

and

Guarantee

Warranty

and

Guarantee

Valenta 7 Model Warranty

Your Valenta 7 Roaster has been manufactured and tested to the highest quality standards by Coffee

Crafters. This Limited Warranty covers defects in material or workmanship on new Valenta roasters. The

Warranty extends to the original purchaser only and is non-transferable. Only consumers purchasing

roasters from Coffee Crafters may obtain coverage under our limited warranty.

Coffee Crafters warrants this product against defects in material or workmanship as follows:

• Under normal installation per Coffee Crafters instructions, use, service, and maintenance for a

period of one year from the original purchase date, Coffee Crafters will replace at no charge, any

product or part of the product that proves defective because of improper workmanship and/or

material.

The specific warranties expressed are the ONLY warranties provided by the manufacturer. These

warranties give you specific legal rights, and you may also have other rights which vary from state to state.

What is Not Covered by the Warranty

Conditions and damages resulting from any of the following:

a. Improper installation, delivery, or maintenance.

b. Any repair, modification, alteration, or adjustment not authorized by the manufacturer.

c. Misuse, abuse, accidents, unreasonable use, or acts of God.

d. Incorrect electric current, voltage.

e. Improper setting of any control.

f. Use of risers (pedestals) that are not authorized by the manufacturer.

g. The Warranty is void if a product is returned with removed, damaged, or tampered labels or

equipment, or any alterations.

2. The Warranty is void if the original serial numbers have been removed, altered, or cannot be readily

determined.

3. Chaff Filters.

4. Products purchased for use other than roasting coffee.

5. Any food loss due to product failures.

6. Expenses for travel and transportation for product service.

7. Consequential or incidental damages sustained by any person as a result of any breach of these

warranties. Some states do not allow the exclusion or limitation of consequential or incidental

damages, so the above exclusion may not apply.

Rev

Coffee

Crafters

Warranty

and

Guarantee

If You Need Service

1. See the Maintenance/Troubleshooting section of this manual.

2. Visit our YouTube channel to find Maintenance and Troubleshooting videos for tips on fixing/replacing

roaster parts

3. If you are still having issues with the roaster, give us a call or send us an email so we can figure out the

problem with you.

• Phone: 509-228-6916

• Email: [email protected]

30-

Day Complete Satisfaction & Money-Back Guarantee

We want you to be fully satisfied with every item that you purchase from Coffee Crafters. If you are not

satisfied with an item that you have purchased, you may return the item within 30 days of purchase

date for a full refund of the purchase price, minus the shipping, handling, or other additional charges.

Return Instructions

Please note: For purposes of tracking and insurance, all returns must be shipped to Coffee Crafters.

1. Pack the item securely in the original package, if possible. Enclose the return portion of the original

packing slip with the item.

2. All products must be returned in excellent condition, in original boxes, and with all paperwork,

parts and accessories to ensure full credit.

3. All return shipping charges must be prepaid. We cannot accept C.O.D. deliveries.

4. Keep the Return Tracking Number from the package you are returning to ensure that the package is

returned to the warehouse.

5. You can expect a refund in the same form of payment originally used for purchase usually within

10-15 business days of our receiving your returned product. Returned funds may reflect charges

for incomplete components or damage materials. Delays may be experienced in the case of

incomplete returns. Please note that your shipping costs will not be refunded.

Receipt of Damaged or Defective Items

If you receive a damaged or defective item, contact Coffee Crafters Customer Service Department at

1-509-228-6916 immediately upon receiving the item. Please supply your order number, item number and

tracking number from your original confirmation e-mail. Coffee Crafters will also need your e-mail address

and phone number.

A defective item may be repaired or replaced within 30 days of purchase under Coffee Crafters Warranty.

Rev

Coffee

Crafters

Assembly

and

Installation

Assembly and Installation

Assembly Introduction

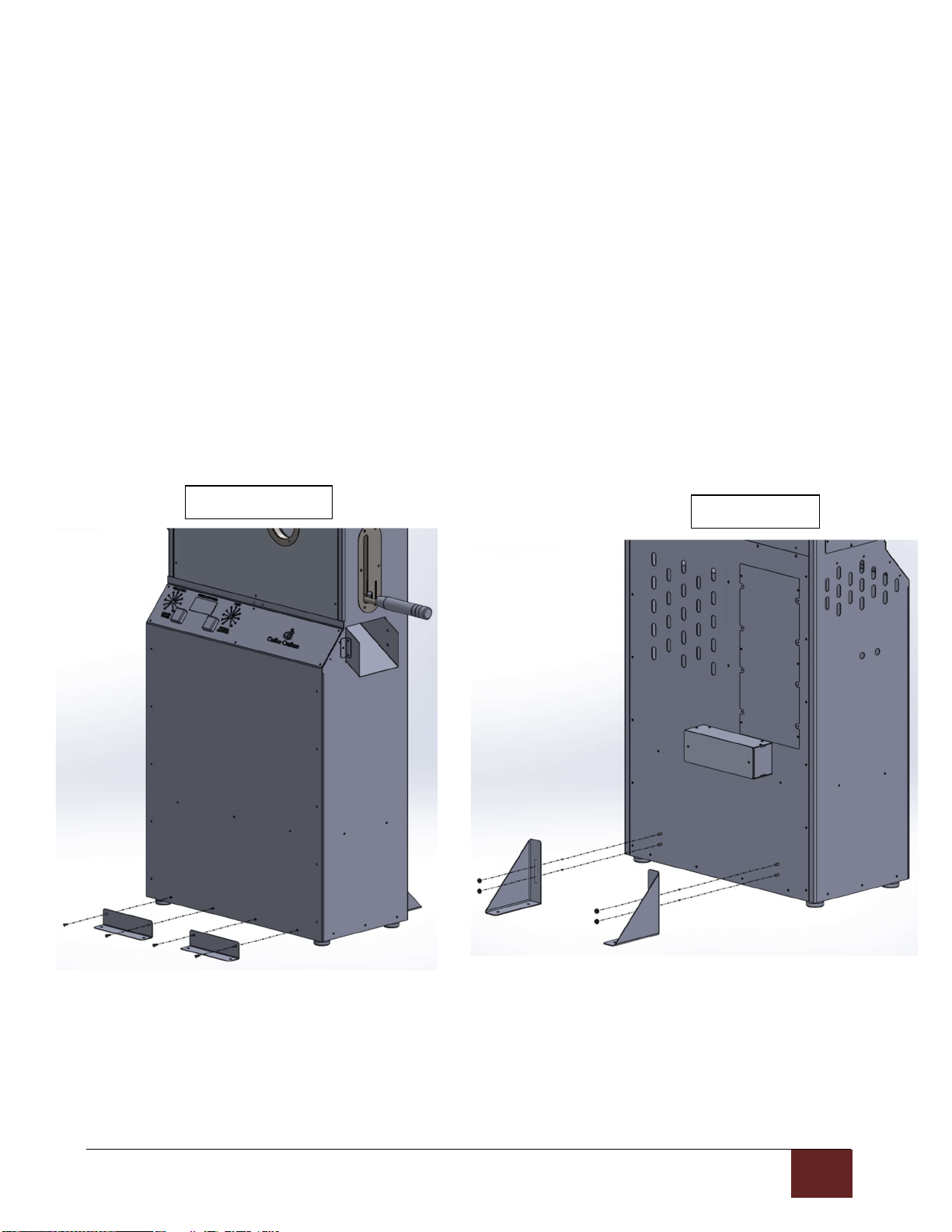

Your Valenta 7 roaster comes mostly assembled. The following instructions will help you complete the

assembly process correctly.

Before you start the assembly process you must select a suitable location for the Roaster and Blower

System. The Blower System can be installed in any location within 10 feet of the Roaster including on the

other side of a wall. You may prefer this installation method if the noise is an issue. The customer must

supply the 5” rigid ducting for outside venting. If you decide to put the Blower System in a different

location additional vent pipe and fittings will be required. Make sure to check with local codes for venting

requirements as noted in the ventilation installation section of this manual. When correctly installed, the

exhaust gas temperature will not exceed 170° Fahrenheit.

The Roaster must be positioned on a flat smooth surface, do not install on carpet. Make sure the Roaster

has at least a 6-inch gap between the back vent pipes and the wall.

Hardware Packages

Your Valenta 7 roaster comes with all the fittings and hardware needed to install the chaff collector, roaster,

bean cooler and exhaust blower. Not included is the electrical cord or ducting on the discharge side of the

exhaust blower. A complete list of included hardware and fittings and listed below.

Please Note: ALL HARDWARE is in one zip-lock bag taped to the Hopper Support Mast

1. Valenta 7 Hardware Kit

a. (4) 8/32 kep nuts

2. Thermometer Bracket

a. (2) 8/32 kep nuts

b. (1) 8/32 screw

Rev

Coffee

Crafters

Assembly

and

Installation

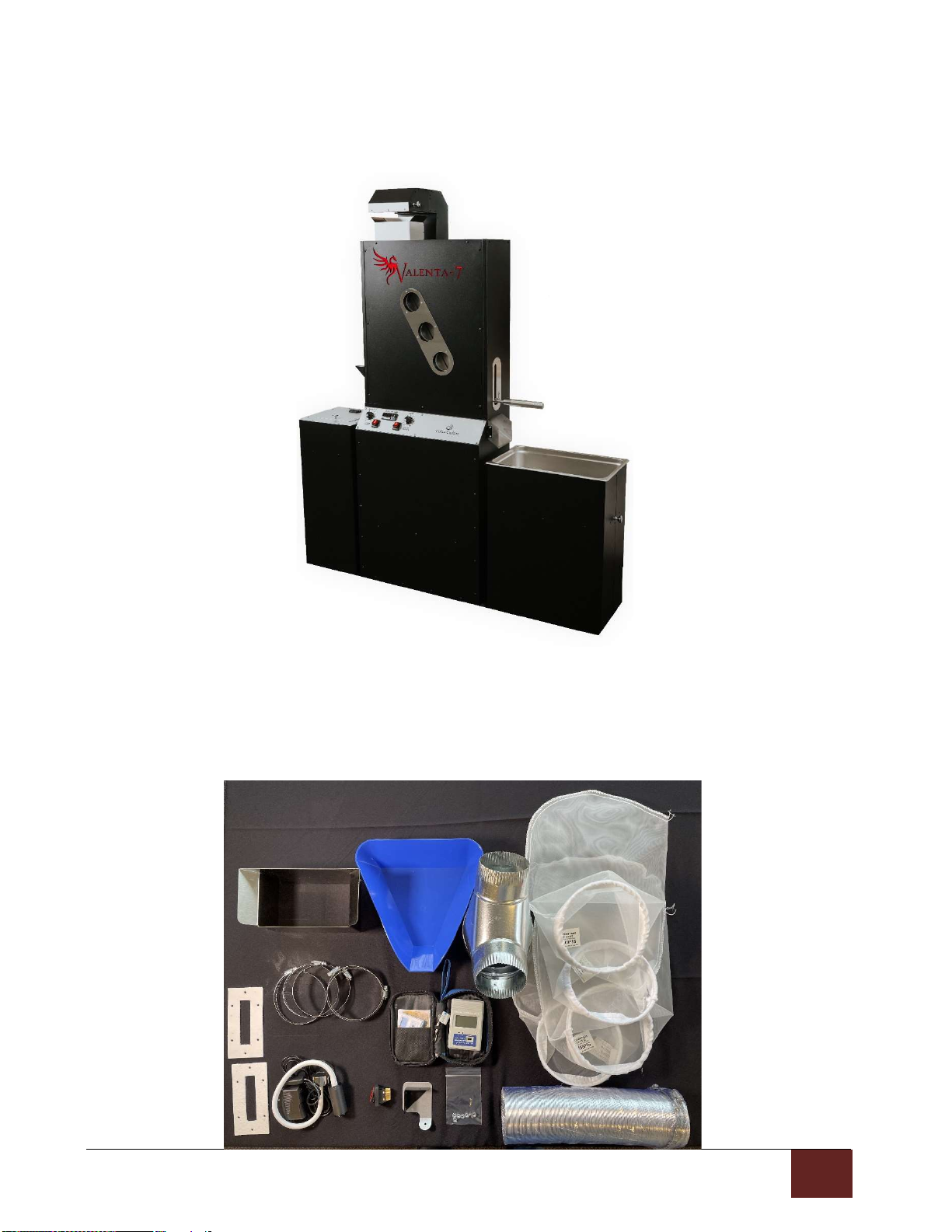

ASSEMBLING YOUR VALENTA 7 ROASTER

ACCESSORY KIT

Rev

Coffee

Crafters

Assembly

and

Installation

Taking the Roaster Off of the Pallet

Step 1: Unscrew the Shipping Brackets on the front and Stabilizing Feet on the back of the roaster. Set the Stabilizing

Feet aside, you will be putting them back on later. You can throw out the Shipping Brackets, they are no longer

needed.

Step 2: Take the roaster off of the pallet and place it in your roasting area.

Step 3: Screw the Stabilizing Feet back into the back of the roaster as pictured below. Please note: these feet are

very strong and can dent the roaster if you move it while the feet are attached so it is a good idea to wait to put the

feet back on until after the roaster is in the position you want to leave it in.

Shipping Brackets

Stabilizing Feet

Table des matières

Autres manuels Coffee crafters Appareils de cuisine

Coffee crafters

Coffee crafters artisan 9 Manuel utilisateur

Manuels Appareils de cuisine populaires d'autres marques

Tayama

Tayama TYG-35AF Manuel utilisateur

AEG

AEG 43172V-MN Manuel utilisateur

REBER

REBER Professional 40 Guide de l'utilisateur

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuel utilisateur

Presto

Presto fountain popper Manuel utilisateur

Westmark

Westmark 1035 2260 Manuel utilisateur

Zanussi

Zanussi ZCG64396XA Manuel utilisateur

HOFFEN

HOFFEN SM-9302M Manuel utilisateur

Philips

Philips HD3133 Manuel utilisateur

Ronco

Ronco Beef Jerky Manuel utilisateur

Hendi

Hendi 470411 Manuel utilisateur

Livoo

Livoo MEN386 Manuel utilisateur

Vogue

Vogue D446 Manuel utilisateur

croydon

croydon WR-10313-700 Manuel utilisateur

ADE

ADE AUTOMATIC-L Manuel utilisateur

Chefman

Chefman RJ43-SQ Series Manuel utilisateur

Vacmaster

Vacmaster VP680 Manuel utilisateur

Jetmaster

Jetmaster 900HG Manuel utilisateur
