CODEX ONBOARD S RECORDER GETTING STARTED GUIDE VERSION 1.0

SAFETY PRECAUTIONS

> Please observe any warnings and follow all instructions.

> Do not use this equipment near water.

> Clean only with dry cloth.

> Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

> Do not install near any heat sources such as radiators, heat registers, stoves, or other equipment (including amplifiers) that produce heat.

> Do not expose to excessive vibration, or drop this product.

> Do not defeat the safety purpose of the polarised or grounding-type plug. A polarised plug has two blades with one wider than the other. A grounding-type plug has two blades

and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the

obsolete outlet.

> Protect the power cord from being walked on or pinched, particularly at plug ends, convenience receptacles, and the point where they exit from the equipment.

> Only use attachments/accessories specified by the manufacturer.

> Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the equipment.

> Unplug this equipment during lightning storms or when not in operation for long periods of time.

> Refer all servicing to qualified service personnel. Servicing is required when the equipment has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the equipment, has been exposed to rain or moisture, does not operate normally, or has been dropped.

> To reduce the risk of fire or electric shock, do not expose equipment to rain or moisture.

> To avoid electrical shock, do not attempt to open this equipment. Refer servicing to qualified personnel only.

DISCLAIMER

Codex products are constantly being developed to remain at the forefront of the industry, and as such the information in this guide is subject to change without notice.

Whilst Codex endeavours to ensure that all printed documentation provided is correct at the time of publication, this guide is not guaranteed to be error-free or up-to-date.

Codex does not assume responsibility for issues or losses due to misinterpretation of the information in this document, errors in this document, or incorrect configuration or installation of the

equipment described herein.

Please report any errors found in this document to [email protected]

ONBOARD SRECORDER

SETTING THE STANDARD FOR FILE-BASED WORKFLOWS, THE CODEX ONBOARD SRECORDER CAN CAPTURE UNCOMPRESSED HD OR WAVELET ENCODED HD

– PLUS AUDIO AND METADATA – ONTO A REMOVABLE SOLID STATE CAPTURE DRIVE.

THE ONBOARD SIS IDEAL FOR SMALLER HD-SDI CAMERAS LIKE THE SONY PMW-F3 AND THE CANON EOS C300. WHEN SHOOTING IS DONE, A CODEX MEDIA

STATION OR VAULT CAN BE USED TO OFFLOAD MATERIAL MUCH FASTER THAN REAL-TIME.

GETTING STARTED

This guide provides an overview of the Onboard SRecorder. For configuration guides for recording common formats, and further documentation visit www.codexdigital.com/support

The operating temperature range of the Onboard Sis 5-40 Degrees C.

Licensing

Recorders are available with different licensed features. The licences on your recorder can be confirmed on the Setup->Licence screen. Licenses that can be installed are:

HD - allows recording of HD formats using the first input channel (Inputs 1/2).

Multi-Chan - allows recording of licensed formats using both input channels (facilitating stereo capture and ARRIRAW up to 60fps)

Power Up and Shutdown

The power input for the Onboard Sauto-switches between two voltage ranges. See the VOLTAGE RANGES section for details. Once all necessary cabling is correctly connected, press the Power

Button on the top surface of the Onboard S. When it has started and a Capture Drive with a Roll is loaded it will switch into Monitor mode and the LED ring will become orange.

The battery meter on the display shows minutes remaining and a capacity remaining percentage for smart batteries, or else just a voltage reading. If the Shutdown volts setting in the System menu has

been set too high for your battery, then you may not be able to start up normally. In this case boot the Onboard S into safe mode by pressing a thin implement, such as a paperclip, through the small

hole next to the power button, whilst pressing the power button. This will reset the Shutdown volts setting to default (10V), and you will be able to boot normally after this.

To power down press the Power Button on the top of the Onboard Sand then press the Shutdown button which appears on the Control Panel. The shutdown process is complete when all lights on the

Onboard Shave switched off.

Loading and unloading a Capture Drive

To load a Capture Drive lift the drive port cover at the front of the Onboard S. Slide the Capture Drive into the port (with cooling ridges facing upwards) and push so that the connector is fully mated.

Close the drive port cover to complete the loading process. The LED on the Capture Drive will flash blue whilst it loads, and turn off when it finishes loading. To unload a Capture Drive lift the drive port

cover. The Capture Drive will be ejected and the LED will become solid blue, meaning it is safe to pull the Capture Drive out of the drive port.

(WARNING - damage may occur to the Capture Drive if it is removed before the LED is solid blue)

Roll and shot concepts

There must be a Roll on a Capture Drive in order to make a recording. See section on the Storage screen for information on how to create a Roll.

A shot is created after each record-stop cycle of operations. Multiple shots can be recorded onto a Roll, and once shots have been recorded they can be transferred and will maintain the original Roll

name in their metadata.

For dual camera recording the Onboard Scan record shots with two video channels, identified by default Channel IDs of V1 and V2 (which are user definable). When processed out by a Codex Media

Station or Vault the shots from each camera are then output as separate files with metadata allowing them to be organised correctly for post production. For independent dual camera recording refer to

the Remote User Interface section of this guide.

CODEX ONBOARD SRECORDER GETTING STARTED GUIDE VERSION 1.0

THE ONBOARD SCONTROL PANEL AND MENU SYSTEM

There are a few global rules about how the Control Panel operates, which will be dealt with before menu specifics:

1) You are only ever two button presses from recording: if you are anywhere in the menu system then one press of the Monitor/Rec button will engage Monitor mode, and a second press will

begin a recording. If you are already in Monitor mode then a single press will begin a recording. During recording the only responsive button is STOP/SELECT, which finishes the recording

and returns the system to Monitor mode.

2) The colour of the LED ring on the Control Panel shows the current mode of the recorder. The different modes are: Monitor = Orange; Recording = Red; Playing = Green;

Pause/Setup = Blue.

3) When the Hold Switch is on there will be a padlock symbol at the top of the screen, and none of the other buttons will respond until the Hold Switch is set to be off. The image below

shows the screen with the padlock symbol:

MONITOR/RECORD

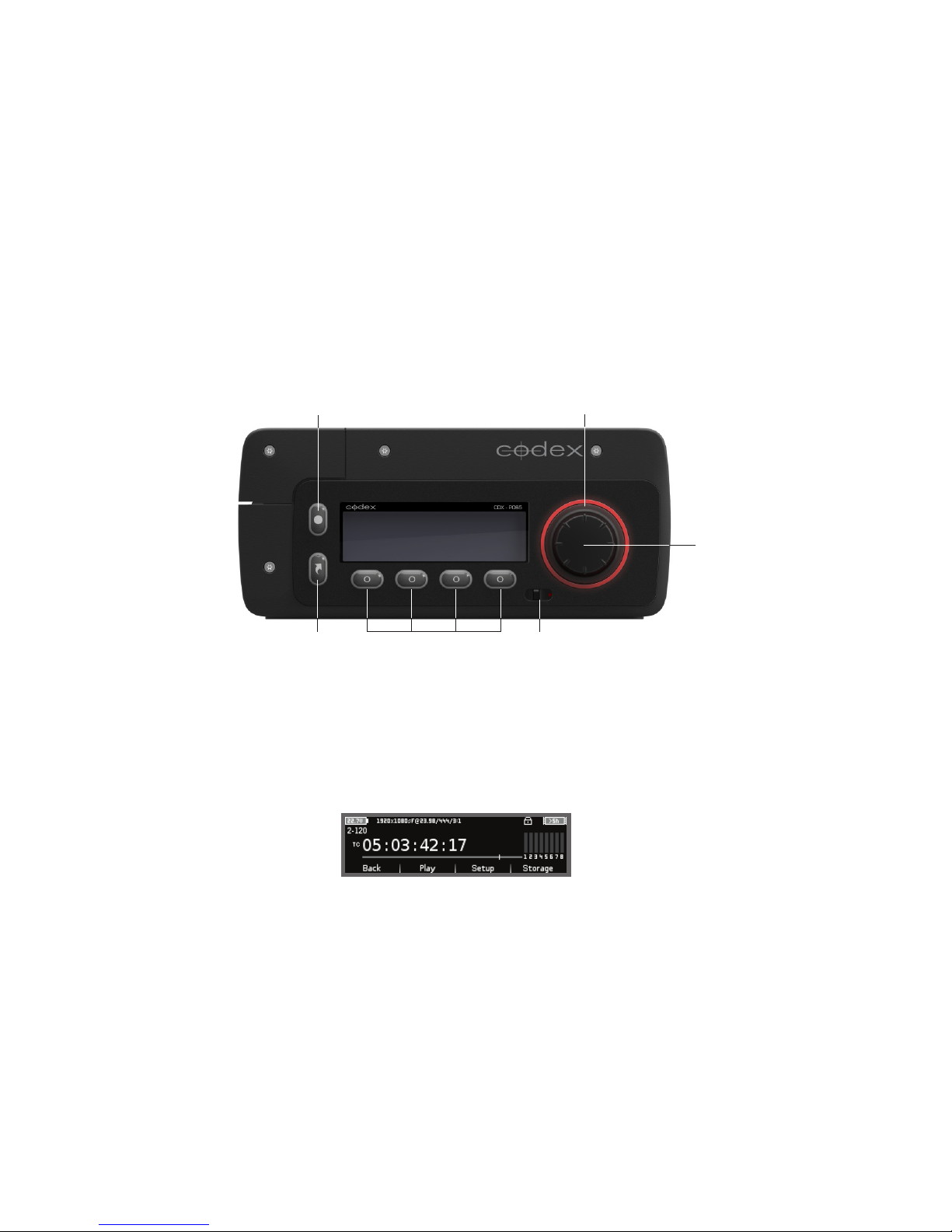

HOLD SWITCHMULTI-FUNCTION BUTTONSMAIN MENU

JOG WHEEL (TURN)

STOP/SELECT (PRESS)

CODEX ONBOARD SRECORDER GETTING STARTED GUIDE VERSION 1.0

4) This image also shows another global function – from any screen the Main Menu button can be pressed which brings up the Monitor | Play | Setup | Storage | options on the

Multi-Function buttons. This can be used at any time to navigate to these screens.

5) From within the menus the left Multi-Function button can be used to go Back a level or to Monitor mode.

6) The Jog Wheel can be turned to navigate through lists in the menu.

7) The Select button is used to select from a list, whether it be a settings list or a shot list.

8) If there are less than 3 possible settings for a menu option these will be available on the Multi-Function buttons below the screen. If there are more than 3 options the Select button can be

used to open a list of all possible settings.

9) Some menu fields, such as the Shot Naming Rule, contain presets which are indicated by < and > symbols. On the Multi-Function buttons press the Next button to move through

presets, Accept to use a preset, or Cancel to leave the settings as they are.

10) Pressing Select on a text field (e.g. a metadata field in the shot Filecard) will open the text editor screen. Initially the Jog Wheel controls the position of the cursor. Backspace deletes

characters from where the cursor is located. Press Insert to bring up the row of characters that can be navigated using the Jog Wheel, and press Select to enter a character. The Shift

button can be pressed to cycle the character row through Shift, Caps, and Normal case modes. Exit Insert mode by pressing the Cursor button.

11) The battery level is always shown in the top left corner of the display.

12) The record time remaining is always shown in the top right corner of the display. If this symbol is flashing then it indicates either that there is less than 5 minutes of record time remaining, or

that there is an issue with the Roll on the Capture Drive which should be checked from the Storage screen.

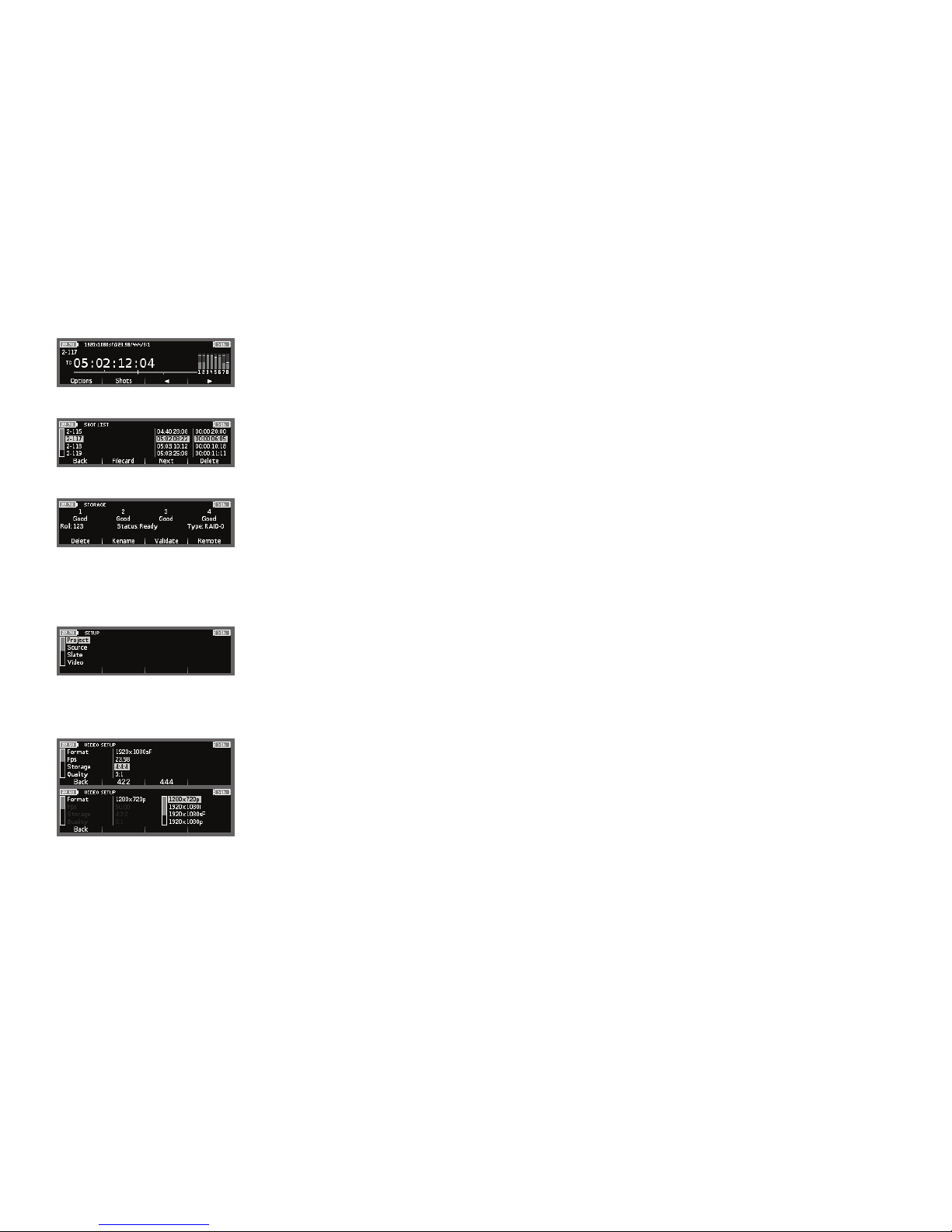

The most important screens of the Control Panel display are:

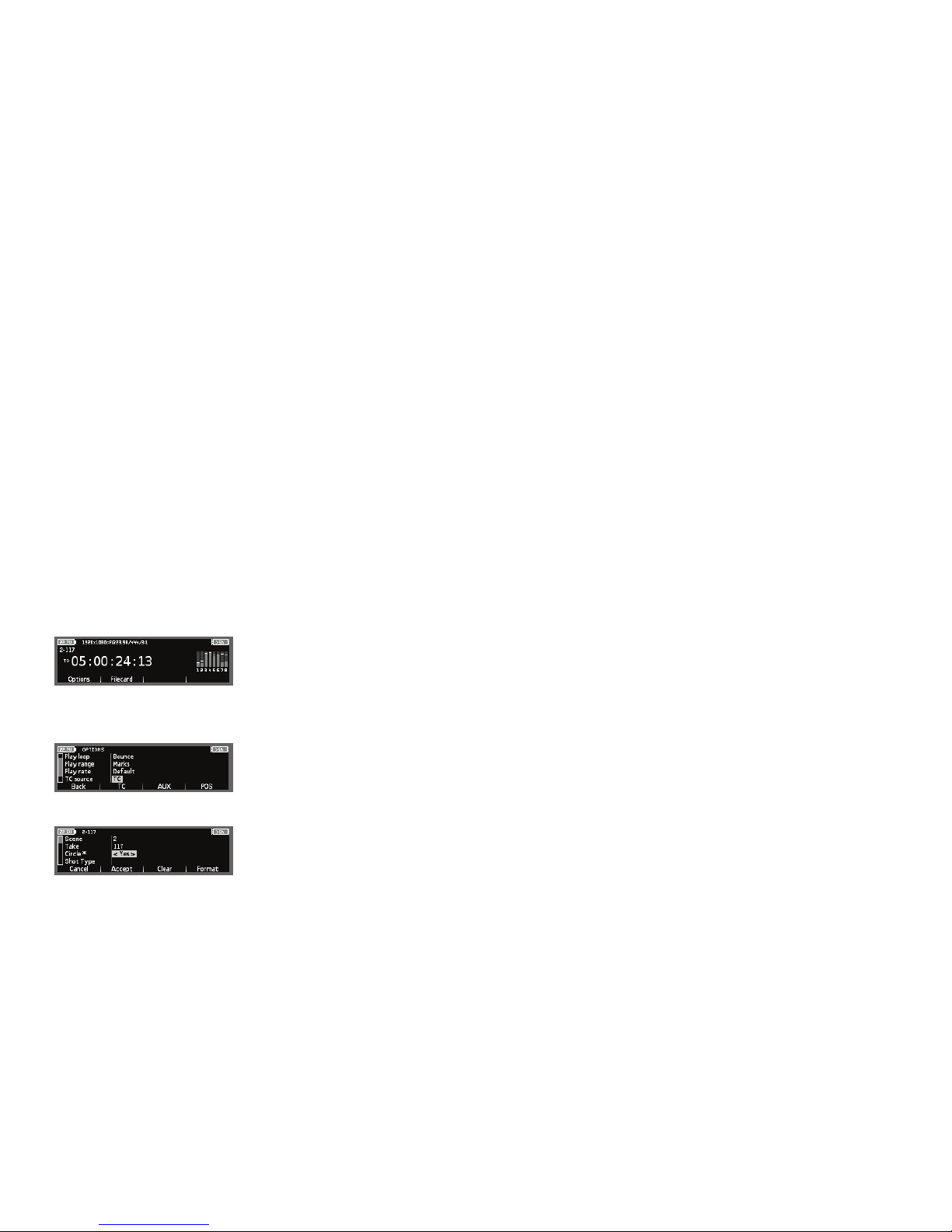

Monitor/Rec

The video format is shown at the top of the screen as follows: <Video format> <Frame rate> <Storage format> <Wavelet compression quality>

Below the battery symbol is the shot name. In Monitor mode this is the name of the next shot to be recorded, and in recording mode it is the name of

the shot currently being recorded. Below this is the main timecode display, and to the right of this are the audio meters. Any warning or error messages

appear below the timecode display. Warnings are cleared from the display if the cause for the warning is corrected. Errors remain on the display until

you move to a different part of the menu system. The Next Scene button increments the scene number by 1 and resets the take number to 1.

The Review button plays back the last 10 seconds of the previous recording for a quick and easy gate check.

Options

These options can be used to change the playback behaviour as well as the type of timecode display. Uncompressed material can be played back at

any frame rate. Wavelet compressed material can be played back at frame rates within whichever of these two ranges it was recorded: 23.98-30fps or

47.95-60fps. A 1D LUT can be selected from here to be applied to the video outputs. See the LUTs section of this guide for further details.

Filecard

The Filecard is where shot metadata can be viewed and edited. This can be accessed in Monitor mode in order to prepare the metadata (e.g. Scene

and Take values) for the next shot, or from the Shots list for any previous recordings. When a change has been made it is not automatically stored.

Press Accept to save any changes, or press Cancel to lose them. Use the Clear button to wipe the contents of a field without having to use the

text editor.

CODEX ONBOARD SRECORDER GETTING STARTED GUIDE VERSION 1.0

Play

Going to the Play screen will load the last recorded shot. Use the > button to play the shot forwards, and the < button to play the shot backwards.

The Jog Wheel can be used to jog through the shot. To load another shot press the Shots button, which will bring up the Shot List.

Shot List

Use this screen to Select a different shot for playback, open the Filecard of a recorded shot to view/edit metadata, view Format information, or delete

recorded shots. Deleting shots is a non-reversible operation. From left to right, the columns on this page show:

< Shot Name> <Start Timecode> <Shot Duration>

Storage

Storage shows information about the Capture Drive and Roll. Before a Roll is created the drives should have a status of Free. Now turn the Jog Wheel

left for RAID-0 (striped drive set) and right for RAID-1 (mirrored drive set). To create a Roll on a blank Capture Drive press the Create button and use

the text editor to enter a Roll name (max. 8 characters). When the Roll has been created the drives should all be listed as ‘Good’ and the Status as

‘Ready’. If this is not the case then contact Codex Support. Delete can be used to delete a Roll and all the shots on it.

Deleting a Roll is a non-reversible operation.

Setup

Menus in the Setup screen are as follows:

Project – enter metadata for the project such as Project Name, Director, DoP, Unit, etc. This information is stored as metadata with all shots.

Source – set unique information for sources, such as a Source ID value. This can be added to the start of Roll metadata to differentiate between

multiple cameras.

Slate – set the Shot Naming Rule and Roll Naming Rule. These use metadata to automatically generate the shot names and roll names for

recorded shots. There are several useful default options that can be cycled through with the Next button. These rules can also be customised if

required.

Video – Select the appropriate Format, Storage, and Fps (Frames per second) settings for the camera output.

Quality – sets the wavelet compression level for recording. It can be set to 1:1 for uncompressed recording, or any other compression ratio between

3:1 and 8:1 in order to use wavelet compression.

Channels – set this to 1 for single camera recording or 2 for dual camera recording. (Multi-channel licence required)

Aspect – choose the correct setting for your lens. Square for standard spherical lenses, or Anamorphic x1.3.

Variframe – should be Off for standard frame rates. For non-standard frame-rates variflags from the Alexa are supported and Variframe mode should

be On. If Variframe is enabled on the recorder but not on the camera then recording is not possible.

CODEX ONBOARD SRECORDER GETTING STARTED GUIDE VERSION 1.0

Input is set automatically based on the format and frame rate selected:

4:2:2 – for use with 1.5G single link 4:2:2 HD-SDI signals 3G – for use with 3G single link 4:2:2 and 4:4:4 HD-SDI signals

Output option has four settings:

Default – no conversion is done for output 4:2:2 – all material is output as 4:2:2 digital video signal 3G – dual link material is output as 3GHz digital video signal

Duplicated – provides duplicated 4:2:2 outputs of a single camera input

LUTS

The Onboard Scan apply 1D LUTs in ASSIMILATE SCRATCH format to the video outputs for monitoring and playback. To load a LUT refer to the ‘Getting Logs and Loading LUTs Guide’.

From the Control Panel select Options when in live or play mode and from this sub-menu select LUT. You can enable/disable any LUT on the system from here.

REMOTE USER INTERFACE

It is possible to control the Onboard Sfrom a remote User Interface (UI), running on a networked computer. The remote UI software is available for both Windows and Mac, and can be

downloaded from www.codexdigital.com/software. Once it is installed, ensure the IP address of the Onboard Sand the remote computer are in the same range, i.e. if the Onboard SIP is

192.168.1.110 and the subnet is 255.255.255.0 then the remote computer should have an IP which begins 192.168.1. and the last number of it’s IP should be any number between 1 and 254,

except for 110. The remote computer should also have a subnet of 255.255.255.0. Use the SYSTEM menu within SETUP on the Onboard Sto check/change network settings. With correct

network settings and an ethernet cable attaching the Onboard Sto the remote computer, run the Codex software package and enter the Onboard SIP address in the Connect to Server box.

Initially you will not be ‘IN CONTROL’, which means you can edit shot metadata but not control the functions of the Onboard S. Go to the SETUP tab, then the CONTROL screen, and you can

press ‘TAKE CONTROL’ in order to control all settings and functions of the Onboard S.

VOLTAGE RANGES

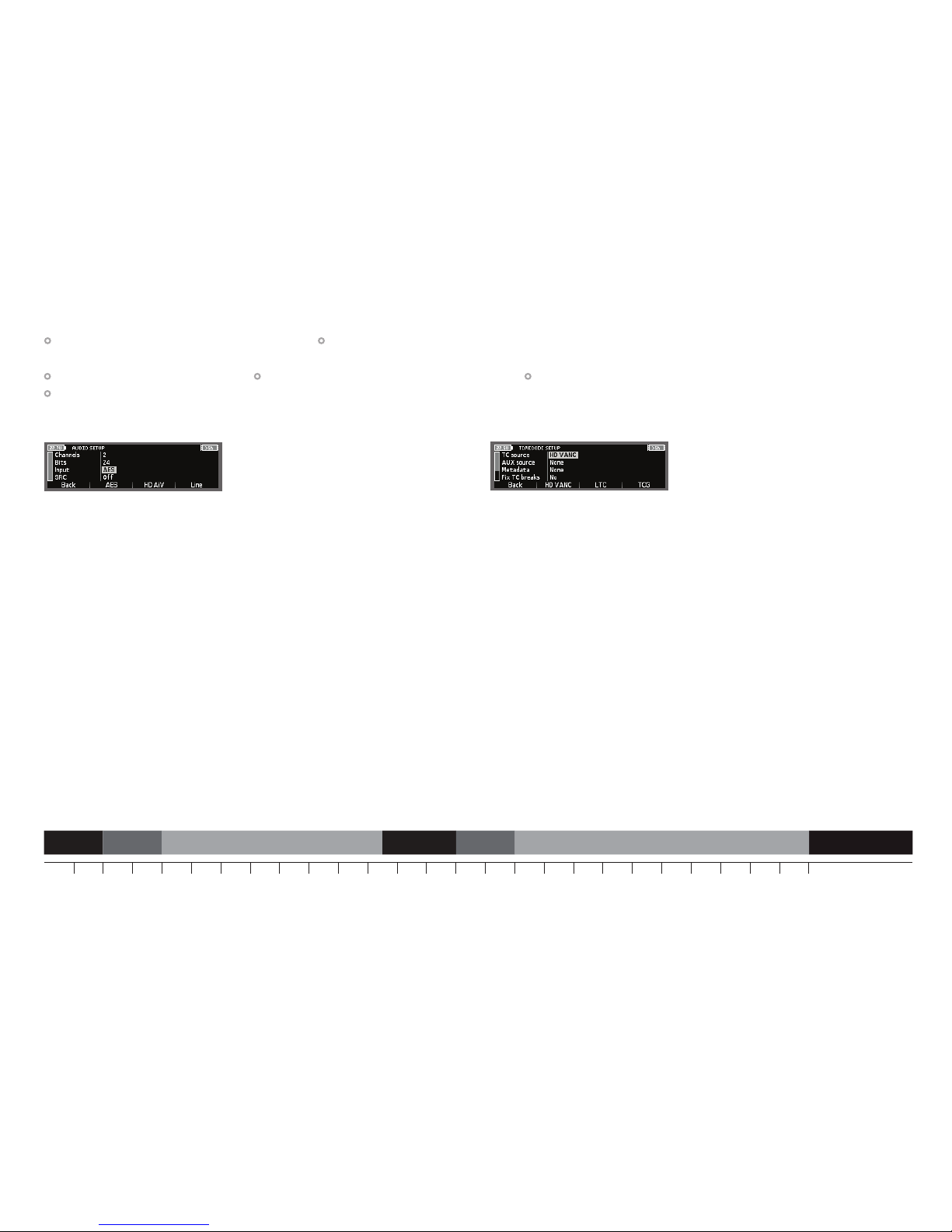

Timecode – Select the appropriate timecode setting.

HD VANC takes timecode embedded from the video

stream – in this case Fix TC Breaks should be set to

No - this is especially critical for correct timecode

handling when shooting in Variframe mode from the

Alexa. LTC takes timecode from the external

connector. TCG uses the internal clock.

Audio – The Onboard Scan record between 1 and

8 channels of embedded audio from the video

stream. Select the appropriate number of channels

and bit-depth. No audio is recorded in Variframe

mode.

CODEX ONBOARD SRECORDER GETTING STARTED GUIDE VERSION 1.0

Recorder will not

operate above 34V

Upper voltage

range 24-34V

Shutdown threshold

of upper voltage

range 22V

Threshold to determine whether

upper or lower voltage range is

selected 19.5VLower voltage range 12-19.5V

Recorder will not

operate below 10V

INPUT VOLTAGE

30 342219.51210 24

ERROR/WARNING MESSAGES

No video input signal detected

Video CRC error

Video frame dropped

Input video signal wrong type

No embedded audio input detected

No video input signal B detected

Not all embedded audio inputs detected

Timecode break

Roll is full

Cannot play shot

Invalid video format for Datapack

Check cabling between the video source and the Onboard. Check the video output format of the source. If

this happens during monitoring it is recommended to switch to playback mode and then back to monitoring

to ‘re-time’ the Onboard to the incoming video signal.

Check cabling – it could be damaged, too long, or suffering interference from lighting etc.

This can occur if signals are dropping in and out during monitoring, so it is advised to restart monitoring

after a signal drop to re-time the Onboard to the incoming signal. If this happens during recording on one

channel it is likely the result of cabling problems. If it happens during recording on both channels then it

could be a symptom of a Datapack write-speed problem, in which case you should contact Codex Support.

Check the Video Format settings and make the appropriate changes.

Check that the source is set to output embedded audio.

Check that the source is outputting Dual Link video.

Check the source is outputting the correct number of audio channels.

Check video and timecode source genlock.

Check and correct the input cables.

Switch to a different Datapack which has storage space remaining.

If intending to shoot variframe, confirm Recording -> REC OUT -> Variflag setting on Alexa.

Contact Codex Support to determine the best course of action.

Either change format settings to be compatible, or change Datapack. The most common cause is a lack of

disk bandwidth, so either select a format with lower bandwidth or use a Datapack with more drives.

No video/valid input signal detected by the video card. The video signal could be absent, too weak, or could

be in a format which the Onboard does not accept.

One or more errors have been detected on the incoming video signal. This will be evidenced by visible errors

appearing as ‘sparkles’ on the recorded data.

There has been a momentary loss in video signal, or data has failed to be written to disk.

Video Format is set to a different format from the one being supplied.

Audio Source is set to HD AiV, but there is no embedded audio being received by the HD IN connectors on

the back panel.

Storage is set to 4:4:4 so the Onboard expects a dual link signal, but there is no video signal being received

at the second input connector.

Audio Channels is set to expect more HD AiV audio channels than are being supplied.

This will most likely be caused by a discontinuity in the timecode, which in turn is caused by the timecode

and video not being locked together.

There is no more space on the Datapack Roll.

Warning/Error Message Course of action

Meaning

The Datapack is not good or degraded in some way. If this is the case the record time remaining symbol

will flash to indicate an issue.

The format settings are not compatible with the loaded Datapack.

CODEX ONBOARD SRECORDER GETTING STARTED GUIDE VERSION 1.0

No valid frames - check variframe settings Variframe is enabled but no Variflag frames are received after a few seconds.

Video cables misconnected Cables are connected to video inputs in the wrong order.

CODEX ONBOARD SRECORDER GETTING STARTED GUIDE VERSION 1.0

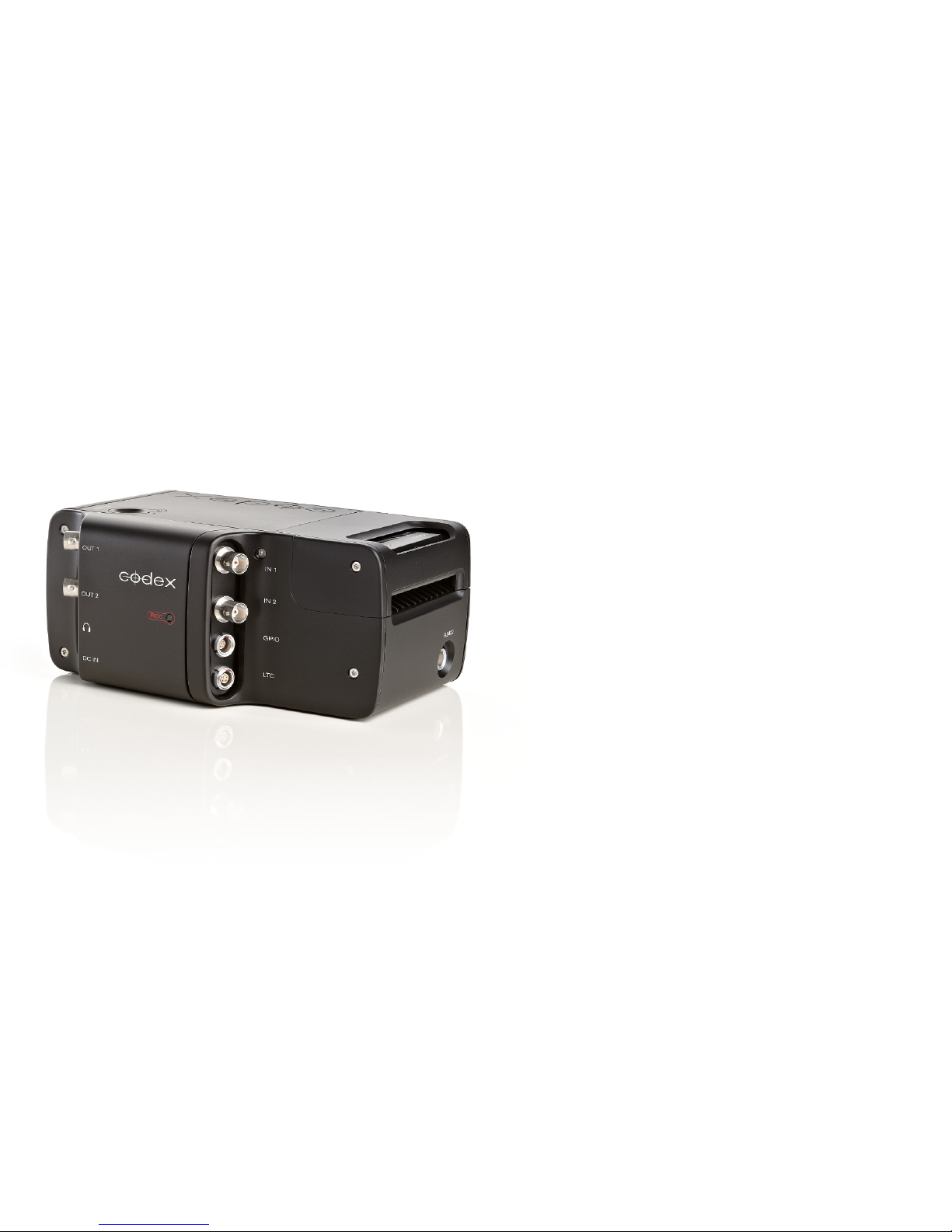

CONNECTOR PIN OUTS

LTC - 5 pin 0B Lemo socket

1 Ground

2 LTC IN +

3 LTC IN —

4 LTC OUT —

5 LTC OUT +

For unbalanced input, use ‘LTC IN +’ and connect ‘LTC IN -’ to ground (Pin 1).

RS422 - 6 pin 0B Lemo socket CURRENTLY FOR WIRED UI CONNECTION ONLY

GPIO - 7 pin 0B Lemo socket

1 Reserved for RS232 RX - DO NOT CONNECT

2 Reserved for RS232 TX - DO NOT CONNECT

3 Ground

4 GPI IN

5 GPI OUT

6 Reserved - DO NOT CONNECT

7 Reserved - DO NOT CONNECT

DC IN - 5 pin 1B Lemo socket

1 Battery V — (0V)

2 IDX SCL (IDX digital clock)

3 IDX SDA (IDX digital data)

4 AB DATA (Anton/Bauer coms)

5 Battery V+ (12-28V DC)

HEADPHONE OUT - 3.5mm Jack

Tip Left channel audio

Ring Right channel audio

Sleeve Ground

CODEX ONBOARD SRECORDER GETTING STARTED GUIDE VERSION 1.0

NOTES

Autres manuels pour Onboard S

Table des matières

Autres manuels Codex Équipement d'enregistrement

Codex

Codex Arriraw Manuel utilisateur

Manuels Équipement d'enregistrement populaires d'autres marques

KV2 Audio

KV2 Audio 500 Series Manuel utilisateur

Robotics Technologies

Robotics Technologies microBus-Cam II Manuel utilisateur

Seca

Seca 460 Manuel utilisateur

Cognex

Cognex MVS-8000 Series Manuel utilisateur

Mect

Mect MPNC006 Series Manuel utilisateur

Bad Caf

Bad Caf THE LEASH Manuel utilisateur

Strymon

Strymon NIGHTSKY Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuel utilisateur

Tews Technologies

Tews Technologies TPMC465 Manuel utilisateur

Honeywell

Honeywell Excel 50 Manuel utilisateur

SeaLevel

SeaLevel COMM+8.LPCI Manuel utilisateur

Arturia

Arturia AUDIOFUSE STUDIO Manuel utilisateur

Rukra

Rukra RK-1240 Manuel utilisateur

Samson

Samson SCOM Manuel utilisateur

Dynacord

Dynacord DPS260 Manuel utilisateur

Nice

Nice Core Manuel utilisateur

Pyle Pro

Pyle Pro PSS8 Manuel utilisateur

RF-System

RF-System TinyGate Manuel d'utilisation et d'entretien
