Coda LINUS System Manuel utilisateur
LINUS Live v.1.2.0 Beta
2017_01_20
1
LINUS System
Quickstart
2
Hadware Setup
PAN 8
INPUT A LINK A INPUT B LINK B ±1 AMP 1-A
±2 AMP 1-B
SENSOR 1+2 SENSOR 3+4
±1 AMP 2-A
±2 AMP 2-B
OUT 1 OUT 1+2 OUT 2
OUT 3 OUT 4
SENSOR 5+6 SENSOR 7+8
OUT 3+4
L I N E T
AES3 OVER ETHERNET
PRIM SEC IN OUT
DAN
ETHERNET L I N E T
POWER
ON OFF
ONOFF
2
3
1
PUSH
3
21
PUSH
3
21
2
3
1

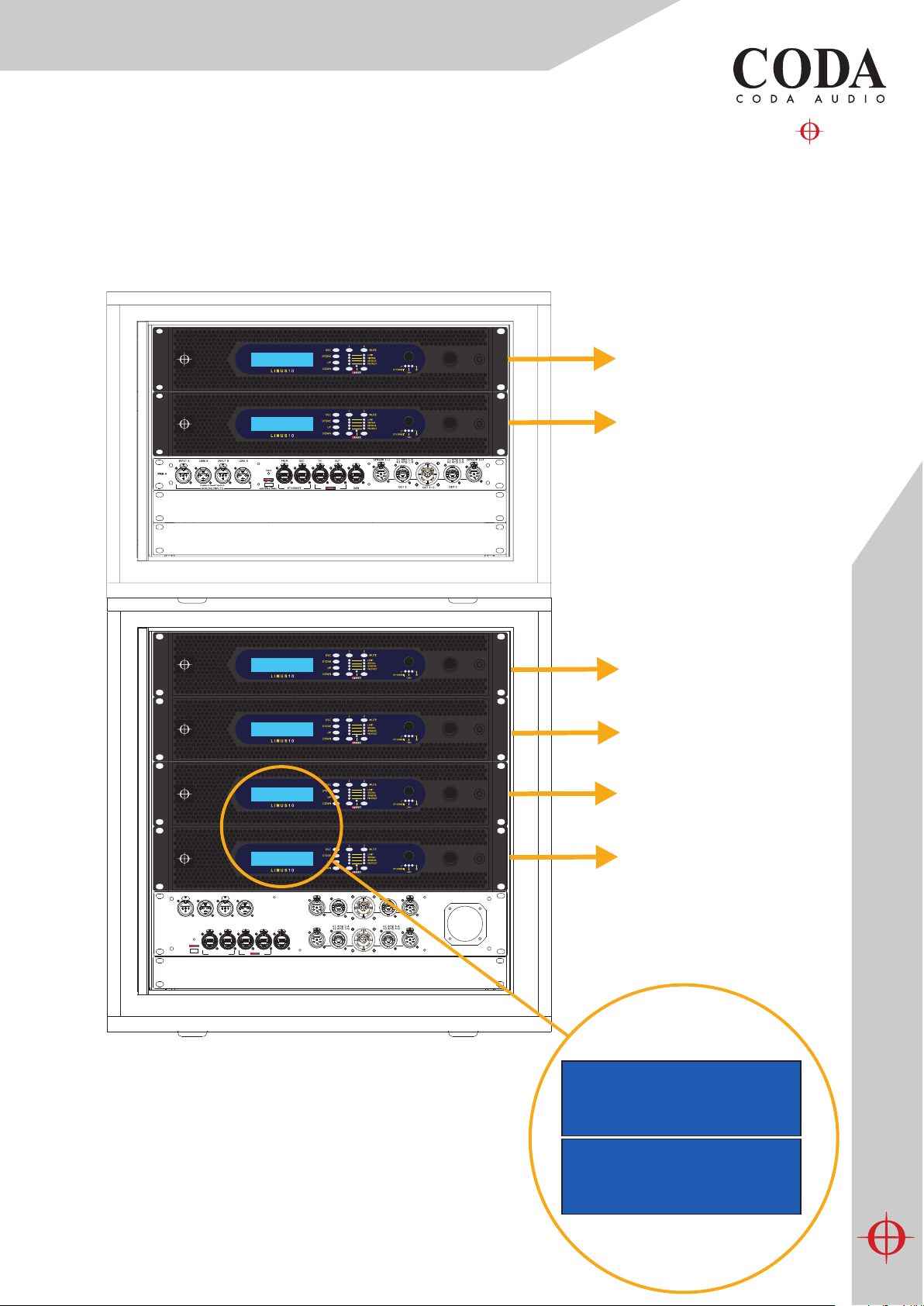

1. Verify Master - Slave configuration in LINUS Rack 20/40
Start the Rack configuration before any frontpanel connected cables!
Master
Slave
Master
Slave
Master
Slave
Linus10 Master #03
P 14:ViRAY-A
I 1_LF 1_HF
G 0.0 0.0
Linus10 Slave #03
P 14:ViRAY-A
I 1_LF 1_HF
G 0.0 0.0
3
Hadware Setup
PAN 8
INPUT A LINK A INPUT B LINK B ±1 AMP 1-A
±2 AMP 1-B
SENSOR 1+2 SENSOR 3+4
±1 AMP 2-A
±2 AMP 2-B
OUT 1 OUT 1+2 OUT 2
OUT 3 OUT 4
SENSOR 5+6 SENSOR 7+8
OUT 3+4
L I N E T
AES3 OVER ETHERNET
PRIM SEC IN OUT
DAN
ETHERNET L I N E T
POWER
ON OFF
ONOFF
2
3
1
PUSH
3
21
PUSH
3
21
2
3
1
2. Module Number assignment
1# Master
1# Slave (follows)
2# Master
2# Slave
3# Master
3# Slave (follows)
(follows)
After selecting the Module Number on the Master unit and entered the command,
the Master Unit starts a device scan...and ends with a message „Device Found 1“
(this is the Slave unit). The Slave unit will automatically follow the Master unit.
Doublecheck the IP adress on the last page on the units displays.
Module No. 1 example- Master: xxx.xxx.xx.01/ Slave: xxx.xxx.xx.02
Module No. 2 example. Master: xxx.xxx.xx.11/ Slave: xxx.xxx.xx.12
Shutdown the complete rack and wait for 5min if the Master/ Slave IP-Address
structure is not in the right order and repeat the module number assignment
4
Network Setup
1. Configure Network Structure
Wire your racks with ethernet cables (PRIM/ SEC)
Example shows Daisy Chain Topology (other Network topologies possible)
PAN 8
INPUT A LINK A INPUT B LINK B
PRIM SEC IN OUT
DAN
ETHERNET L I N E T
2
3
1
PUSH
3
21
PUSH
3
21
2
3
1
LINUS Rack 20
LINUS Rack 40
Set Static IP:
IP:192.168.1.20
SN: 255.255.0.0
5
Network Setup
2. Scan Network
Start LINUS Live and Press
Device Scan process will start:
You will find a clear indication of available units in the network.
If the Scan result do not match with your hardware, check
the setup of devices and network mentioned previously.
Master Module Number (#1)
IP:xxx.xx.xx.01
Slave
IP:xxx.xx.xx.02
Example shows the initial connection of devices.
LINUS Live includes a new FirmWare Version
6
Software Setup
1. Scan Network/ Update
Start LINUS Live and Press
The Device Scan process window informs you about a new
(in Linus Live implemented) FirmWare for the scanned devices
You now need to upload the FirmWare of the connected devices!
Press „Add“ to include all modules into the setup space
(Step 2. on next page)
7
Software Setup
2. Firmware Update
-Select all modules (from the same type)
-Press „Firmware“ and „Upload Firmware“
Wait until the Firmware Upload is completed!
LINUS Live will close and LINUS 10 will reboot automatically after
the Firmware update has been completed.
Note!
Do not update more than 8x LINUS10 Units at any one time!
1. 2.
8
Software Setup
3. Scan Network/ Update
Start LINUS Live and Press
The Device Scan process window informs you about a new
(in Linus Live implemented) Preset Library for the scanned devices
You now need to upload the Preset Library of the connected Devices!
Press „Add“ to include all modules into the setup space
(Step 4. on next page)
9
Software Setup
4. Library Update
-Select all modules (from the same type)
-Press „Library“ and „Upload Library“
Wait until the Library Upload is completed!
LINUS Live will close automatically after the Library Update
has been completed.
1. 2.
10
Software Setup
5. Updated Environment
Start LINUS Live and Press
The Device Scan process window informs you about an updated
Device environment
You can start now with LINUS Live operation.
Please refer to the „LINUS Startup“ manual for further information
