INSTRUCTION MANUAL

Model Number: HE413002B

CORDLESS PHONE

WITH DECT TECHNOLOGY

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

- Keep Cordless DECT Phone away from liquid

- Keep away from heat sources such as heaters and ovens

- If the Cordless DECT Phone is not to be used for long periods of time, turn off and unplug from

any power source

- Do not use in dusty conditions

- Do not drop or jar the Cordless DECT Phone. Dropping or rough use of the unit will cause

damage

- Do not place near strong magnets or strong electric currents

- In the case of improper usage or if you have opened, altered and repaired the product

yourself, all guarantees are void.

- The supplier does not accept responsibility for additional or consequential damage other than

covered by legal product responsibility.

- The supplier is not responsible for the end use of this product including any improper use or

when used for purposes that are not speciﬁed.

- ONLY use the power adapter supplied with this product to power the base unit. Using any

other power adapter will invalidate your warranty and may cause damage to the unit.

- DO NOT use non-rechargeable batteries - they may explode and cause damage to your

telephone.

Read First Before Use:

Choosing a site for the base unit.

If you connect your telephone to a line with a broadband connection, you may need a phone line

ﬁlter between the telephone and the telephone line, otherwise you may get interference between

the telephone and the broadband, which could cause problems. In a home with broadband,

every telephone must have a phone line ﬁlter connected, not just the one at the telephone point

that your modem is connected to. If you need more broadband phone line ﬁlters, contact your

broadband supplier.

Radio signals between handset and base unit.

To use your handset and base unit together, you must be able to maintain a radio link between

them. Be aware that any large metal objects, like a refrigerator, a mirror, ﬁling cabinet, etc,

between the handset and the base unit may block the radio signal. Other solid structures, like

walls, may reduce the signal strength.

1. Safety Warnings & Cautions

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

Safety Warnings & Cautions....................................................................................................

Contents...................................................................................................................................

Introduction/ Package Contents/ Technical Speciﬁcations..................................................

Product Overview....................................................................................................................

Instructions..............................................................................................................................

1. Installation & Setup.............................................................................................

2. Making and Answering Calls..............................................................................

3. Locating Handsets..............................................................................................

4. Call Waiting.........................................................................................................

5. Using Your Phone book.....................................................................................

6. Direct Dial Buttons.............................................................................................

7. Redial List...........................................................................................................

8. Intercom Functions.............................................................................................

9. Handset Tone.....................................................................................................

10. Time & Date Settings........................................................................................

11. Advanced Settings............................................................................................

Troubleshooting........................................................................................................................

Support/ Warranty Details.......................................................................................................

6-16

17-18

Contents

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

Package Contents

Technical Speciﬁcations

Congratulations on the purchase of your Cocoon Cordless DECT Phone.

This product is designed to let you keep in touch throughout your home or

ofﬁce and provide many years of reliable use. Please read and follow these

instructions carefully. If you experience any difﬁculties setting up or using this

product, please see back page for customer support contact details.

- 1 x DECT Cordless Handset

- 1 x Base Unit

- 1 x Telephone Cable

- 1 x Base Power Adaptor

- 2 x AAA Rechargeable Batteries

Base Power: 5V, 150mA

Handset Power: 2 x AAA (1.2V, 550mAh, Ni-MH)

Frequency: 1880 – 1900 Mhz

Registered handsets: 4 handsets can be registered per base unit

Memory: 50 contacts

Range: 50m indoors, up to 300m outdoors (Line of Sight)

Call Waiting: Supported

Caller ID: Supported

Mute: Yes

Intercom: Yes

Handset locator: Yes

Conference calls: Yes

Introduction

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

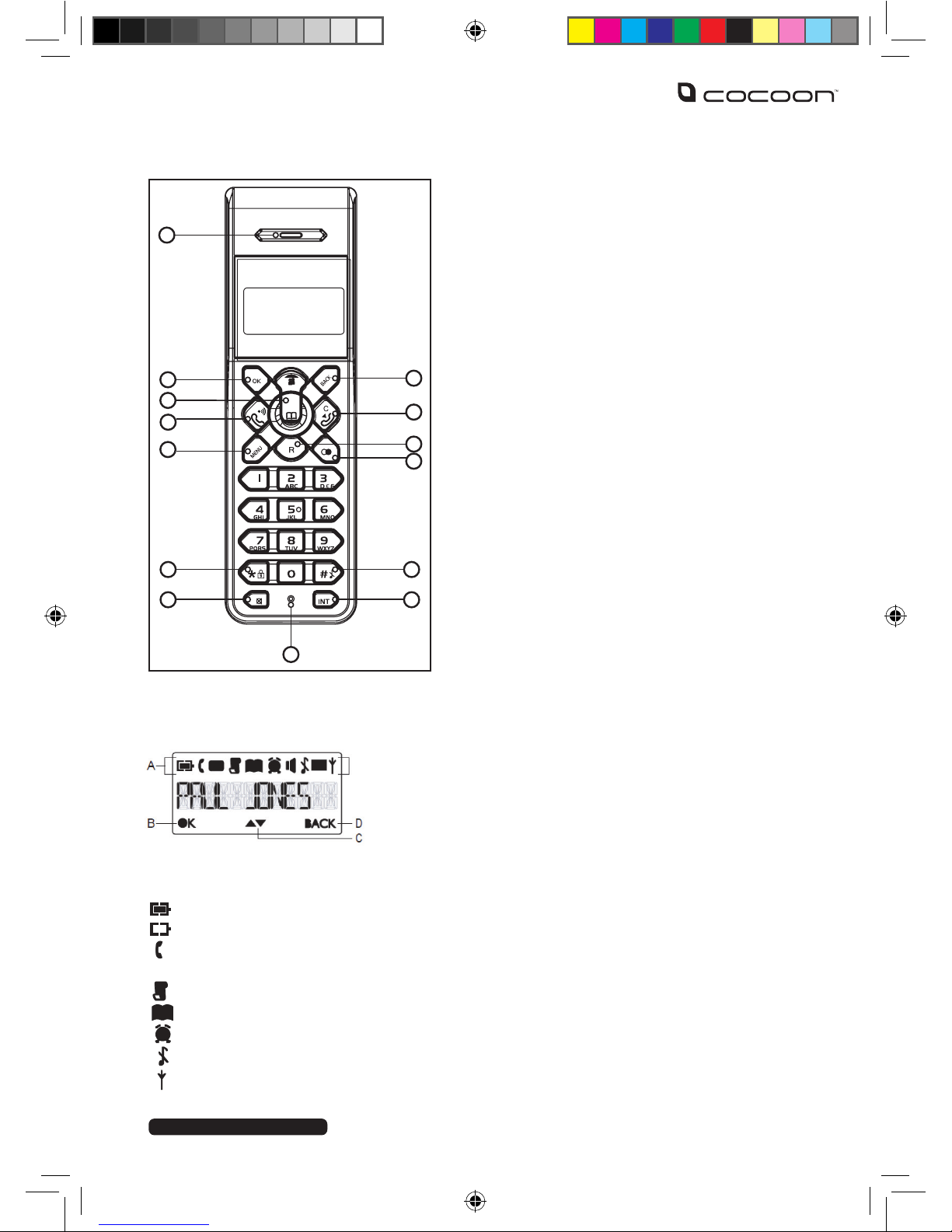

1. Earpiece

2. OK Key

3. Back/Clear Key

4. Navigation Keys

5. Talk Key/Speakerphone key

6. Hang Up/Exit Key

7. Menu Key

8. Recall/Flash Key

9. Redial Key

10. Keypad Lock

11. Ringer Off Key

12. Mute Key

13. Call Transfer/Intercom Key

14. Microphone

Battery Charge Level indicates battery is fully charged.

Battery Charge Level indicates battery is fully discharged.

Call Indicates that an external call is connected or held.

- Icon blinks when receiving an incoming call.

Caller display Indicates you have new missed calls, or the call log is being viewed.

Phone book Displays when the phone book is accessed.

Alarm Displays when the alarm clock is activated.

Ringer Off Displays when ringer volume is turned off.

Signal Level Indicates that the handset is registered and within range of the base

station. Icon blinks when the handset is out of range or is searching for a base.

A. Display Icons (See table below)

B. Displays when in menu mode to conﬁrm your selection

C. Indicates that more options are available

Use the UP/DOWN keys to scroll up/down

D. Displays when in menu mode

Select BACK to return to the previous menu level.

Select BACK to delete the last digit/character entered

WHAT’S ON THE DISPLAY?

Product Overview

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

1. INSTALLATION AND SETUP

After choosing where you would like to position the phone handset, unpack the contents of the

box and check that you have all the items listed on page 4.

1. Remove back cover and insert batteries

2. Connect the supplied telephone cable into the base unit.

3. Connect the other end to the live telephone point in your home or ofﬁce.

4. Connect the base power adapter to an electrical outlet.

5. Plug the base power adapter cord into the base unit.

6. Place the cordless handset on the base unit to begin charging.

Note: Before you use the cordless handset for the ﬁrst time, it is important that you charge

the batteries fully. Charge the handset for 15hrs before ﬁrst use.

The battery icon on the cordless handset will ﬂash when charging an empty battery.

A. Turning the Cordless Handset On/Off

Press and hold the Hang-Up/Exit button for 3 seconds to turn on the handset.

Note: When the handset is turned off, you cannot make or receive calls. The phone will not

ring when a call is received. When the unit is turned back on, it may take a few seconds to

pair to the base unit again.

It may be useful to turn off the handset to save battery.

B. Unlocking/Locking the Keypad

The keypad can be locked to prevent unwanted key touches being made. This can be useful

around small children who may play with the phone handset.

Press and hold the Star button for 1 second to lock/unlock the keypad when

the handset is turned on.

Note: Incoming calls can still be answered when the keypad is locked.

C. Setting the Date and Time

1. Press the Menu button to enter the main menu

2. Press the Navigation buttons to select Clock&Alarm and press the OK button

to select.

3. Press the OK button to select Date/Time. The last stored date will be displayed.

4. Enter the current date using the keypad in YY/MM/DD format then press OK

5. Enter the time using the keypad in HH:MM format.

6. Press the Navigation buttons to select AM or PM (the time is in 12HR format)

and press the OK button to conﬁrm.

7. The handset will beep to conﬁrm the date has been successfully changed.

Instructions

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

D. Changing the Handset Name

1. Press the Menu button to enter the main menu

2. Press the Navigation buttons to select Personal Set and press the OK

button to select.

3. Press the Navigation button to select Handset Name and then press the OK

button to select. The current handset name will be displayed.

4. Press Back/Clear to delete characters.

5. Use the keypad to enter a new name for the handset and press OK to conﬁrm.

6. The handset will beep to conﬁrm the handset name has been successfully

changed.

E. Changing the Handset Language

1. Press the Menu button to enter the main menu

2. Press the Navigation buttons to select Personal Set and press the OK button

to select.

3. Press the Navigation buttons to select Language and then press the OK

button to select.

4. Press the Navigation button to select your desired language and then press

the OK button to select.

5. The handset will beep to conﬁrm the handset language has been successfully

changed.

2. MAKING AND ANSWERING CALLS

A. Making a Call: Pre-Dialling

Dial the number using the keypad (maximum 24 digits) then press the

Talk button

B. Making a Call: Direct Dialling

Press the Talk button and then dial the number (maximum 24 digits).

C. Redial

1. Press the Redial button

2. Use the Navigation buttons to select the number you wish to dial and then press

the Talk button

D. Dialling from the Call Log

1. Press the Up button to access the Call Log

2. Use the Navigation buttons to select the number you wish to dial and then press

the Talk button

Note: Only callers with Caller ID enabled will have their details stored in the call log.

Contact your phone provider for further information about enabling Caller ID.

Instructions

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

E. Answering and Ending a Call

1. When the phone rings, press the Talk button

2. To end a conversation, press the Hang Up/Exit button

Note: You can also place the handset back onto the base to end a call.

F. Adjusting Handset Volume

During a call, press the Navigation button to select from volume 1 to volume 3.

G. Mute/Unmute the Microphone

1. During a call press the Mute button the handset display will show Mute On

and the caller will not be able to hear you.

2. Press the Mute button again to unmute the microphone.

3. LOCATING HANDSETS

The Cocoon Cordless DECT Phone comes with a paging function to allow you to

locate a missing handset.

1. Press the Handset Locator button on the rear of the base station. All the

handsets registered to the base station will begin to ring.

2. Once you have retrieved the handsets, simply press the Handset Locator button

on the base station again or press any key on the cordless handset to stop

the ringing.

4. CALL WAITING

If you have subscribed to Call Waiting service, the earpiece will emit a beep tone to

inform you that there is a second incoming call. The number or name of the second

caller will also be displayed on your phone if you have subscribed to Caller

Line Identiﬁcation service (CLI). Please contact your network provider for more

information on this service.

5. USING YOUR PHONEBOOK

Your phone can store up to 50 phone book memories. Each phone book entry can

have a maximum of 24 digits for the phone number and 12 characters for name.

A. Accessing the Phone book

1. Press the Down Navigation button mode to browse the phone book entries.

2. Or you can press the Menu button to enter the main menu, press the

Navigation buttons to select Phone book and then press the OK button to select.

3. Press the Navigation button to select List and then press OK key to conﬁrm.

The phone book entries will be listed in alphabetical order, and you can press

Navigation button to scroll through the stored entries.

4. Press the OK button to view the details of the selected entry.

Instructions

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

Tip: Instead of pressing the Navigation key to browse the phone book entries, you can

press the numeric key corresponding to the ﬁrst letter of the entry you wish to locate. For

example, pressing 2 will show the entries starting with A. Pressing 2 again will show the

entries starting with B, and so on.

B. How to enter characters?

When you select a ﬁeld in which you can enter text, you can enter the letters that are printed on

the keys by pressing the relevant key once or several times.

For example, press 2 once to insert the letter ‘A’, press 2 twice to insert the letter B, and so

on... Spaces and other symbols can be entered using the 1 or 0 key.

C. Modify a Phone book Entry

1. Press the Menu button to enter the main menu

2. Press the Navigation buttons to select Phone book and press the OK button

to select.

3. Press the Navigation buttons to select Edit Entry and then press the OK button

to select.

4. Press the Navigation button to select the entry you wish to edit and the press

the OK button to select.

5. The current name will be displayed, edit the name using the keypad and press

OK to conﬁrm.

6. The current phone number will be displayed, edit the phone number using the

keypad and press OK to conﬁrm.

7. The handset will beep to conﬁrm the phone book entry has been successfully

changed.

D. Delete a Phone book Entry

1. Press the Menu button to enter the main menu

2. Press the Navigation button to select Phone book and press the OK button

to select.

3. Press the Navigation button to select Delete and then press the OK button

to select.

4. Press the Navigation button to select the entry you wish to delete and the

press the OK button to select. Press OK again to conﬁrm you wish to delete

the entry.

5. The handset will beep to conﬁrm the phone book entry has been

successfully deleted.

E. Delete All Entries from the Phone book List

1. Press the Menu button to enter the main menu

2. Press the Navigation button to select Phone book and press the OK button

to select.

3. Press the Navigation button to select Delete All and then press the OK

button to select. Press OK again to conﬁrm you wish to delete all phone

book entries.

4. The handset will beep to conﬁrm the phone book has been successfully deleted.

Instructions

After Sales Support

Telephone: 1300 663 907

Internet: www.winplus.com.au

6. DIRECT DIAL BUTTONS

The Cocoon Cordless DECT Phone has 2 direct dial buttons (keypad buttons 1 & 2) in addition

to the phone book entries. A long press on the key will automatically dial the stored phone

number.

A. Add/Edit Direct Dial Numbers

1. Press the Menu button to enter the main menu

2. Press the Navigation button to select Phone book and press the OK button

to select.

3. Press the Navigation button to select Direct Mem and then press the OK

button to select.

4. Press the Navigation button to select either Key 1 or Key 2 and then press the

OK button to select.

5. The stored name will be displayed or No Number if it is empty

6. Press the Menu button to enter the Direct Dial menu to add or edit the

number stored, use the navigation button to select Edit Number and then press

OK to conﬁrm.

7. The current name will be displayed, edit the name using the keypad and press

OK to conﬁrm.

8. The current phone number will be displayed, edit the phone number using the

keypad and press OK to conﬁrm.

9. The handset will beep to conﬁrm the direct dial number has been successfully

changed.

B. Delete Direct Dial Number

1. Press the Menu button to enter the main menu

2. Press the Navigation button to select Phone book and press the OK button

to select.

3. Press the Navigation button to select Direct Mem and then press the OK button

to select.

4. Press the Navigation button to select either Key 1 or Key 2 and then press the

OK button to select.

5. The stored name will be displayed or No Number if it is empty

6. Press the Menu button to enter the Direct Dial menu to add or edit the

number stored, use the navigation button to select Delete and then press OK

to conﬁrm.

7. Press OK again to conﬁrm you wish to delete the entry.

8. The handset will beep to conﬁrm the phone book entry has been successfully

deleted.

Instructions

Table des matières

Autres manuels Cocoon Téléphone sans fil

Cocoon

Cocoon 1100 Manuel utilisateur

Manuels Téléphone sans fil populaires d'autres marques

3Com

3Com NBX Manuel utilisateur

Panasonic

Panasonic KX-TGK210HK Manuel utilisateur

Panasonic

Panasonic KX-TCA181EX Manuel utilisateur

BT FREESTYLE 3200 Manuel utilisateur

AT&T

AT&T CL84102 Manuel utilisateur

BREZZICNI

BREZZICNI CL-3622 Manuel utilisateur

Panasonic

Panasonic KX-TG1831NZ Manuel utilisateur

Panasonic

Panasonic KX-TG7301E Manuel utilisateur

Furuno

Furuno FM-4721 Manuel utilisateur

Sanyo

Sanyo CLT-J70 Manuel utilisateur

Amplicomms

Amplicomms BigTel 201 Manuel utilisateur

GE 26992 Manuel utilisateur

AT&T

AT&T E1812B Manuel utilisateur

Sanyo

Sanyo CLT-670 Manuel utilisateur

GE 15432970 Manuel utilisateur

Curtis

Curtis TC595 Manuel utilisateur

Gigaset

Gigaset Gigaset 3000 Micro Manuel utilisateur

Poly

Poly VVX D230 Guide de configuration
