Service Manual

Sep. 30th, 2010 (Version 1.3) Page 1 / 21

Service Manual

TELEVISION SET

WITH 32” 16:9 TFT LCD PANEL

Model : TFTV3225S2

Pravin Mevada

Service Manual

Sep. 30th, 2010 (Version 1.3) Page 2 / 21

CONTENTS

Notes For Installation………………………………………………………………..3

Specifications…………………………………………………………………………4

Block Diagram………………………………………………………………...……...7

PCB Mechanical Dimension………………………………………………………..8

Board Connectors Pin Assignment……………………………………………...9

Exploded View………………………………………………………………….……13

Schematic…………………………………………………………………………….14

Trouble Shooting Flow Chart……………………………………………………..19

Service Manual

Sep. 30th, 2010 (Version 1.3) Page 3 / 21

Notes For Installation

This television set with 32’’ FT LCD panel, is designed mainly for receiving ATSC/NTSC system

TV source,or other sources such as DVD player and personal computer(TFDVD3295S2 Model),

via all diffident kinds of cables. This section provides some guidelines for assembly and

preparation of a finished display solution.

Preparation : Before proceeding, it is important to familiarize yourself with the parts making up the TV

Set and the various connectors, mounting holes, and general layout of the TV Set.

All connectors have their own number printed on the PCB board. And their signal

arrangements are shown in the following relevant sections.

4 LCD Panel : This TV Set has 12V,LVDS interface logic on the main board, for 32” TFT LCD panel.

Due to the different signal timing and electrical characteristics from each LCD panel

manufacturer, we need to use different Firmware, different LCD interface cable for

LCD panel even on the same board.

Inverter : Each LCD panels have their own inverter to obtain optimum performance and long lifetime.

Because, Each LCD panel makers use different type of back light tubes for their all different

models and inverter drives the tubes directly.

The main board of this TV Set just supplies the power for inverter logic and controls a light On/off signal

and a brightness control signal. So, it is important to use the inverter that has proper driving capacity and

control input signal. Generally speaking, the inverter is attached to TFT LCD panel, you should contact

with panel maker for any problem with the inverter.

Inverter cable : This cable supplies Inverter’s power, an on/off control signal and a brightness control

signal to the inverter.

OSD Button : See Operational Function section.

3 Color LED : This LED shows the state of TV Set.

• Green – Normal state

• Red – Stand-by mode

AC power input : 100Vac~240Vac(50/60Hz) is required to supply enough power for the TV Set.

Service Manual

Sep. 30th, 2010 (Version 1.3) Page 4 / 21

Specification

Electrical Specification

a. Power Consumption: (Include Inverter and LCD Panel)

Operation mode

Power Consumption : 32’’ 150 Watt(Max)

Audio AMP : 9 +/-1Watt (Reference : Speaker 9W×2)

Power Saving mode (STB) : ≦1 Watt

b. Power Supply

Input for Main board : +12/5Vdc

Output for LCD Panel :32’’ 12Vdc

c. Environment

Operation Temperature : 0° ~ 45°

Storage Temperature : -20° ~ 70°

Operation Humidity : 0%~80% (non-Condensing)

Storage Humidity : 0%~90%

d. Output Data Type

LDVS mode : 8bit data output.(single LVDS output)

e. Input Refresh Rates :fH: 30~60KHz, fV: 60~75Hz

Power Board Specification

a. AC Input Requirements

Normal Voltage : 100 to 240 Vrms

Voltage Range : 90 to 264 Vrms

b. Frequency

Normal Frequency : 50 to 60 Hz

Frequency Range : 45 to 65 Hz

Pin-CON15 Connection to main board

NO. PIN Connection Function

9,10 +12V For tuner power and amp

6,7 +5V For scaler power and decoder power

4,5,8,11,12 GND +12/5Vdc return

1 ON/OFF

Work / standby mode （H working, L standby）

2,3 +5VSB MCU +5V, in standby power

Pin-CON3 for inverter PUB

NO. PIN Connection Function

1,2 GND For tuner power and amp

3 ADJ Adjuct backlight

4 ON/OFF Cut on/off panel backlight

5,6 +12 (out put) For inverter power

Service Manual

Sep. 30th, 2010 (Version 1.3) Page 5 / 21

Television Part

Item Specification

TV SYSTEM ATSC/NTSC

CAPTION CLOSED YES

Parental Control YES

PIP/POP NO

TV SYSTEM STEREO/MONO

SOUND OUTPUT 9W X 2

ASP YES

SOUND

EFFECT No

COMPONENT 1

(YPbPr)

Y/Pb/Pr INPUT

AV IN VIDEO, Y/C INPUT

AUDIO L/R INPUT

PHONES YES

TUNER DIGITAL+Analog tuner(TCL)

EXT.

TERMINAL

VGA(PC) IN VGA(Analog RGB) INPUT

PC-AUDIO(L/R) INPUT

HDMI IN DIGITAL AUDIO AND VIDEO (VIDEO AT RESOLUTION UP TO

1080P)

RGB (PC-VGA15) Part

a. Features of Analog RGB Part

. Horizontal Rate: 31KHz ~ 60KHz

. Vertical Rate: 43 ~ 85Hz

. Maximum Pixel Rate: 78.75MHz

. Resolution Maximum: 32’’ 1280 x 1024

. Color Maximum: 262,114/16.7M(option)

. Sync type: H & V separate

. Plug & Play: YES DDC

This board can detect all VESA standard Graphic modes (for Analog RGB) shown on the table below and provide more

clear and stable image on a screen.

Service Manual

Sep. 30th, 2010 (Version 1.3) Page 6 / 21

Standard Format Total Pixels x Total Lines Horizontal rate

(KHz)

Pixel Clock Rate

(MHz)

720 x 400p 70 Hz 900 x 449 31.5 28.0

640 x 480p 60 Hz 800 x525 31.5 25.2

640 x 480p 67Hz 864 x 525 35.0 30.0

640 x 480p 72 Hz 832 x 520 37.9 31.5

VGA

640 x 480p 75 Hz 840 x 500 37.5 31.5

800 x 600 56 Hz 1024 x 625 35.2 36.0

800 x 600 60 Hz 1056 x 628 37.9 40.0

800 x 600 72 Hz 1040 x 666 48.1 50.0

800 x 600 75 Hz 1056 x 625 46.9 49.5

SVGA

832 x 624 75 Hz 1152 x 667 49.7 57.5

1024 x 768 60 Hz 1344 x 806 48.4 65.0

1024 x 768 70 Hz 1328 x 800 56.4 75.0

XGA

1024 x 768 75 Hz 1312 x 800 60.0 79.0

1280 x 1024 75 Hz 1688 x 1066 39.2 135.0

SXGA 1152 x 870 75 Hz 1456 x 916 68.9 100.0

Service Manual

Sep. 30th, 2010 (Version 1.3) Page 7 / 21

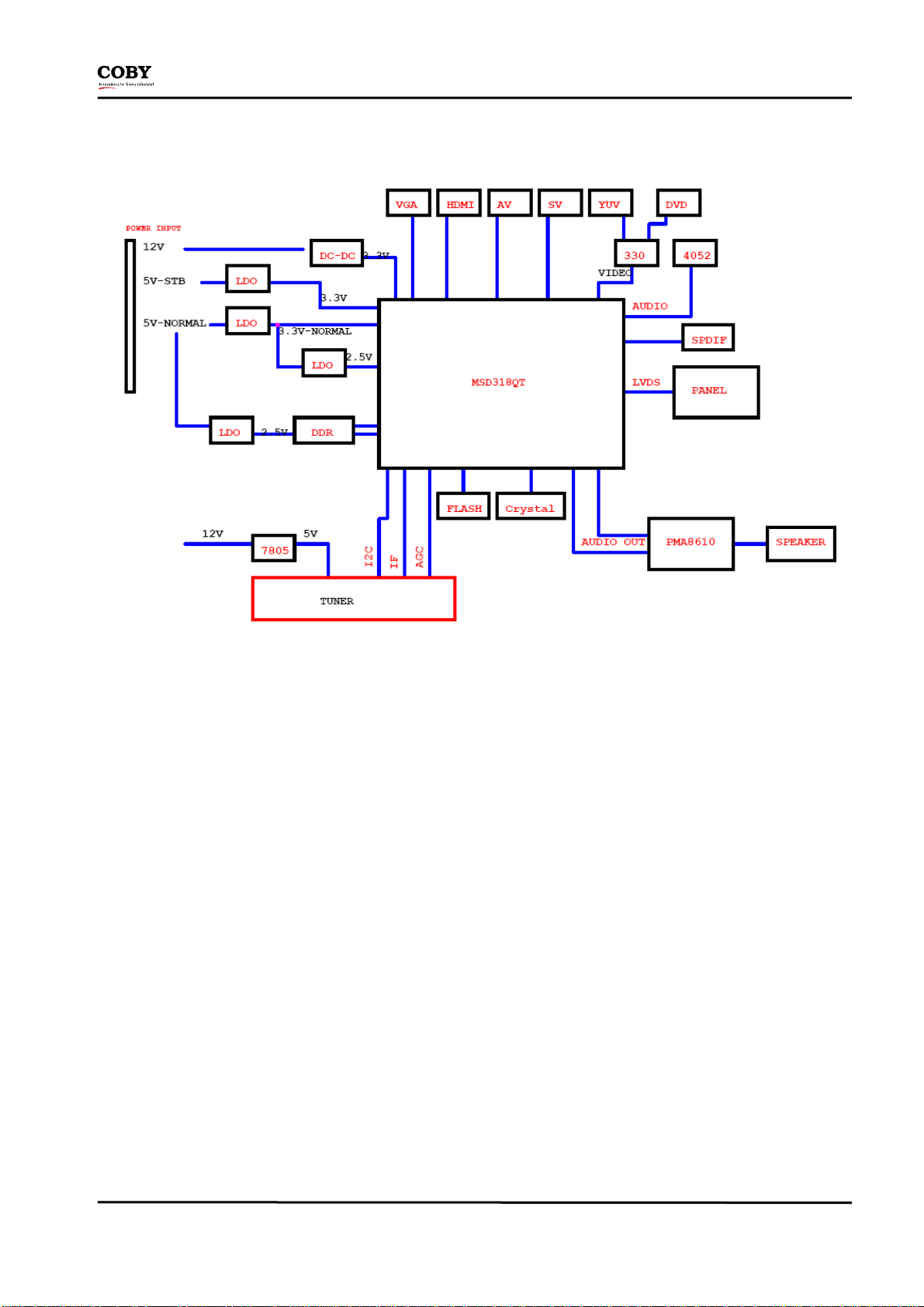

Block Diagram

Note:

1) The flash’s capability will be 32 mb(4MB) while adopt firmware which is more effective and stable

2) The Tuner may also be used with DA58CT-6-E.

3) Key & IR part will be divided into three PCB boards. A IR PCB board, a light board ( standby mode is blue low-light, the

work mode does not shine or high-lights, you can press the light button on the remote control to select the low-light

or high-light), another piece of the key board.

Note:

The TFTV MODEL is supplied by Coby, you can contact with COBY service department

Service Manual

Sep. 30th, 2010 (Version 1.3) Page 8 / 21

PCB Mechanical Dimension

TV main board:

a. TOP Pattern:

Key & IR Board Component

a. Key Pattern

b. IR Pattern

Service Manual

Sep. 30th, 2010 (Version 1.3) Page 9 / 21

Board Connectors Pin Assignment

a. CON24: 40 Pin define for Connector to Panel (NC 36 or 40 PIN, On Main Board):

LCD panel for example：SAMSUNG 32” panel

PIN Description PIN No. Description

1 GND 21 RXE2+

2 GND 22 RXE2-

3 RX00+ 23 RXEC+

4 RX00- 24 RXEC-

5 RX01+ 25 RXE3+

6 RX01- 26 RXE3-

7 RX02+ 27 RXE4+

8 RX02- 28 RXE4-

9 RX0C+ 29 GND

10 RX0C- 30 GND

11 RX03+ 31 GND

12 RX03- 32 GND

13 RX04+ 33 VCC

14 RX04- 34 VCC

15 GND 35 VCC

16 GND 36 VCC

17 RXE0+ 37 IIC-SCL

18 RXE0- 38 IIC-SDA

19 RXE1+ 39 GND

20 RXE1- 40 GND

b. CON33: Connector from Main Board to IR Board (5PIN, On Main Board)

PIN Symbol Description

1 5VSB Power Supply of IR Board +5V (standby 5V)

2 GND Power Supply of Ground

3 IR IR Receive

4 LED

Interrupt Input of Remote Controller (low-light ≧2.6~2.7V, High-light >3V, not light < 2.5V)

5 GND Power Supply of Ground

6 SAR0 Key select pin Connect (The connected voltage: 0V/0.55V/1.1V/1.65V, not connected voltage: 3.3V)

7 SAR1 Key select pin Connect (The connected voltage: 0V/0.55V/1.1V/1.65V, not connected voltage: 3.3V)

Service Manual

Sep. 30th, 2010 (Version 1.3) Page 10 / 21

c. CON37/38: Connector from Main Board to Left/right Speaker (4PIN, On Main Board)

PIN Symbol Description

CON37 1 R+ Driving the Right Speaker(+)

CON37 2 R- Driving the Right Speaker(-)

CON38 1 L- Driving the Left Speaker(-)

CON38 2 NC NC

CON38 3 L+ Driving the Left Speaker(+)

d. P7: Connector of VGA(P-Scan) Input (15Pin, On Main Board)

PIN Symbol Description

1 R Analog Red Channel

2 G Analog Green Channel

3 B Analog Blue Channel

4 NC No Connection

5 GND Power Supply of Ground

6 R-GND Ground Return of Analog Red Channel

7 G-GND Ground Return of Analog Green Channel

8 B-GND Ground Return of Analog Blue Channel

9 VGA5V Power Supply of +5V

10 GND Power Supply of Ground

11 NC No Connection

12 VGA-SDA I2C Bus serial data input/output (For VGA)

13 A-HS Horizontal Sync Signal of Analog RGB

14 A-VS Vertical Sync Signal ofAnalog RGB

15 VAG-SCL I2C Bus serial clock input (For VGA)

Please refer to High-Definition Multimedia Interface Specification Version 1.3a, for define of

all of the Pins above p4:PHONES Connector of PC-Audio INPUT

PIN Symbol Description

1 PC-L PC-Audio Left Channel

2 PC-R PC-Audio Right Channel
