*Cobra®recommends you always wear a helmet while riding. Please never operate your motorcycle while under

the influence of alcohol and/or drugs. Enjoy the new look of your motorcycle and please ride safely.

Items Supplied >

1 - Sissy Bar with Pad and Insert

2 - Detachable Side Plates (Left/Right) Chrome or

Black

2 - 3/8” I.D. Front, Mount Bushing Chrome or Black

2 - 3/8” I.D. Rear, Outer/Inner/Plastic Bushing Chrome

or Black

4 - 3/8”-16 x 1-3/4” Buttonhead Bolts Zinc

4 - M8 x 20mm Buttonhead Bolts

Application(s) >

HARLEY:

SOFTAIL: FLSL 18-20

FXBB 18-20

FLDE 18-20

(ONLY ABOVE MODELS AS OF JUNE 2018)

Instruction Manual >

Read all instructions carefully before installing your new Cobra®product!

1. Remove the front bolt from the right side fender rail and discard. NOTE: Remove one side only so the

fender does not fall resulting in possible scratches or damage to the fender or paint. See FIGURE 1.

2. Install the front mounting bushing into the front hole using the supplied 3/8”-16 x 1-3/4” long

buttonhead bolt and tighten bolt securely. See FIGURE 2.

3. Remove the right rear fender rail bolt and discard. See FIGURE 1. Install the rear supplied bushing as

oriented in FIGURE 2, using the supplied 3/8”-16 x 1-3/4” long buttonhead bolt and tighten bolt

securely.

602-2006 / 602-2006B

Page 1 of 3

DOCUMENT NO. 0017 REV. B

CONTINUED ON PAGE 2

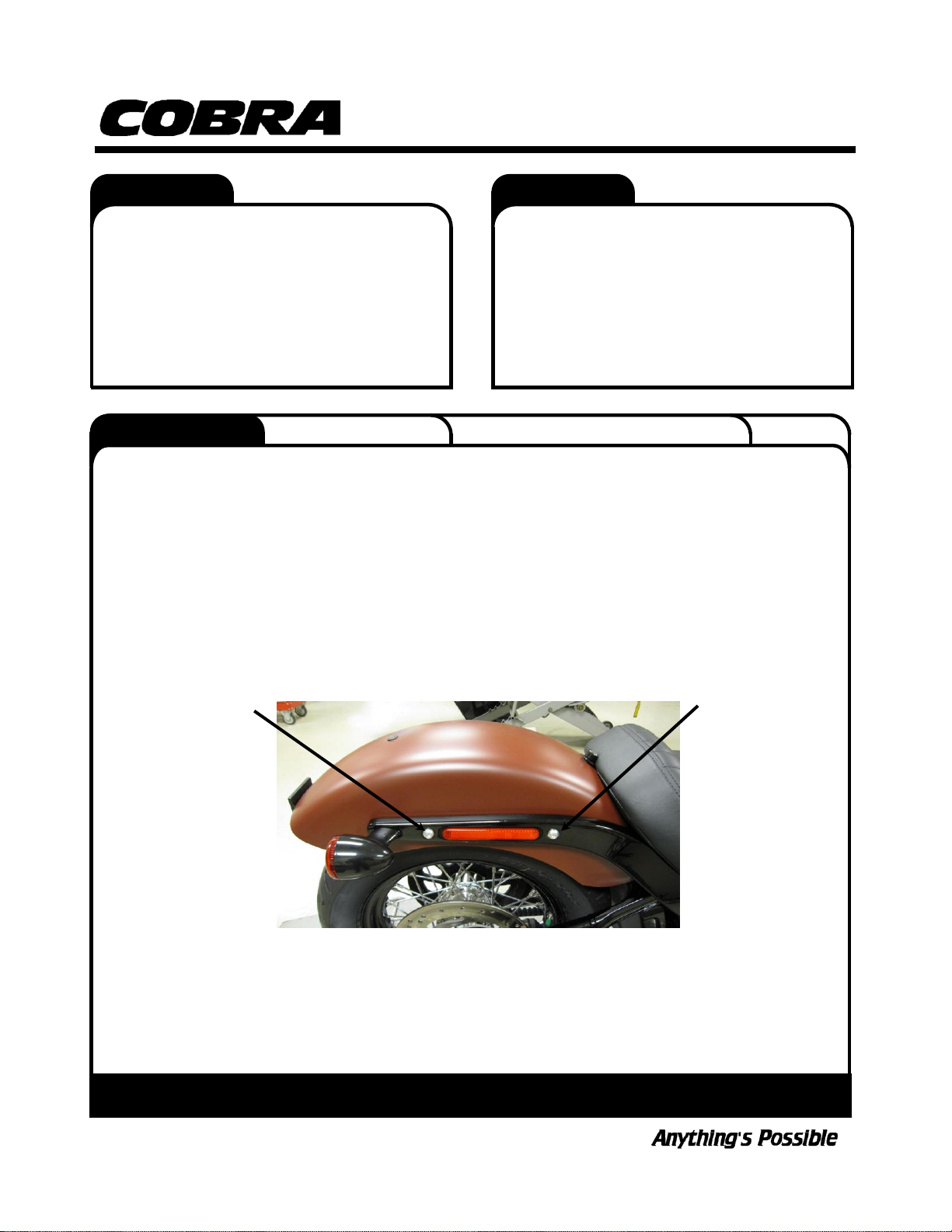

FIGURE 1

REMOVE STOCK

FRONT BOLT

REMOVE STOCK

REAR BOLT

®23801 E. La Palma Ave., Yorba Linda, Ca 92887 Ph. 714.692.8180 Fax. 714.692.5016

www.cobrausa.com

06/18 ®

Instruction Manual >

602-2006 / 602-2006B

Page 2 of 3

4. Repeat Steps 1-3 on the left side.

5. Install the supplied side plates on to the sissy bar with the four M8 X 20mm button head bolts. Make

sure the u-shaped grommets are facing the same direction as the sissy bar pad and the part numbers

are facing inward. See FIGURE 3. Snug the bolts but DO NOT TIGHTEN at this time.

6. Install the sissy bar onto the bike by first inserting the front portions of the side brackets on to the front

mounting bushings on the frame rails. Make sure the sissy bar is seated all the way onto the mounting

bushings. See FIGURE 4.

7. Then slowly rotate the sissy bar downward so the rear portions of the brackets slip over the rear

mounting bushings. See FIGURE 4.

DOCUMENT NO. 0018 REV. A

CONTINUED ON PAGE 3

FIGURE 2

FRONT

MOUNTING

BUSHING

REAR MOUNTING

BUSHING

PART NUMBER

FACING INWARD

M8 X 20mm

BUTTONHEAD

BOLTS

SISSY BAR

PAD

FIGURE 3

M8 X 20mm

BUTTONHEAD

BOLTS

PART NUMBER

FACING INWARD

®23801 E. La Palma Ave., Yorba Linda, Ca 92887 Ph. 714.692.8180 Fax. 714.692.5016

www.cobrausa.com

06/18 ®

To clean your black accessory use a liquid based soap detergent, such as dishwashing soap applied with a soft cloth and

rinse with clean water. Note: Avoid abrasive cleaning methods such as granular or dry cleansers, simple green, Scotch-

Brite or steel wool pads. Abrasives may breach the coating and shorten life.

Instruction Manual >

602-2006 / 602-2006B

Page 3 of 3

15. Pull backward on both detachable latch knobs and then push downward on the backrest to allow the

backrest to sit completely on the rear mounting bushings. Then release the detachable latch knob to

fully engage the latch pin underneath the mounting kit bushing. See FIGURE 5.

16. Always check to make sure both detachable latch pins are fully engaged on the bottom of the

mounting kit bushing. Failure to fully engage the detachable latch pin could cause the backrest to

come loose while riding. See FIGURE 5.

17. Pull backward on the top of the sissy bar and then tighten all four M8 X 20mm bolts. See FIGURE 5.

18. Before each ride, check to make sure the detachable latches are fully engaged underneath the

mounting bushings.

19. Check the tightness of all the screws after the first ride and after the first 500 miles.

DOCUMENT NO. 0018 REV. A

REAR MOUNTING

BUSHING

DETACHABLE

LATCH KNOB

DETACHABLE

LATCH PIN

FRONT MOUNTING

BUSHING

FIGURE 4

FIGURE 5

TIGHTEN ALL FOUR

M8 X 20mm BOLTS

MAKE SURE LATCH PIN

IS FULLY ENGAGED

UNDER BUSHING
