Operating Instructions

400 WATT POWER INVERTER

CPI 480

Printed in China

Part No. 480-523-P

Version A

Nothing Comes Close to a Cobra®

Customer Assistance

Our Thanks to You

Introduction

Thank you for purchasing the Cobra CPI 480

inverter. Properly used, this Cobra product will

give you many years of reliable service.

How Your Cobra Power Inverter Works

The Cobra power inverter is an electronic product that

has been designed and built to take low voltage DC (Direct

Current) power from your automobile or other low voltage

power supplies and convert it to standard 115 Volt AC

(Alternating Current) power like the current you have in

your home. This conversion process thereby allows you

to use many of your household appliances and electronic

products in automobiles, RVs, boats, tractors, trucks and

virtually anywhere else.

Customer Assistance

Should you encounter any problems with this product,

or not understand its many features, please refer to this

owner’s manual. If you require further assistance after

reading this manual, Cobra Electronics offers the

following customer assistance services:

For Assistance in the U.S.A.

Automated Help Desk English only.

24 hours a day, 7 days a week 773-889-3087 (phone).

Customer Assistance Operators English and Spanish.

8:00 a.m. to 6:00 p.m. CT, Monday through Friday

(except holidays) 773-889-3087 (phone).

Questions English and Spanish.

Faxes can be received at 773-622-2269 (fax).

Technical Assistance English only.

www.cobra.com (on-line: Frequently Asked Questions).

English and Spanish. productinfo@cobra.com (e-mail).

For Assistance Outside the U.S.A.

Contact Your Local Dealer

6500 West Cortland Street

Chicago, Illinois 60707 USA

www.cobra.com

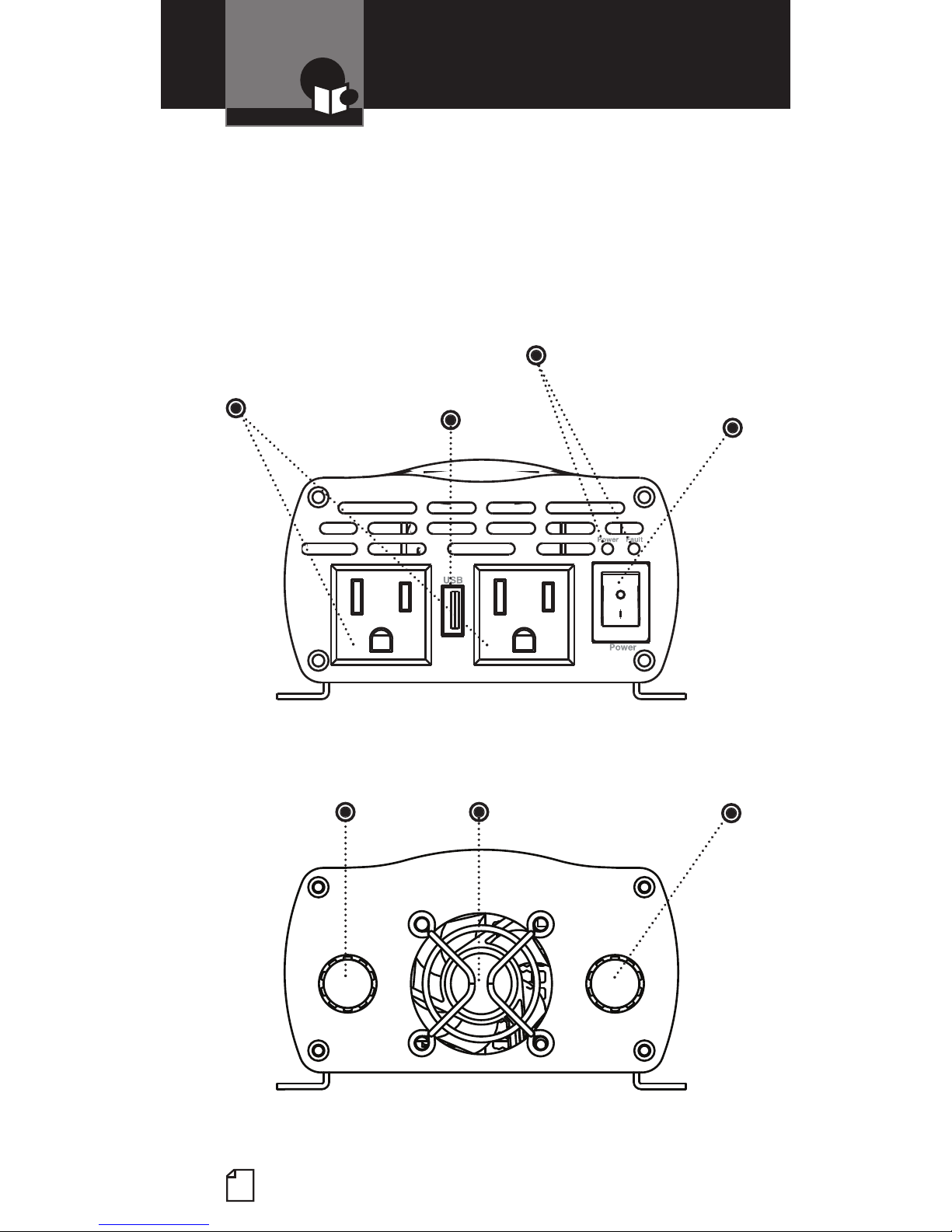

Cooling Fan

Product Features

Introduction

On/Off

Power Switch

AC Outlets

Positive Battery

Cable Terminal

(Red)

Protection and

Power Indicators

Features

•Two AC Receptacles

•Automatic Thermal

Protection/Shutdown

•Reverse Polarity Protection

•Low Battery Alarm

•Low Battery Shutdown

Negative Battery

Cable Terminal

(Black)

USB Outlet

Introduction Contents

Introduction

Our Thanks to You ..................A1

Customer Assistance ................A1

Product Features ...................A2

Important Safety Information ...........1

Quick Evaluation Before Installation ......3

Installation

Installation Requirements ..............5

Mounting ..........................6

Connecting Cables ...................6

Power Consumption .................10

Operation

Turning Your Inverter On or Off ........11

Power and Protection Indicators .......12

Operating Limits ....................13

Troubleshooting Guide ...............14

Specifications ......................15

Warranty

Warranty ..........................16

Customer Assistance

Maintenance .......................17

Product Service ....................17

Introduction Important Safety Information

Important Safety Information •

Before installing and using your Cobra power inverter,

please read these general precautions and warnings.

Caution and Warning Statements

To make the most of this inverter, it must be installed and

used properly. Please read the installation and operating

instructions carefully before installing and using it. Special

attention must be paid to the CAUTION and WARNING

statements in the manual.

CAUTION Statements specify conditions which

could cause damage to the unit or other equipment.

WARNING Statements identify conditions that

could result in personal injury or loss of life.

General Precautions

1. Never install the inverter in a boat’s

engine compartment where gas and

battery fumes are present.

2. Do not operate the inverter if it has been

dropped or damaged in any way.

3. Do not open the inverter; it contains no user-

serviceable parts. Attempting to service unit

could cause electrical shock.

NOTE Internal components remain

charged after all power is disconnected.

4. Do not expose the inverter to rain, snow,

bilge water or spray.

5. Do not obstruct the ventilation openings.

6. Do not install the inverter in zero-clearance

compartment.

CAUTION This inverter should be used in

negative ground applications only.

Nothing Comes Close to a Cobra®

WARNING Power inverters contain components

that can produce arcs or sparks. To prevent fire

or explosion, do not install the inverter in areas or

compartments containing batteries or flammable

materials or in locations that require ignition-

protected equipment.

WARNING To reduce the risk of fire, do not cover

or obstruct the ventilation openings. Do not install

inverter in zero-clearance compartment.

Warning: Wash Hands After Handling Power Cord

The power cord on this product contains lead, a chemical

known in the state of California to cause birth defects or

other reproductive harm.

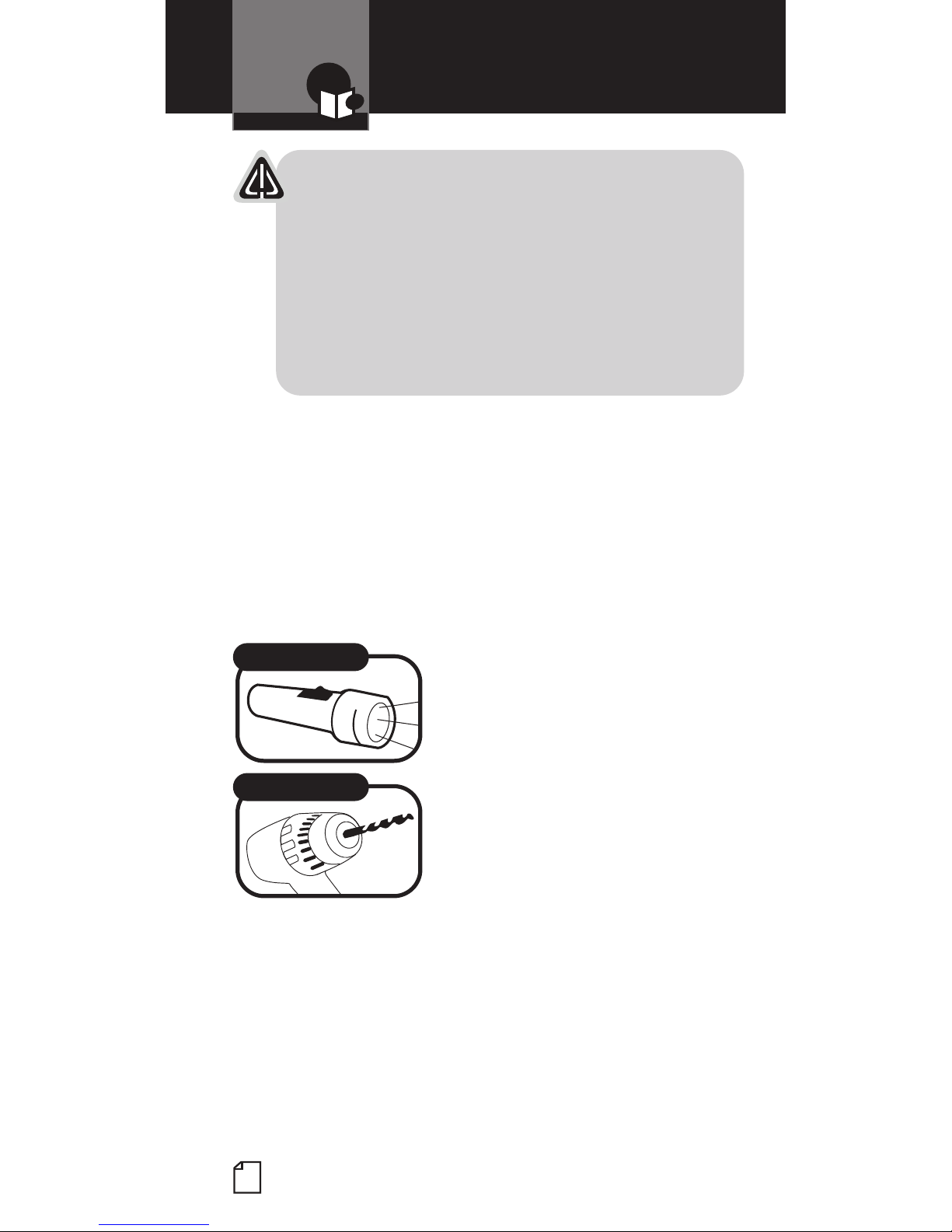

Caution: Rechargeable Appliances

Certain chargers for small nickel cadmium batteries can be

damaged if connected to the Cobra 400 watt inverter. Two

particular types of equipment are prone to this problem:

1. Small battery-operated appliances

such as flashlights, razors, and

night lights that can be plugged

directly into an AC receptacle to

recharge.

2. Certain battery chargers for

battery packs used in hand power

tools. These chargers have a

WARNING label stating that

dangerous voltages are present

at the battery terminals.

This problem does not occur with the vast majority of

battery operated equipment. Most use a separate charger

or transformer that is plugged into the AC receptacle and

produces a low voltage output. If the label on the AC

adapter or charger states that it produces a low voltage

AC or DC output (less than 30 volts), the inverter will

have no problem powering the adapter safely.

Plug In Directly

Dangerous Voltages

Important Safety Information

Introduction

Cobra 400 Watt Output Waveform

Some very sensitive electronic equipment may not operate

satisfactory on “square wave” or “modified sine wave.”

The output waveform is referred to as “square wave” or

“modified sine wave.” It is a stepped waveform designed to

have characteristics similar to the sine wave shape of utility

power. A waveform of this nature is suitable for most AC

loads (including linear and switching power suppliers used

in electronic equipment, transformers and motors).

Quick Evaluation Before Installation •

This section provides you with basic information about the

inverter and how to check its performance before installation.

Be sure to have on hand:

A 12 volt DC power source (such as a vehicle battery).

The power source must provide

between 11 and 15 volts DC and

be able to supply enough current to

run the test load. As a rough guide,

divide the wattage of the test load by

10 to get the current (in amperes)

the power source must deliver.

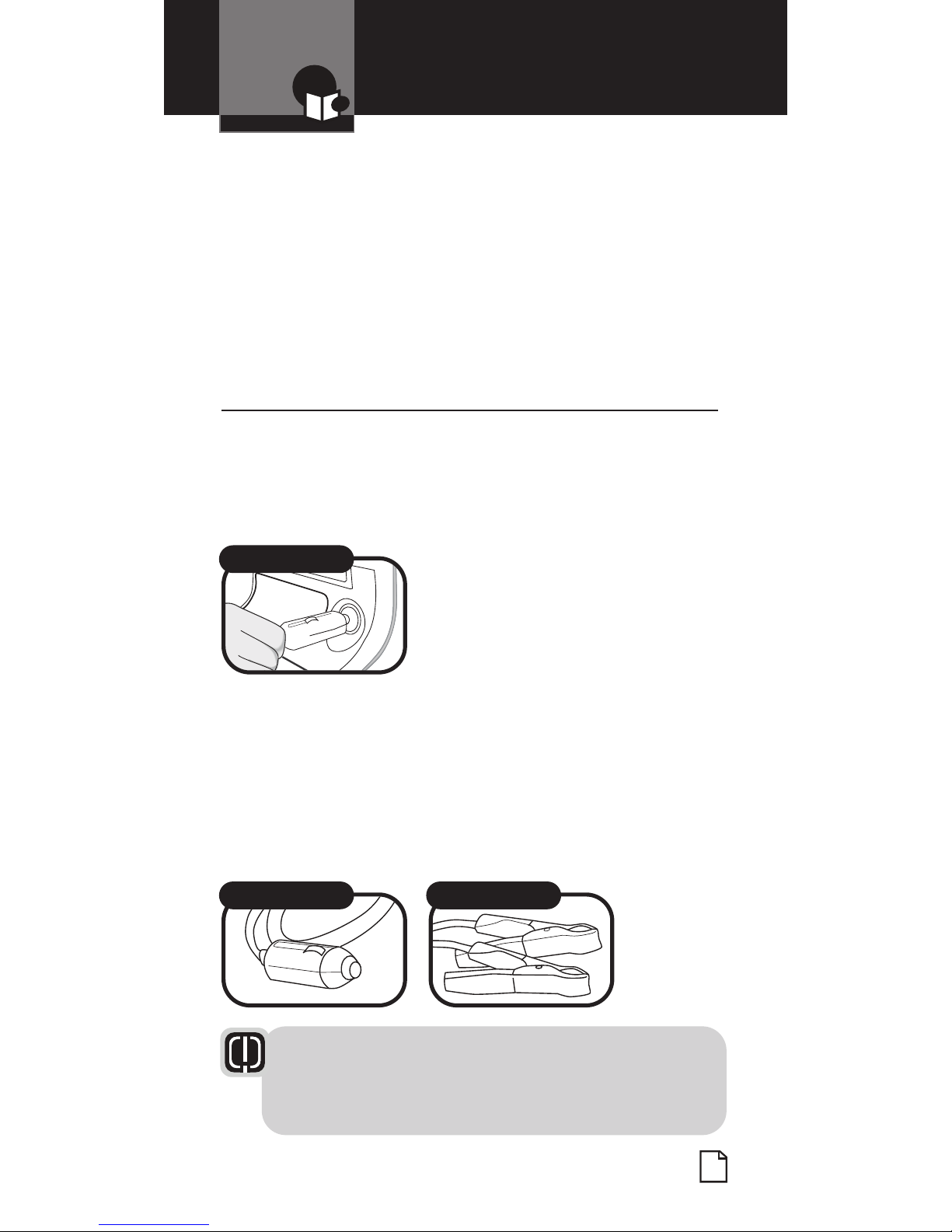

The provided two foot cigarette lighter cable and

two foot direct-to-battery 12 gauge cable.

Only use the cables provided with your inverter.

The cigarette lighter cable is suitable for operating the

inverter at loads up to 150 watts. Connect by securely

inserting the plug into the cigarette lighter socket.

CAUTION Do not use the cigarette lighter cable

for loads higher than 150 watts. When connecting

loads larger than 150 watts, please connect the

inverter directly to the battery.

Quick Evaluation

Before Installation

Introduction

Power Supply

Cig. Lighter Cable 12 Gauge Cable

Nothing Comes Close to a Cobra®

Quick Evaluation

Before Installation

Introduction

A test load that can

be plugged into the AC

receptacle on the inverter

for short term testing at

a low power level.

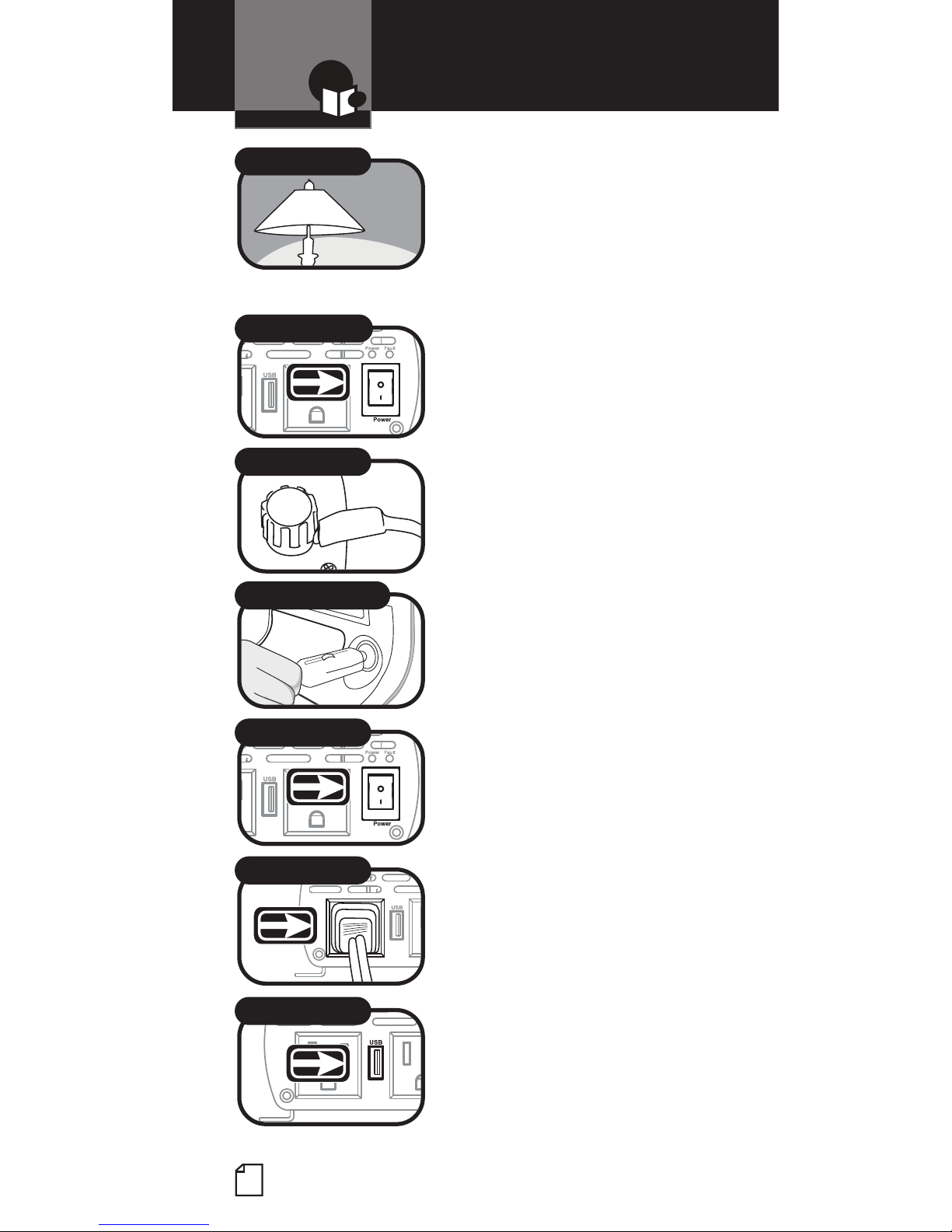

To check your inverter’s performance before installation:

1. Turn the inverter off (see page 11

for details). If the power source is

a DC power supply, switch it off

as well.

2. Connect cables to power

input terminals (see page 6

for details).

3. Connect cable to power source

(see page 8 for details).

4. Check to make sure all

connections are secure.

5. Turn the inverter on. If the

power source is a DC power

supply, switch it on first.

6. Plug in the test load.

The inverter should supply power

to the load. If the inverter is not

working properly, refer to the

troubleshooting guide on page 14

or power and protection indicators

section on page 12.

On/Off Switch to Off

Connect Terminals

Connect Power Source

On/Off Switch to On

Connect Test Load

Test Load

USB Connection

Installation

Requirements

Installation

Installation Requirements •

The inverter must be installed in an area that meets

all of the following requirements:

A. Dry

Do not place in an area where water can drip

or splash on the inverter.

B. Cool

Ambient air temperature should be between 30°F

and 105°F (0°C and 40°C). The cooler the better.

C. Ventilate

Allow at least one inch (three cm) of clearance

around the inverter for proper airflow. Make sure

that ventilation openings on the ends of the unit

are not obstructed.

CAUTION To avoid fire, do not cover or obstruct

ventilation openings. Do not install inverter in a zero-

clearance compartment. Overheating may result.

CAUTION The inverter must only be connected to

batteries with a nominal output voltage of 12 volts.

It will not work with a 6 volt battery, and will be

damaged if it is connected to a 16 volt battery.

WARNING This unit contains components which

can produce arcs or sparks. To prevent fire or

explosion, do not install in compartments containing

a battery or flammable materials, or in a location

which requires ignition protected equipment.

Nothing Comes Close to a Cobra®

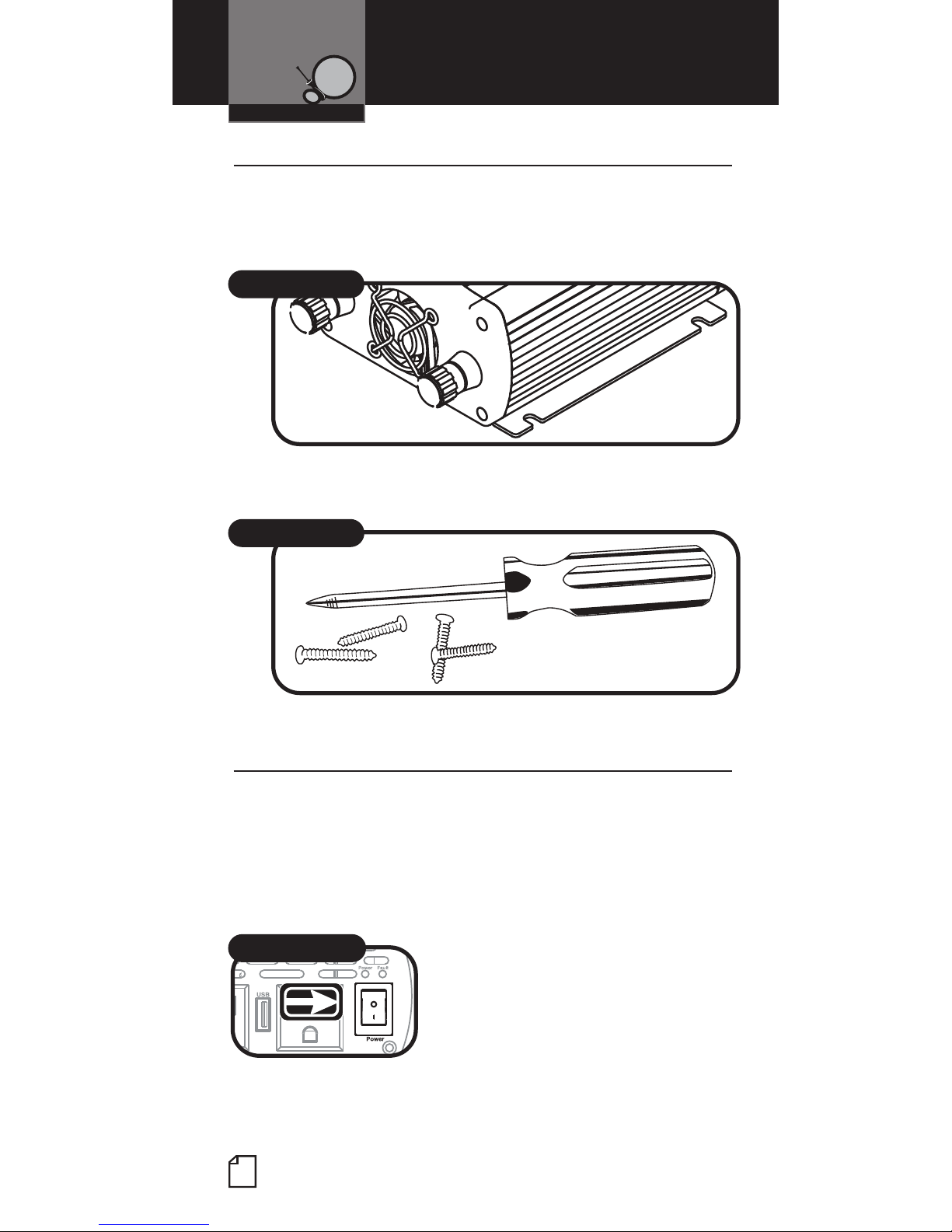

Mounting •

To mount your inverter:

1. Place the inverter on a flat surface with the mounting

bracket against the mounting surface.

2. Mount to secure surface using mounting hardware

that is corrosion resistant (not included).

The inverter can be mounted horizontally or vertically.

Connecting Cables •

Power wire and wiring are very important to the

performance of the inverter. Because the inverter has a

low voltage, high current input, low resistance wiring is

essential between the battery and inverter. This is so it

can deliver the maximum amount of energy to the load.

Only use the cables provided with your power inverter.

To connect the cables between

the inverter and the battery:

1. Turn the On/Off Switch on the

inverter to the off position. If the

power source is a DC power

supply, switch it off as well.

Mounting and

Connecting Cables

Installation

Mounting Brackets

Mounting Hardware

On/Off Switch to Off

Autres manuels pour CPI 480

Table des matières

Autres manuels Cobra Onduleur

Cobra

Cobra CPI490 Manuel utilisateur

Cobra

Cobra CPI 290CH Manuel utilisateur

Cobra

Cobra HG PI 1000 Manuel utilisateur

Cobra

Cobra IG32ESI Manuel utilisateur

Cobra

Cobra CPI1590-CBL Manuel utilisateur

Cobra

Cobra CPI 875 Manuel utilisateur

Cobra

Cobra CPI 130 Manuel utilisateur

Cobra

Cobra CPI 200 CH Manuel utilisateur

Cobra

Cobra CPI M400 Manuel utilisateur

Cobra

Cobra CPI 800 Manuel utilisateur

Cobra

Cobra CPI 450 Manuel utilisateur

Cobra

Cobra HG PI 500 Manuel utilisateur

Cobra

Cobra CPI 880 Manuel utilisateur

Cobra

Cobra CPI 450 Manuel utilisateur

Cobra

Cobra CPI 480 Manuel utilisateur

Cobra

Cobra GPS 1000 Manuel utilisateur

Cobra

Cobra CPI1090 Manuel utilisateur

Cobra

Cobra CPI 2550 Manuel utilisateur

Cobra

Cobra CPI 400 Manuel utilisateur

Cobra

Cobra CPI 200 CH Manuel utilisateur

Cobra

Cobra CPI 150 Manuel utilisateur

Cobra

Cobra CPI190 Manuel utilisateur

Cobra

Cobra CPI 2575 Manuel utilisateur

Cobra

Cobra CPI-2500 Manuel utilisateur

Manuels Onduleur populaires d'autres marques

Fourgroup

Fourgroup Easy Manuel utilisateur

Velleman

Velleman PI300M Manuel utilisateur

Sungrow

Sungrow SG350HX-US Manuel utilisateur

WilTec

WilTec 61897 Manuel utilisateur

SMA

SMA SUNNY BOY STORAGE 2.5 Manuel utilisateur

Simplicity

Simplicity LANDLORD 316 Manuel utilisateur

Santak

Santak SMAX 3000 Manuel utilisateur

ATON

ATON RA.Store-3 Manuel utilisateur

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuel utilisateur

Tektronix

Tektronix CFG250 Manuel utilisateur

Champion

Champion 200989 Manuel utilisateur

Vanner

Vanner 20-500 Series Manuel utilisateur

GE GEP Manuel utilisateur

Astrel Group

Astrel Group Power Reducer Guide rapide

MULTIQUIP

MULTIQUIP GDP-5H Mode d’emploi

GoWISE

GoWISE PS1007 Manuel utilisateur

Promate

Promate PM13500D ES Manuel utilisateur

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuel utilisateur
