Quick Start Guide

GPS 100

GLOBAL POSITIONING SYSTEM RECEIVER

Instructions to get you on your way!

Nothing comes close to a Cobra

ENGLISH

GPS 100

GLOBAL POSITIONING SYSTEM

ZOOM OUT

button

ZOOM IN

button

External power

connector cover

Battery

Door

cover

Lanyard

connector

loop

ENTER

button

Backlit

display

screen

PAGE

button

POWER and

Backlight

button

D-Ring Battery

Door fastener

The POWER Button

• turns the unit on and off when you press

and hold for 2 seconds

• turns the backlight on and off when you

press and release

The PAGE Button

• lets you switch between main pages

•works as an “escape” key and returns

you to main page when in other pages,

options or menus

The ZOOM IN/OUT Button

• lets you zoom in or out of any map display

• lets you select various options on pages

and menus

The ENTER Button

• use to accept any highlighted selection

• use to mark current location as waypoint

by pressing and holding for 2 seconds

Buttons

The buttons allow you to access all the features of the GPS 100:

Lanyard

connector

loop

Installing Batteries  

The GPS 100 operates on 2 AA batteries (not

included). To install batteries, twist the D-ring

connector counterclockwise (anticlockwise) and

remove the battery compartment cover. Insert

two AA batteries, ensuring correct polarity

alignment. Replace the battery compartment

cover and twist the D-ring clockwise to lock.

As an optional power source, an Automotive

Power Adapter (not included, see “Optional

Accessories,” in the owner’s manual) can be used

with your GPS 100.

Getting Started

In order to navigate using your GPS 100, you first

must acquire a “fix” on your current position. To

do this, take your GPS 100 outside making sure

you have a clear view of the sky. Press and hold

the POWER button for 2 seconds . A start-up

screen appears , followed by a second screen

that shows you that your unit is attempting to lock

on to signals from GPS satellites. Once satellite

signals have been acquired and locked, the screen

will automatically switch to the Map page, and the

unit is ready to use.

NOTE: When you use the GPS 100 for the

first time, it will take up to approximately 50

seconds to lock on to the GPS satellites.

Turning on the Display Backlight

When the unit is turned on, pressing and releasing

the POWER button will turn on the display backlight.

The display will remain lit for 15 seconds as long

as no other buttons have been pressed.

BASIC OPERATION

 

POWER Button



Startup Screen

Everything you need to navigate using

your GPS 100 is found on five main

pages or screens. Once power is on, you

may switch among the five main pages

by pressing the PAGE button .

Map Page displays a map of your

current position and GoTo, track, or

route during navigation.

Gauges Page displays a compass

that shows your current travel

direction or next waypoint direction.

Trip Meter Page displays

selectable fields with information

about your current location or

navigation.

Nav Data Page enables you to

access waypoint, track, and route

features such as creating, deleting

or navigating.

System Page enables you to

access the various settings and

formats.

Selecting Options

From any of the five main pages, press

and release the ENTER button to display

that page’s Options menu. Use the ZOOM

IN/OUT button to scroll through the menu

sections, then press the ENTER button to

select the highlighted option. Press the

PAGE button to return to the main menu.

FIVE MAIN PAGES

Map Page

Gauges Page Trip Meter

Page

Nav Data

Page

System Page

PAGE Button

Navigating with Waypoints

The Nav Data page gives you access to

navigational features. From this page, you

can create and store up to 500 waypoints

(a specific location that you can mark and

recall), view the "GoTo" direction to any

waypoint  , edit information about a

waypoint, delete a waypoint, preview a

waypoint on the map, or sort or search a

list of waypoints. For each waypoint, you

can choose a name and assign a symbol.

NOTE: Whenever navigation is in

progress, a "hiker" icon will appear at the

lower right hand corner of Map page and

Gauges page .

New Waypoint

Enter Manually

1. Highlight and select WAYPOINTS .

2. Highlight and select MANUAL .

3. Edit or accept the default name and

symbol. Enter the new waypoint's

location and elevation . (Elevation

does not need to be entered to save a

manual waypoint.)

4. Highlight and select SAVE .

Mark Current

1. Highlight and select WAYPOINTS .

2. Highlight and select MARK CURRENT .

3. Edit or accept the default name and

symbol .

4. Highlight and select SAVE .

Waypoint Shortcut: To mark a new

waypoint using your current location, press

and hold the ENTER button for 2 seconds.

A confirmation window will pop up.

WAYPOINTS

Nav Data Page Hiker Icons

Go To

Waypoint

Navigate

Track

Navigate

Route

 “GoTo” on

Map Page

 “GoTo” on

Gauges Page

 Add New

Waypoint

 Waypoint

Info Screen

About Tracks and Routes

You can select two or more waypoints

to create a route . Your GPS 100

will show you the way to follow the

route accurately.

You can also create and store up to 10

tracks . Your GPS 100 automatically

keeps a record of your progress as you

travel and gives you a graphic representation

of the track you have taken. You also can

make the unit guide you in the reverse

direction along the same track.

Clearing the Track Log

The GPS 100 has 2000 active track log

points available to you. Once the track log is

full, no additional tracks can be stored until

the log is cleared. To clear the track log:

1. From the Nav Data page, highlight using

the ZOOM IN/OUT button and select

TRACKS by pressing the ENTER button to

display the tracks screen .

2. Highlight and select CLEAR   to

clear the log of all travel that has been

recorded. The unit automatically restarts

recording your travel.

3. Press the PAGE button  to return to

the main page.

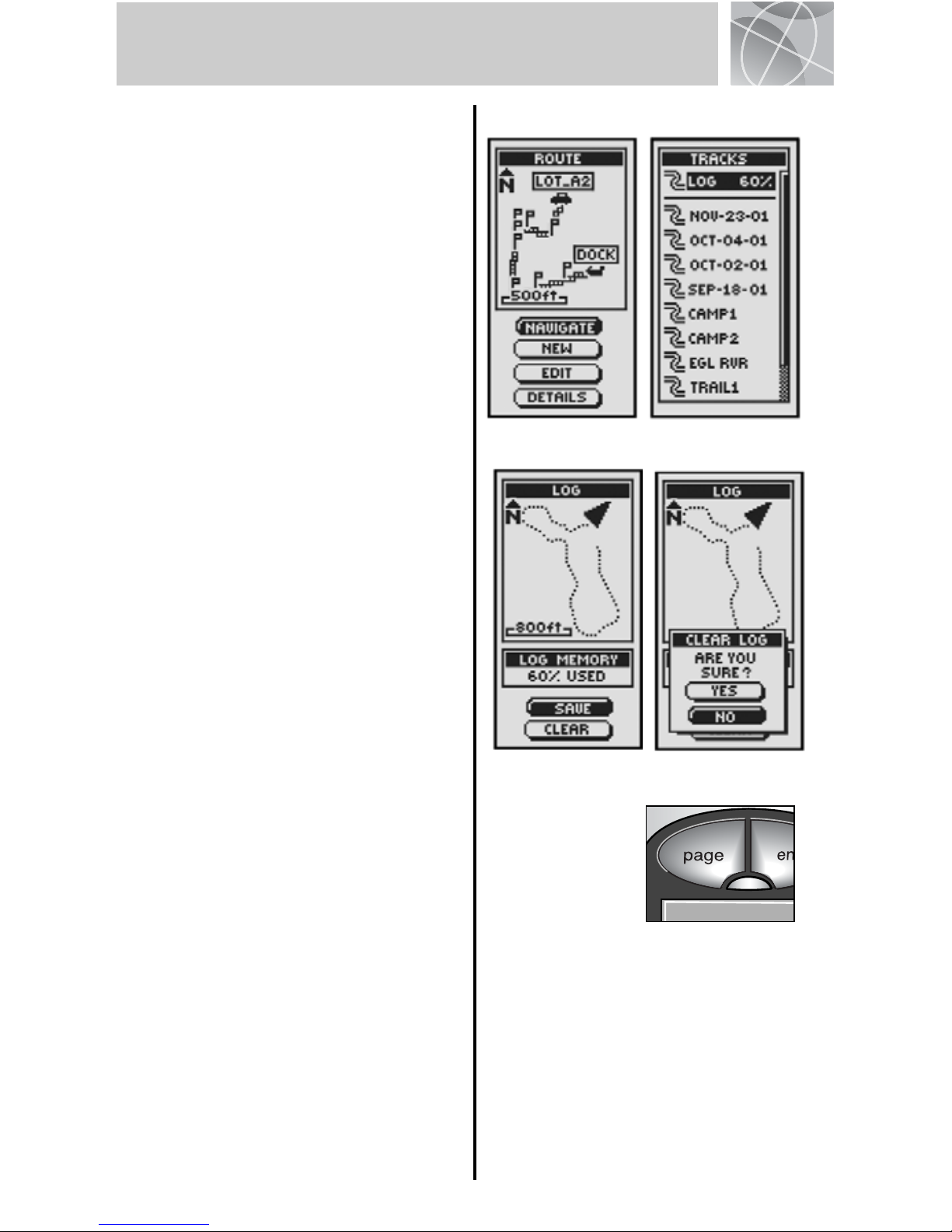

TRACKS & ROUTES

TracksRoute

Clear Log

Select Clear

PAGE Button

NAVIGATING TRACKS & ROUTES

Navigating a Selected Track

To make the map show the navigational

path along a selected track:

1. From the Nav Data Page, highlight and

select TRACKS .

2. Highlight and select the track you

want to navigate .

3. Highlight and select NAVIGATE .

Highlight and select FORWARD to

navigate from the beginning to the

end of the selected track .

Highlight and select REVERSE to

navigate from the end to the

beginning of the selected track .

4. This will bring up the Map page with

the track path shown.

Navigating a Selected Route

To make the map show the navigational

path along the route:

1. From the Nav Data Page, highlight and

select ROUTE .

2. Highlight and select NAVIGATE .

Highlight and select FORWARD to

navigate from the beginning to the

end of the selected route .

Highlight and select REVERSE to

navigate from the end to the

beginning of the selected route .

3. This will bring up the Map page with

the route path shown.

 Tracks Nav Data

Page

 Track Preview

and Options

 Directions

 Route Preview

and Options

 Directions

Stopping Navigation

To stop current navigation (GoTo, Route, or Track),

highlight and select STOP NAV . Highlight and

select YES to stop. Highlight and select NO to

make current navigation continue. Press the PAGE

button to return to the main page .

Gauges Page

The Gauges page is a visual “pointer” that

indicates the direction of travel to follow to reach

your next waypoint , and shows you with

arrows whether you are on or off (to left or right

of)   course. The display also shows you

how far (feet, miles, meters or kilometers) off

course you are currently.

Satellite Connection Lost or Off

Whenever satellite lock is lost or GPS is turned Off,

certain animation icons (below) appear on screen

and continue until GPS is On and/or satellite lock

is re-acquired.

Animation sequence that appears when satellite

lock is lost

Animation sequence that appears when GPS is

turned Off

STOPPING NAVIGATION

GAUGES PAGE

On Course

Stopping Nav

PAGE Button

Right of

Course

Left Of

Course

Go for a Test Walk

Test your knowledge of GPS 100 basics by taking a walk around the block.

1. Load batteries per instructions and take your GPS 100 outdoors. Be sure you have

a clear, unobstructed view of the sky. Turn your unit on by pressing and holding

the POWER button for 2 seconds. Allow time for your GPS 100 to acquire satellite

lock and a “fix” of your current location. When ready the unit will automatically

switch to the Map page. (Remember, you can toggle among the 5 main pages by

pressing the PAGE button.)

2. From the Map page, experiment by selecting options per instructions. For example,

you may want to mark your current location as your first waypoint, and then walk

around your neighborhood marking various points along your path from start point

to end point. (See diagram below.) Then navigate back to your start point by

accessing the Nav Data page, and selecting Navigate and REVERSE to lead you back

the way you came.

Note: When navigating back to your original start point, intentionally walk off

course to familiarize yourself with how the unit shows you where you are relative

to the route or track as shown on the Gauges page.

Keep practicing until you are comfortable using the many features of your GPS 100.

Always refer to your GPS 100 User’s Manual for more detailed instructions.

TEST WALK

Printed in China

Part No. 480-042-P

6500 West Cortland Street

Chicago, IL 60707 USA

Important Note

The Quick Start Guide is intended only as a handy reference to review the basics of

operating your GPS 100. For a full understanding of how to use your GPS 100 properly,

please consult the GPS 100 User’s Manual. Read it carefully to become familiar with your

unit’s numerous features. You will be amazed at its capabilities.

The Cobra®line of quality products includes:

CB radios

microTALK®radios

Radar/Laser Detectors

GPS

Safety Alert®

Traffic Warning Systems

Accessories

HighGear™ Accessories

For more information or

to order any of our products,

please visit our website:

www.cobra.com

Nothing comes close to a Cobra®

Autres manuels pour GPS100

Table des matières

Autres manuels Cobra GPS

Cobra

Cobra NavOne 3000 Manuel de service

Cobra

Cobra 7750 PLT Instructions de montage

Cobra

Cobra GPS1000 Manuel utilisateur

Cobra

Cobra NAV ONE 2200 Manuel utilisateur

Cobra

Cobra GPSM7700 Manuel utilisateur

Cobra

Cobra Snooper MY-TRAK WPT250 Manuel utilisateur

Cobra

Cobra NavOne 2100 Manuel utilisateur

Cobra

Cobra NavOne 3000 Manuel utilisateur

Cobra

Cobra NavOne 2000 Manuel utilisateur

Cobra

Cobra 5550 PRO Instructions de montage

Cobra

Cobra Marine MC 600Ci Manuel utilisateur

Cobra

Cobra GPS 100 S Manuel utilisateur

Cobra

Cobra 8500 PRO HD Manuel utilisateur

Cobra

Cobra AURA SL3 Manuel utilisateur

Cobra

Cobra 7750 PLT Instructions de montage

Cobra

Cobra 6100 Pro HD Manuel utilisateur

Cobra

Cobra GPS 1080 Manuel utilisateur

Cobra

Cobra AURA SL3 Manuel utilisateur

Cobra

Cobra 6000 PRO HD Manuel utilisateur

Cobra

Cobra NAVONE NAVONE 5000 Manuel utilisateur

Cobra

Cobra GPSM2500 Manuel utilisateur

Cobra

Cobra 5400 Pro Manuel utilisateur

Cobra

Cobra GPS 500 Manuel utilisateur

Cobra

Cobra GPS 500 Manuel utilisateur

Manuels GPS populaires d'autres marques

Raven

Raven Cruizer II Manuel

Hama

Hama 53118 Manuel utilisateur

Garmin

Garmin SOUNDER 125 Manuel utilisateur

Garmin

Garmin DEZL 580 Manuel utilisateur

Jigabot

Jigabot EX Manuel utilisateur

Pointer

Pointer Cellocator CelloTrack XT LTE Guide d'installation

Queclink

Queclink GV55LITE Manuel utilisateur

Voxson

Voxson Voxtrack GPS500 Manuel d'instructions

Garmin

Garmin ECHOMAP PLUS Manuel utilisateur

Starcom Systems

Starcom Systems Kylos Compact Manuel utilisateur

Garmin

Garmin 15 H Series Manuel utilisateur

Cellocator

Cellocator CelloTrack T Manuel utilisateur

Enfora

Enfora Mini-MT GSM2228UG001 Manuel utilisateur

Magellan

Magellan eXplorist 100 Manuel utilisateur

LTE

LTE G50B Manuel utilisateur

Garmin

Garmin DEZL OTR500 Manuel utilisateur

SkyGolf

SkyGolf SkyCaddie SG1 Manuel utilisateur

Garmin

Garmin GPSMAP 78 series Manuel utilisateur
