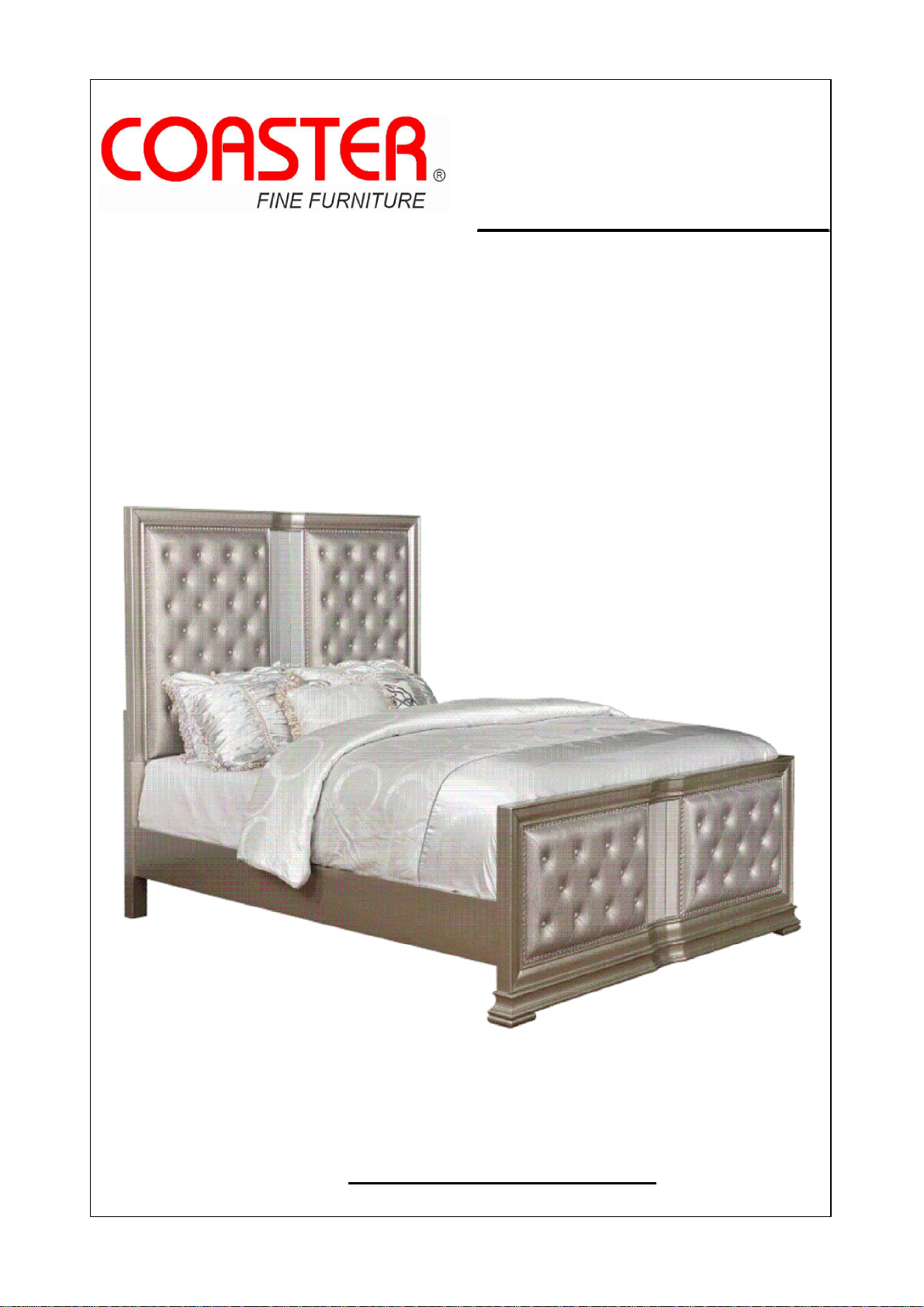

Coaster 315701F Manuel utilisateur

ASSEMBLY INSTRUCTIONS

COASTER FINE FURNITURE

315701F (B1-B3)

FULL BED

www.coastercompany.com

PAGE 1 OF 4 REVISION 0: 05/15/2018

ITEM: 315701F(B1-B3)

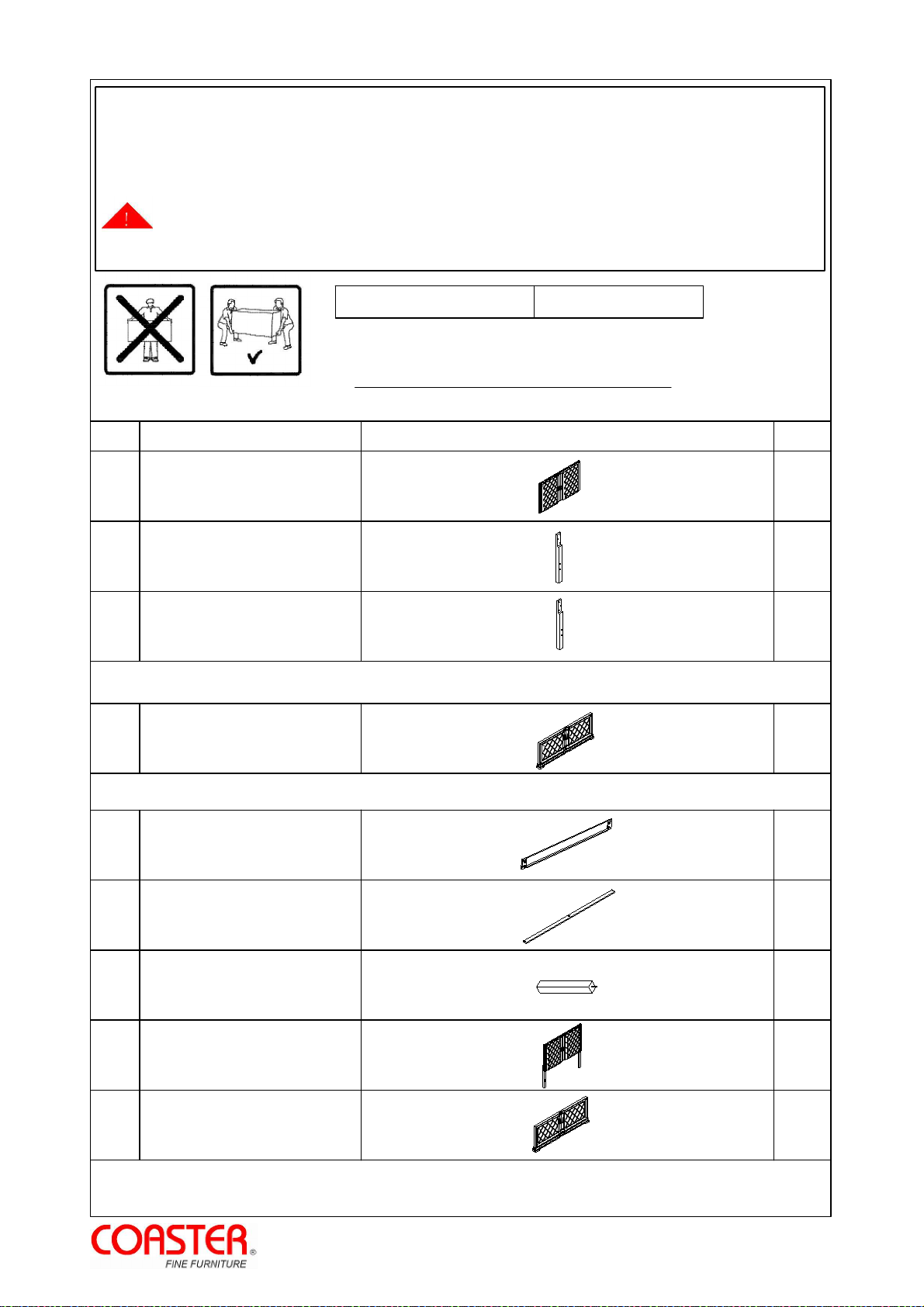

PARTS IDENTIFICATION

AHEADBOARD PANEL 1 PC

BLEFT HEADBOARD LEG 1 PC

DFOOTBOARD

EBED RAIL

FBED SLAT

CRIGHT HEADBOARD LEG 1 PC

GBED SLAT SUPPORT

WITH LEVELER

PART NAME FIGURE QTY

B2 (BOX 2)

B1(BOX 1)

B3 (BOX 3)

ASSEMBLY INSTRUCTIONS

PAGE 2 OF 4

www.coastercompany.com

315701F(B1)

FROM BOX 1

HEADBOARD COMPLETE

315701F(B2)

FROM BOX 2

FOOTBOARD

Warning!

1. Remove hardware from box and sort by size.

2. Please check to see that all hardware and parts are present prior to start of assembly.

3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.

2. This product is for home use only and not intended for commercial establishments.

1. Don't attempt to repair or modify parts that are broken or defective. Please contact the

store immediately.

ASSEMBLY TIPS:

10 MINUTES

ASSEMBLY TIME

1 PC

2 PCS

4 PCS

ITEM:

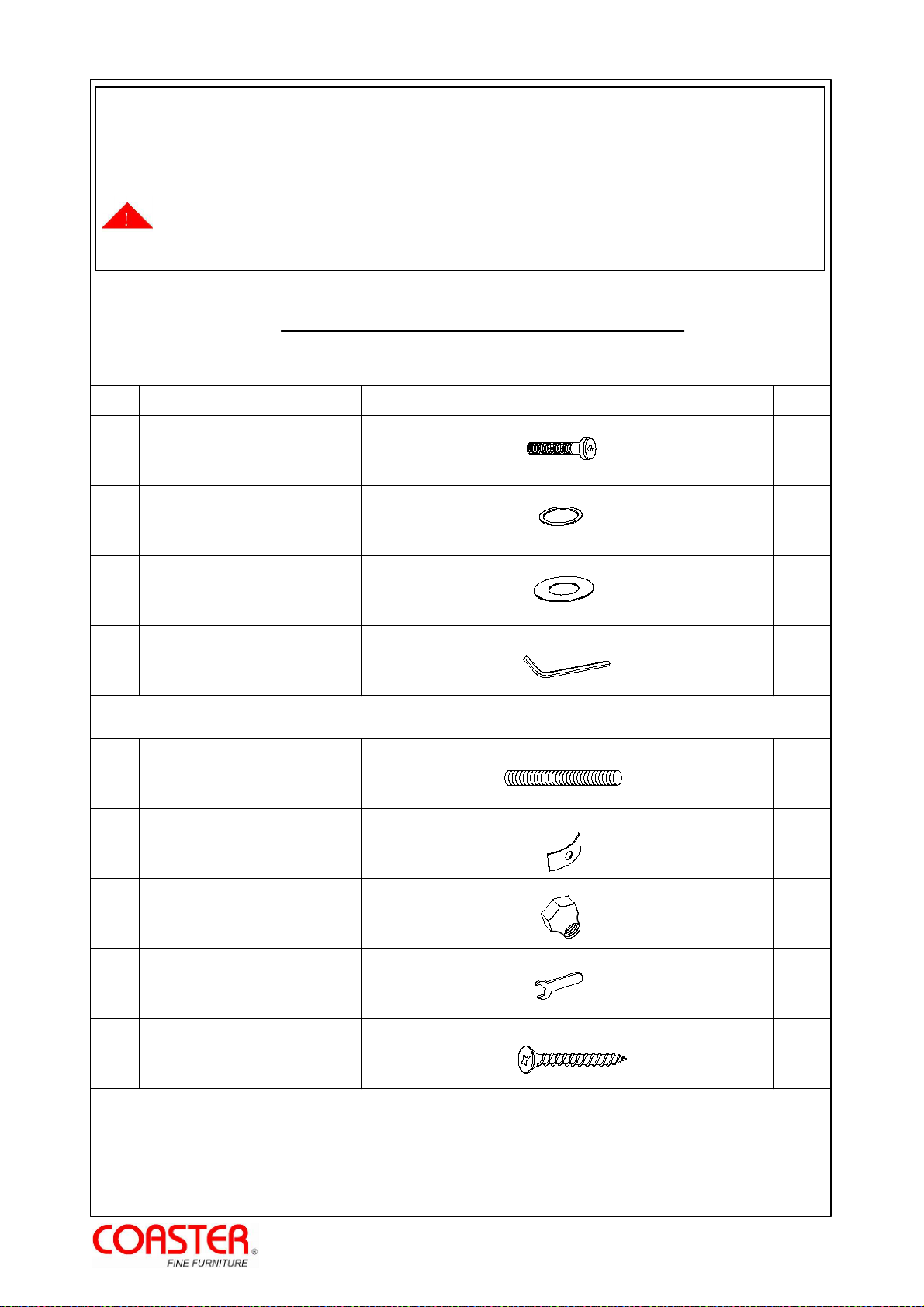

HARDWARE IDENTIFICATION

HARDWARE NAME FIGURE QTY

Z-B1(BOX 1) - Hardware pack is located in 315701F(B1)

BOLT

(5/16" x 38mm - GD)

LOCK WASHER

(5/16" - GD)

FLAT WASHER

(5/16" x 19 x 1.5mm - GD)

ALLEN WRENCH

(4mm - GD)

6 PCS

1 PC

THREADED BOLT

U-SQUARE WASHER

HEX NUT

WRENCH

SCREW

(5/16" x 75mm - GD)

(25 x 15 x 2mm - GD)

(5/16" x 17mm- GD)

(13mm - GD)

(4 x 25mm - GD)

8 PCS

1 PC

8 PCS

Z-B3 (BOX 3) - Hardware pack is located in 315701F(B3)

315701F(B1-B3) ASSEMBLY INSTRUCTIONS

Warning!

1. Remove hardware from box and sort by size.

2. Please check to see that all hardware and parts are present prior to start of assembly.

3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.

2. This product is for home use only and not intended for commercial establishments.

1. Don't attempt to repair or modify parts that are broken or defective. Please contact the

store immediately.

ASSEMBLY TIPS:

NOTE: PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY PROCESS;

HOWEVER, MANUFACTURER DOES NOT PROVIDE THIS ITEM.

PAGE 3 OF 4

www.coastercompany.com

ITEM:

COMPLETE

315701F(B1-B3) ASSEMBLY INSTRUCTIONS

www.coastercompany.com

PAGE 4 OF 4

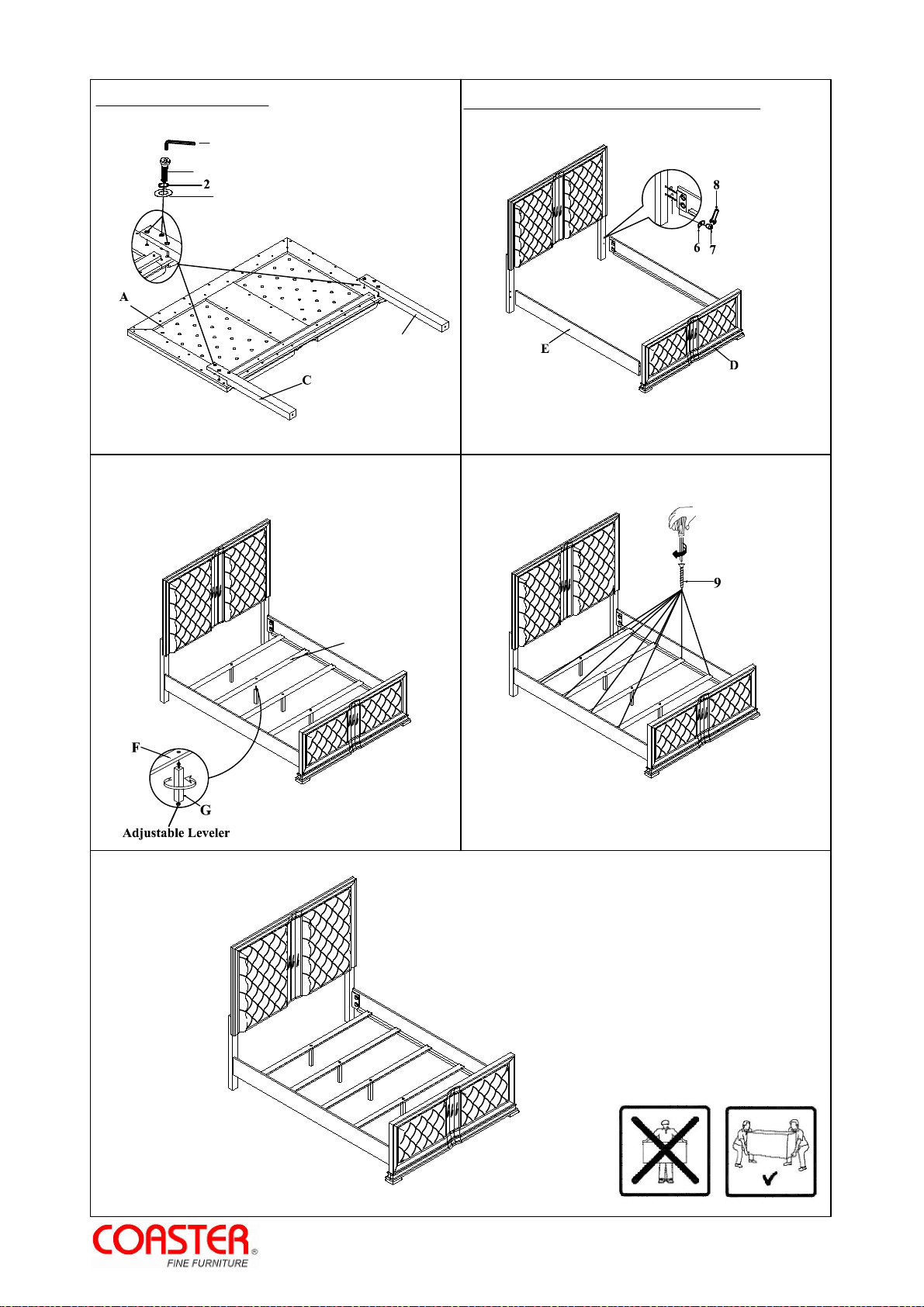

315701F (B1) - BOX 1 315701F (B1-B3) - BOX 1 TO BOX 3

STEP 1 STEP 2

STEP 3 STEP 4

STEP 5
